Chagnchun OEM Good Quality Waterproof Rangefinder Telescope Hunting Rangefinders
Chagnchun OEM Good Quality Waterproof Rangefinder Telescope Hunting Rangefinders
Item Number:X-VY230928
Precise distance measurement with laser rangefinders is essential for reliable aiming.With the mounted observation systems as well, professionals can choose from various models according to the mission purpose and task, and combine them with handheld systems.
- Field of view: ≥8°(Horizontal)×6°(Vertical)
- Minimum equivalent magnification: ≥3×
- Pupil distance: ≥30mm
- Clear imaging range: 10m～∞
- Diopter adjustment range: -5SD～+2SD
- Recognition distance: （1～3）×10-3lx≥400m
What is laser rangefinder?
A laser rangefinder, also known as a laser telemeter, is a rangefinder that uses a laser beam to determine the distance to an object.
The most common form of laser rangefinder operates on the time of flight principle by sending a laser pulse in a narrow beam towards the object and measuring the time taken by the pulse to be reflected off the target and returned to the sender.
Due to the high speed of light, this technique is not appropriate for high precision sub-millimeter measurements, where triangulation and other techniques are often used. It is a type of scannerless lidar.

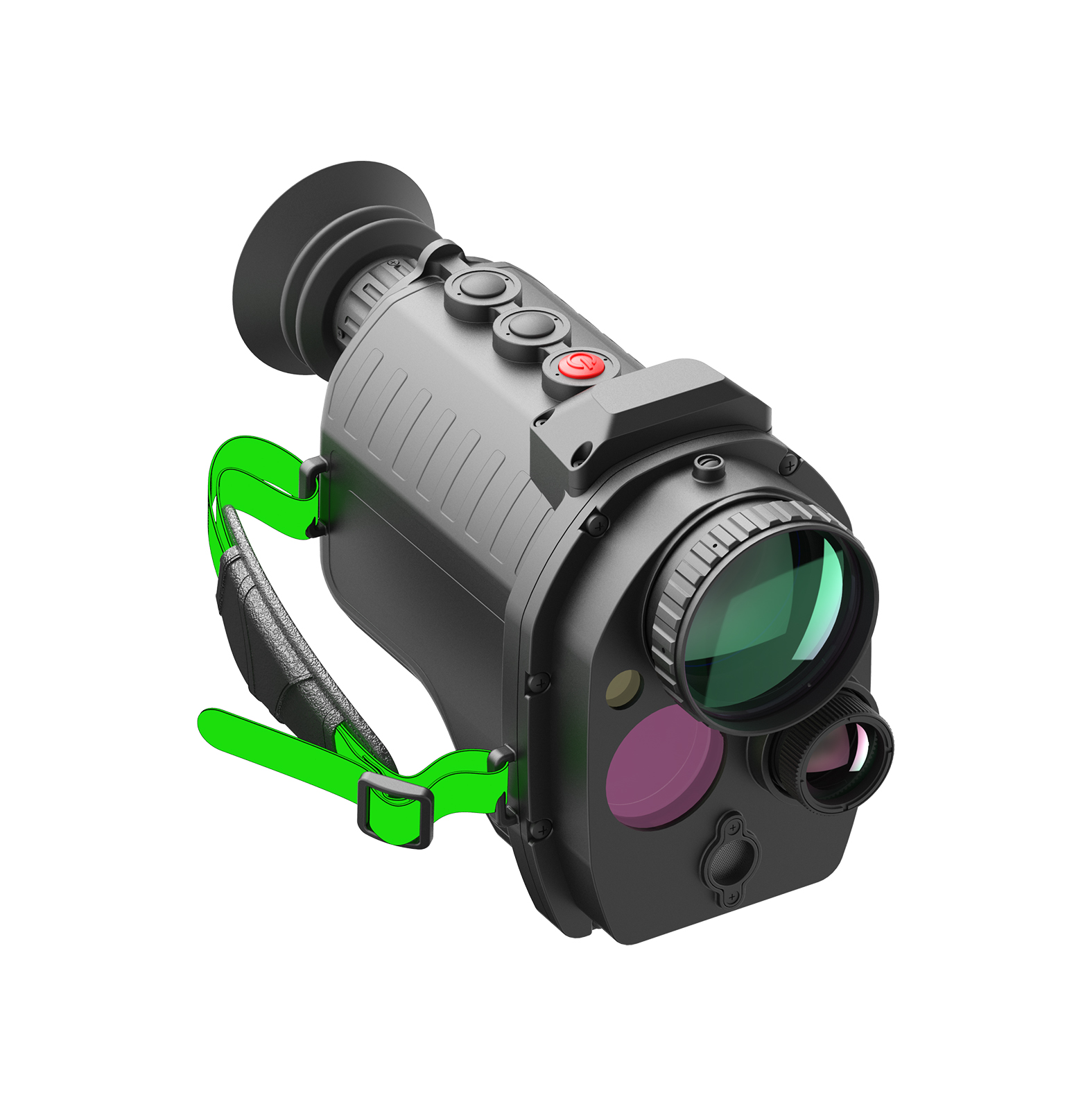

VY Optics's Laser Rangefinder pictures
Specification of Laser Sight
| Specificaitons | Data |
| Observation Distance | ≥6km |
| Ranging Distance | ≥6km |
| Small Field of View | 3° (horizontal) × 2.2° (vertical) |
| Large Field of View | 9° (horizontal) × 6.7° (vertical) |
| Magnetic Azimuth Angle Accuracy | ≤0.5 ° |
| Weight | ≤ 1.6kg (including battery) |
| Continuous Working Time | ≥ 6h (normal temperature) |
| Vision Adjustment Range | -5SD～＋2SD |
| Storage Temperature | -55℃～+70℃ |
| Working Temperature | -40℃～+55℃ |
| Waterproof Level | IP68 |
Detailed Video of VY Optics's Laser Sight Light Scope
Production workshop of VY Optoelectronics Co.,Ltd.
People also ask
- What is a laser rangefinder used for?
Laser rangefinders can be used to monitor or measure distances or object lengths. They can also provide positional locations over long distances, e.g. several kilometers, without physically touching the observed object. The laser range finders are regularly used in geodesy, sports, hunting or military.
- How does a laser rangefinder work?
Most laser rangefinders operate on the time of flight principle by sending a laser pulse in a narrow beam towards the object. A receiver then detects the reflection of that light and accurately calculates the distance based on the time it took for the light to bounce back.
Want to learn more / get a quote? Just click here to contact us now~
