VY Optoelectronics Co.,Ltd. Production capacity of YAG rod
VY Optoelectronics Co.,Ltd. can also produce YAG single crystal products, CTH: YAG, Er:YAG, Ho:YAG, Yb:YAG, Undoped YAG and so on, with the maximal diameter of 4-6 inches.
We can provide the various special crystal rods, large-size and high-concentration laser crystal slab, crystal substrates, and other special products under the requirements of the customers.

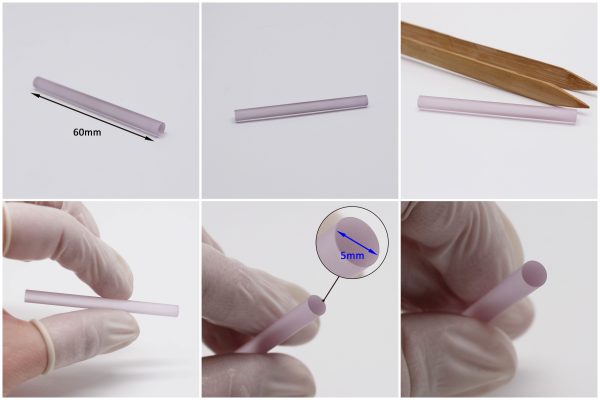

Nd:YAG Crystal Rod Lens pictures
Nd:YAG laser crystal lens Video
Specificaitons of Er:yag laser crystal lens
| Diameter | 5mm |
| Length | 60mm |
| Doping ratio | 0.8%% |
| Coating | As requested |
Nd:YAG Rods Laser Crystal Lens
Neodymium doped Yttrium Aluminum Garnet (Nd:YAG) is the most commonly employed solid state lasing medium for material processing applications.
Nd:YAG has relatively good optical absorption and conversion efficiency, low lasing threshold and good thermal dissipation for high power operation.
Capabilities of YAG crystal VY Optoelectronics Co.,Ltd can produce
- Rod size: 3- 30mm in diameter and 1 – 300mm in length
- Slabs: （3-50）mm Length *（3-8）mm Width *（30-200）mm Height
- Nd dopant concentration : 0.3% – 1.1%
- Polishing
- AR-coating or/and dichroic coating
Advantage of Nd:YAG Crystal
Due to the cubic symmetry and high quality, Nd:YAG is easy to operate with TEMoo mode
- Nd:YAG can be Q-switched with Cr4+:YAG directly
- Nd:YAG can produce blue laser with the frequency-doubling of 946nm
- Nd:YAG can be operated in a very high power laser up to kW level
VY Optoelectronics Co.,Ltd. customized yag rod lens of laser-rod-cooling jacket and laser rod bonding in different materials.
