In Stock Eyepiece
Please contact us on availability and pricing.

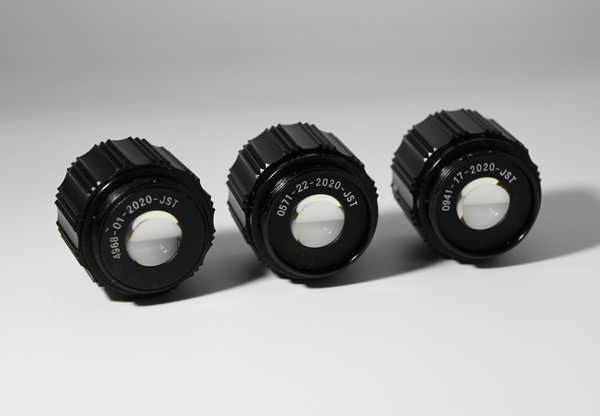

Eyepiece
Eyepiece Series
| Model No | Focal length | Magnification | Field of view | Design waveband | Exit pupil diameter | Exit pupil distance | Visual accommodation | Matching display size | Mechanical Mount |
| VY-WEYE-16 | 16 mm | 15.6X | 34.4° | 0.4～0.7μm | φ6mm | 25mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-20 | 20 mm | 12.5X | 27.8° | 0.4～0.7μm | φ6mm | 45mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-60 | 60 mm | 4.17X | 9.44° | 0.4～0.7μm | φ24mm | 20mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-25 | 25 mm | 10X | 40° | 0.4～0.7μm | φ7mm | 40mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-15 | 15 mm | 16.67X | 45.89° | 0.4～0.7μm | φ6mm | 15mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-1501 | 15 mm | 16.67X | 36.55° | 0.4～0.7μm | φ5mm | 30mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-18 | 18mm | 14X | 31.1° | 0.4～0.7μm | φ5mm | 35mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-1801 | 18mm | 14X | 31.1° | 0.4～0.7μm | φ6mm | 20mm | -5D～+5D | 0.39inch | customizable |
| VY-WEYE-945 | 94.5mm | 2.65X | 7.7° | 0.4～0.7μm | φ20mm | 40mm | -5D～+5D | 0.39inch | customizable |
Contact Us To Customize Your Solution!
