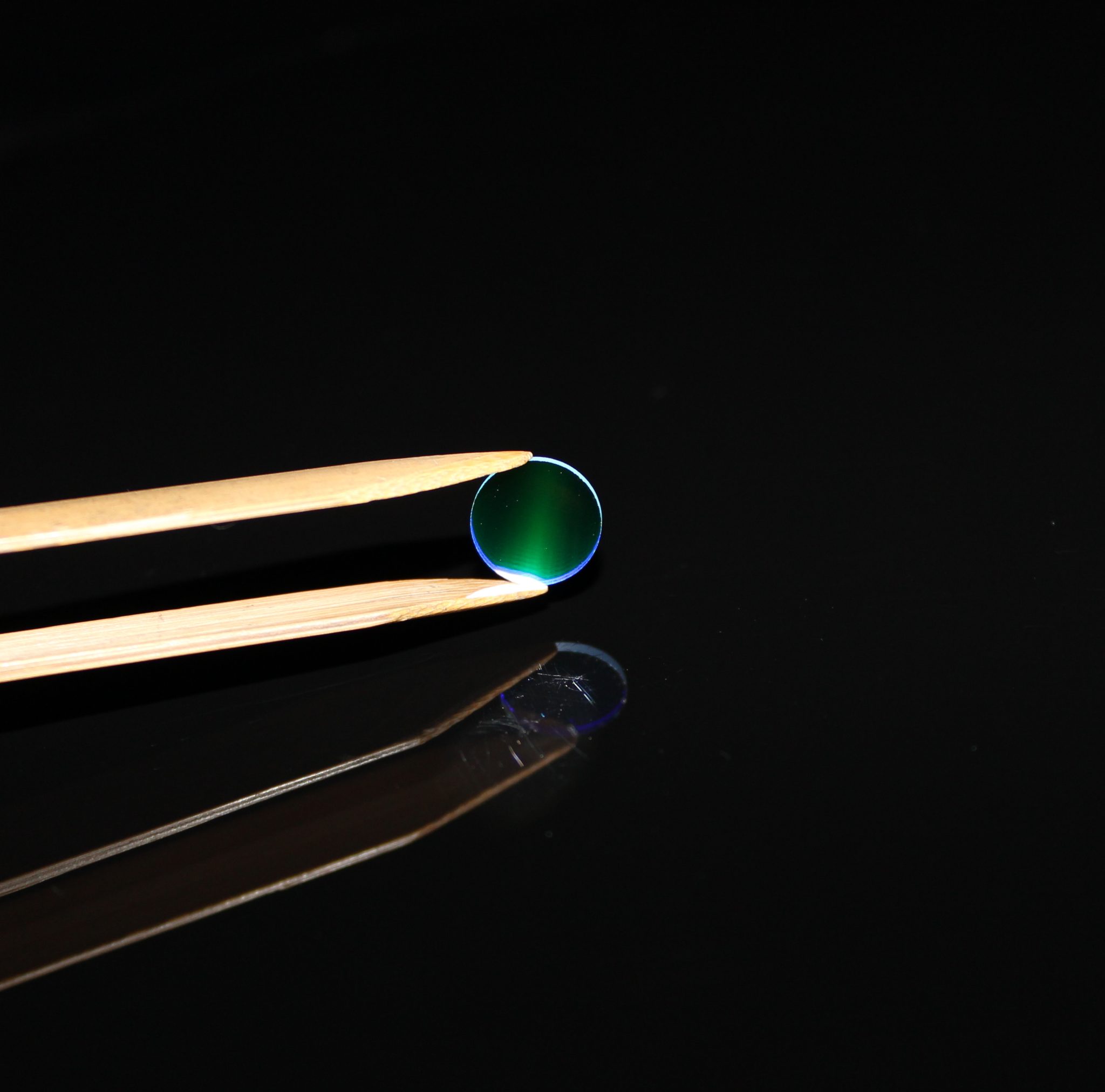

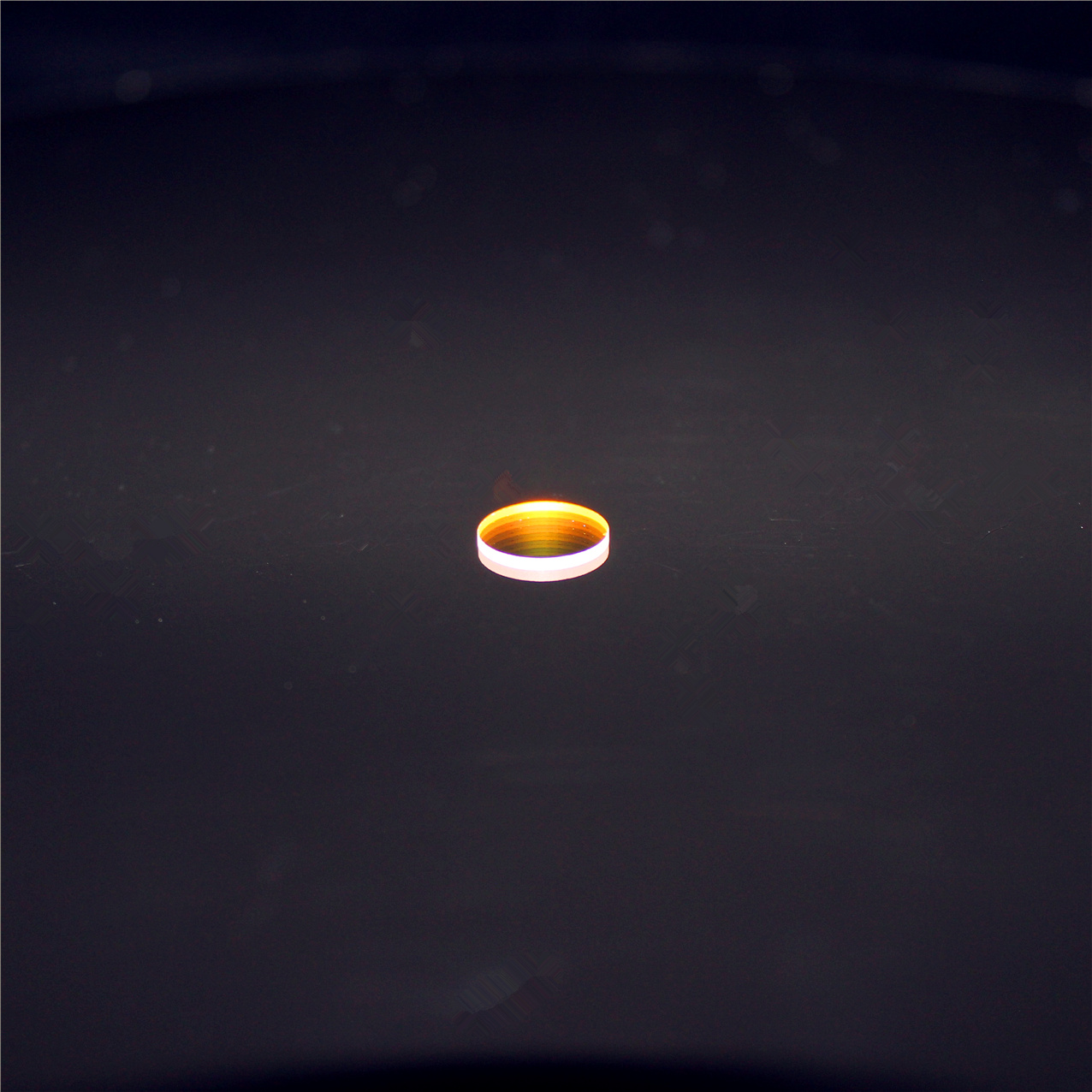

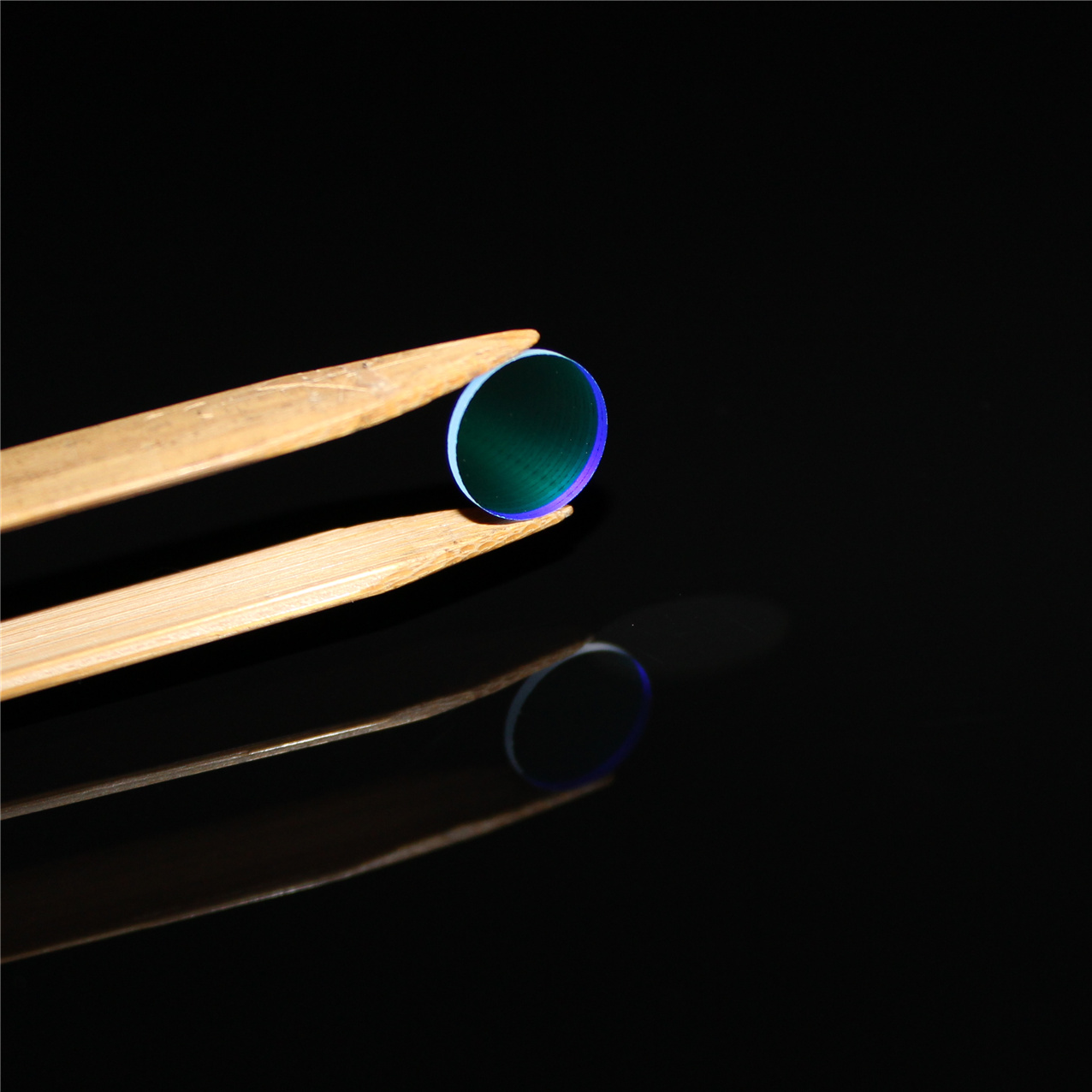

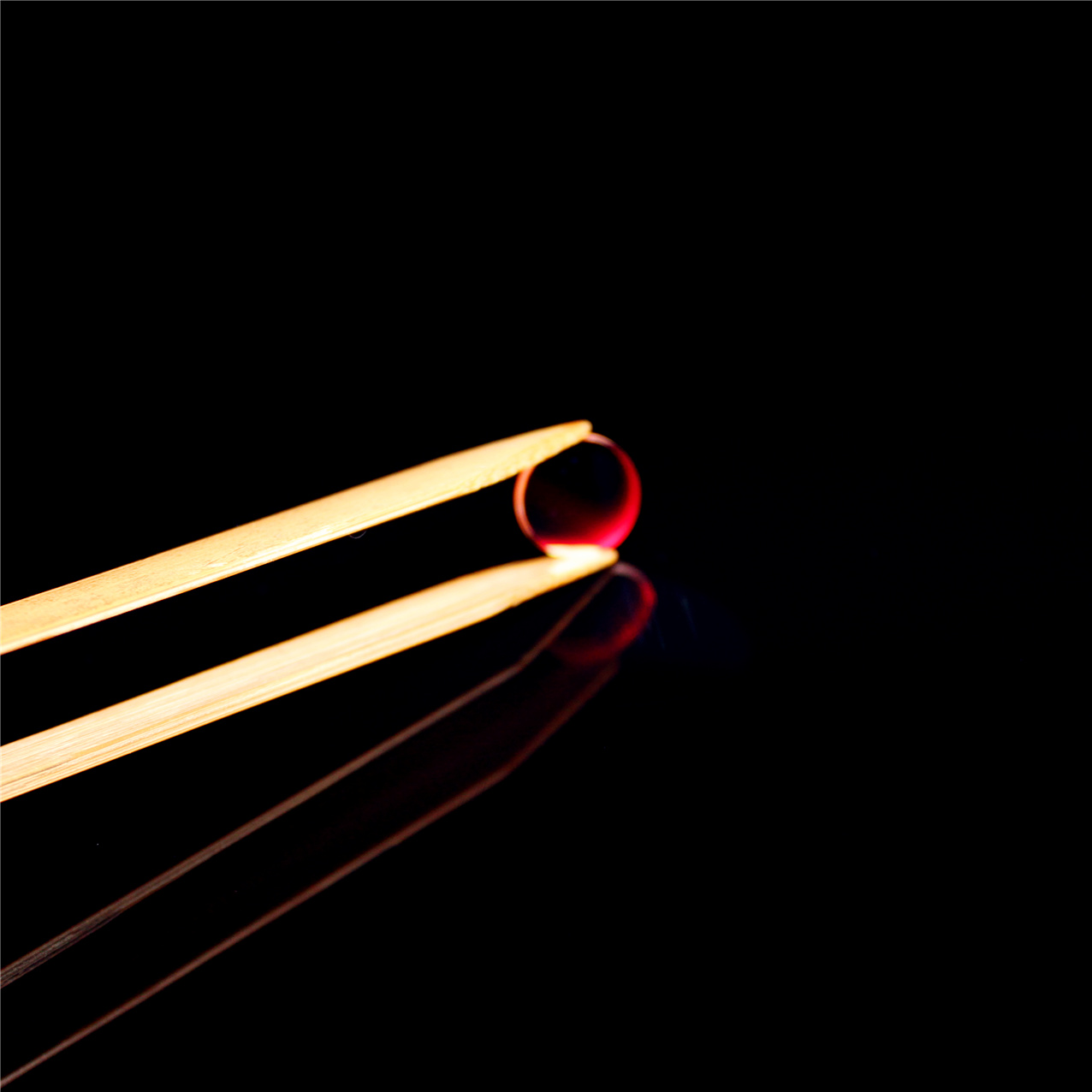

360nm Bandpass Filter

Dimension: M37.0*0.75mm
Thickness: 1.10mm
CWL: 808nm+/-5nm
FWHM: 20nm
Transmission: 88%

    About the bandpass filters

    Filters are designed by their manufacturers to transmit or absorb different wavelengths of light. And they are widely used in scientific experiments and industrial applications where that change is necessary.
    A Band Pass Filter is designed to pass signals only in a certain band of frequencies while rejecting all signals outside this band. Unlike the low pass filter which only get through signals of a low frequency range, a Band Pass Filters passes signals within a certain "band" or "spread" of frequencies without distorting the input signal or introducing extra noise.
    In a receiver, a bandpass filter allows signals within a selected range of frequencies to be heard or decoded, while preventing signals at unwanted frequencies from getting through. A bandpass filter also optimizes the signal-to-noise ratio and sensitivity of a receiver.




How do bandpass filters work?

Unlike the low pass filter which only pass signals of a low frequency range or the high pass filter which pass signals of a higher frequency range, a Band Pass Filters passes signals within a certain “band” or “spread” of frequencies without distorting the input signal or introducing extra noise.

Why bandpass filter is used?

Bandpass filters are widely used in wireless transmitters and receivers. The main function of such a filter in a transmitter is to limit the bandwidth of the output signal to the band allocated for the transmission. This prevents the transmitter from interfering with other stations.

Bandpass filter from VY

    VY Optoelectronics Co.,Ltd. can supply a full range of filter. They are short pass Filter, long pass Filter, band pass Filter, ultraviole Filtert, infrared Filter, heat absorbing Filter, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
