Changchun customized size optical glass diameter 380mm half ball lens

Item Number:X-P23D10X9501

Half-Ball lenses are a kind of convex lenses in hemispherical shape that made of optical glass with good transparency and refractive parameters. It is usually made by cutting Ball Lenses in half.

  • Material: BK7, sapphire, FS, Si, Ge, ZnS and so on
  • Diameter: 0.50mm-150mm
  • Tolerance: 0.001-0.003
  • Sphericity: 0.001
  • Surface Quality: 20-10 or better
  • Coating: Optional

What is half ball lens?

Half-Ball lenses are a kind of convex lenses in hemispherical shape that made of optical glass with good transparency and refractive parameters. It is usually made by cutting Ball Lenses in half.

Comparing to ball lenses, they are more compact and easier to mount.


Application of glass half ball lens

Optical glass half ball lenses are as beam collimator for optical fibers, emitters and detectors. Other applications include endoscope, bar-code scanning and laser measurement etc..

Main Specifications of Half ball lenses

 Material: BK7, B270, Borosillicate glass, UV Fused Silica or any other glass crystal material, plastic and SI, Ge and other infrared material are also available

  •  Tolerance on half Ball Lens Diameter: +/- 0.001mm
  •  Toleranace on half ball lens Thickness: +/- 0.01mm
  •  Half Ball Lens Roundness: < 0.001mm
  •  Surface Quality of Half Ball lens: 20/10 scratch and dig or better
  •  Half Ball Lens Cleaning: Class 100 clean room
  •  Half Ball Lens Packing: in Waffle plastic trays
  •  Each Half Ball Lens is checked: 100% under microscope before Delivery.
  •  All Half Ball Lenses are cleaned and packed: in Class 100 clean room area.

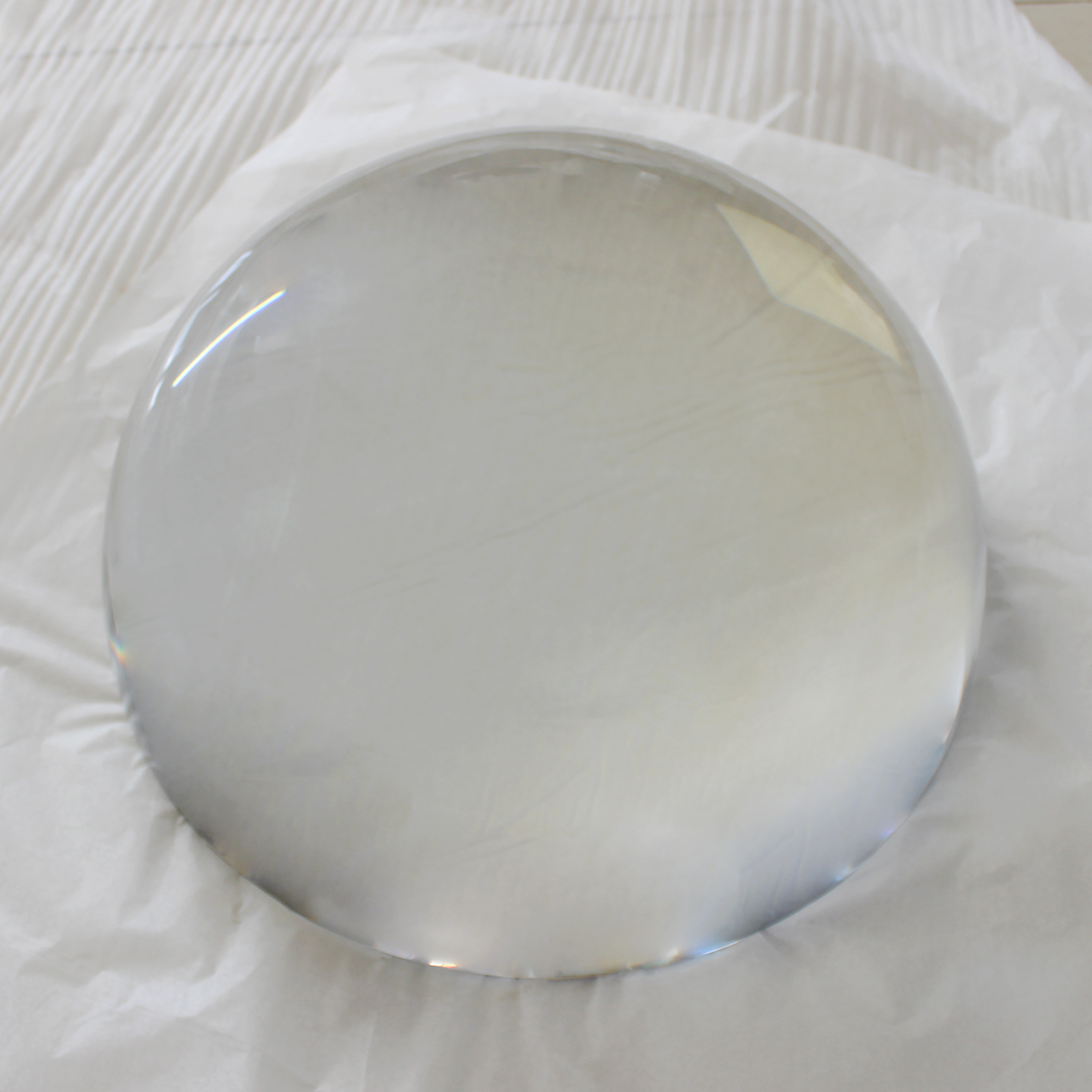

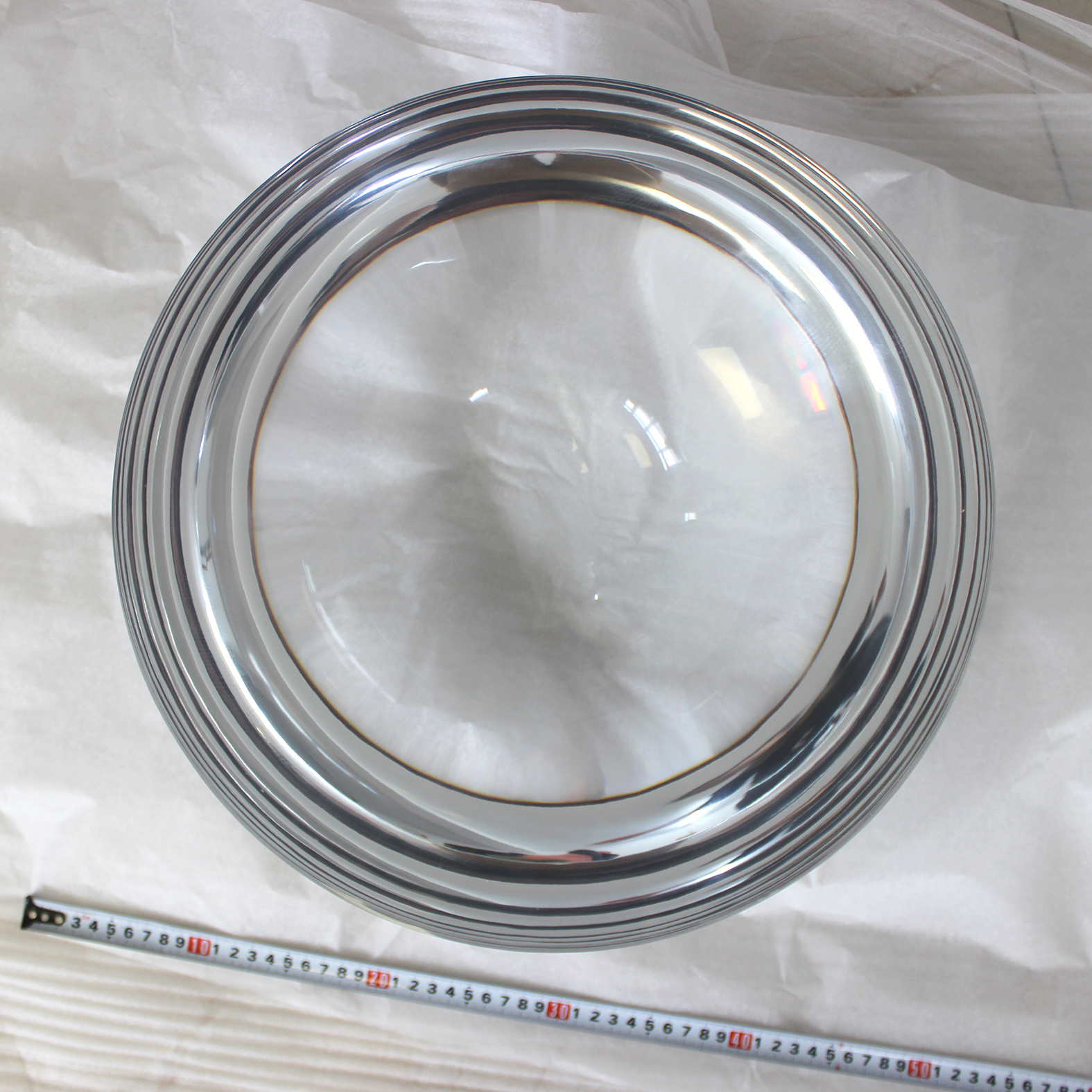

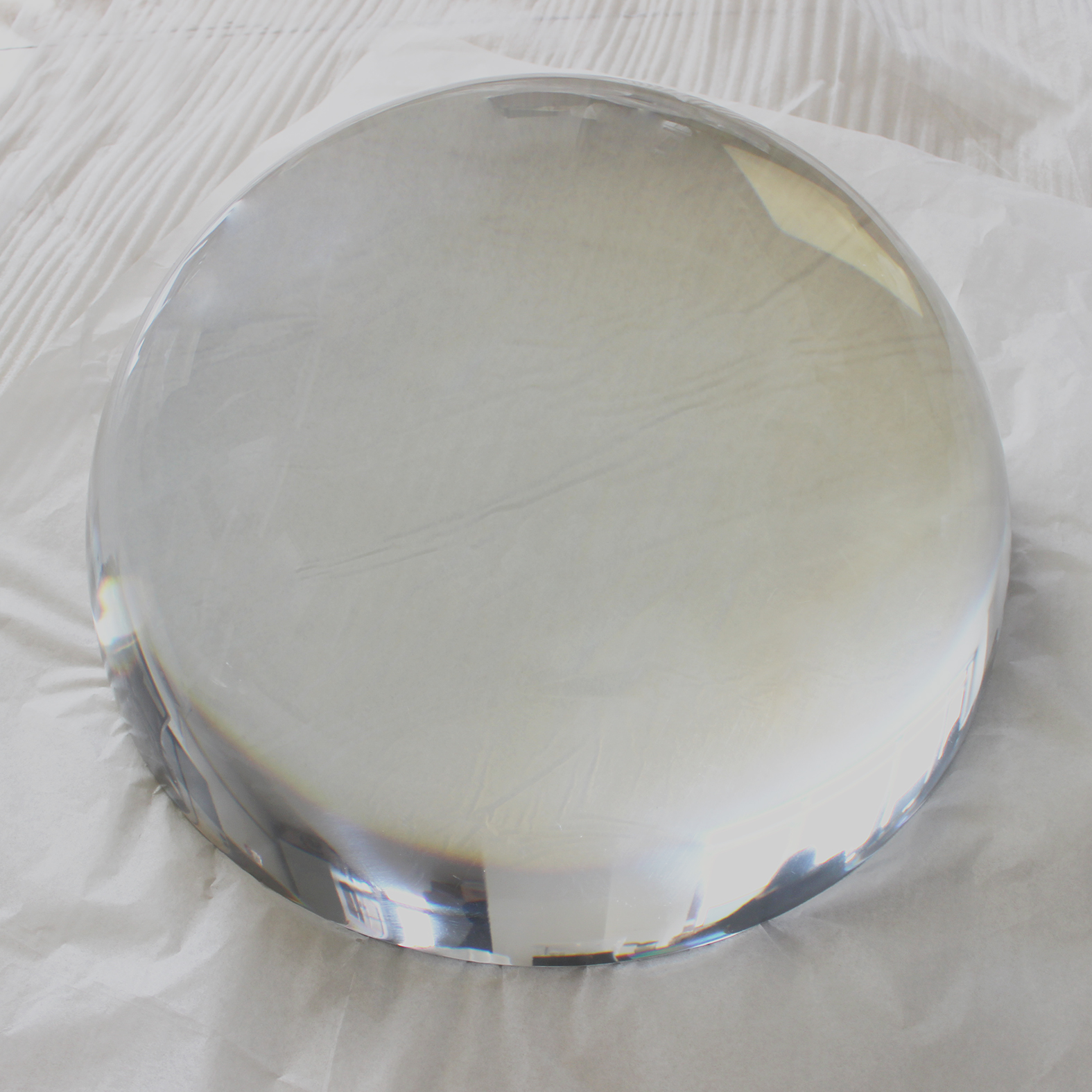

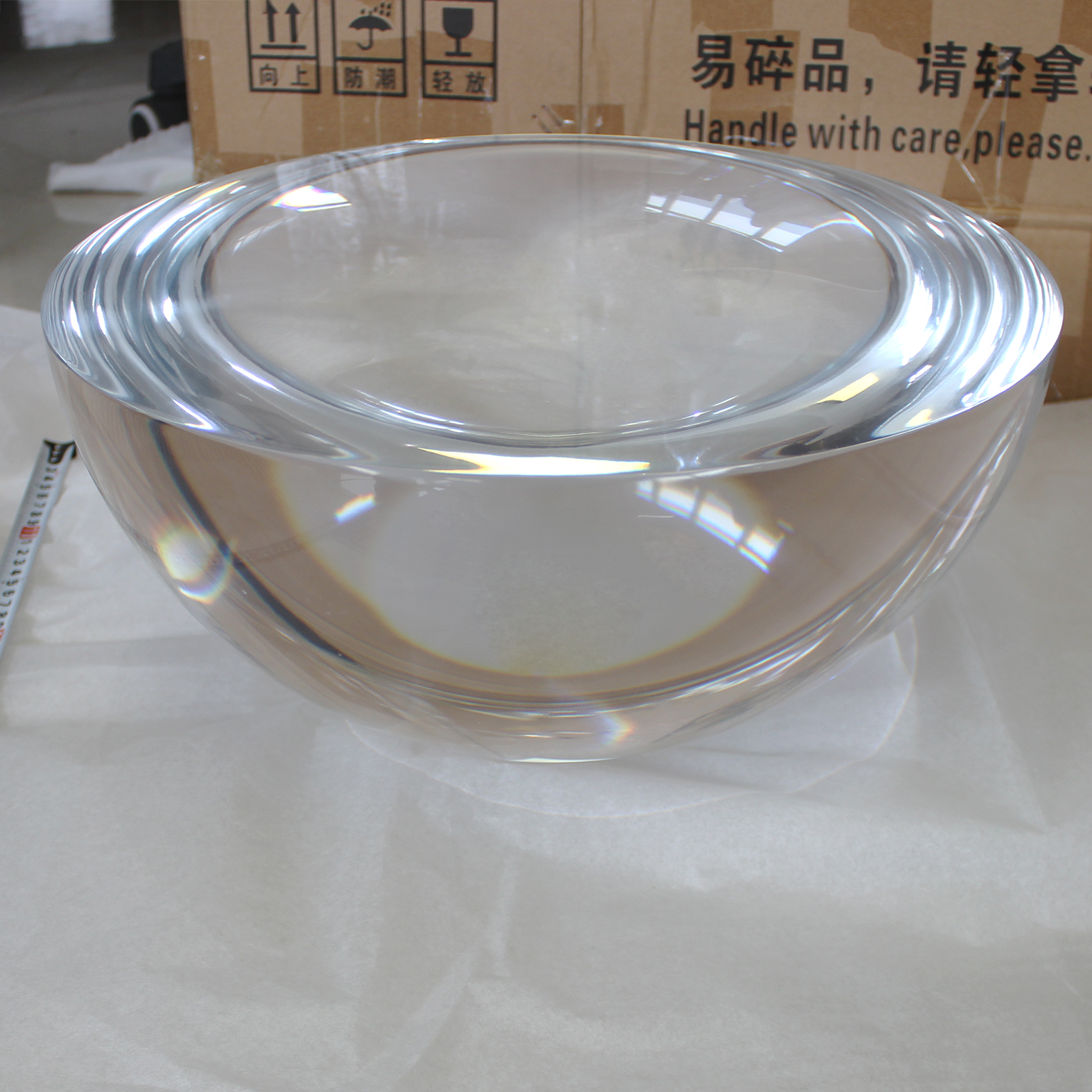

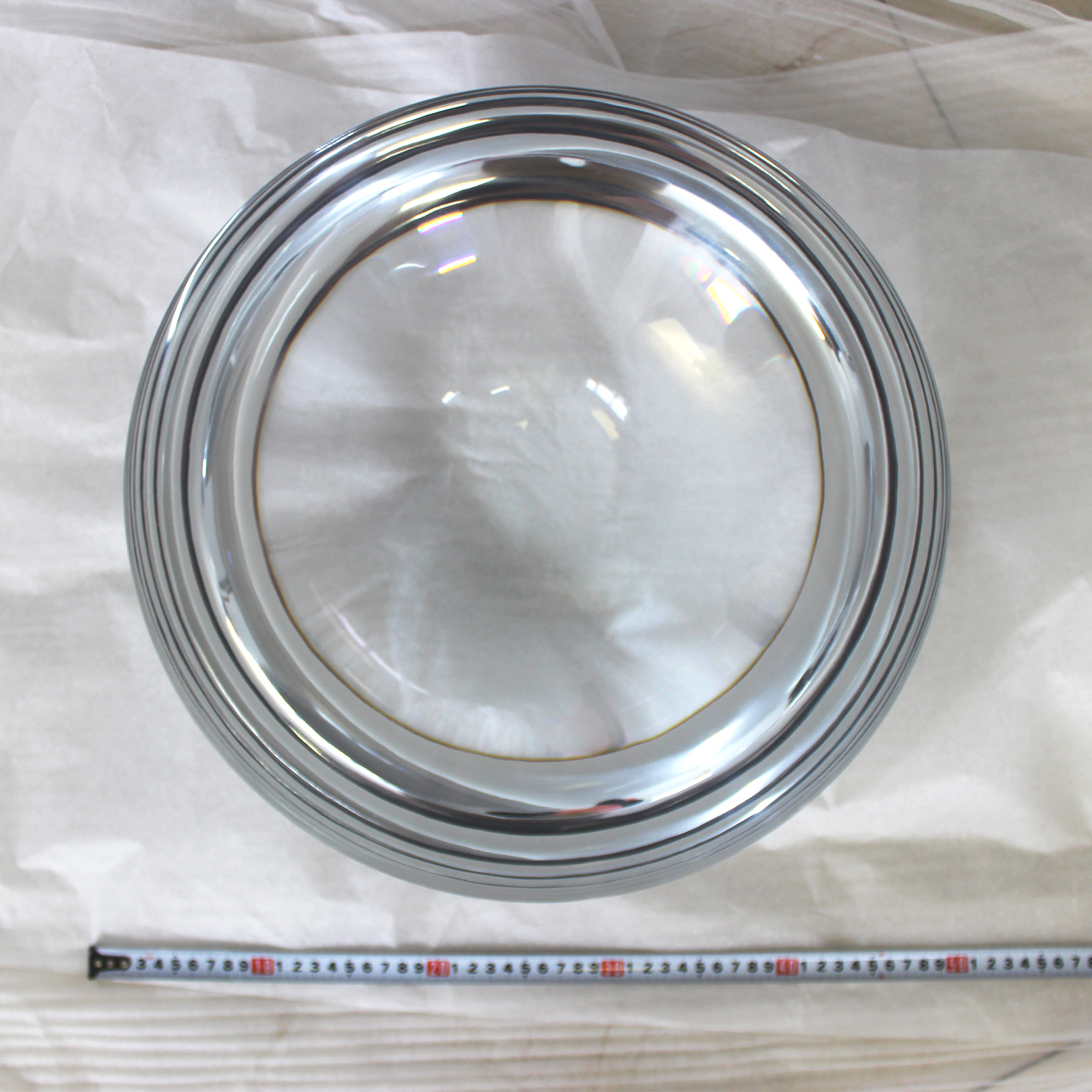

Pictures of polished half ball lens



Specifications of optical crystal half ball lens

Material Glass

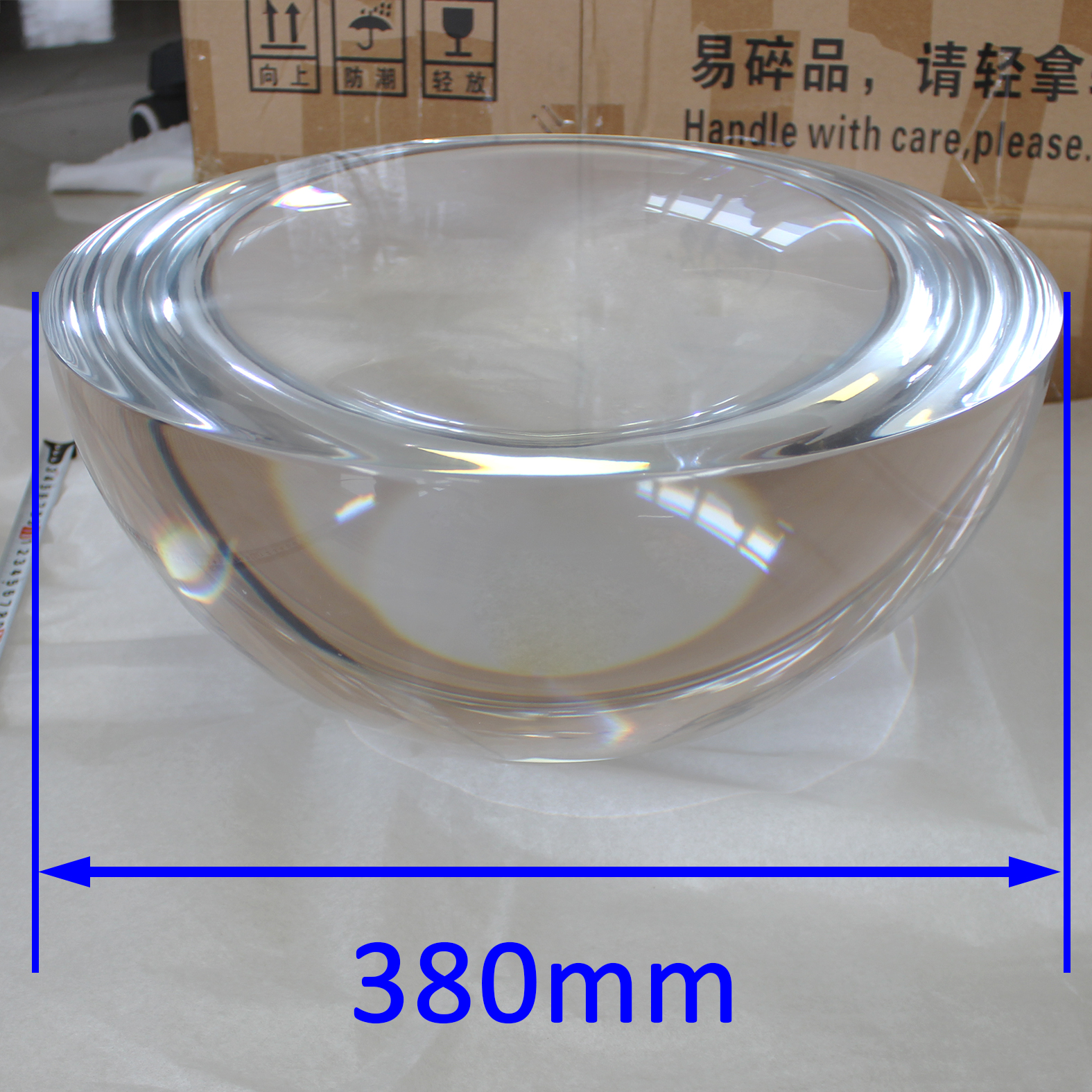

Diameter  380mm
Surface Polished bright


Video display of optical glass half ball lenses



Drawing of Half ball lens and ball lens


Why to Choose VY Optoelectronics Co.,Ltd.?

  • Low cost, high volume - Yield as big as 1000,000pcs/month. Un-beatable price.
  • Any optical glass/crystal/plastic/infrared glass you can imagin - BK7, B270, Borosillicate glass, UV Fused Silica, PYREX, PMMA, Si, Ge…
  • Freedom for Designer to Optimize System
  • As big as 150mm diameter(D) lens Available, and a lot of different size lens on shelf for quick delivery for the diameter of 2~20mm
  • Customized Height(T) of Lens - from ball lens to very thin lens, any height can be achieved
  • Unique Technology - High efficiency on production / Free of dirties and contamination after polishing, no additional cleaning needed.
  • Quick Delivery and Low Cost for Samples - It's not moulded, so no mould investment.
  • ISO certificated company
