What is bandpass filter?

A optical band pass filter is defined as a device that allows frequencies within a specific frequency range and rejects  frequencies outside that range.

What is a glass bandpass filter used for?

Optical Glass Bandpass filters are optical filters that only let a selected range of frequencies through. Bandpass filters are used for many optical applications in telecommunications,
satellite communications and data transfer for light modulation.

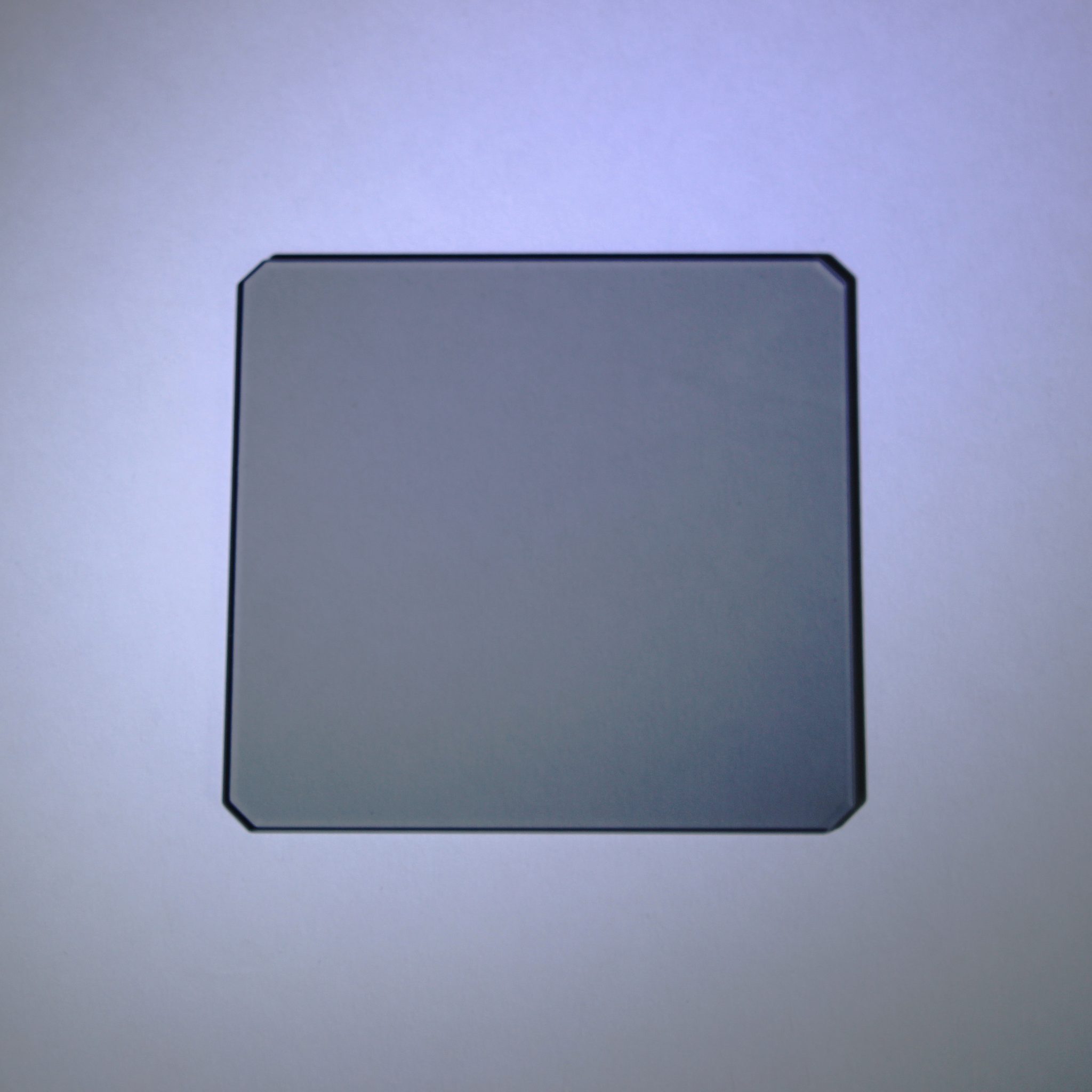

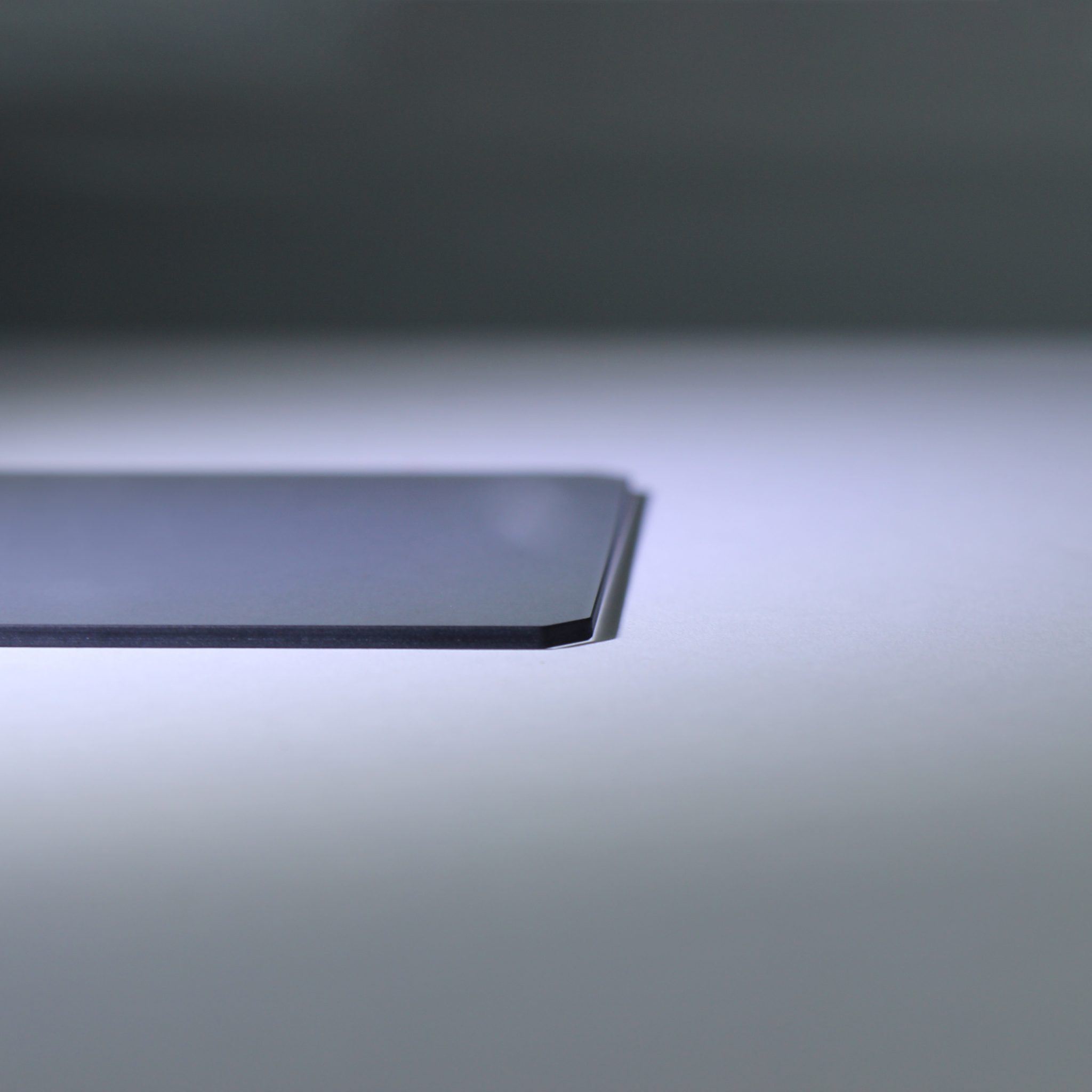

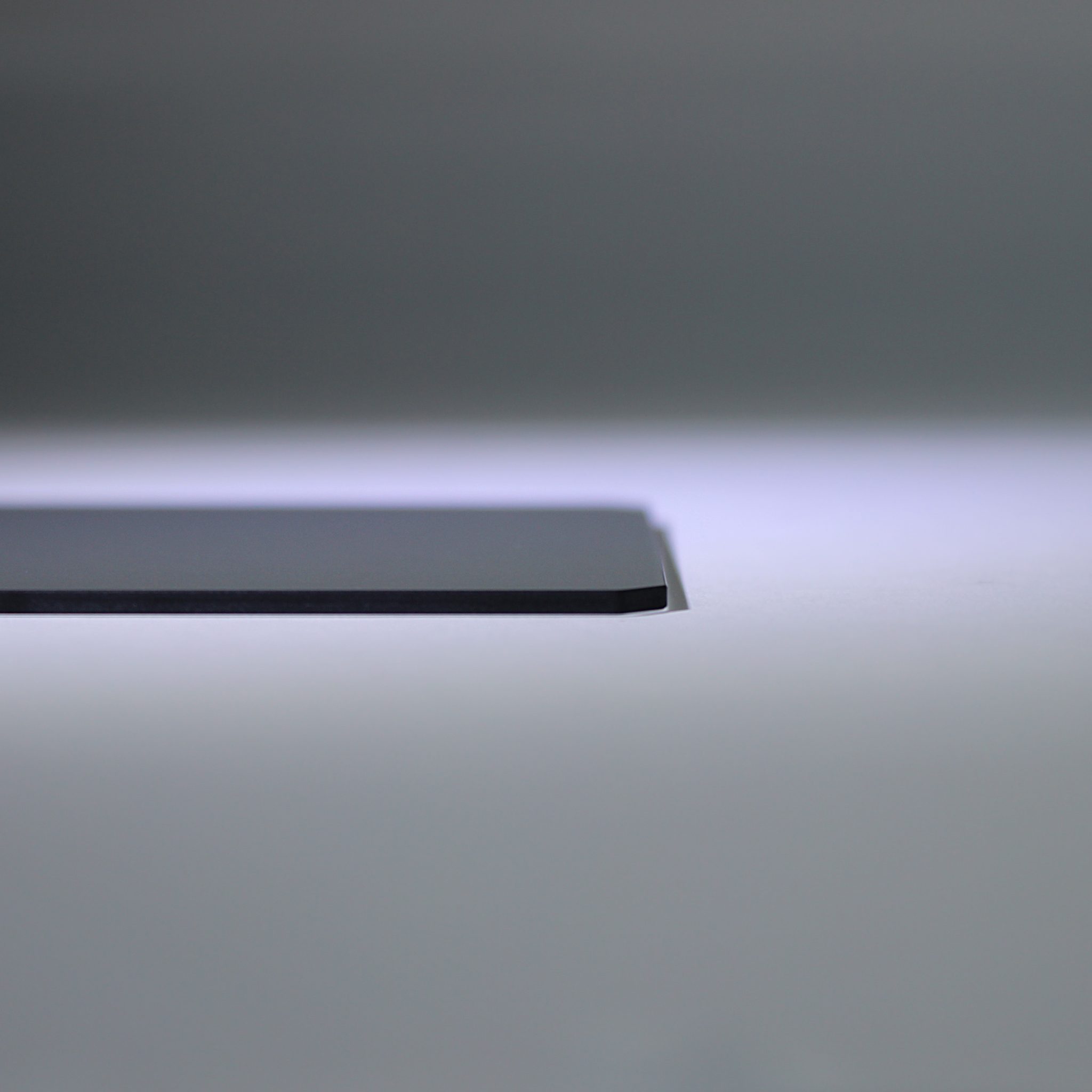

VY Optics ND Glass Filter photo display

Specifications of optical glass NIR triple bandpass filters

Term of Optical Glass Filter

CENTRAL WAVELENGTH

Center Wavelength (CWL), used in defining bandpass filters, describes the midpoint of spectral bandwidth over which the filter transmits. Traditional Coated Optical Filters tend to achieve a maximum transmission near the center wavelength, whereas Hard Coated Optical Filters tend to have a fairly flat transmission profile over the spectral bandwidth.

BANDWIDTH

Bandwidth is a wavelength range used to denote a specific part of the spectrum that passes incident energy through filters.
Bandwidth is also referred to as FWHM (Figure 1).

FIGURE 1: ILLUSTRATION OF CENTER WAVELENGTH AND FULL WIDTH AT HALF MAXIMUM

FULL WIDTH-HALF MAXIMUM

Full Width-Half Maximum (FWHM) describes the spectral bandwidth over which a bandpass filter will transmit. The upper and lower limit of that bandwidth is defined at the wavelengths where the filter achieves 50% of the maximum transmission. For example, if the maximum transmission of the filter is 90%, the wavelengths at which the filter achieves 45% transmission will define the upper and lower limits of the FWHM. FWHM’s of 10nm or less are considered narrow band and often used for laser clean-up and chemical detection. FWHM’s of 25 – 50nm are often used in machine vision applications; FHWM’s of more than 50nm are considered broadband and typically used in fluorescence microscopy applications.

BLOCKING RANGE

Blocking Range is wavelength interval used to denote a spectral region of energy that is attenuated by the filter (Figure 2).
The degree of its blocking is typically specified in terms of optical density.

FIGURE 2: ILLUSTRATION OF BLOCKING RANGE

SLOPE

Slope is a specification often defined on edge filters, such as short pass or long pass filters, to describe the bandwidth over which the filter transitions from high blocking to high transmission. Given as the percent of the cut-wavelength, slope can be specified from a variety of starting and end points.

OPTICAL DENSITY

Optical Density (FIGURE 3) describes the amount of energy blocked or rejected by a filter. A high optical density value indicates low transmission, and low optical density indicates high transmission. Optical densities of 6 or greater are used for extreme blocking needs such as Raman spectroscopy or fluorescence microscopy. Optical densities of 3.0 – 4.0 are ideal for laser separation and clean-up, machine vision, and chemical detection, while optical densities of 2.0 or less are ideal for color sorting and separating spectral orders.

FIGURE 3: ILLUSTRATION OF OPTICAL DENSITY

CUT-ON WAVELENGTH

Cut-On Wavelength is a term used to denote the wavelength at which the transmission increases to 50% throughput in a long pass filter.
Cut-on wavelength is indicated by λ cut-on in Figure 4.

FIGURE 4: ILLUSTRATION OF CUT-ON WAVELENGTH

CUT-OFF WAVELENGTH

Cut-Off Wavelength is a term used to denote the wavelength at which the transmission decreases to 50% throughput in a short pass filter.
Cut-off wavelength is indicated by λ cut-off in Figure 5.

FIGURE 5: ILLUSTRATION OF CUT-OFF WAVELENGTH

VY Optoelectronics Co.,Ltd. can supply a full range of filter.

They are short pass Filter, long pass Filter, band pass Filter, ultraviolet Filter, infrared Filter, heat absorbing Filter, and color temperature conversion filters.

We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
