China Optical Grade Lithium Tantalate (LiTaO3) Crystal Single Crystal Boule Lens
China Optical Grade Lithium Tantalate (LiTaO3) Crystal Single Crystal Boule Lens
Item No: P22L1Y6901
Lithium tantalate (LiTaO3) is a perovskite which possesses unique optical, piezoelectric and pyroelectric properties which make it valuable for nonlinear optics, passive infrared sensorssuch as motion detectors, terahertz generation and detection, surface acoustic waveapplications, cell phones and possibly pyroelectric nuclear fusion. Considerable information is available from commercial sources about this salt.
- Material: LT, LN etc..
- Dimension: 5mm-460mm
- Thickness: 0.1mm-30mm
- Surface Accuracy: lambda/8
- Surface Quality: 20/10
- Tolerance: +/-0.01mm
- Parallelism: 30″
Quote Now
Properties and applications of lithium tantalate litao3 crystal
Lithium Tantalate is one of the most versatile materials. LiTaO3 has numerous applications including electro-optical modulators, pyroelectric detectors, optical waveguide and SAW substrates and piezoelectric transducers due to unique electro-optical, pyroelectric, piezoelectric and acoustic properties, a wide transparency range, and a high optical damage threshold combined with good chemical and mechanical stability.
- Piezoelectric crystal used for SAW devices production
Under certain boundary condition, acoustic wave propagates through the substrate concentrated only on its surface. - Pyroelectric Sensor device material as applying its Pyro-electric properties
Low absorption optical properties (Optical grade LiTaO3) - Optical electronics crystal material used for; Optical modulator, SHG devices and more
LiNbO3 Crystal and LiTaO3 Crystal
Lithium Niobate (LN) and Lithium Tantalate (LT) wafers are mainly used in optic devices and telecommunication equipment,particularly for Surface Acoustic Wave filtering (SAW Filter).
With their excellent chemical and mechanical coupling, the demand is only going up,especially due to ongoing expansion of next generation communication methods.
The ability of VY Optics to produce litao3 material
VY’s LiTaO3 lithium tantalate crystal has >99.99% purity. Find high-quality lithium tantalate bulk crystals, wafers and substrates. LiTaO3 crystal boule is grown by Czochralski method. Max diameter reach 4inch.

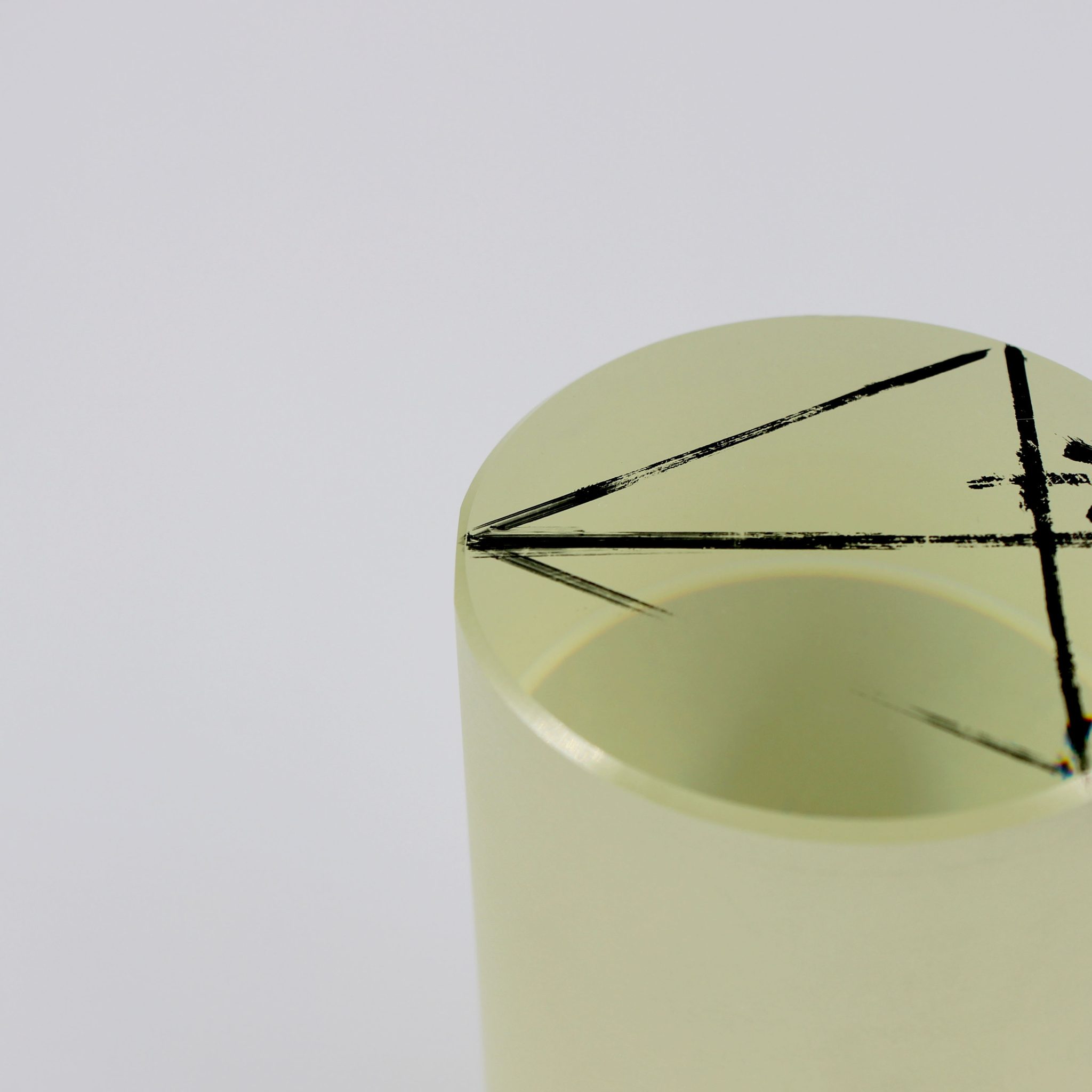

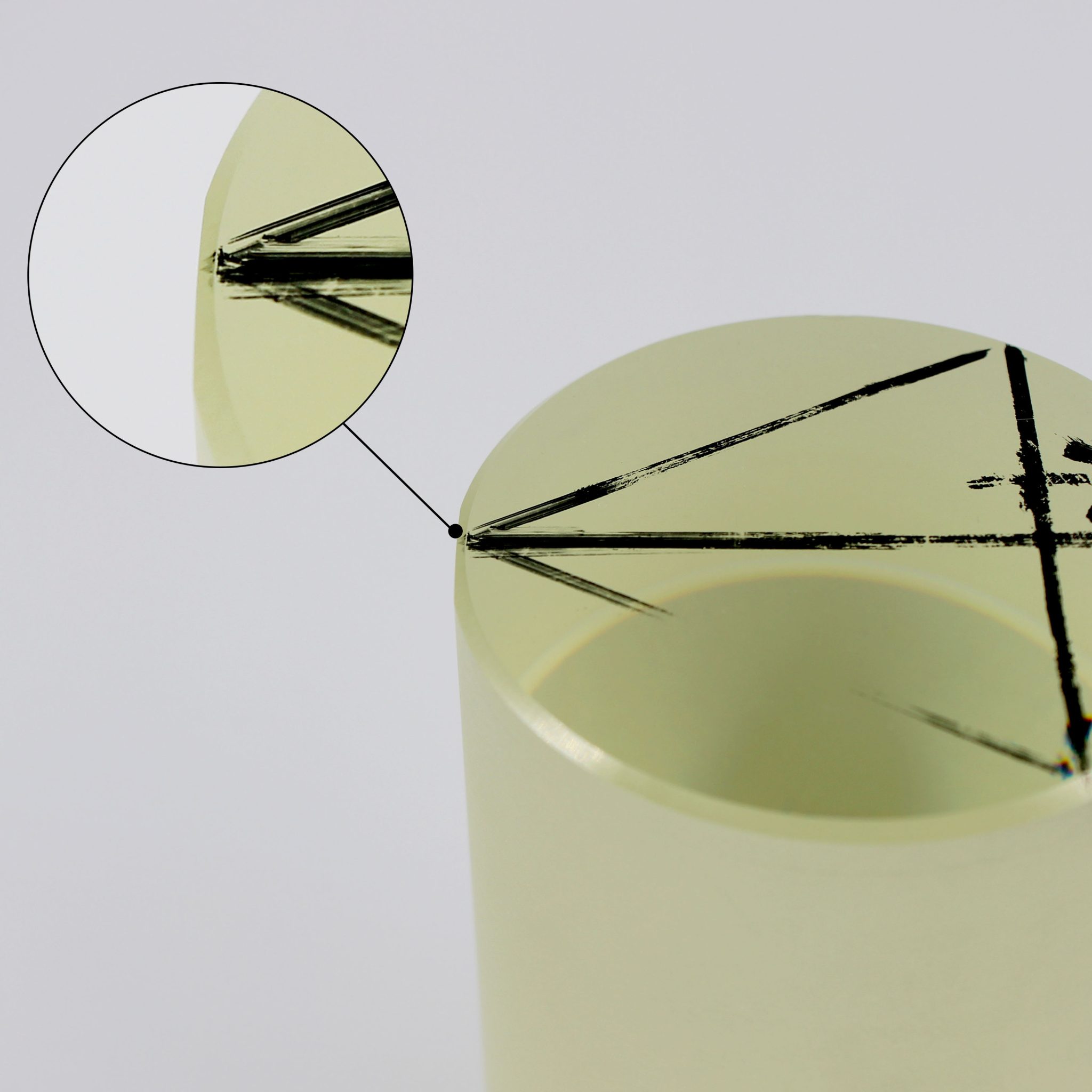

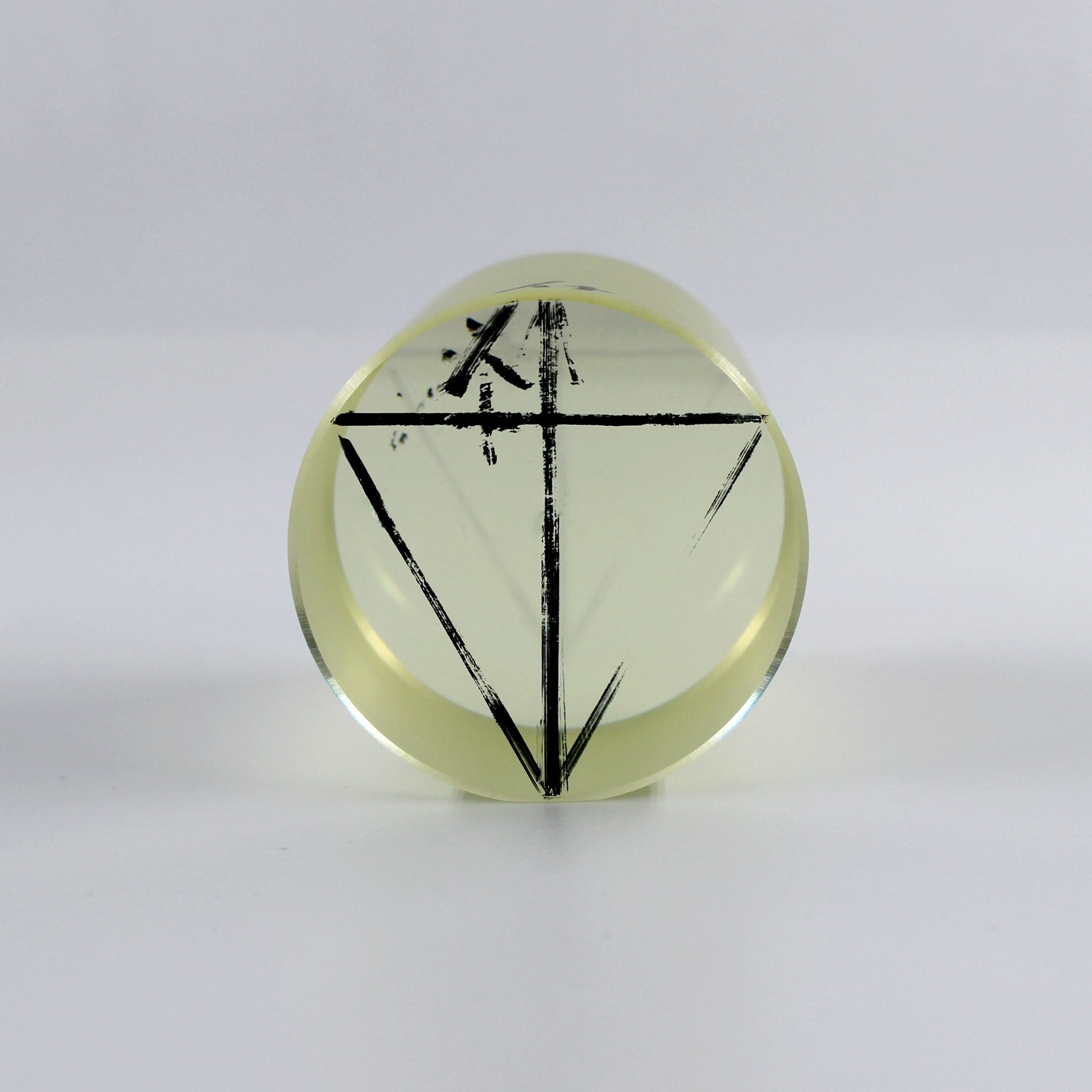

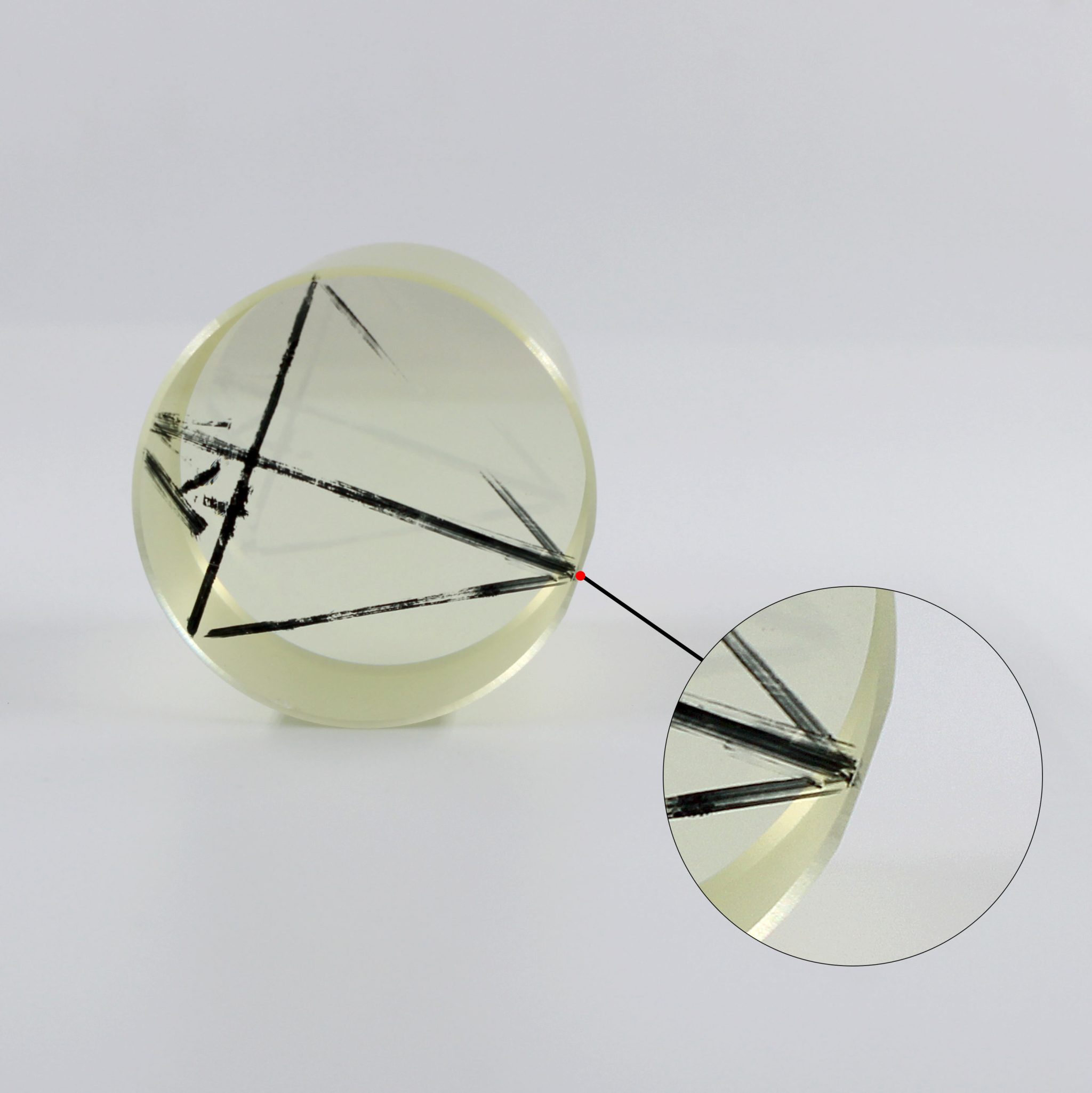

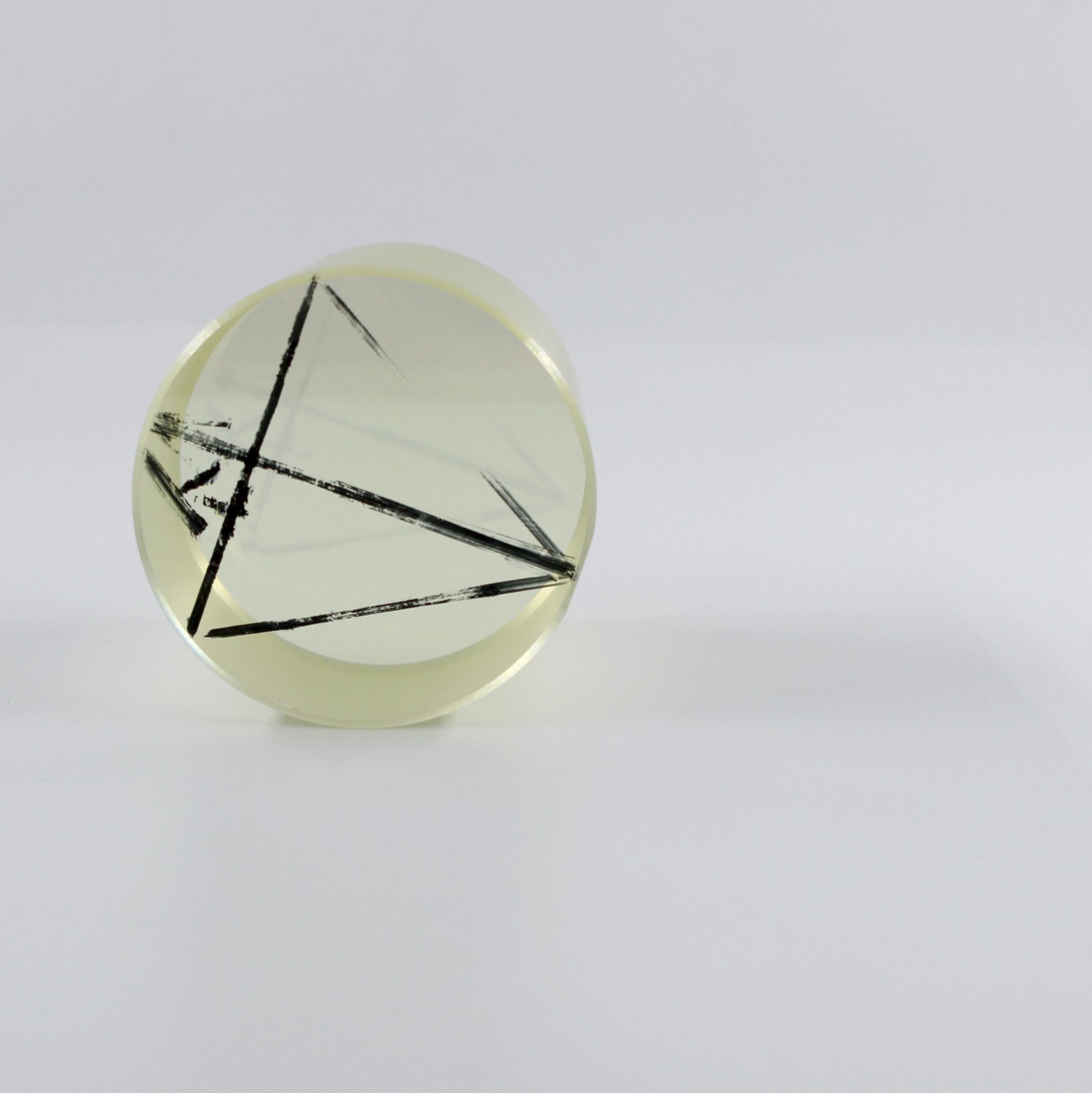

Pictures of this optical lithium tantalate single crystal boule
Specifications of optical litao3 lens
| Specifications | Data |
| Name | Lithium Tantalate Single Crystal Boule |
| Grade | Saw Grade |
| Diameter | 49mm+/-1mm |
| Length | 60mm+/-5mm |
| Z-Axis | Grown |
Video of litao3 crystal
Basic Properties of LiTaO3 crystal
| Crystal symmetry | Trigonal, 3m |
| Lattice constant, A | a = 5.154 c = 13.783 |
| Density, g/cm3 | 7.45 |
| Melting point , °C | 1650 |
| Curie point , °C | 605 |
| Mohs hardness | 6 |
| Thermal expansion coefficient, 10-6/ °C | aa = 16 ac = 4 |
| Thermal conductivity , mW/cm °C | 46 |
| Dielectric Constant (@ 100 KHz) | ea = 54 ec = 43 |
| Refractive indices @ 633 nm | no = 2.175 ne = 2.180 |
| Pyroelectric Coefficient: | -2.3 10-4 C/°C/m2 |
Production workshop of VY Optoelectronics Co.,Ltd.
People also ask
- What is the crystal structure of the LiTaO3?
Lithium tantalate (LiTaO3) is a typical ferroelectric oxide and exhibits unique piezoelectric, electro-optical, and non- linear optical properties that are useful for many applica- tions. 15–18) The trigonal crystal structure (space group: R3c) consists of face-shared LiO6 and TaO6 octahedra - Why is lithium so good?
lithium is the lightest of all metals, has the greatest electrochemical potential and provides the largest energy density for weight. Attempts to develop rechargeable lithium batteries failed due to safety problems.
