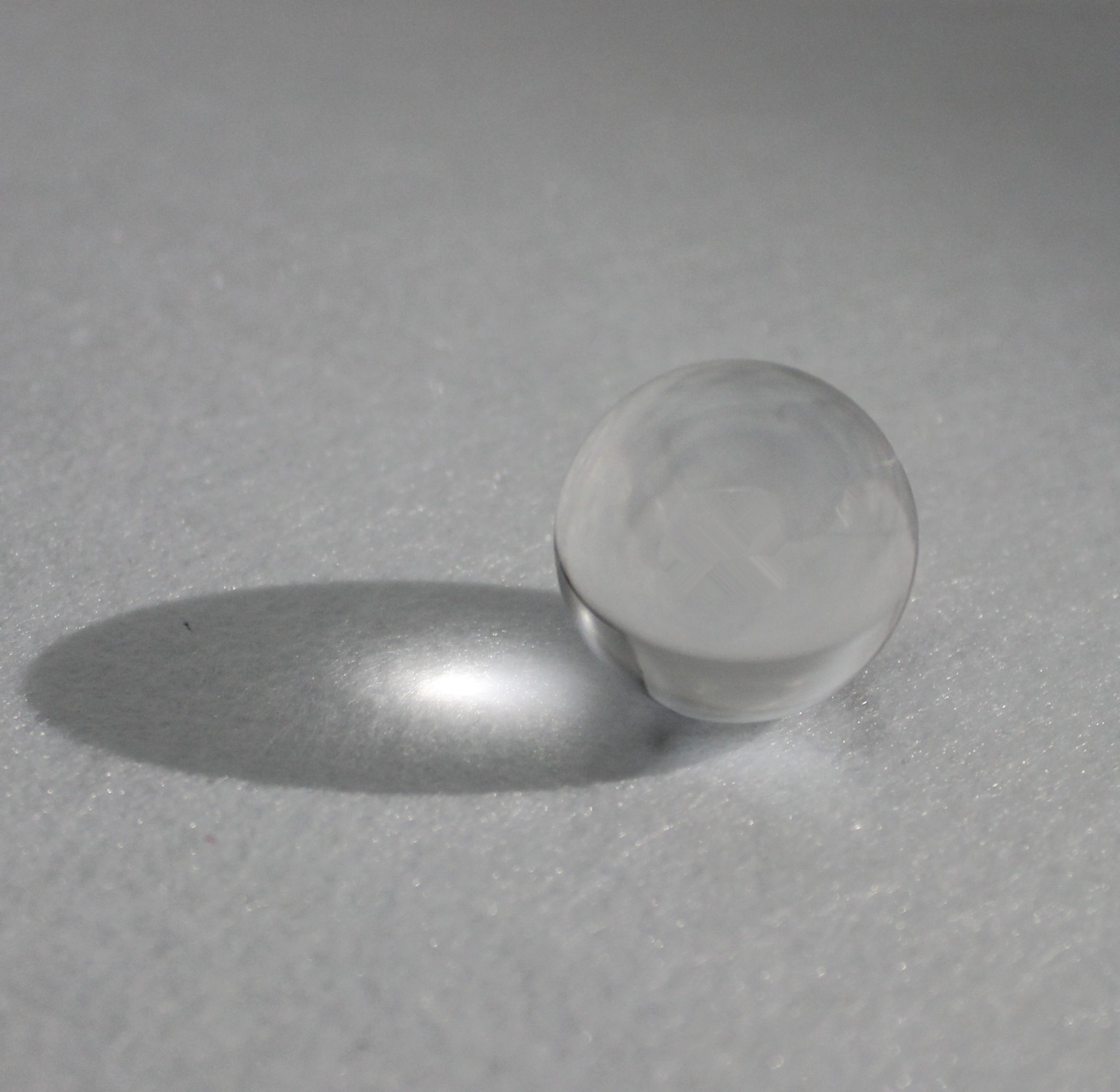

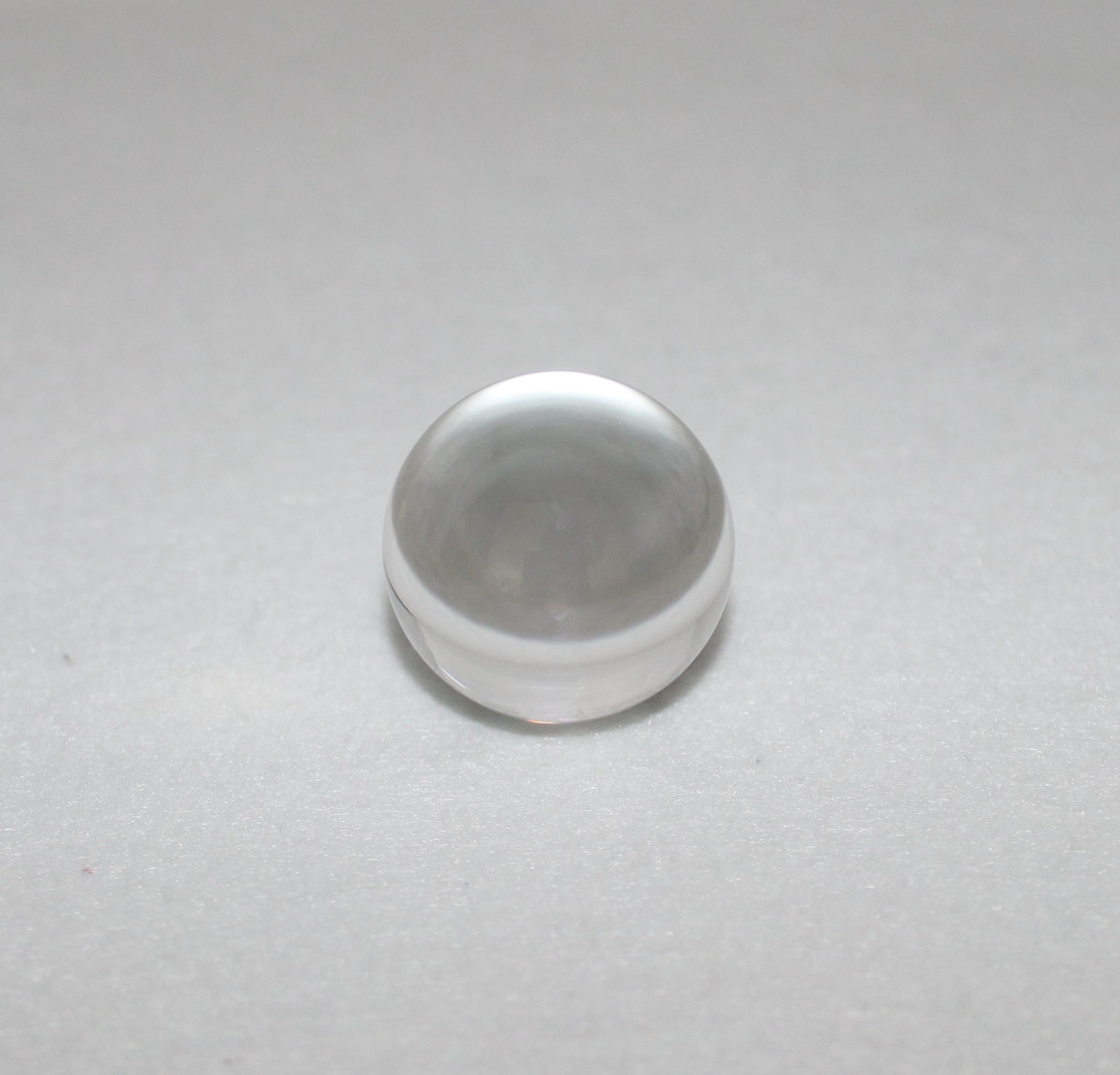

Dia.1mm 2mm 3mm 4mm 5mm 6mm 10mm K9 glass ball lens for optical fiber coupling

What is Ball lenses？
Ball lenses are great optical components for improving signal coupling between fibers, emitters, and detectors. Sphere lenses are manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the input source.
Ball lenses are highly polished spheres made of optically transparent homogeneous materials. Carefully controlled manufacturing process produces spheres with precise diameters and unsurpassed surface quality.

What is application of spherical ball lenses?
Spherical Ball Lenses are commonly used for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Larger spheres are easier to handle and ease the sensitivity of translational alignment. However, smaller spheres has the benefit of fitting into smaller packages.

How are ball lenses made?
They are manufactured from a single material, usually an optical glass with good transparency in the wavelength region of interest. A frequently used material is fused silica. Another variant are half-ball lenses, which are obtained simply by cutting ball lenses in half.

What can VY manufacture of ball lenses and half ball lenses?
VY is specialized in manufacturing and producing glass ball lens and half ball lenses product with optical H-K9L glass and infrared material (such as Ge,Si,ZnSe,Zns,Sapphire, Ruby etc.), we are a factory in China, the capacity of every month is 5, 000,000 pieces, we have sphere lens and hemisphere lens with varied size and material in stock, like diameter 1mm glass ball lens, 2mm ball lens, 3mm ball lens, 4mm glass ball lens, 10mm ball lens. Besides customizing ball lens and half-ball lens according to your specification, we also have large inventory of ball lenses and half balll lens in our warehouse, which will be convenient for you to find suitable lens for your application fastly. Welcome to inquire to us!

Normal Standard Size of Optical Sphere Ball Lens from VY Optoelectronics Co.,Ltd., other dimension could be also customized.

A short video to help you learn about our sphere ball lens more in details.

People also ask

What are ball lenses used for?
Ball lenses are used particularly as beam collimators for optical fibers (fiber collimators) and for fiber-to-fiber coupling. They are also suitable for miniature optics with applications like barcode scanning, as objective lenses in endoscopy and for optical sensors.

What magnification does a ball lens have?
Ball lenses are highly transparent spheres made with optical glass. Some of the earliest microscope lenses — developed by Antoni van Leeuwenhoek — relied on surface tension to form small spheres from melted glass. These lenses achieved magnifications as large as 275x and were as small as 1.5 mm in diameter.

What is a half ball lens?
Ball lenses are completely spherical lenses most commonly used to couple light in and out of fibers. Half-ball lenses are hemispheres. We supply high precision grade-3 ball lenses, midrange grade-25 ball lenses and commercial grade-100 ball lenses offering all grades to suit any application.

What are lens balls made of?
This is why Lensballs or a crystal ball works so well at refraction. They are made from high quality glass that easily lets light pass through and keeps your image sharp and in focus.

Are lens balls any good?
The Lensball is one option on the market when it comes to buying a crystal glass ball. The image with the ball is crisp because of the use of better quality glass.

What lens should I use with a lens ball?
Any focal length or camera lens will work with lensballs — even your iPhone can take decent shots — but if you want to get really close to the glass, you'll want a macro lens. If you want to be able to see the background and the scene around the lensball, go with a wide-angle lens.

What is a sphere lens?
A spherical lens. sometimes also known as a singlet, is an optical lens with a curved surface that causes light rays to converge or diverge. Spherical lenses are some of the most common lenses used, in part because they project images onto the sensor without affecting their aspect ratios.
