Diameter 100 mm or Customized Plano Convex Magnifier Glass Lens

Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements. PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane.

Material: 3mm - 500 mm.
Dimension: +/-0.01 mm
Surface Accuracy: 60/40
Size Tolerance: 5/1
Angle Tolerance: 95%
Coating: 0.05mm,standard; 0.01 ,attainable.

● What is a plano convex lens?

Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane.

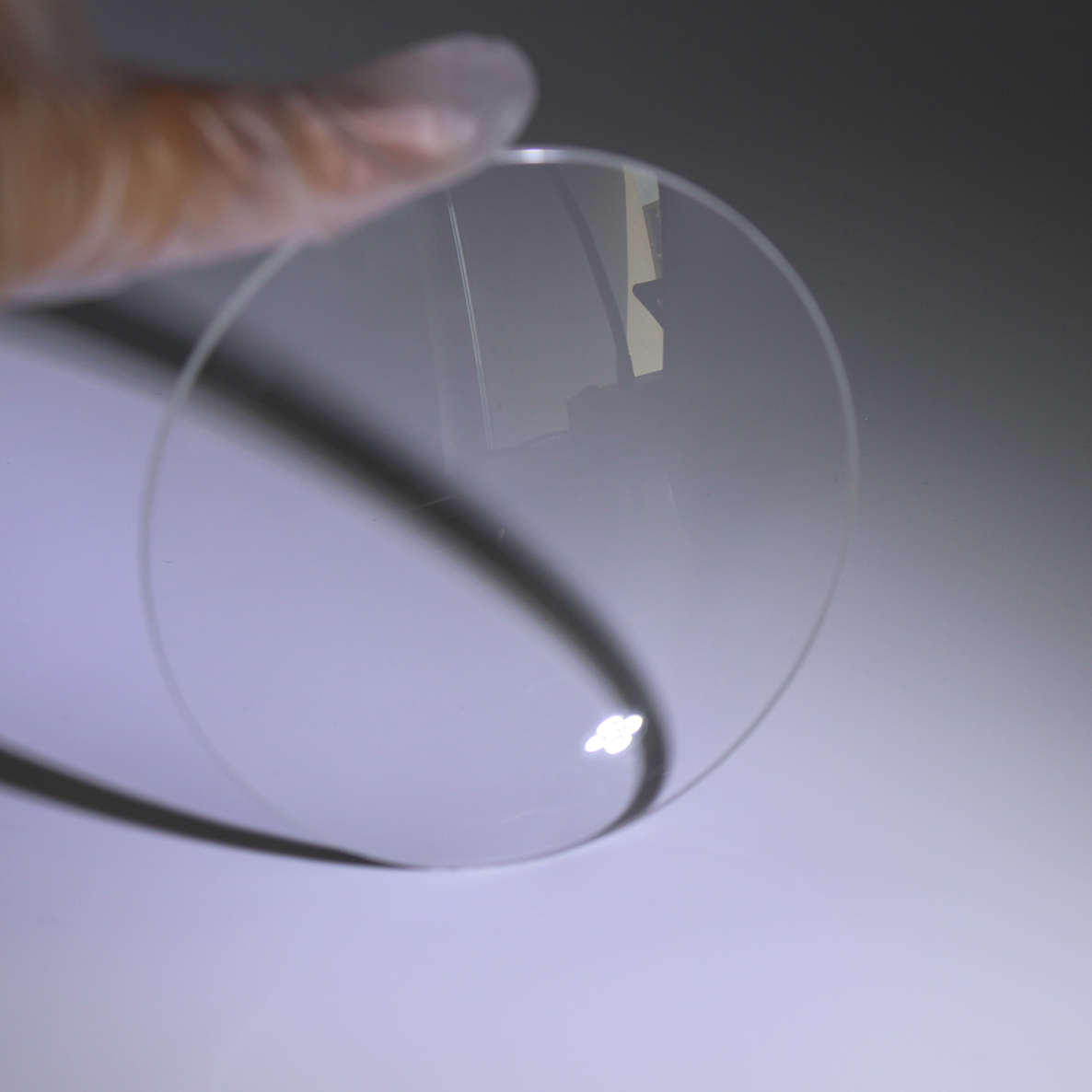

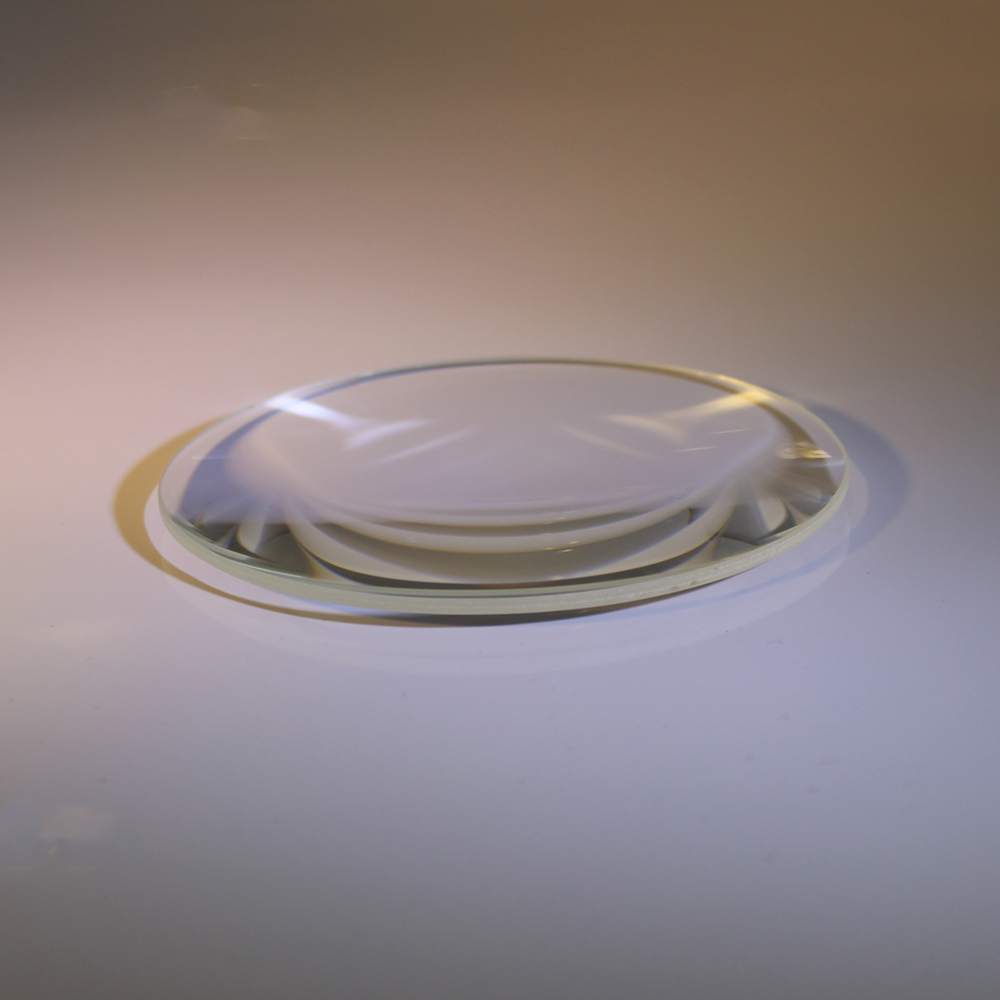

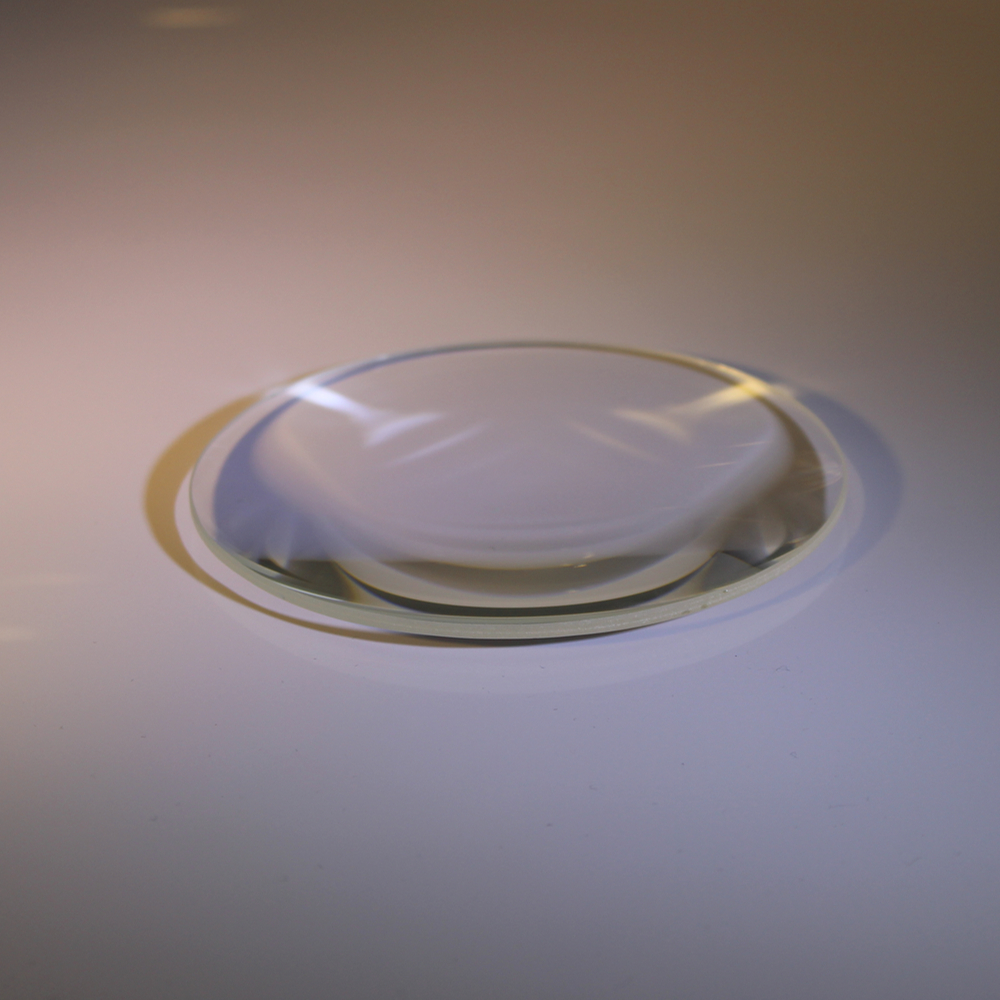

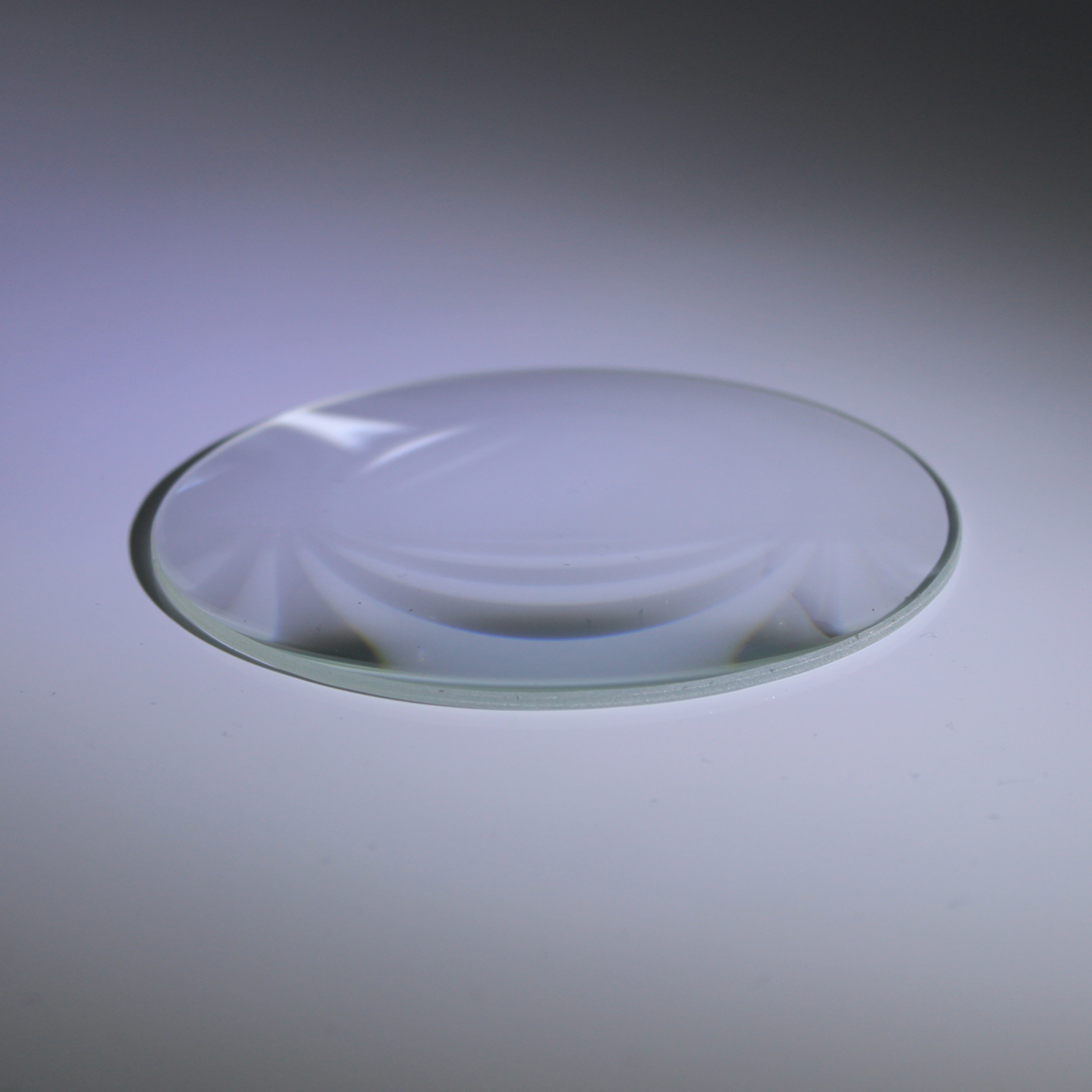

                                                             (picture show of our plano convex lens)


● What is a plano convex lens?
   More specifically, the two surfaces of a plano-convex lense function together by focusing parallel light rays to a positive focal point. ... The curved surface of a plano-convex lens has a focusing effect on light-rays, while the plane surface does not have a focusing or de-focusing effect.

● What is the magnification formula for lenses?
   Magnification formula for lenses. Let's explore the magnification formula (M= v/u) for lenses and see how to find the image height and its nature (whether it's real or virtual). Created by Mahesh Shenoy.

● What is application?

Plano-Convex lenses are commonly used in a wide range of applications or industries. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense.

● Plano convex lens from VY

 VY Optoelectronics Co.,Ltd. offers large inventory of off-the-shelf optical components, which includes a large variety of Plano-Convex Lenses. VY Optics’PCX lenses are available in a range of coating or substrate options. Anti-reflection coatings range from the Ultraviolet (UV) to the Infrared (IR), including UV-AR, UV-VIS, MgF2, VIS 0°, VIS-NIR, NIR I, NIR II, or Telecom-NIR. Additional coatings designed specifically for laser wavelengths, such as 266nm, 355nm, 532nm, or 1064nm are also offered. Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications.

 VY Optics can also manufactures Plano-convex lenses according to you specication, material has wide range, from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade, and BK7 Optical Glass. Every optic is pitch polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.

We also offer plano-concave lenses, which have negative focal length components and one concave surface. For information on our optic lens custom work, contact VY immediately.
