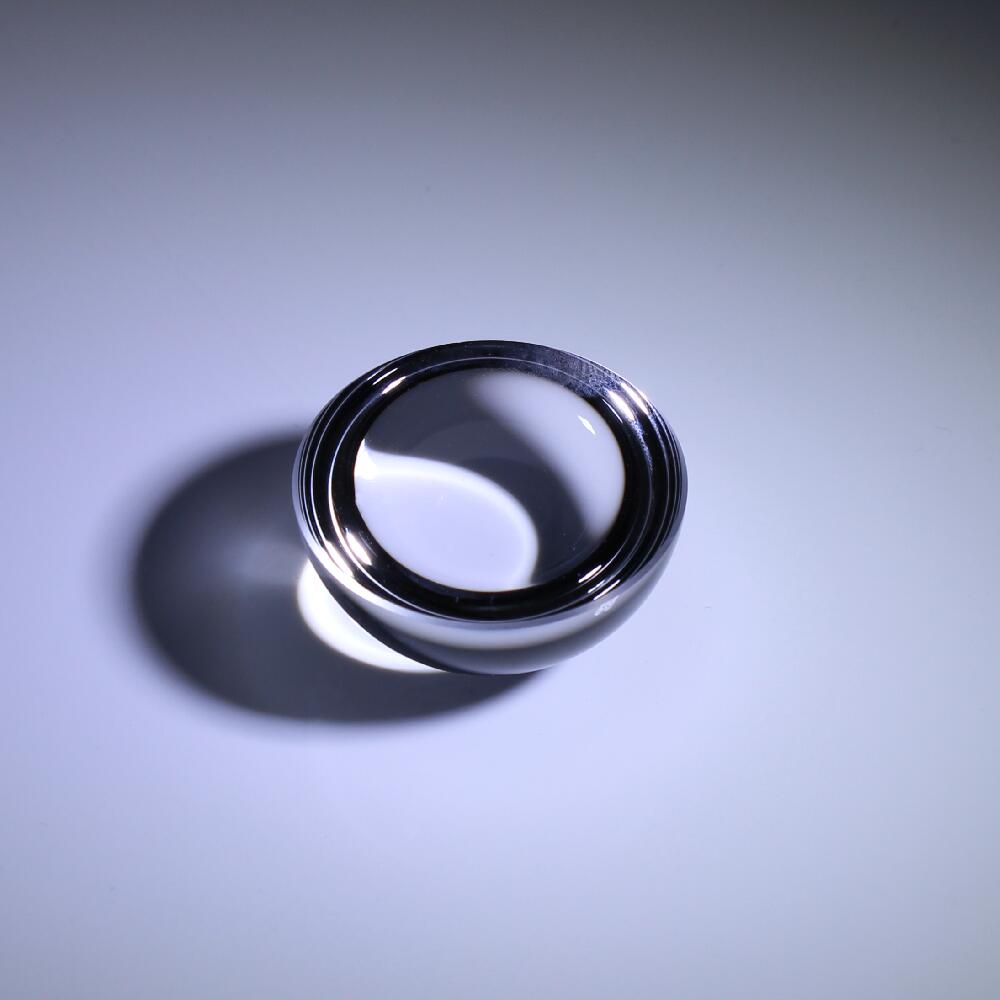

Good Quality Optical Glass BK7/K9 Half Ball Hemisphere Glass Lens

Item Number:X-P22B1T14001B

Half ball lens hemispherical lens is a hemispherical convex lens made of optical glass with good transparency and refractive parameters. They have high coupling efficiency and are easier to align than traditional lenses due to their physical shape.Due to the ease of installation brought by one plane, they are ideal for applications requiring more compact design, such as optical fiber communication, endoscope, microscope, optical pickup device and laser measurement system.VY Optoelectronics Co., Ltd. can provide half ball lens of various materials, such as BK7, Fused Silica, Sapphire, etc. Generally, the diameter is 1mm - 150mm

  • Material: BK7, sapphire, FS, Si, Ge, ZnS and so on
  • Diameter: 0.50mm-150mm
  • Tolerance: 0.001-0.003
  • Sphericity: 0.001
  • Surface Quality: 20-10 or better
  • Coating: Optional

   Half-ball (hemispherical) lenses feature a very short back focal length with the convenience of a flat surface for easy mounting.Half-ball lenses are easier to see and therefore easier to handle for physical applications. The lenses are very chemically stable and are great for severe environments, high temperature applications, and applications requiring high melting points.

1) Half-ball (hemispherical) lenses are ideal for applications such as fiber communication, endoscopy, microscopy, optical pick-up devices, and laser measurement systems.

       ● Fiber Coupling Half-Spheres
       ● Collimating Lenses

2) Main Specifications of Half ball lenses
 • Material: BK7, B270, Borosillicate glass, UV Fused Silica or any other glass crystal material, plastic and SI, Ge and other infrared material are also available
 • Tolerance on half Ball Lens Diameter: +/- 0.001mm
 • Tolernace on half ball lens Thickness: +/- 0.01mm
 • Half Ball Lens Roundness: < 0.001mm
 • Surface Quality of Half Ball lens: 20/10 scratch and dig or better
 •  Half Ball Lens Cleaning: Class 100 clean room
 •  Half Ball Lens Packing: in Waffle plastic trays
 •  Each Half Ball Lens is checked: 100% under microscope before Delivery.
 •  All Half Ball Lenses are cleaned and packed: in Class 100 clean room area.

3) Why to Choose VY Optoelectronics Co.,Ltd.?
 • Low cost, high volume - Yield as big as 1000,000pcs/month. Un-beatable price.
 • Any optical glass/crystal/plastic/infrared glass you can imagin - BK7, B270, Borosillicate glass, UV Fused Silica, PYREX, PMMA, Si, Ge…
 • Freedom for Designer to Optimize System
 • As big as 150mm diameter(D) lens Available, and a lot of different size lens on shelf for quick delivery for the diameter of 2~20mm
 • Customized Height(T) of Lens - from ball lens to very thin lens, any height can be achieved
 • Unique Technology - High efficiency on production / Free of dirties and contamination after polishing, no additional cleaning needed.
 • Quick Delivery and Low Cost for Samples - It's not moulded, so no mould investment.
 • ISO certificated company

VY is specialized in manufacturing glass ball lens and half ball lens with optical glass and infrared material (such as Ge,Si,ZnSe,Zns,Sapphire Ruby etc., the capacity of every month is 5, 000,000 pieces,
we have lot of stock, welcome to inquire to us.
     ● Sapphire glass half ball lens
     ●  K9 glass half ball lens
     ●  Silicon half ball lens
     ●  Ruby half ball lens etc.

Standards Products
Part No. Dia.(mm) Tc.(mm)
VY_HB030 3.00 1.50
VY_HB040 4.00 2.00
VY_HB050 5.00 2.50
VY_HB060 6.00 3.00
VY_HB070 7.00 3.50
VY_HB080 8.00 4.00
VY_HB010 10.00 5.00
VY_HB012 12.00 6.00

 + Rough sketch of ball lens and half ball lens attach as follow for better understanding, should any doubt or demand, please do feel free to contact us.

4)The detailed video of Half ball lens is as follows
