High Quality Customized Diameter 9 mm Optical BK7 Glass Powell lens
High Quality Customized Diameter 9 mm Optical BK7 Glass Powell lens
Item Number:X-P24B9X10101
Powell Lenses, or powell prism, also known as Laser Line Generator Lenses, convert laser beams into uniform, straight lines. Comparing with cylindrical lenses, the laser line generator lenses has an advantage because latter one produces a poorly illuminated line, limited by the non-uniform Gaussian laser beam. Huge spherical aberration redistribute light along the line, decreasing the light in the central area while increasing the light intensity at the line's end. The outcome of a Powell lens is uniformly illuminated line used in all forms of machine vision applications.
- Material: K9, BK7 and other optical glass
- Dimension: 6mm, 9mm, customized
- Surface Accuracy: lambda/10
- Size Tolerance: +/-0/10mm
- Angle Tolerance: +/- 1 degrees
- Coating: Optional
What is Powell Lens?
Powell Lenses, or powell prism, also known as Laser Line Generator Lenses, convert laser beams into uniform, straight lines.
Advantages of Powell Lens
The Laser Line Generator Lenses has an advantage over cylindrical lenses because latter one produces a poorly illuminated line, limited by the non-uniform Gaussian laser beam. Huge spherical aberration redistribute light along the line, decreasing the light in the central area while increasing the light intensity at the line's end. The outcome of a Powell lens is uniformly illuminated line used in all forms of machine vision applications.

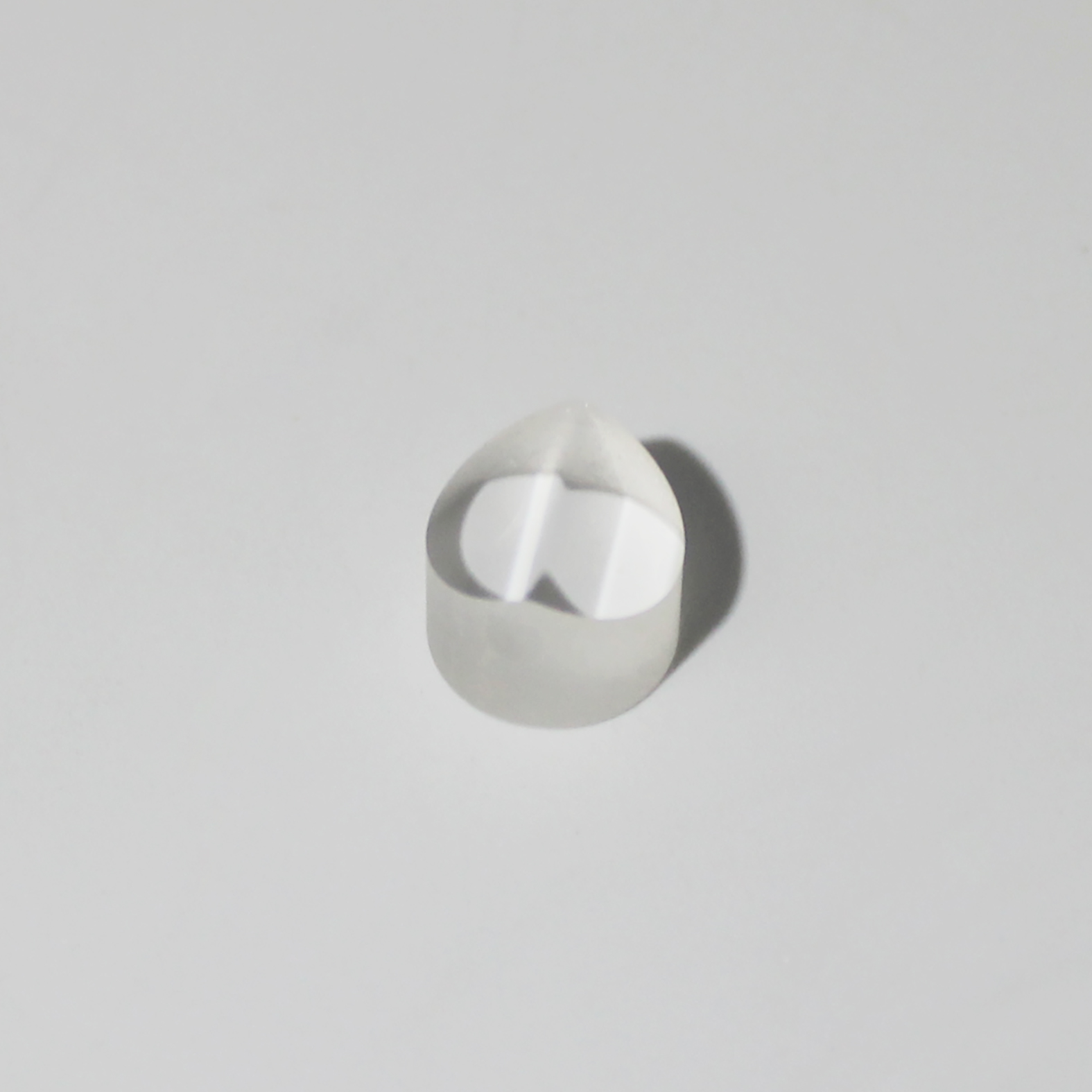

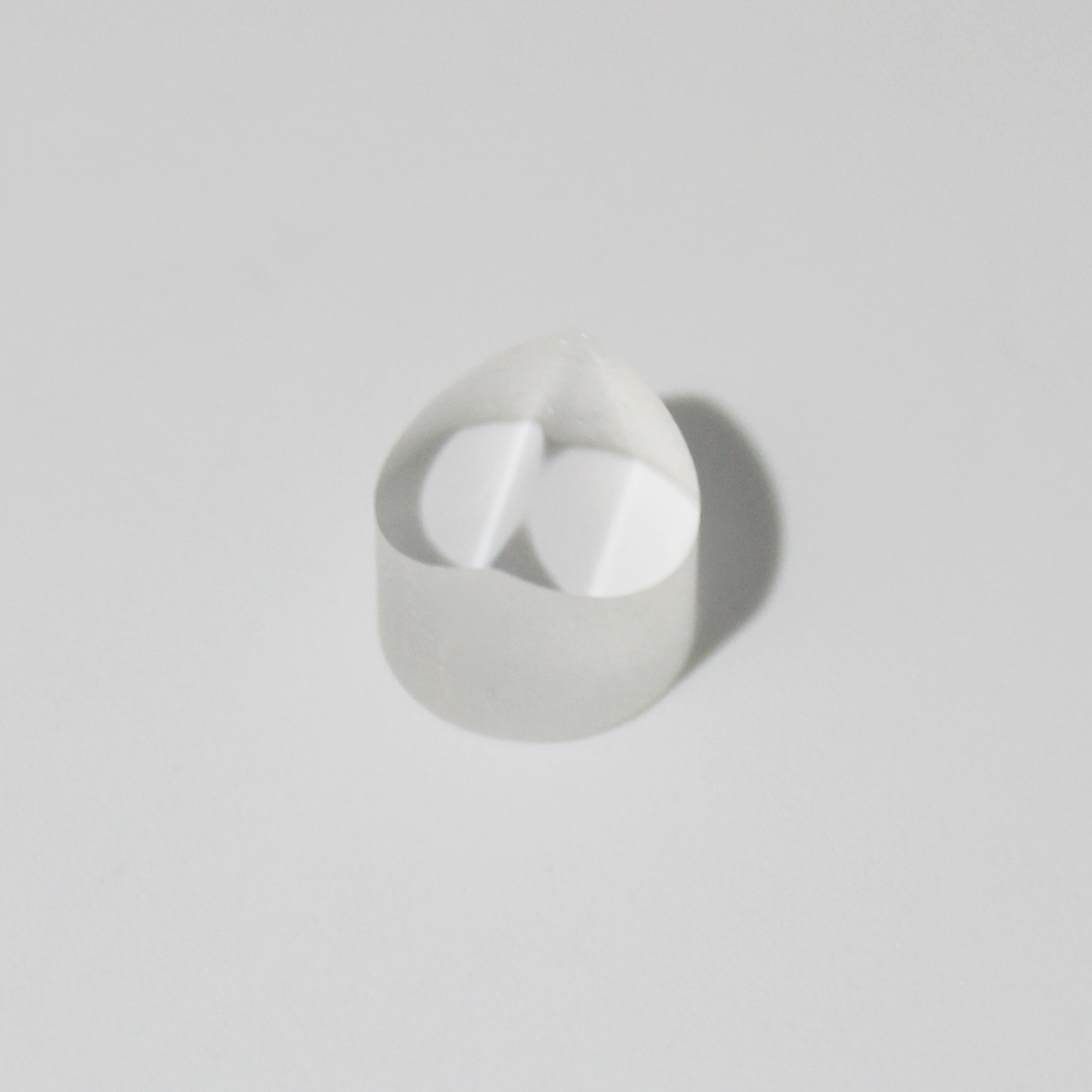

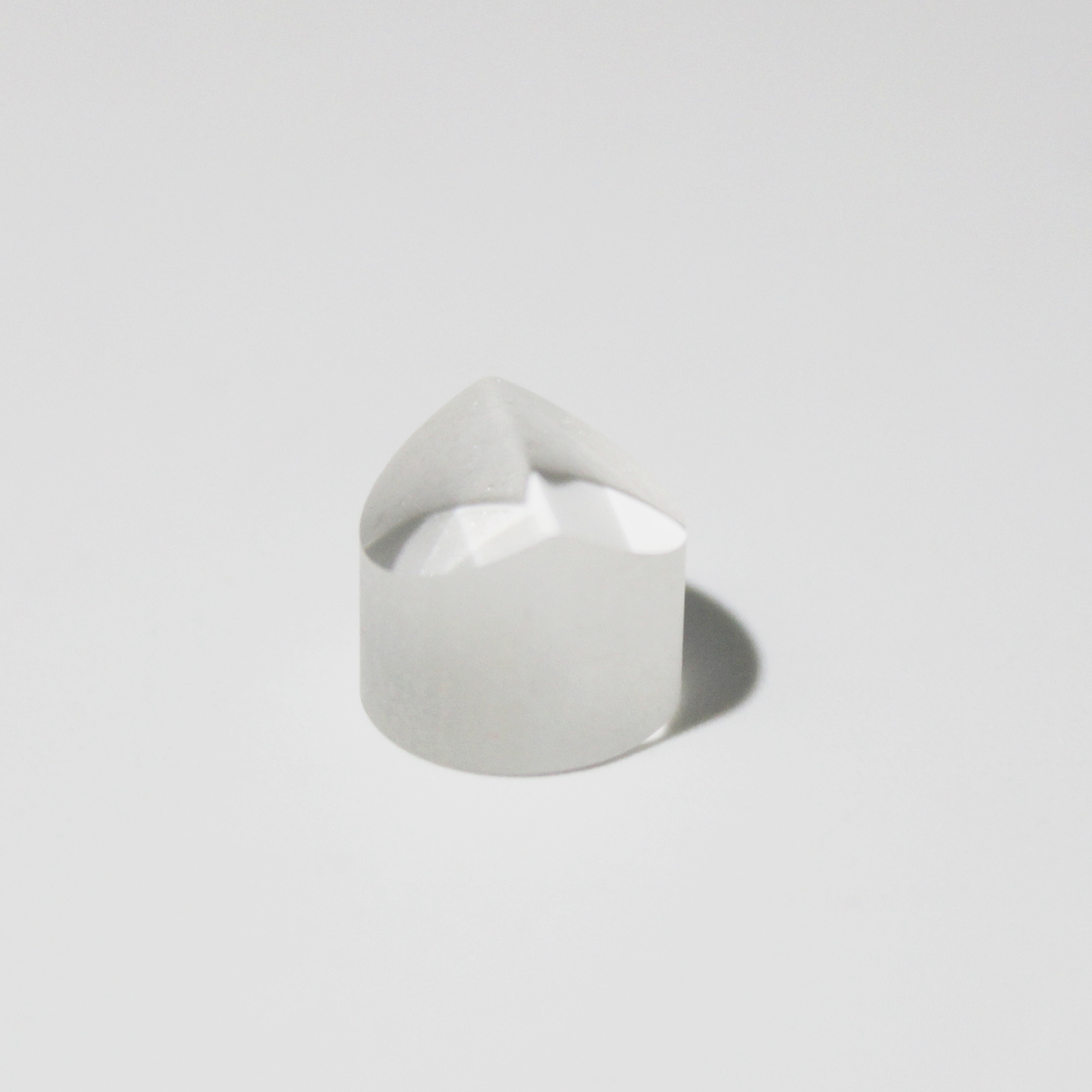

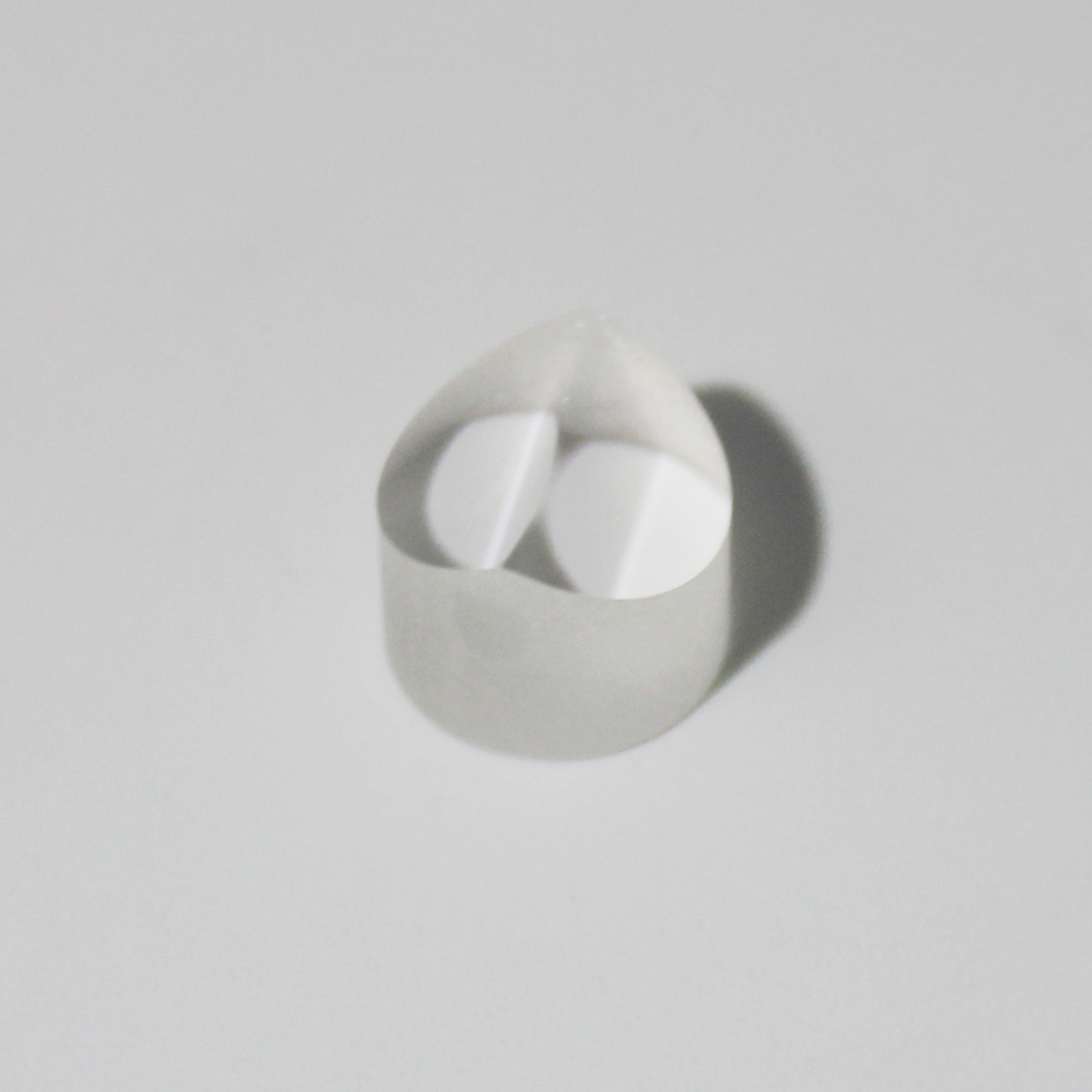

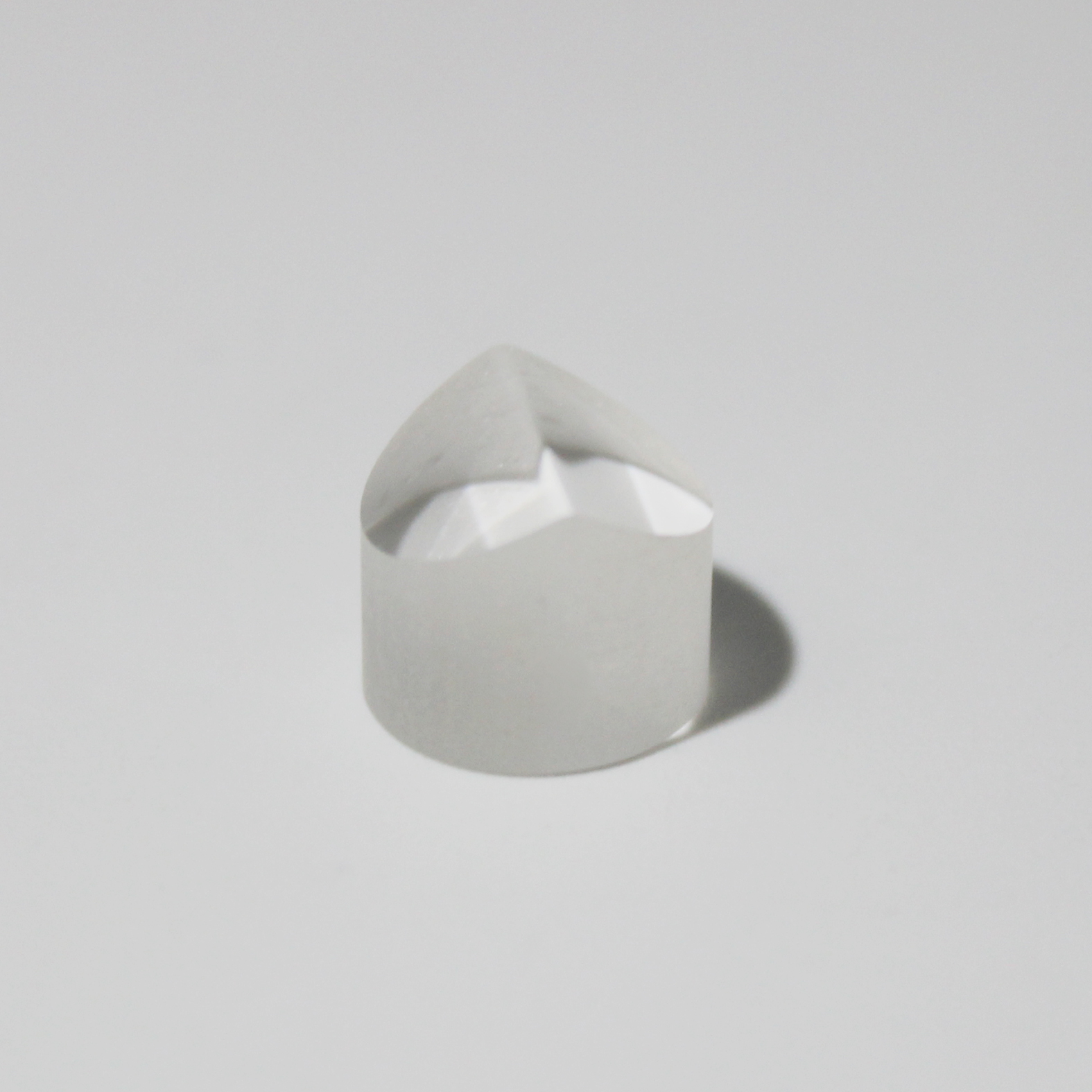

Pictures of K9 Powell Lenses
Rough sketch of powell lens we supplied for better understanding, lots of off-the-shelf powell lens are available.
Normal size of powell lens our factory manufacture and powell prism stock
Detailed Video of Powell lens
VY Factory Production Video
People also ask
What is the difference between cylindrical and Powell lenses?
The Powell lens shifts light from the center to the edge of the beam to produce a uniform intensity line, while the cylindrical lens maintains the Gaussian profile of the beam, so its line is much brighter in the center.
Want to learn more / get a quote? Just click here to contact us now~
