Introduction
Near-Infrared (NIR) lenses and Short-Wave Infrared (SWIR) lenses are vital components in today’s high-performance imaging systems. Whether for industrial inspection, security surveillance, scientific research, or machine vision, these lenses enable precise imaging beyond the visible spectrum.
At VY Optoelectronics Co., Ltd., based in Changchun, Jilin Province, China, we specialize in custom optical lens design, infrared camera lens manufacturing, and precision lens assembly. Our C-mount NIR and SWIR fixed-focus lenses are trusted by clients worldwide for their optical quality, durability, and application-specific performance.
What is a Near-Infrared or SWIR Lens?
A Near-Infrared lens is optimized for wavelengths typically between 750–1400nm, while a Short-Wave Infrared lens covers 900–2500nm. Unlike standard visible-light optics, these lenses are designed for high transmission in infrared bands, reduced chromatic aberration, and stable performance under demanding conditions.
Common Applications
Industrial multi-band inspection (PCBs, lithium-ion batteries, semiconductors)
Security and surveillance (NIR night vision camera lens)
Scientific and agricultural imaging (crop health monitoring, spectral analysis)
SWIR detection (power line inspection, wafer inspection)

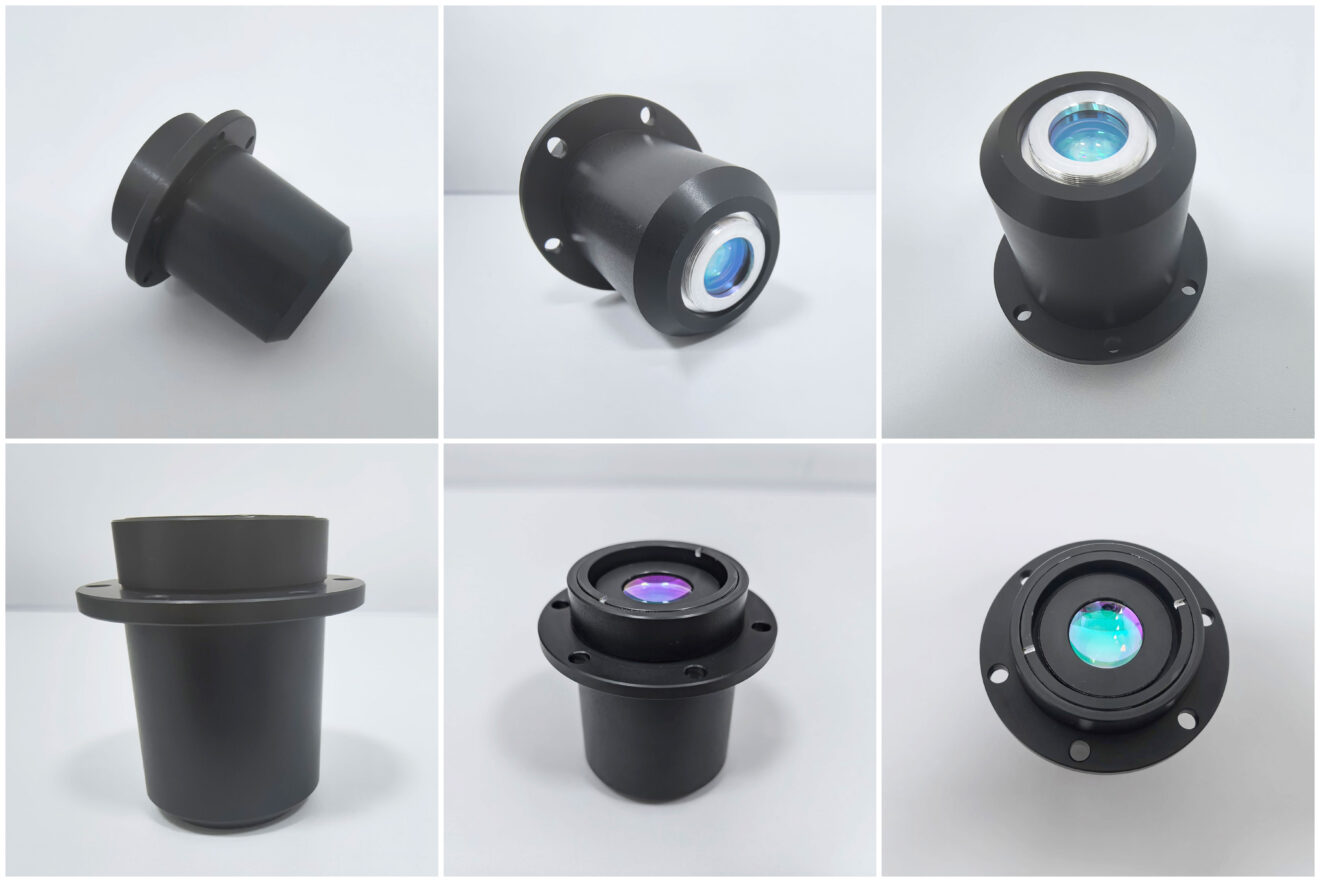

Featured Products
| Lens Type | 1 – inch 12MP SWIR Fixed – Focus Lens | 1/1.8″ SWIR Fixed – Focus Lens | 1 – inch 1MP SWIR Fixed – Focus Lens | 1/1.8″ SWIR Fixed – Focus Lens |
| Focal Length | 8mm | 8mm | 16mm | 8mm |
| Compatible Sensor | 1 – inch (12.8mm diagonal) | 1/1.8″ (8.9mm diagonal) | 1 – inch (12.8mm diagonal) | 1/1.8″ (8.9mm diagonal) |
| Mount | C – Mount | C – Mount | C – Mount | C – Mount |
| Aperture Range | Manual, F1.8 – F16 | Manual, F1.8 – F16 | Manual, F1.4 – F16 | Manual, F1.8 – F16 |
| Spectral Range | 450 – 2000nm (Visible + NIR + SWIR, multi – band correction) | 900 – 1700nm (Typical NIR – SWIR) | 800 – 1900nm (Mainly SWIR) | 900 – 1700nm (Optimized NIR – SWIR) |
| Field of View (1 – inch Sensor) | Horizontal ~ 64.4°, Vertical ~ 48.3°, Diagonal ~ 81.3° | — (For 1/1.8″ sensor, diagonal ~ 46.8°) | Horizontal ~ 35.2°, Vertical ~ 26.4°, Diagonal ~ 43° | — (For 1/1.8″ sensor, diagonal ~ 46.8°) |
| Minimum Object Distance | 0.2m (Clear imaging at ∞) | 0.15m | 0.3m | 0.15m |
| Optical Distortion | < 1.0% (1 – inch sensor, better at center area) | Low – distortion design for high – precision inspection | < 1.0% (1 – inch sensor) | Low distortion for industrial inspection |
| Dimension (mm) | Φ58×79.5 (Lens length at ∞ focus) | Φ34×40.5 | Φ43×52.9 | Φ30×36.5 |
| Weight | 210g | Approx. 70g | 150g | Approx. 60g |
| Operating Temperature | – 10°C – +50°C | – 20°C – +70°C | – 10°C – +50°C | – 20°C – +70°C |
| Typical Applications | Industrial multi – band inspection (e.g., PCBs, 3C products), scientific research imaging | Industrial defect inspection (lithium – ion batteries, FPD), NIR security | SWIR imaging (power line inspection, night vision enhancement) | Precision industrial inspection (semiconductors, wafers), NIR identification |
Watch the video of our Short-Wave Infrared (SWIR) Fixed-Focus Lens on our YouTube channel.
Why Choose VY Optoelectronics for Your Infrared Lens Needs?
Custom Optical Design: From infrared camera lenses to high-resolution SWIR optics.
Precision Manufacturing: Advanced grinding, polishing, and coating for maximum NIR/SWIR transmission.
Complete Lens Assembly: C-mount infrared lenses built to your specifications.
Multi-Band Solutions: Visible + NIR + SWIR capability in a single optical system.
Global Service: Supplying optical components to clients in North America, Europe, and Asia.
Conclusion & Call to Action
Near-Infrared and SWIR lenses are unlocking new imaging possibilities in security, industry, and research. With our in-house optical engineering, manufacturing, and assembly capabilities, VY Optoelectronics Co., Ltd. delivers high-performance, custom-built infrared lens solutions tailored to your needs.
📩 Contact us today to discuss your NIR or SWIR lens requirements and discover how our optical expertise can power your next project.
