PMMA dome lens | VY Optoelectronics Co.,Ltd.

PMMA acrylic dome lens with flange

Item Number:20Y7M9301

Outer Diameter: 150mm
Thickness: 3mm
Dimension Tolerance: +/-0.1mm or better
Surface Quality: 60-40 or better
Surface Accuracy: 1 lambda or as requested
Centration: 1 arc min or customized
Coating: Optional

Contact Us Now

Quote Now

Description

Dome is composed of two parallel optical surfaces. Among optics domes are unique because, unlike any other optical components, the key attribute of the dome is to have no optical effect. Generally a dome is often exposed to the environment. Accordingly, domes made from hard ceramic materials are preferred due to their ability to withstand wind and rain erosion.

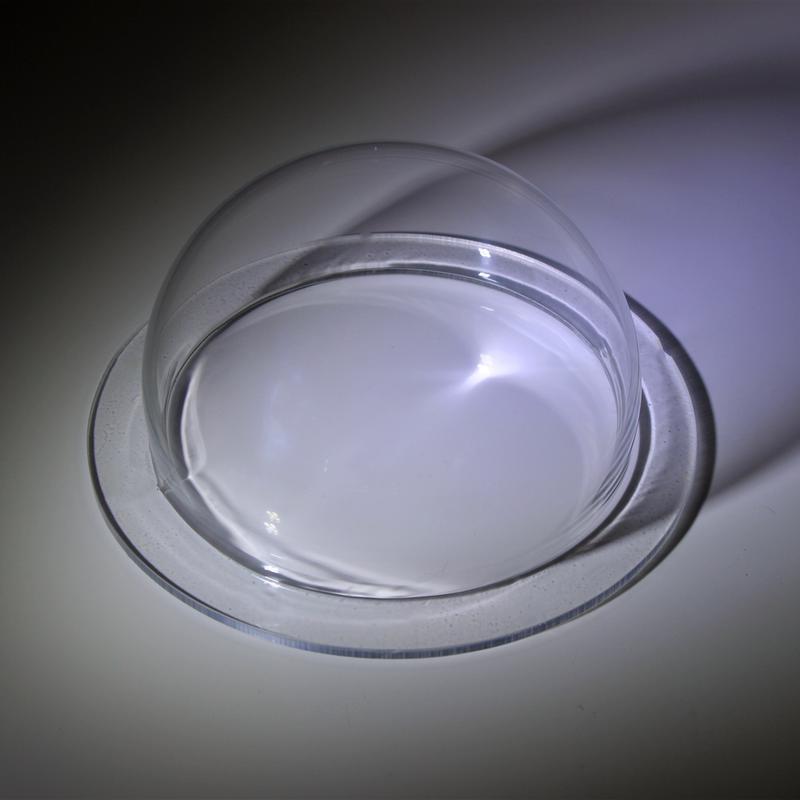

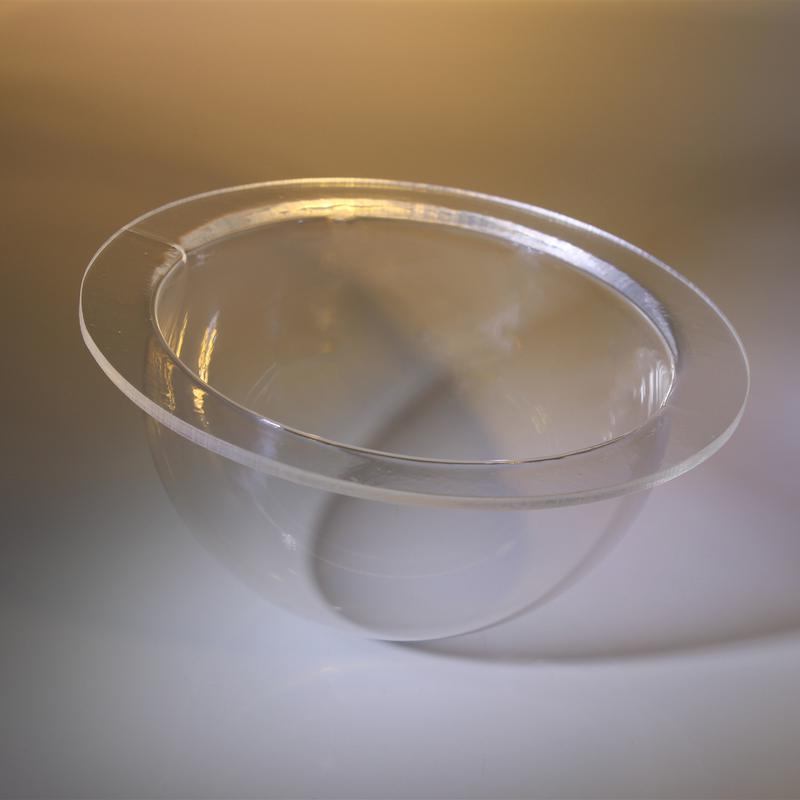

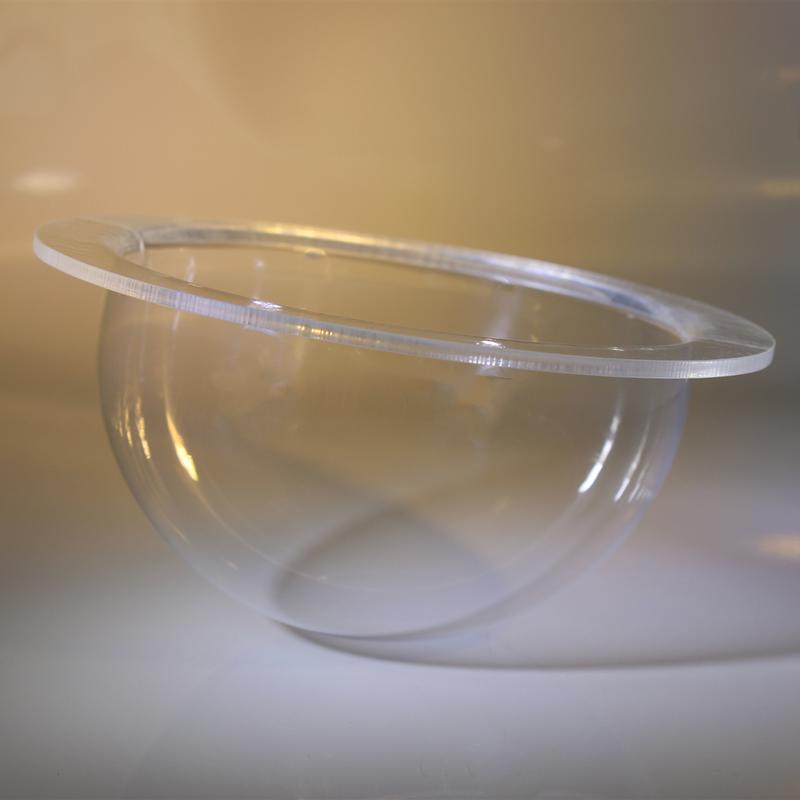

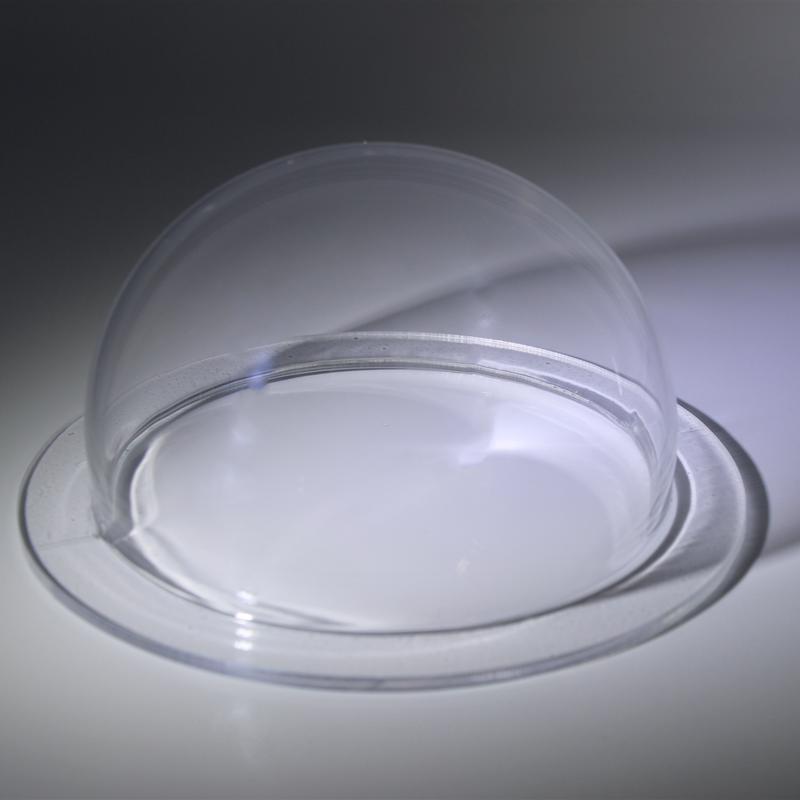

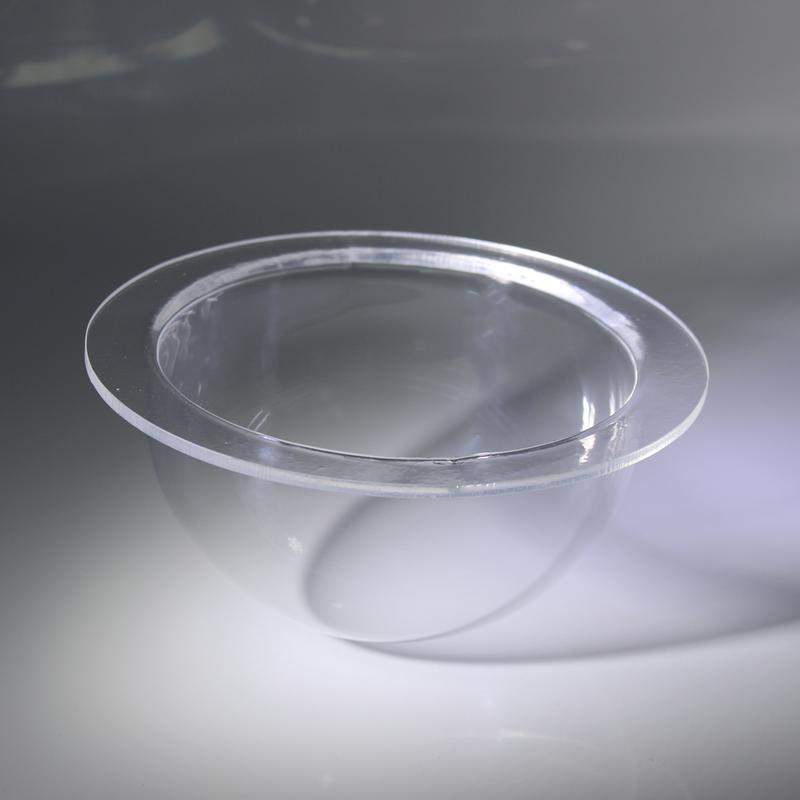

Considering PMMA material dome lens has a better price and not fragile, many customers choose acrylic dome lens, the picture shown is a PMMA dome lens with flange, which is for a CCTV camera lens protection, CCTV camera dome lens.

● Why use Dome ports for Underwater Photography?
Domes make it better - Dome lens help correct aberrations that occur when light travels thru water as opposed to air. Domes can deliver better results compared to flat ports, and also make it easier or possible some results that flat ports would not capture.

● Size matters
Bigger domes are better than smaller domes, for a number of reasons. The tradeoffs are; heavier, bulkier, pricier than smaller domes.

● Glass is optically superior
Glass domes are optically superior to plastic or acrylic, and they do not scratch as easily.

VY produce optical glass dome or PMMA dome with different processing technology according to exact application, we manufacture dome lens from dia. 3mm to 300mm, the size range is super wide, and lots of our domes are in stock, price will be reasonable and a best solution can be suggested. So please contact us freely for professional suggestion for your application.
