What is a Ball Lens with Hole?
A ball lens with hole is a specially manufactured spherical optical element featuring a precision opening through the lens body. This structure combines the focusing characteristics of a ball lens with additional mechanical flexibility for optical system integration.
Why Choose a Ball Lens with Hole?
Compared with standard ball lenses, ball lenses with holes provide additional design possibilities for compact optical assemblies. The precision hole structure allows easier mounting, positioning, or integration with other optical components while maintaining reliable optical performance.

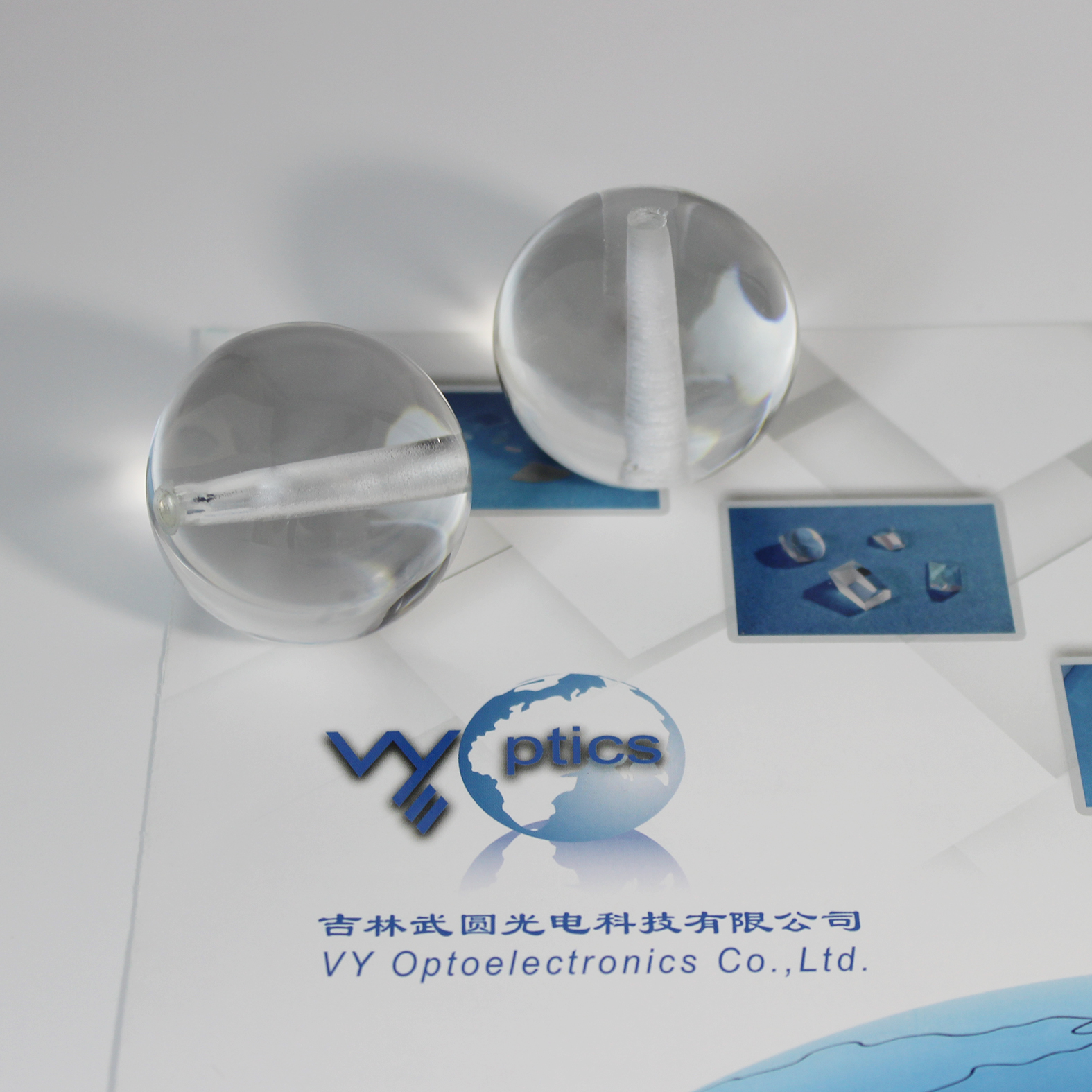

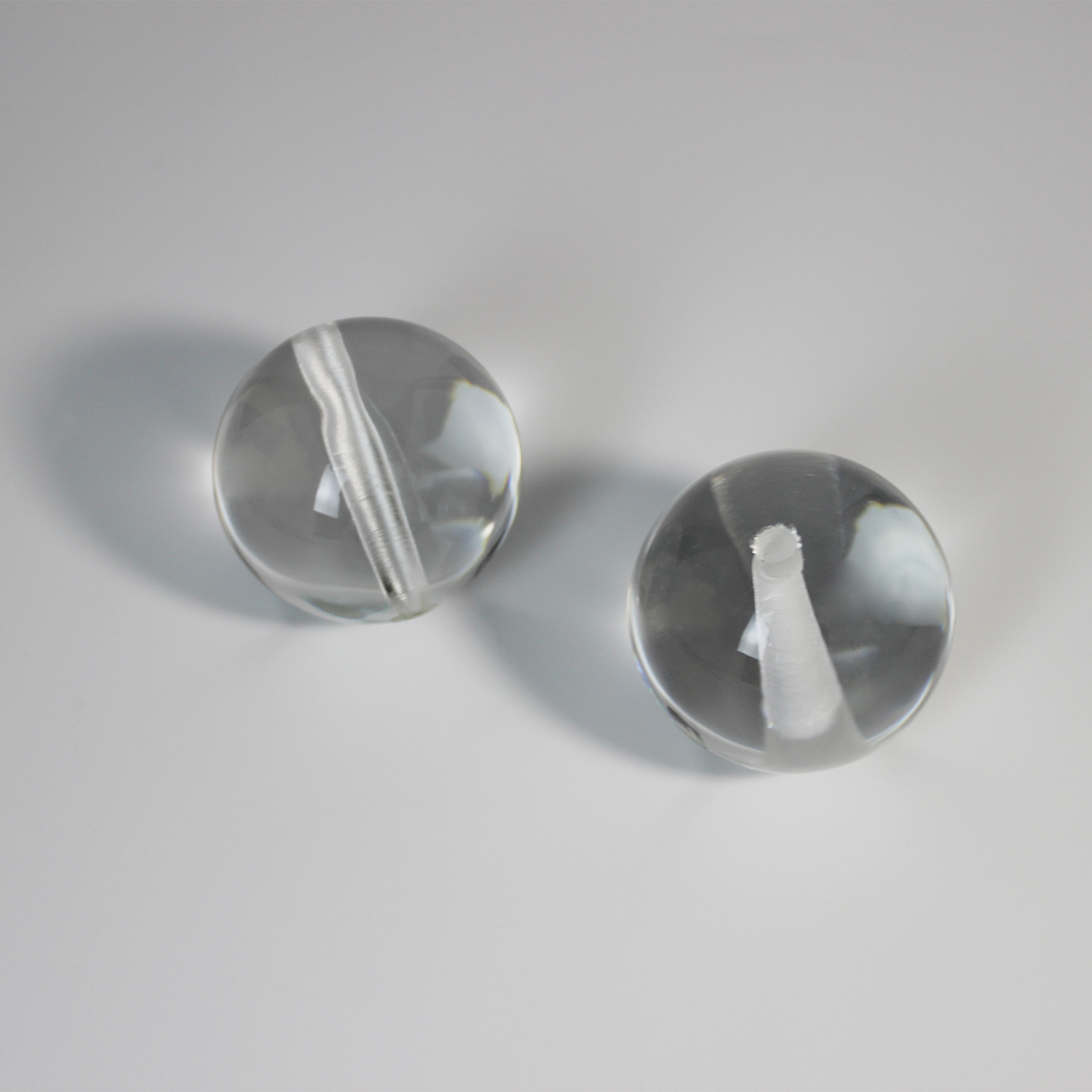

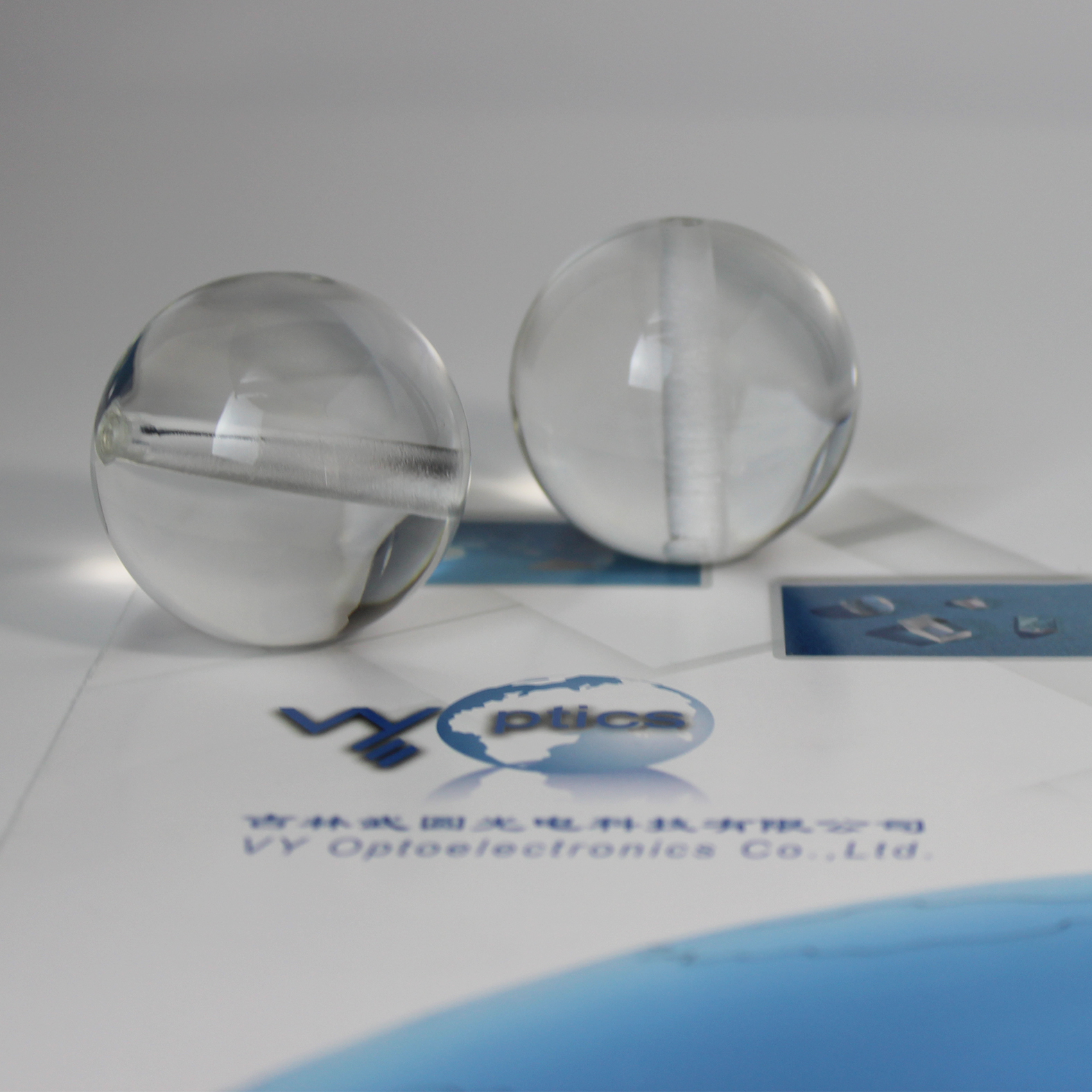

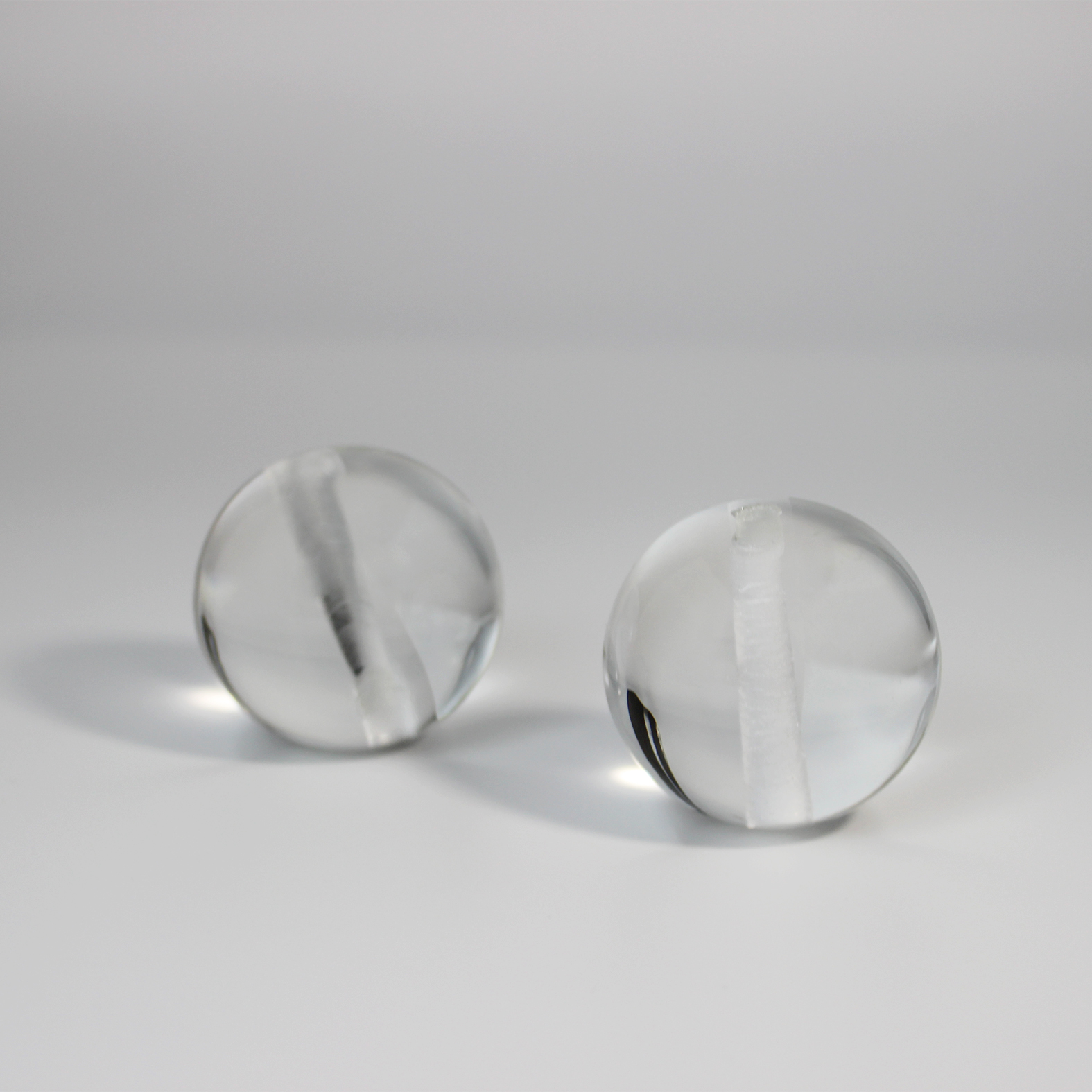

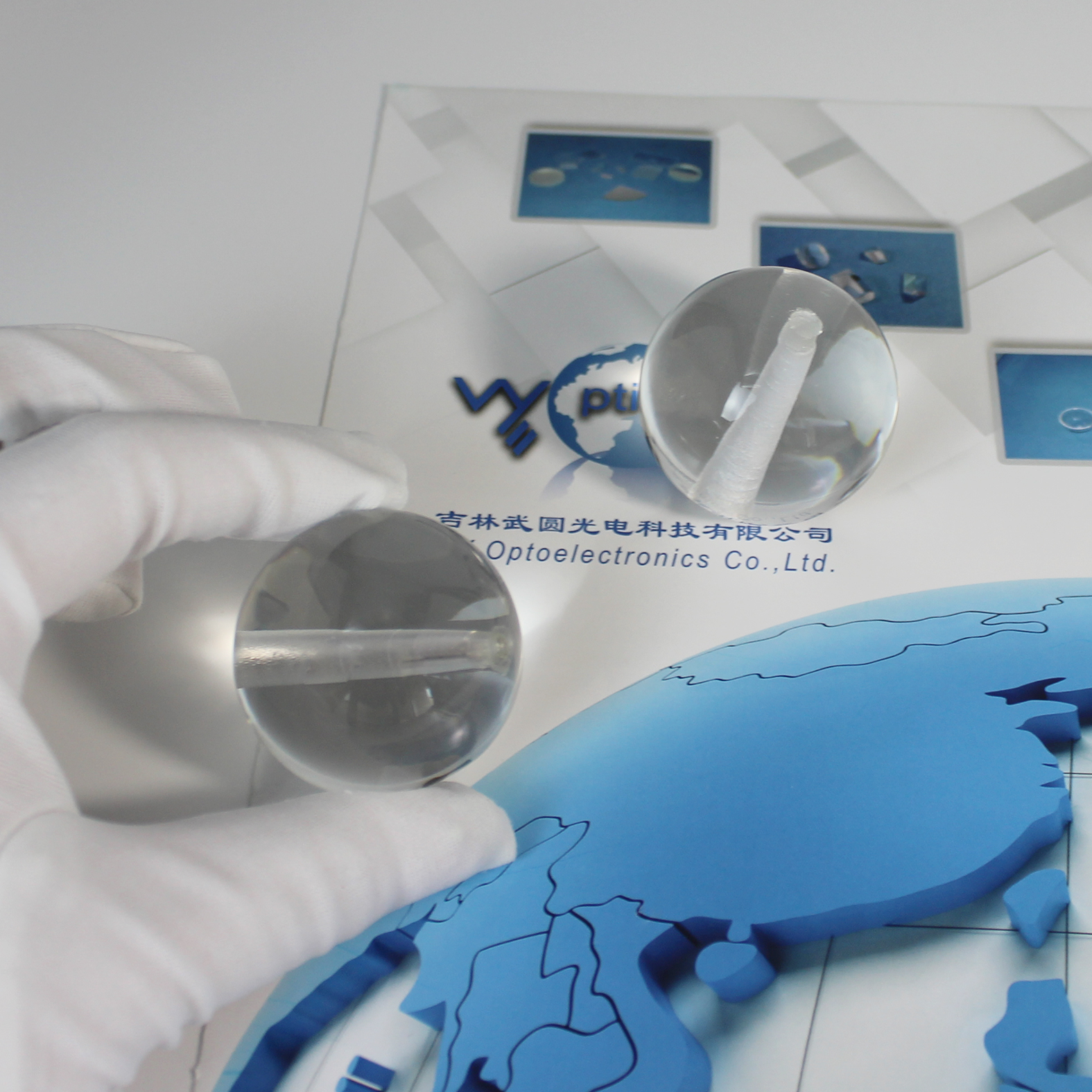

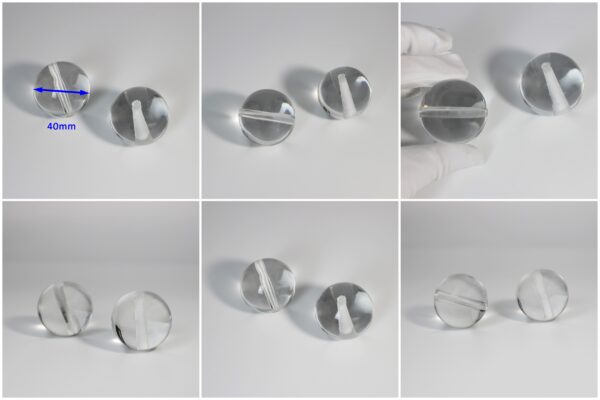

Picture of Ball Lens with Hole
Key Features
- Precision spherical optical design
- Accurate hole machining capability
- Excellent light focusing performance
- Compact optical structure
- High quality optical surface finish
- Custom dimensions available
- Suitable for miniature optical assemblies
Applications
- Compact optical devices
- Precision imaging assemblies
- Optical coupling systems
- Sensor components
- Customized optical instruments
- Miniature optical modules
Advantages of Custom Ball Lens Manufacturing
- Custom hole size and position
- Various optical material options
- High precision spherical processing
- Excellent surface accuracy
- Flexible production capability
- OEM optical component support
People Also Ask (FAQs)
What materials are available for ball lenses?
Ball lenses can be manufactured from optical glass, sapphire, and other optical materials depending on performance requirements.
What is the advantage of a ball lens?
A ball lens provides efficient light focusing in a compact spherical structure and is suitable for space-limited optical designs.
Can ball lenses be manufactured according to drawings?
Yes. Customized ball lenses with special structures can be produced according to customer drawings and technical specifications.
Customization Options
- Custom lens diameter
- Hole size and position design
- Different optical materials
- Surface coating options
- Precision polishing requirements
- Prototype and mass production
