What is a Cat’s Eye Reflector?
A cat’s eye reflector is a specialized optical component designed to return incident light toward its original direction. It typically uses a combination of curved optical surfaces and reflective elements to achieve a controlled light-return effect.
How Does a Cat’s Eye Reflector Work?
When light enters the optical structure, the curved surface changes the direction of the incoming rays before they interact with the reflective surface. The reflected light is then redirected through the optical element, producing a return path that is closely aligned with the incident direction.
Specifications of Cat’s Eye Reflector
| Material | H-ZLaF90 |
| Diameter | 29 mm |
| Tolerance | ±0.01 mm |
| Surface quality | 60-40 |
| Surface figure | λ/4 |
| Coating | Reflective surface coated with aluminum |

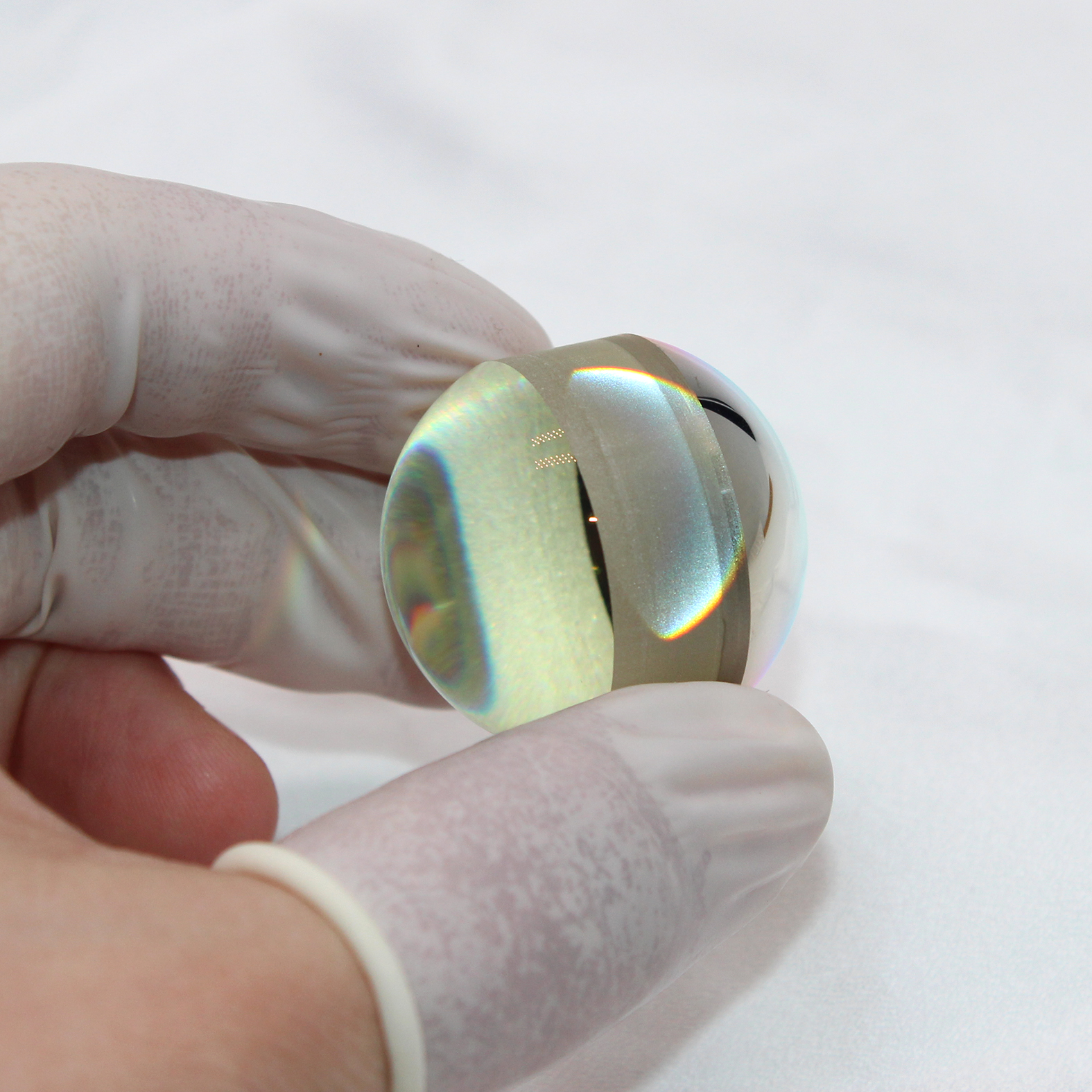

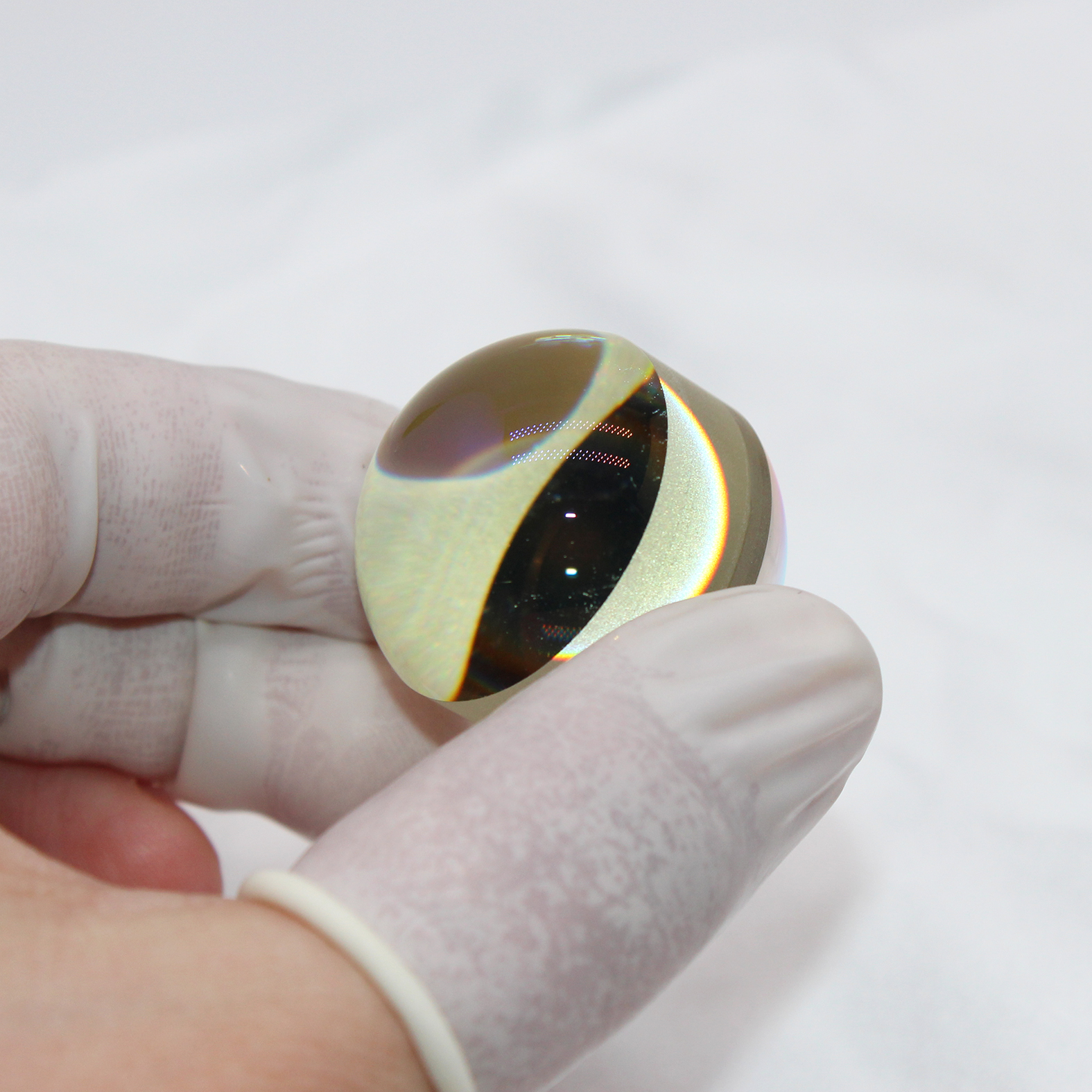

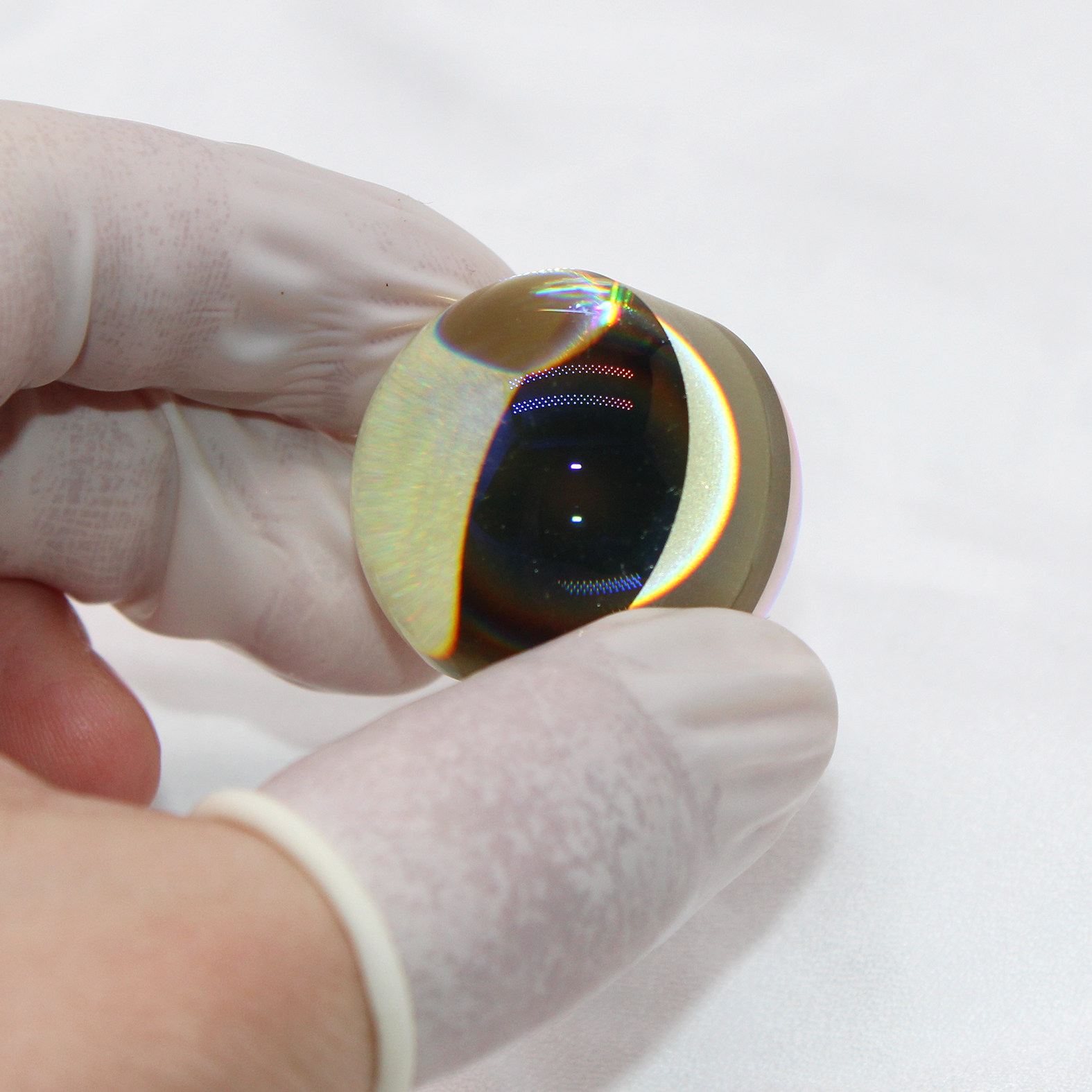

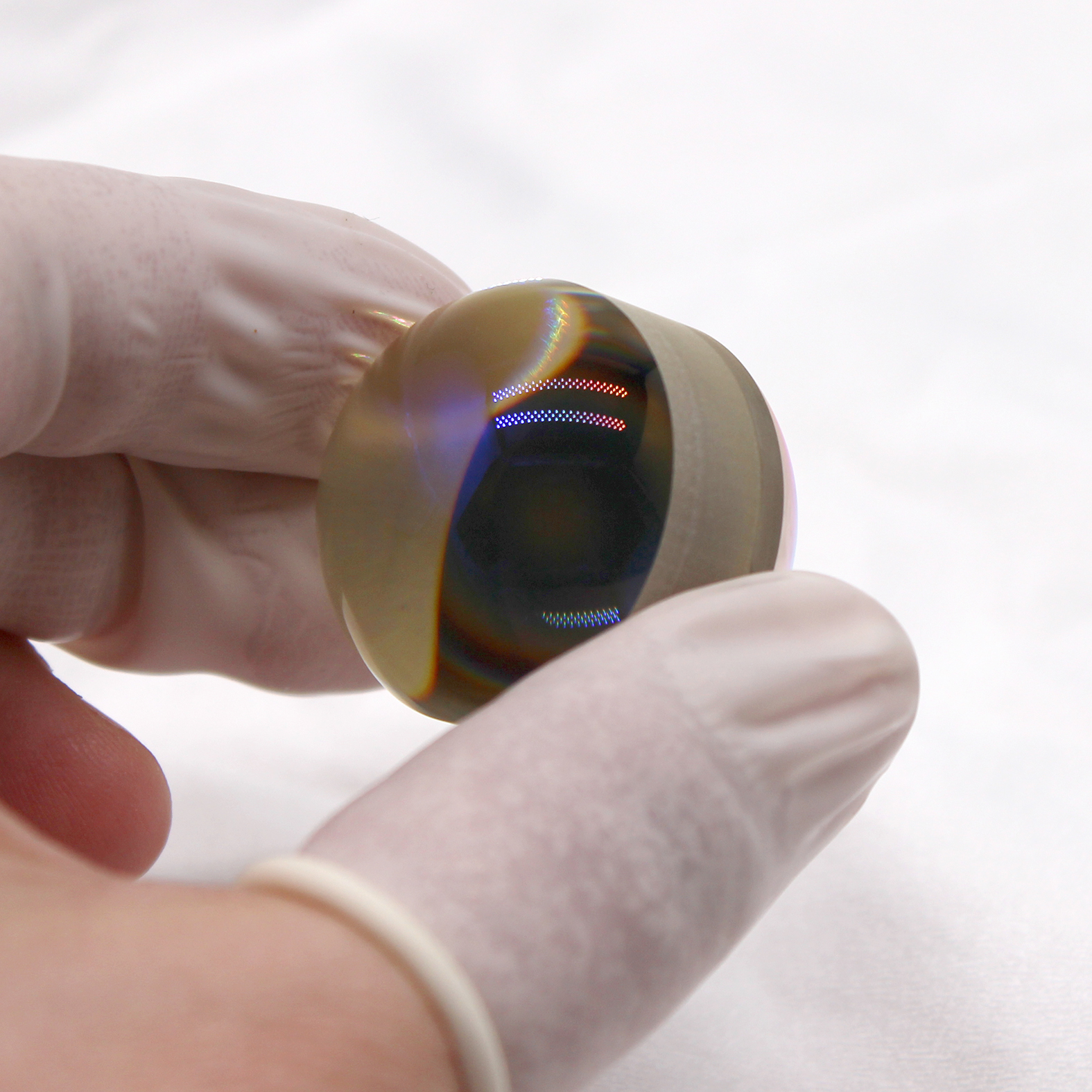

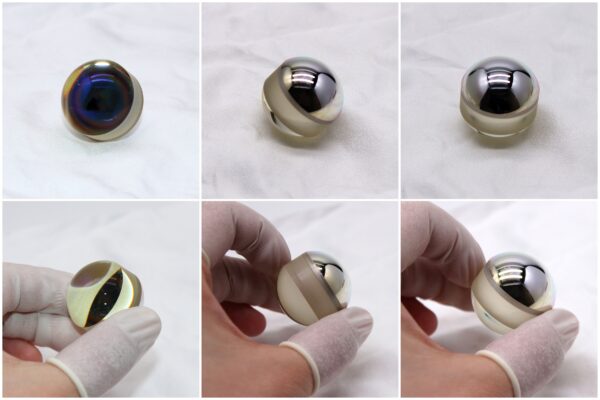

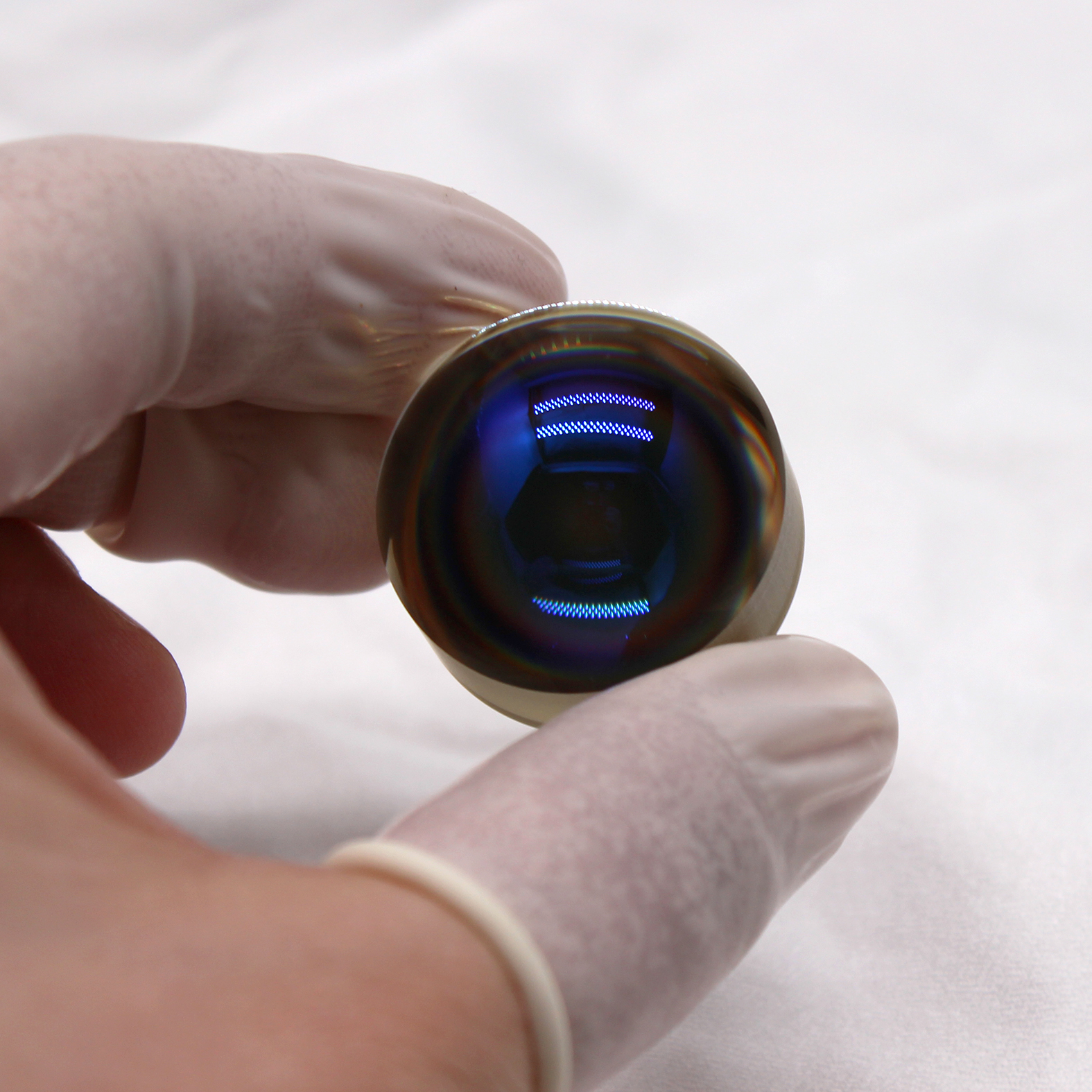

Picture of Cat’s Eye Reflector
Video of Cat’s Eye Reflector
Key Features
- Cat’s eye optical configuration
- Controlled light-return path
- Reliable retroreflective performance
- Precision optical geometry
- High quality optical surfaces
- Stable optical alignment
- Custom dimensions available
- Optional reflective coatings
Optical Characteristics
The performance of a cat’s eye reflector depends on its optical geometry, surface accuracy, reflective properties, and alignment. Careful control of the curved optical surface and reflective element helps maintain a consistent return path over the specified operating range.
Applications
- Optical measurement equipment
- Light return systems
- Optical alignment systems
- Precision optical instruments
- Machine vision equipment
- Laboratory optical systems
- Optical testing equipment
Manufacturing of Cat’s Eye Reflectors
We provide precision manufacturing of cat’s eye reflectors according to optical and mechanical specifications. Optical material, diameter, focal length, surface accuracy, reflective surface characteristics, coating, and mechanical dimensions can be customized according to customer requirements.
Customization Options
- Optical material
- Reflector diameter
- Focal length
- Curved surface geometry
- Reflective surface specifications
- Surface quality
- Optical coating
- Mechanical dimensions
People Also Ask (FAQs)
How does a cat’s eye reflector work?
The curved optical surface redirects incoming light toward a reflective surface, after which the light is redirected back through the optical structure toward the incident direction.
What is a cat’s eye reflector used for?
Cat’s eye reflectors are used in optical measurement, alignment, light-return, testing, and other precision optical systems.
Why Choose Our Cat’s Eye Reflectors?
- Precision optical design
- Accurate surface processing
- Controlled reflective performance
- Customized optical parameters
- Flexible mechanical configurations
- Prototype and production capabilities
