What is an Optical Coating Dome Lens with Flange?
An optical coating dome lens with flange is a curved optical glass component designed for protection and light transmission.
The flange structure allows secure mounting, while the optical coating improves transmission and reduces surface reflection.
Why Use a Coated Dome Lens with Flange?
Dome lenses with flange designs provide stable installation and reliable protection for sensitive optical systems.
Optical coatings help improve image clarity and optical efficiency in demanding environments.

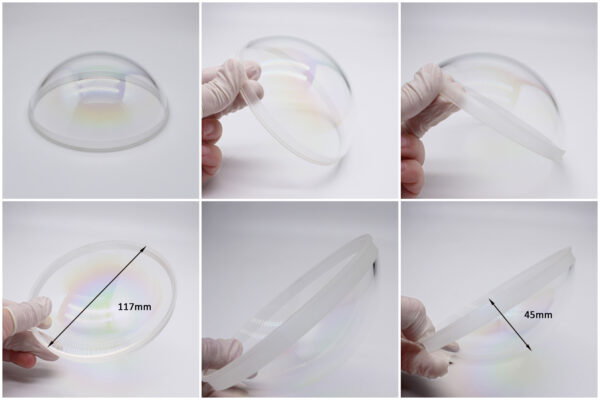

Specifications of Optical Glass Dome Lenses
| Diameter | 117mm |
| Height | 45mm |
| Flange thickness | 1mm |

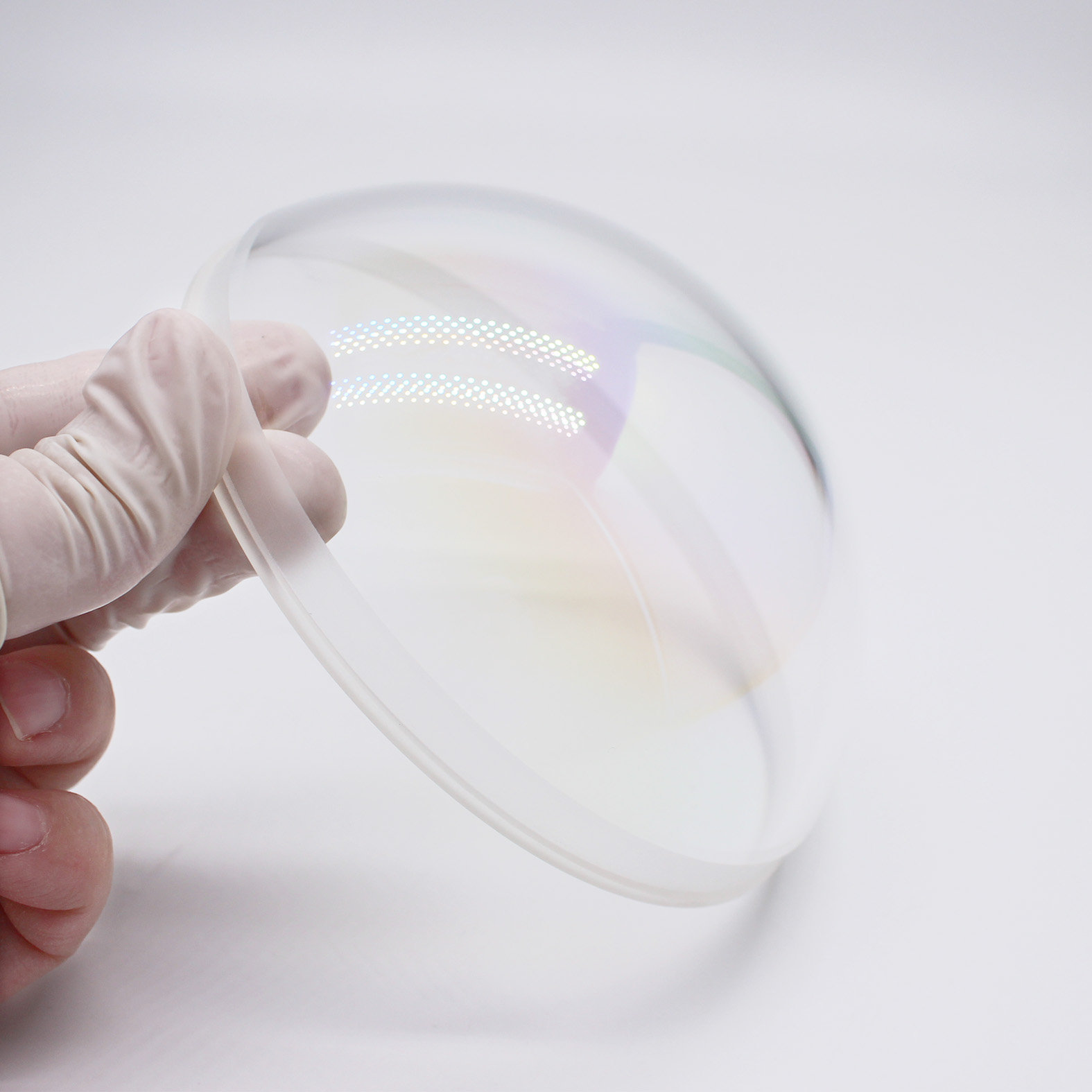

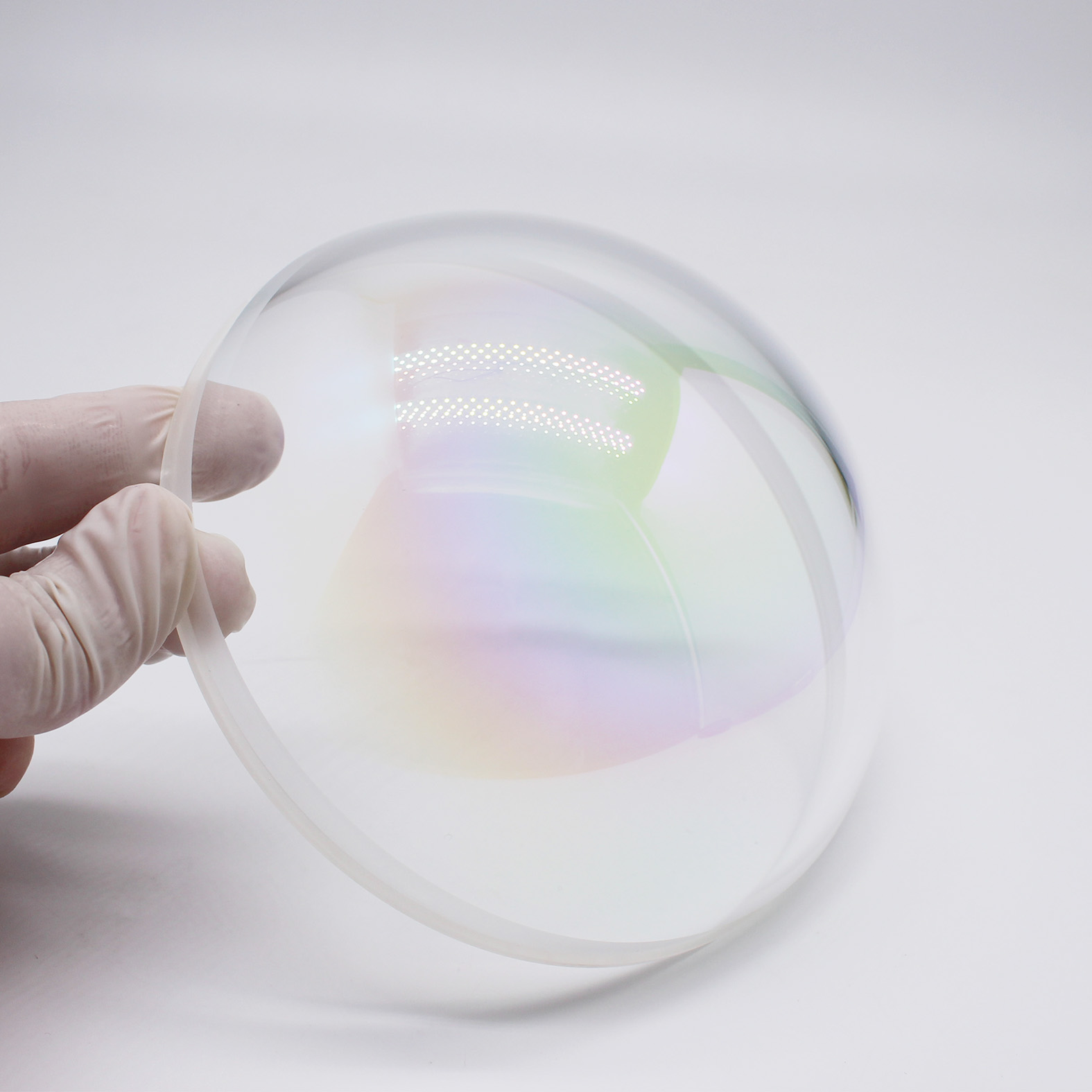

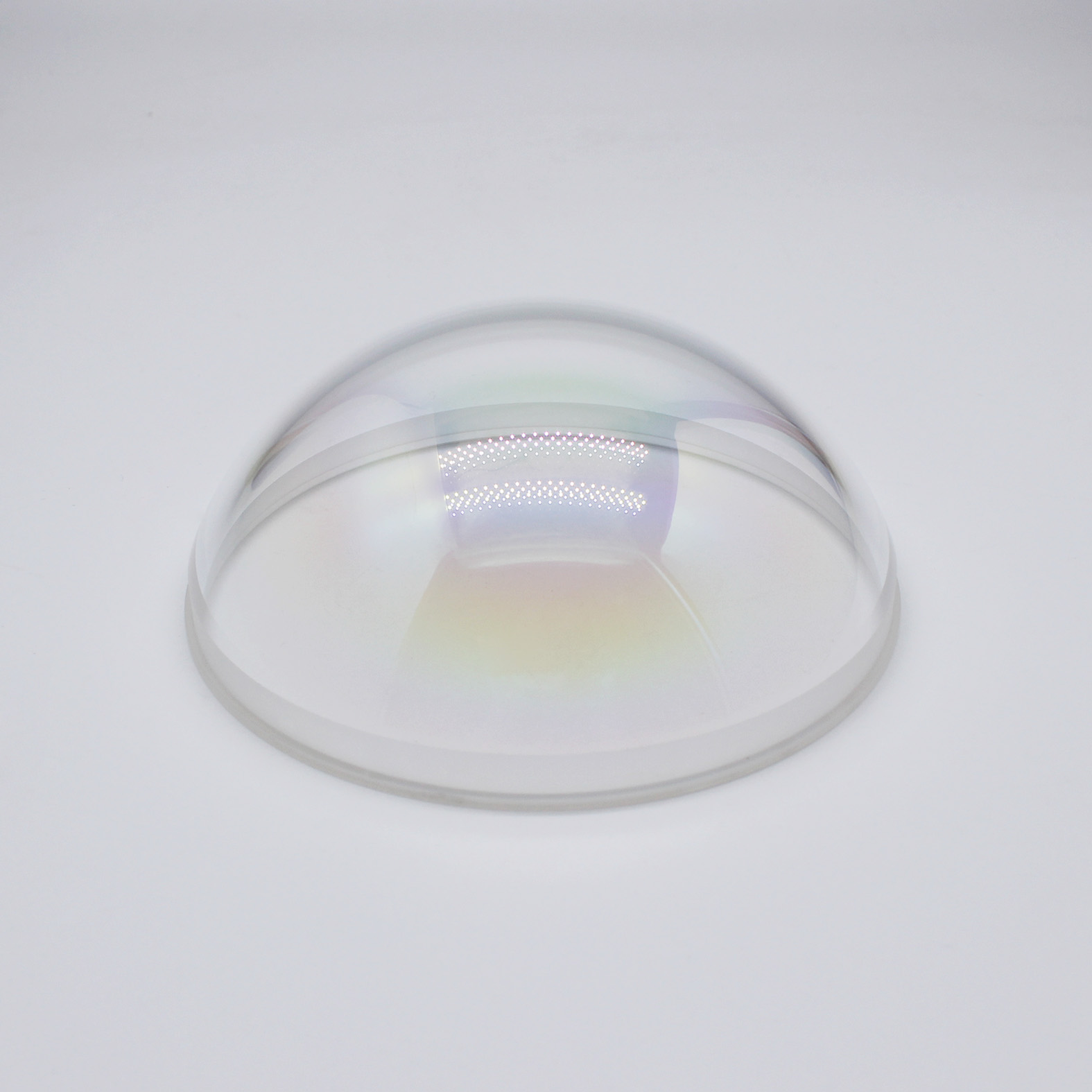

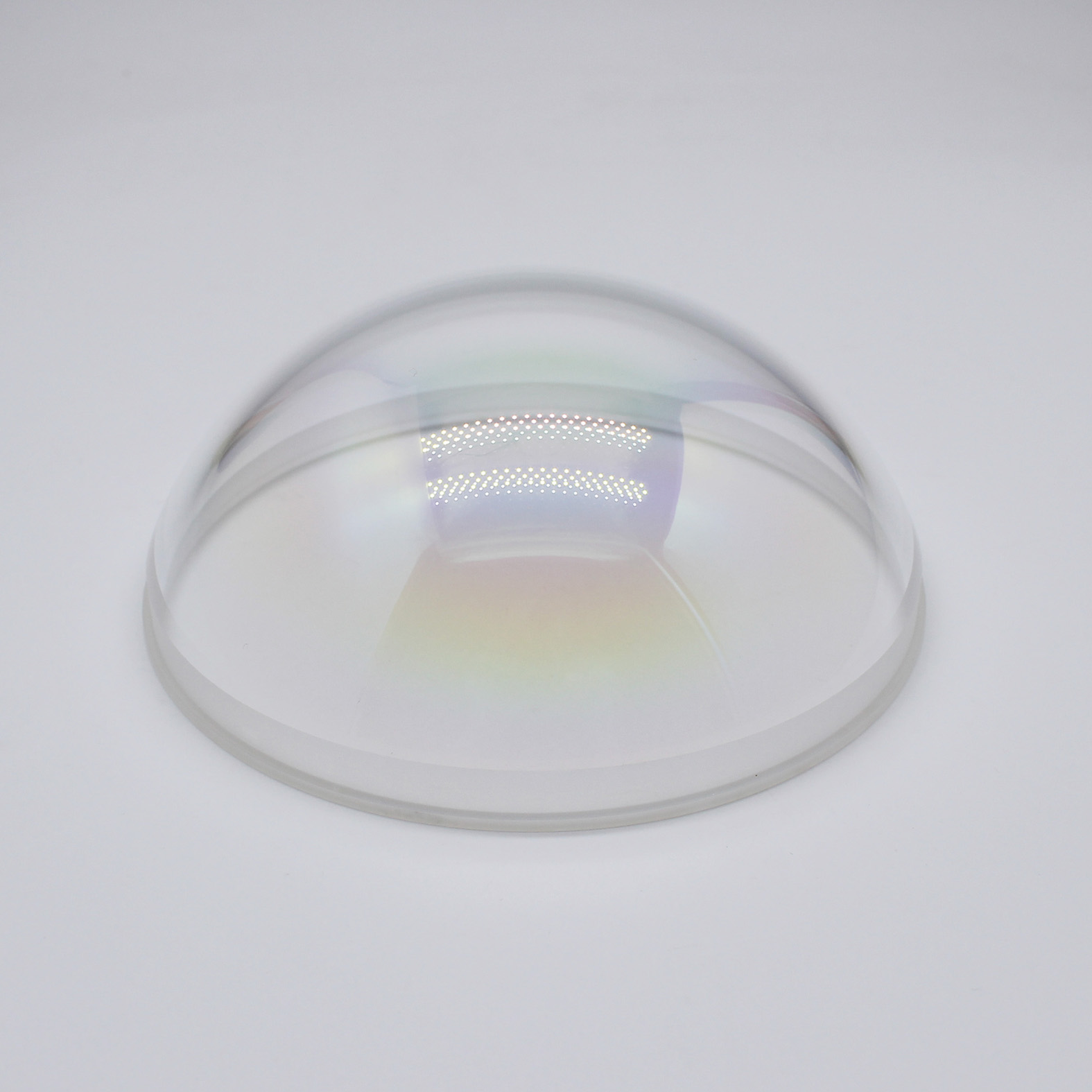

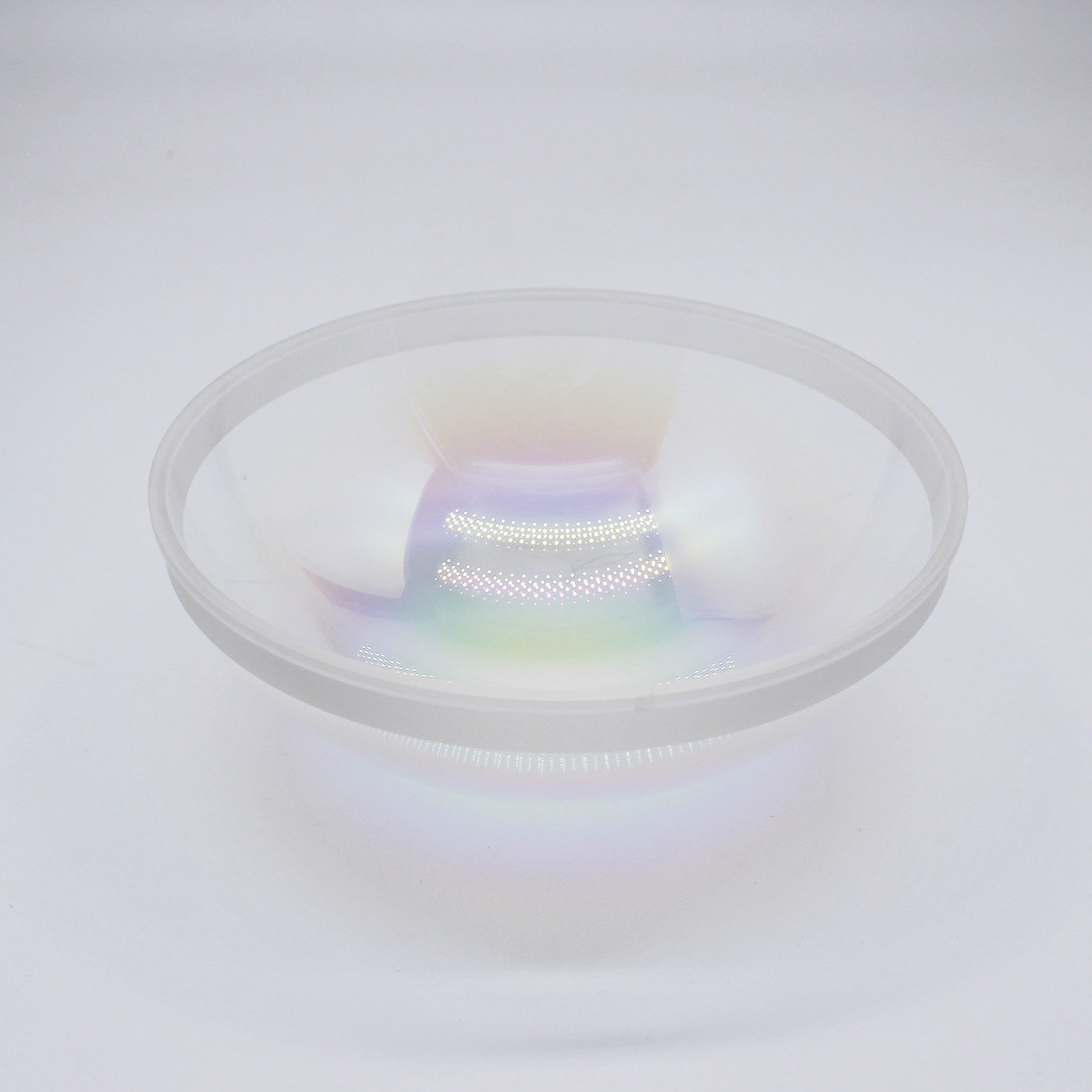

Picture of Optical coating dome lens with flange
Detailed Video of Dome
Key Features of Optical Dome Lenses
- High optical clarity and transmission
- Durable flange mounting structure
- Anti-reflective optical coating available
- Excellent environmental protection
- Precision polished curved surface
- Custom optical processing support
Applications of Dome Lenses with Flange
- Surveillance and security cameras
- Optical sensors and detectors
- Marine and underwater imaging systems
- Industrial inspection equipment
- Scientific optical devices
- Outdoor monitoring systems
Advantages of Coated Optical Dome Glass
- Improved optical transmission
- Reduced glare and reflection
- Reliable mounting and sealing performance
- Protection against dust and moisture
- Suitable for OEM optical applications
People Also Ask (FAQs)
What is a dome lens with flange used for?
Dome lenses with flange are used for protecting cameras, sensors,
and optical systems while maintaining high light transmission.
Why use optical coating on dome lenses?
Optical coatings help reduce reflection, improve transmission,
and enhance image quality in optical systems.
Can coated dome lenses be customized?
Yes. Dome lenses can be customized in size, coating,
material, and flange structure according to application requirements.
What materials are available for dome lenses?
Common materials include optical glass, fused silica,
BK7, sapphire, and other precision optical materials.
Are dome lenses suitable for outdoor applications?
Yes. Optical dome lenses provide strong environmental protection
and are widely used in outdoor and marine systems.
Customization Options
- Custom flange structures and dimensions
- AR and multi-layer optical coatings
- Precision optical polishing
- OEM and volume production support
- Custom packaging and inspection solutions
