What is an Optical Silicon Dome Lens?
What are the Main Specifications of the Silicon Dome Lens?
| Parameter | Specification |
|---|---|
| Material | Silicon (Optical Grade) |
| Diameter | 126 mm |
| Thickness | 2 mm |
| Height | 40 mm |
| Transmission Range | 1 – 7 μm (Infrared Band) |
| Surface Quality | High precision, low surface error |
| Shape | Hemispherical / Customized Dome |
| Coating Options | AR coating for IR or visible range (optional) |
| Operating Temperature | -40°C to +200°C |
| Customization | Dimensions, coatings, and tolerances available upon request |

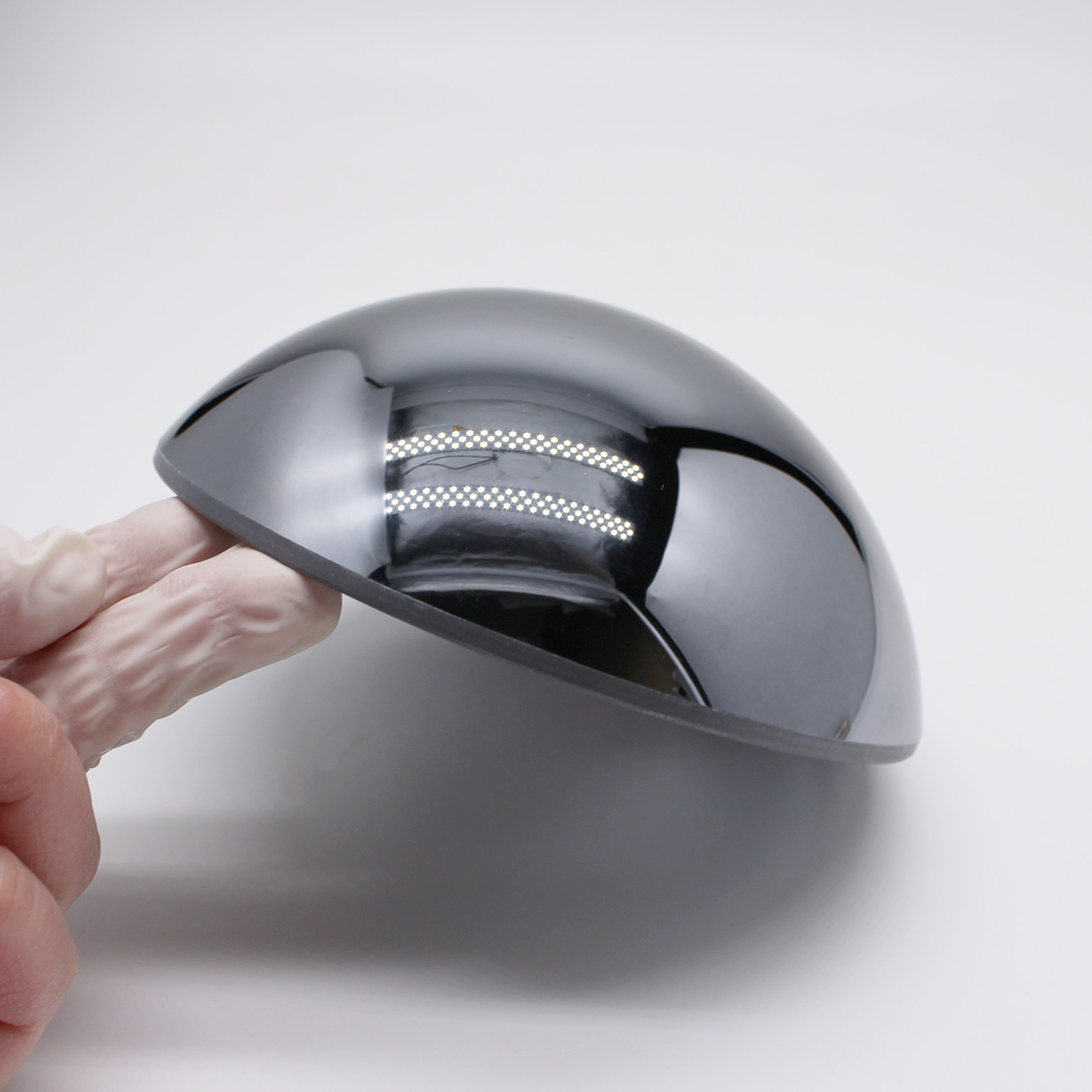

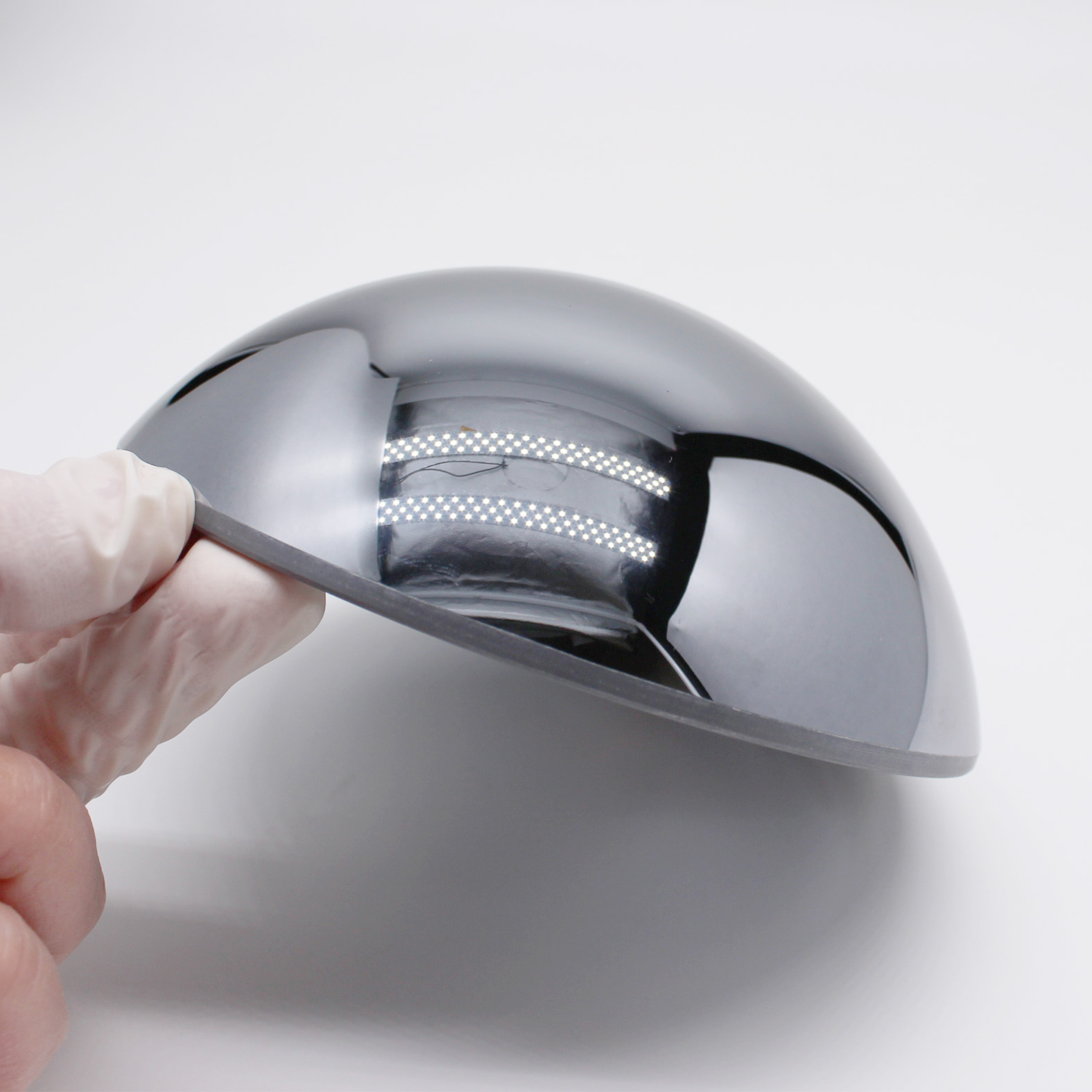

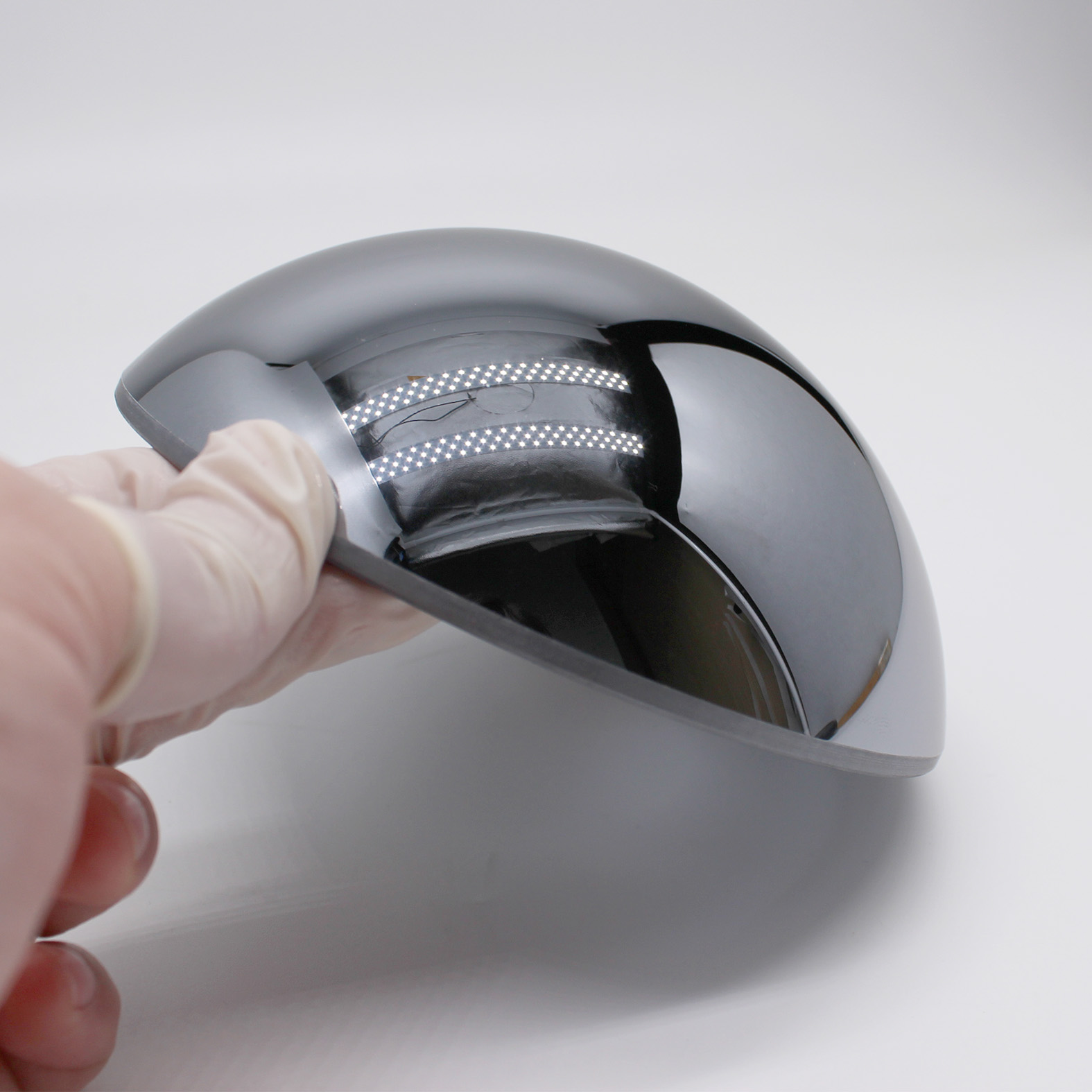

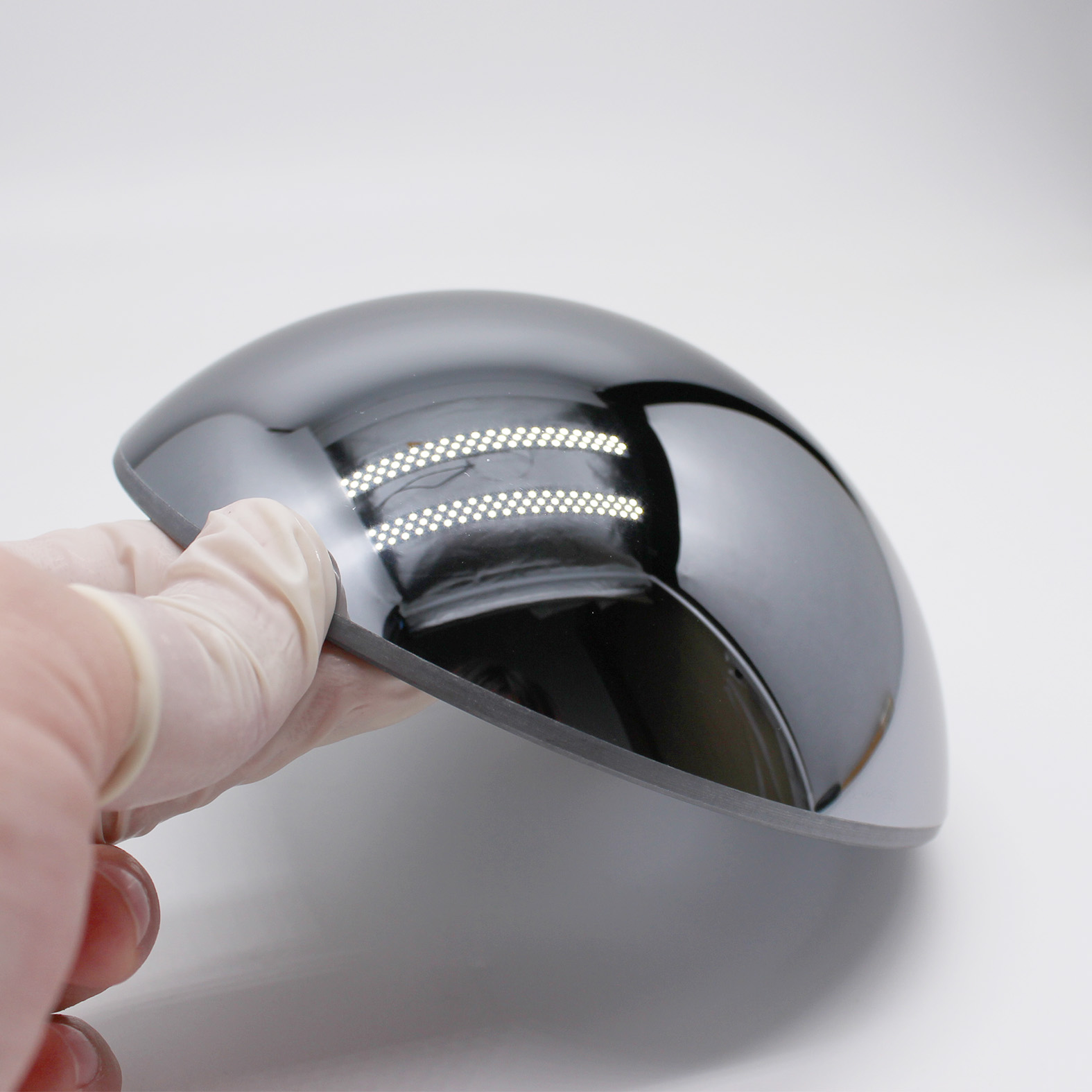

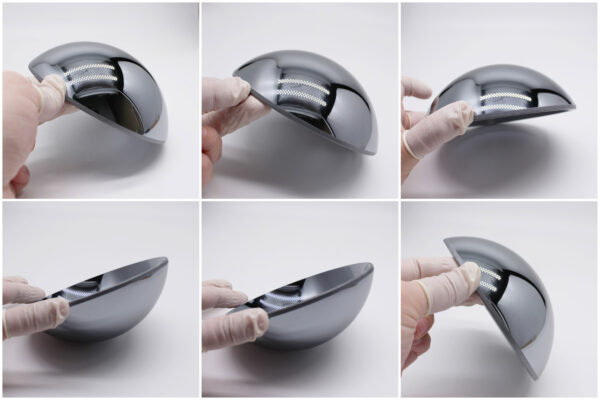

Picture of Optical Silicon Dome Lens
Detailed Video of Optical Silicon Dome Lens
Some Customized Glass Dome Lenses Customized by VY Optics
Production Factory of VY Optoelectronics Co.,Ltd.
What Are the Key Features of This IR Silicon Dome Lens?
- Excellent Infrared Transmission: High optical clarity across mid and long-wave IR spectra.
- Strong Mechanical Stability: Silicon material ensures high hardness and scratch resistance.
- Thermal Resistance: Performs reliably under extreme temperature variations.
- Precision Design: Dome geometry minimizes optical distortion and reflection loss.
- Custom Manufacturing: Available in various diameters, coatings, and specifications for unique applications.
People Also Ask
Q1: What is the difference between a silicon dome lens and a glass dome lens?
A silicon dome lens performs better in infrared wavelengths and offers greater durability, while glass domes are mainly used for visible light applications.
Q2: Can silicon dome lenses be used underwater or in outdoor environments?
Yes. Silicon domes are robust, waterproof, and maintain optical stability in outdoor and harsh conditions.
Q3: Is coating necessary for silicon dome lenses?
An anti-reflective (AR) coating improves transmission efficiency and reduces reflection, especially in IR imaging systems.
Q4: Can I customize the dome size or curvature?
Yes, we offer custom-made silicon domes to meet specific optical designs, diameters, and coating requirements.
