What is a Wedge Prism?
A wedge prism is an optical prism with a slight angular difference between its two flat surfaces. It is commonly used to deviate or deflect a laser beam at a small, precise angle. K9 optical glass wedge prisms provide high transparency, low bubble content, and stable performance across the visible spectrum.
Product Specifications
| Parameter | Value / Description |
|---|---|
| Material | K9 Optical Glass |
| Diameter | 6 mm |
| Wedge Angle | 15° ±0.5° (each side) |
| Corner Type | Right-angle corner |
| Coating | Both sides with AR coating |
| Surface Quality | 40-20 scratch-dig |
| Flatness | λ/10 @ 633nm |
| Transmission Range | 350–2000 nm |
| Customization | Available upon request |

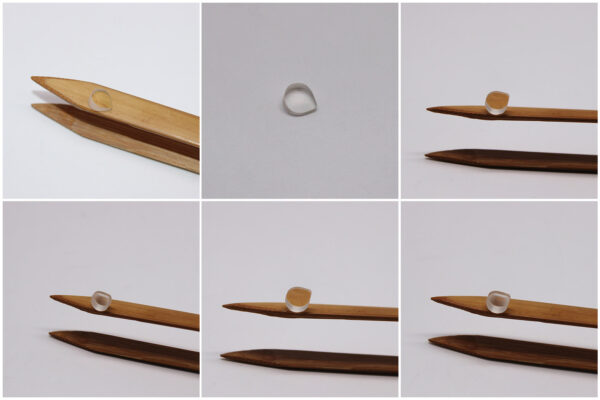

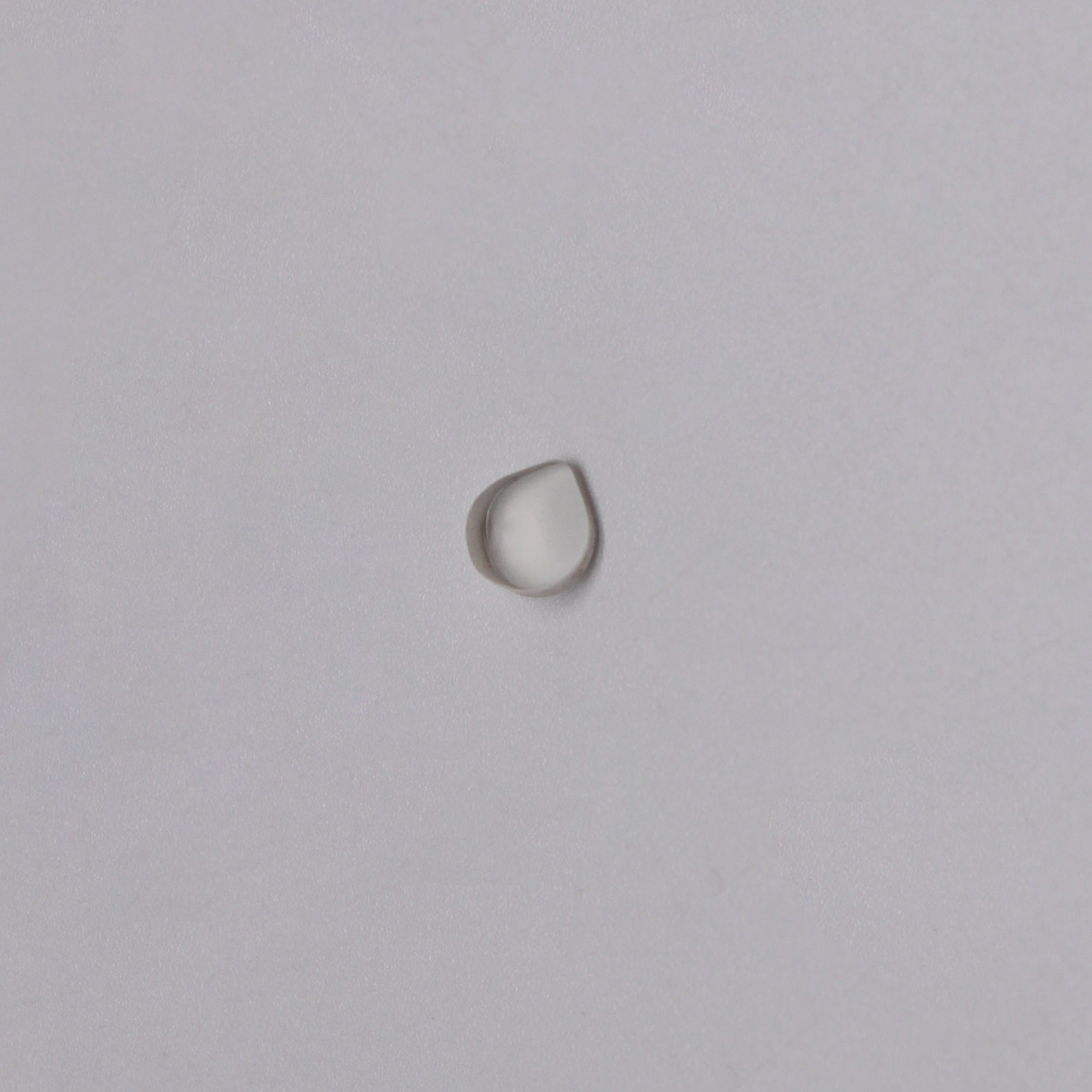

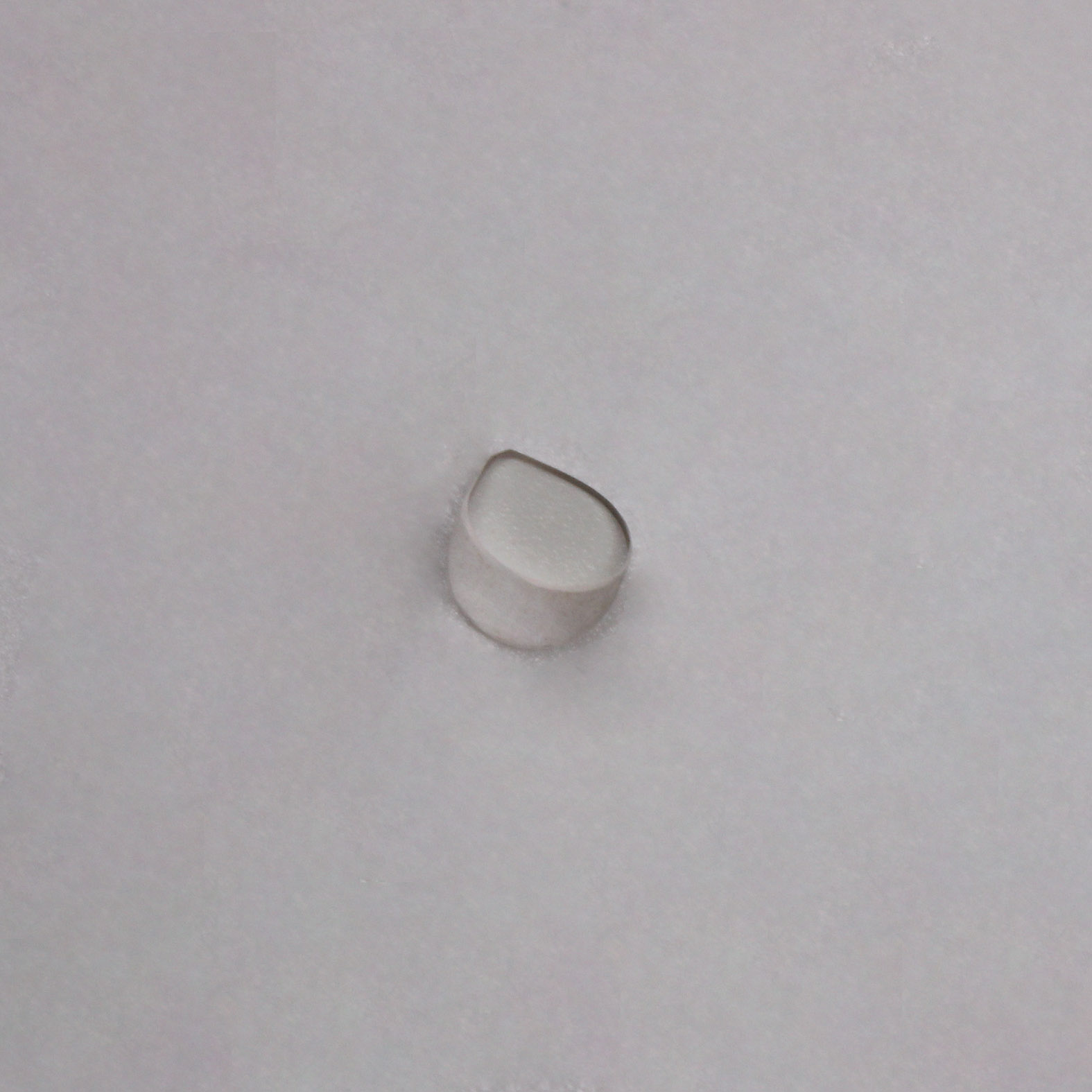

Picture of K9 Wedge Prism
Key Features
- High-precision wedge angle for accurate beam deviation
- Made from high-quality K9 optical glass with excellent clarity
- AR coating on both sides to minimize reflection loss
- Right-angle design for easy alignment in optical setups
- Excellent surface quality and flatness for laser applications
- Custom dimensions and coating options available
Applications
- Laser beam deviation and alignment systems
- Optical path adjustment and calibration
- Interferometers and imaging devices
- Scientific research and optical testing
- OEM optical instruments and precision optics
Detailed video of Wedge Prism
Advantages of Choosing VY Optics
- Over 15 years of experience in precision optical manufacturing
- Strict surface quality and angle tolerance control
- OEM / ODM customization services
- Fast delivery and global shipping
- Comprehensive optical design and assembly support
FAQ / People Also Ask
Q1: What is the purpose of a wedge prism?
A wedge prism is used to slightly deviate a light beam without dispersing it. It is ideal for aligning laser paths or adjusting optical axes in imaging systems.
Q2: What materials are commonly used for wedge prisms?
K9 glass and fused silica are the most common materials. K9 offers good visible transmission and cost-effectiveness, while fused silica provides higher UV transmission and lower thermal expansion.
Q3: Can wedge prisms be customized?
Yes, VY Optics offers customized wedge angles, dimensions, coatings, and mounting solutions according to customer requirements.
Q4: What is the difference between a wedge prism and a right-angle prism?
A wedge prism has a small angle deviation for beam steering, while a right-angle prism changes the direction of light by 90°. They serve different optical alignment purposes.
How to Choose the Right Wedge Prism
Choosing the right wedge prism depends on wavelength range, material, coating, and wedge angle. A proper combination ensures stable and accurate beam deviation performance.
- Wavelength Range: Match the prism material to your system’s wavelength (e.g., K9 for visible, fused silica for UV).
- Wedge Angle: Determines the degree of beam deviation; precision is crucial for laser alignment.
- Surface Quality & Flatness: Better quality reduces beam distortion.
- Coating Selection: AR coatings enhance transmission and minimize reflections.
- Environmental Conditions: Consider operating temperature and humidity.
- Customization: VY Optics provides OEM options to match any optical setup.
