1. What Is a Silicon Dome Lens?
Q: What is a Silicon Dome Lens?
A: A Silicon Dome Lens is a high-strength optical dome made from crystalline silicon. It is designed to protect imaging systems while keeping high infrared transmission. The dome shape allows a wide field of view with low distortion.
Q: How does a Silicon Optical Dome work?
A: It acts as a protective optical window and a refractive element. Its geometry spreads incoming light evenly, making it ideal for wide-angle imaging, IR sensing, and outdoor optical devices.
Q: Why choose silicon for a dome lens?
A: Silicon offers excellent IR performance, high hardness, low weight, and strong thermal stability. This makes it suitable for harsh or outdoor environments.
2. Key Specifications
| Item | Specification |
|---|---|
| Material | Silicon (Si) |
| Outer Diameter | 126 mm |
| Wall Thickness | 2 mm |
| Optical Type | Dome / Hemispherical Lens |
| Wavelength Range | IR / NIR / SWIR (typical use) |
| Surface Quality | Customizable |
| Coating | Optional AR coating |

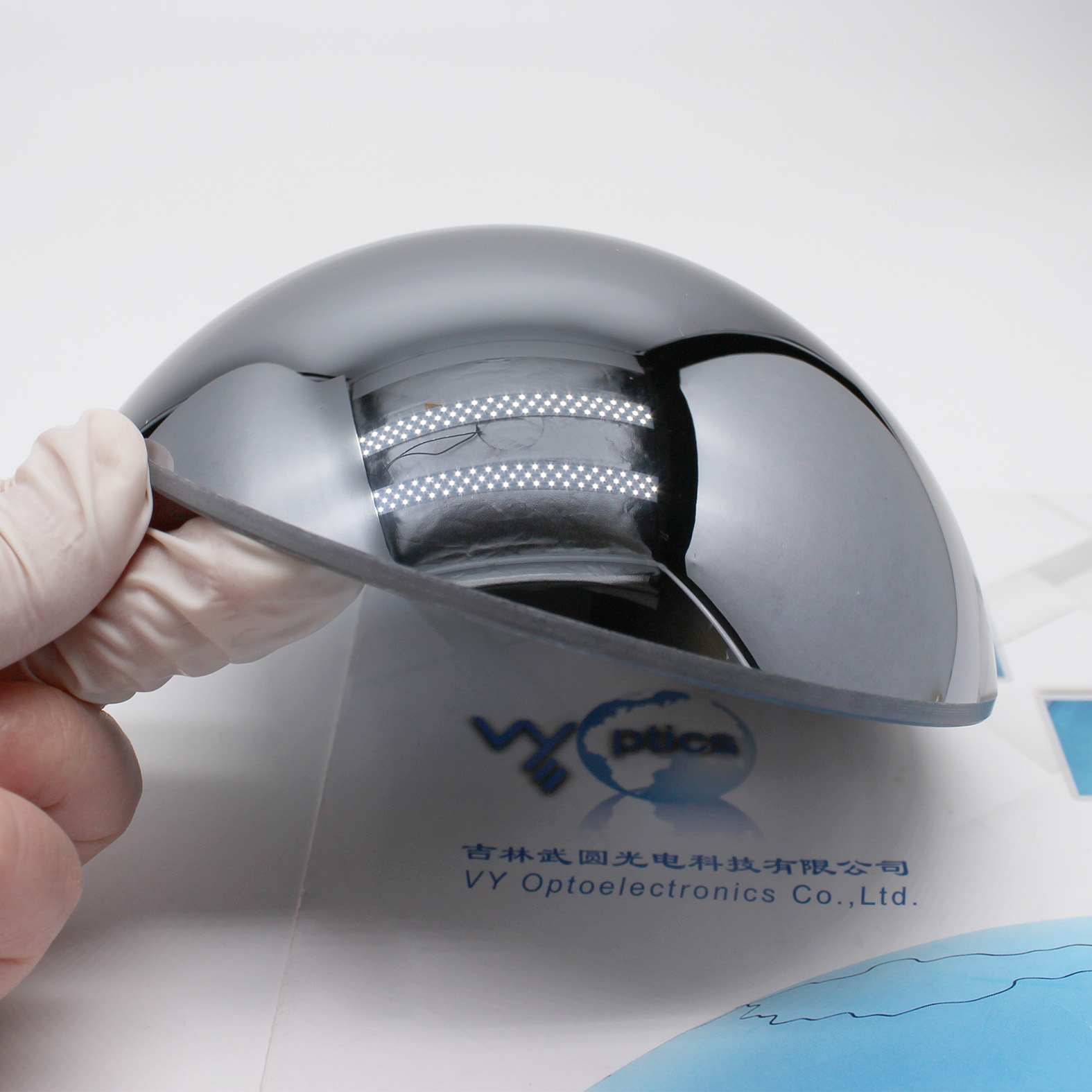

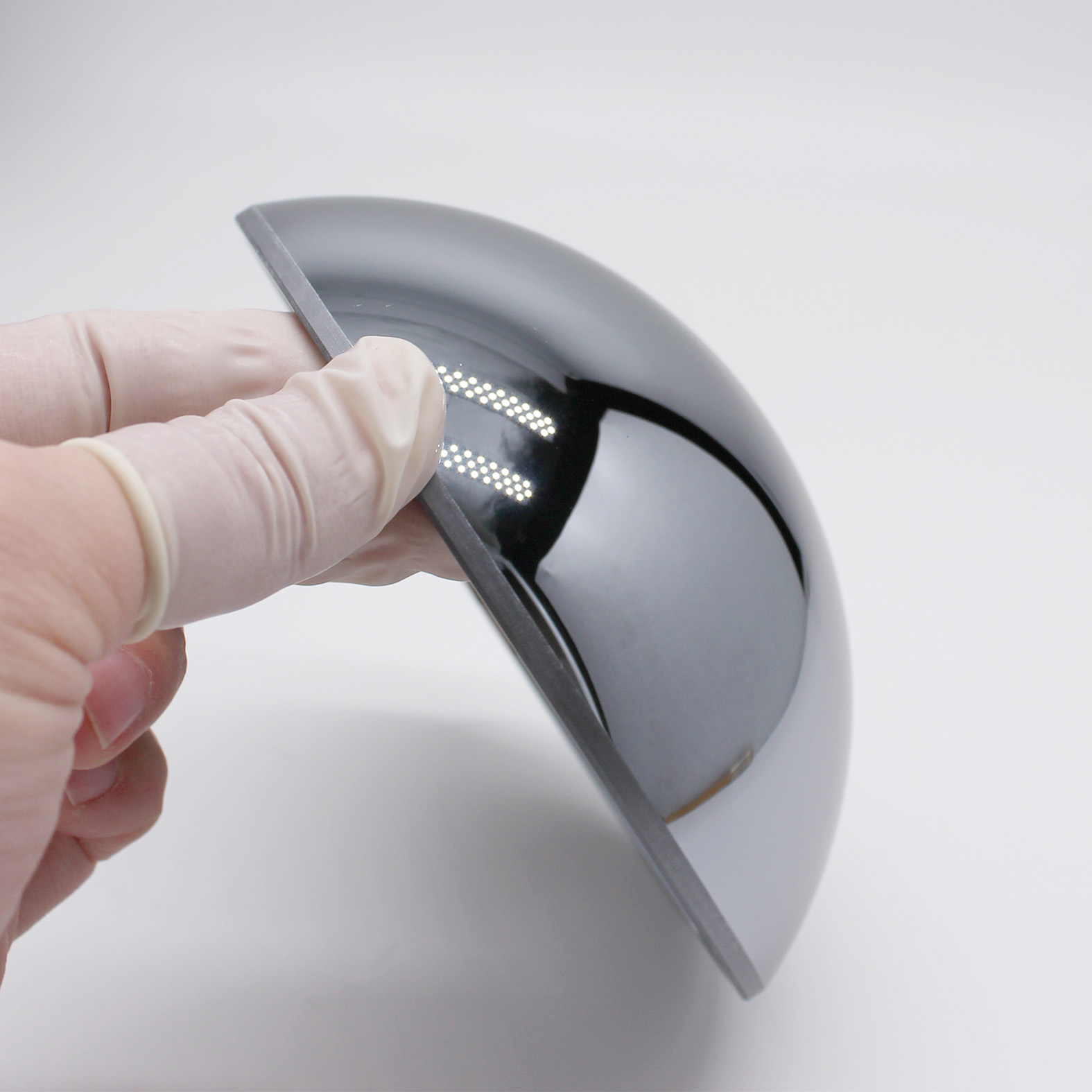

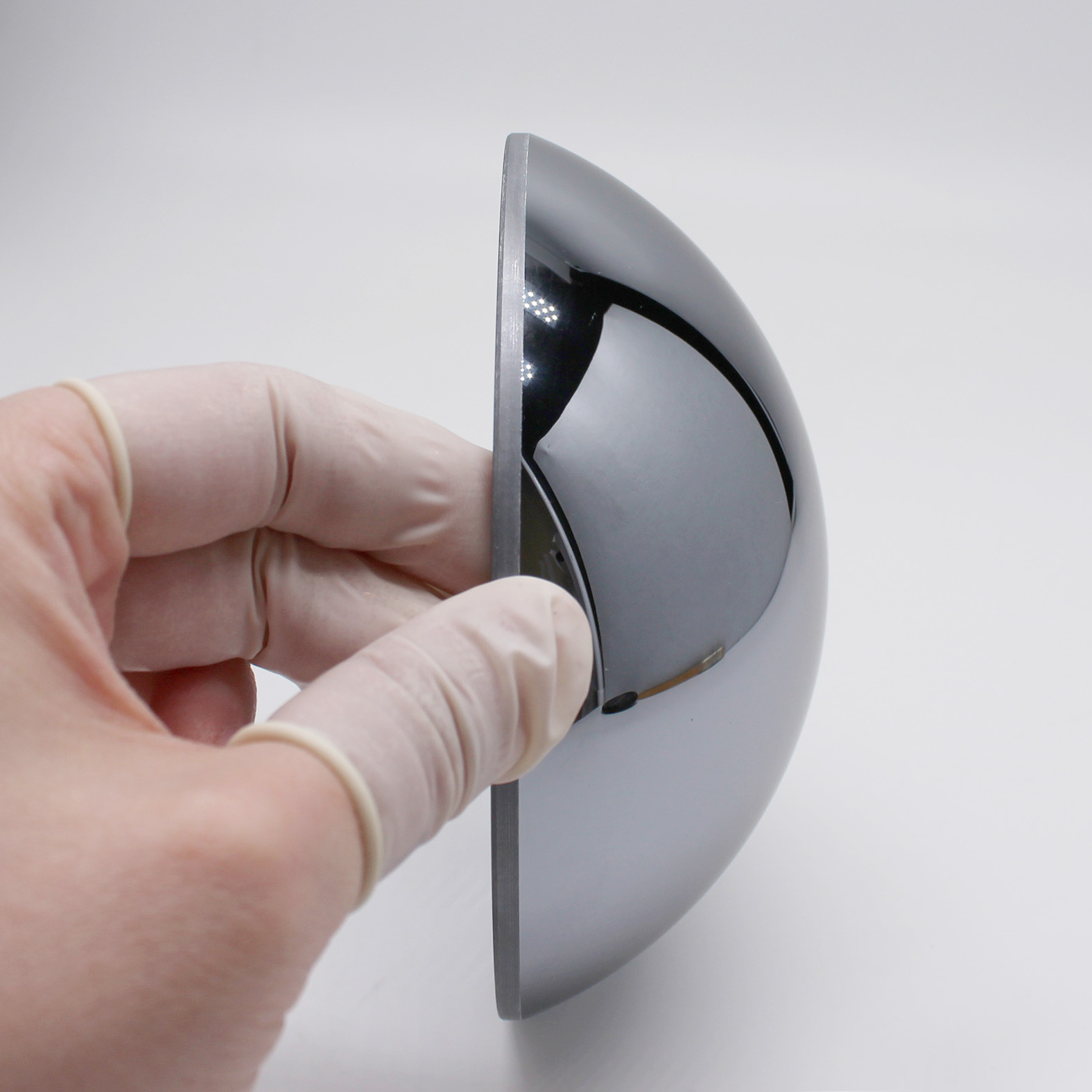

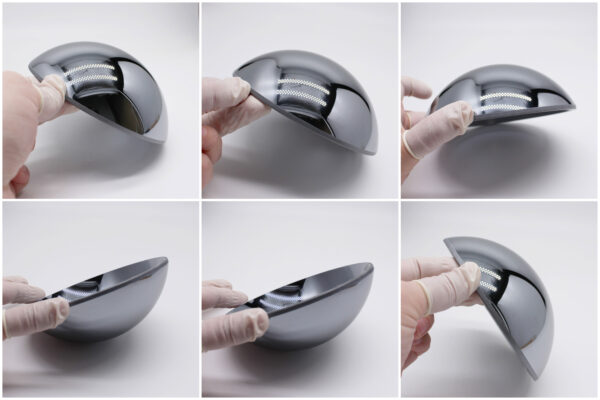

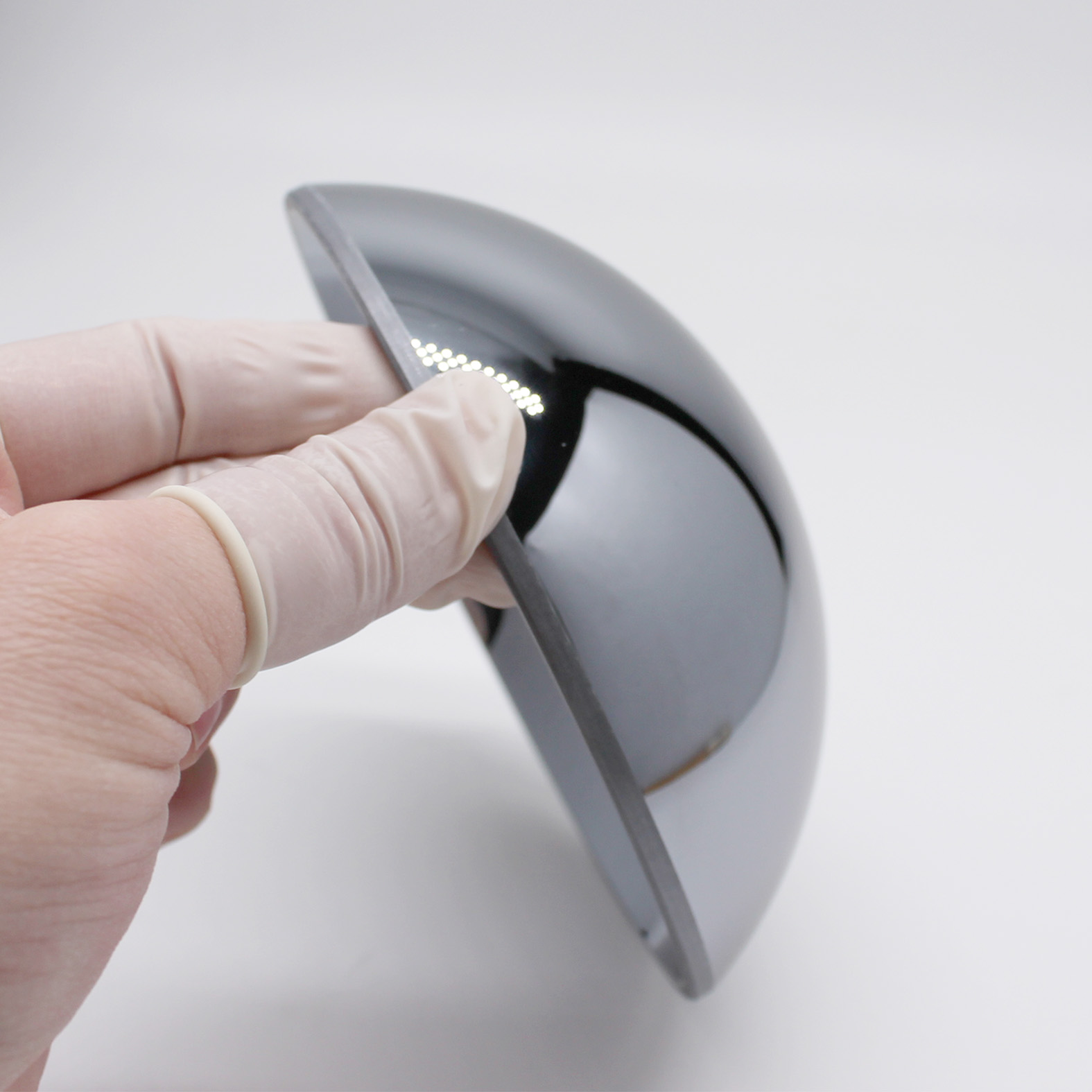

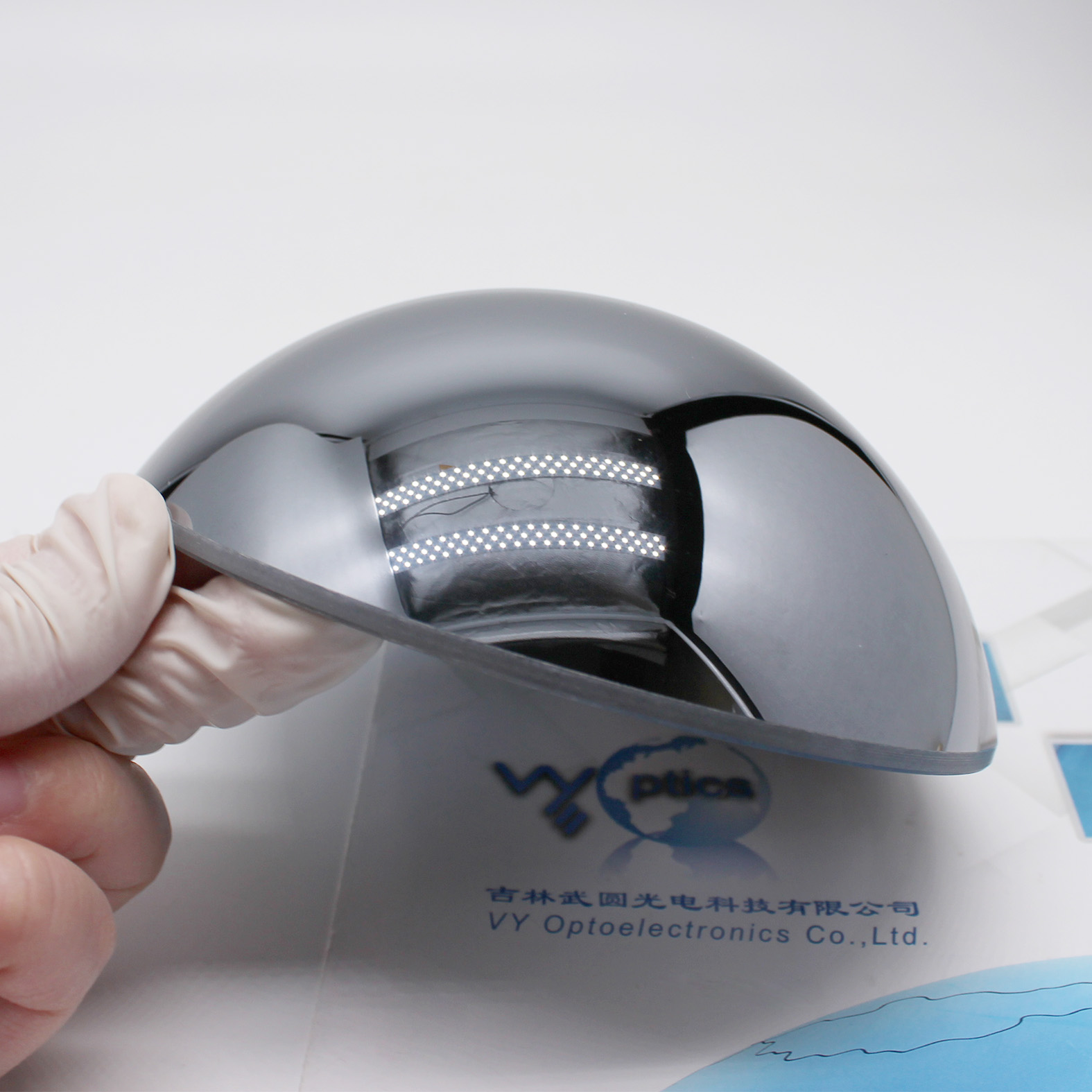

Picture of Optical Silicon Dome Lens
3. Main Features
Q: What are the features of a Silicon IR Dome Lens?
A:
- High transmission in infrared wavelengths
- Low optical distortion across a wide field
- Strong mechanical durability
- Excellent thermal resistance
- Lightweight compared to glass domes
- Suitable for high-precision optical assemblies
- Stable performance in outdoor conditions
4. Typical Applications
Q: Where is a Silicon Dome Window or IR Dome Lens used?
A:
- IR cameras and thermal imaging
- Outdoor surveillance systems
- LiDAR sensors
- Machine vision devices
- Robotics and autonomous systems
- Scientific measurement instruments
- Protective windows for imaging sensors
5. Benefits & Advantages
Q: What advantages does a Silicon Optical Dome offer?
A:
- Wide-angle imaging with uniform light distribution
- Resistant to impact and temperature change
- Works well in harsh or outdoor environments
- High strength-to-weight ratio
- Reduced chromatic effects in IR wavelength
- Long service life with stable performance
6. People Also Ask
Q: Is a silicon dome better than a glass dome?
A: In infrared use, yes. Silicon offers higher IR transmission and better thermal stability. It is also lighter than most optical glasses.
Q: Can a Silicon Dome Lens be coated?
A: Yes. AR, DLC, or custom coatings are available depending on system requirements.
Q: Is a Silicon Infrared Dome suitable for outdoor use?
A: Yes. Silicon remains stable in many environments and handles heat, cold, and humidity well.
Q: Does the dome shape affect image quality?
A: The dome reduces distortion and helps maintain a wide field of view. This is important for panoramic and surveillance imaging.
7. Why Choose VY Optics?
- Professional optical design and custom silicon domes
- Precision machining and polishing for stable performance
- Strong R&D support for imaging and IR systems
- Fast delivery and flexible customization options
