What is a Cylindrical Lens?
A cylindrical lens is an optical component with a curved surface along only one axis. Unlike spherical lenses that focus light in two dimensions, cylindrical lenses focus or expand light in a single direction, making them suitable for specialized optical designs.
How Does a Cylindrical Lens Work?
The cylindrical surface changes the direction of incoming light along one optical axis while keeping the perpendicular axis unchanged. This unique characteristic allows cylindrical lenses to control light shape, create line patterns, and adjust beam dimensions.

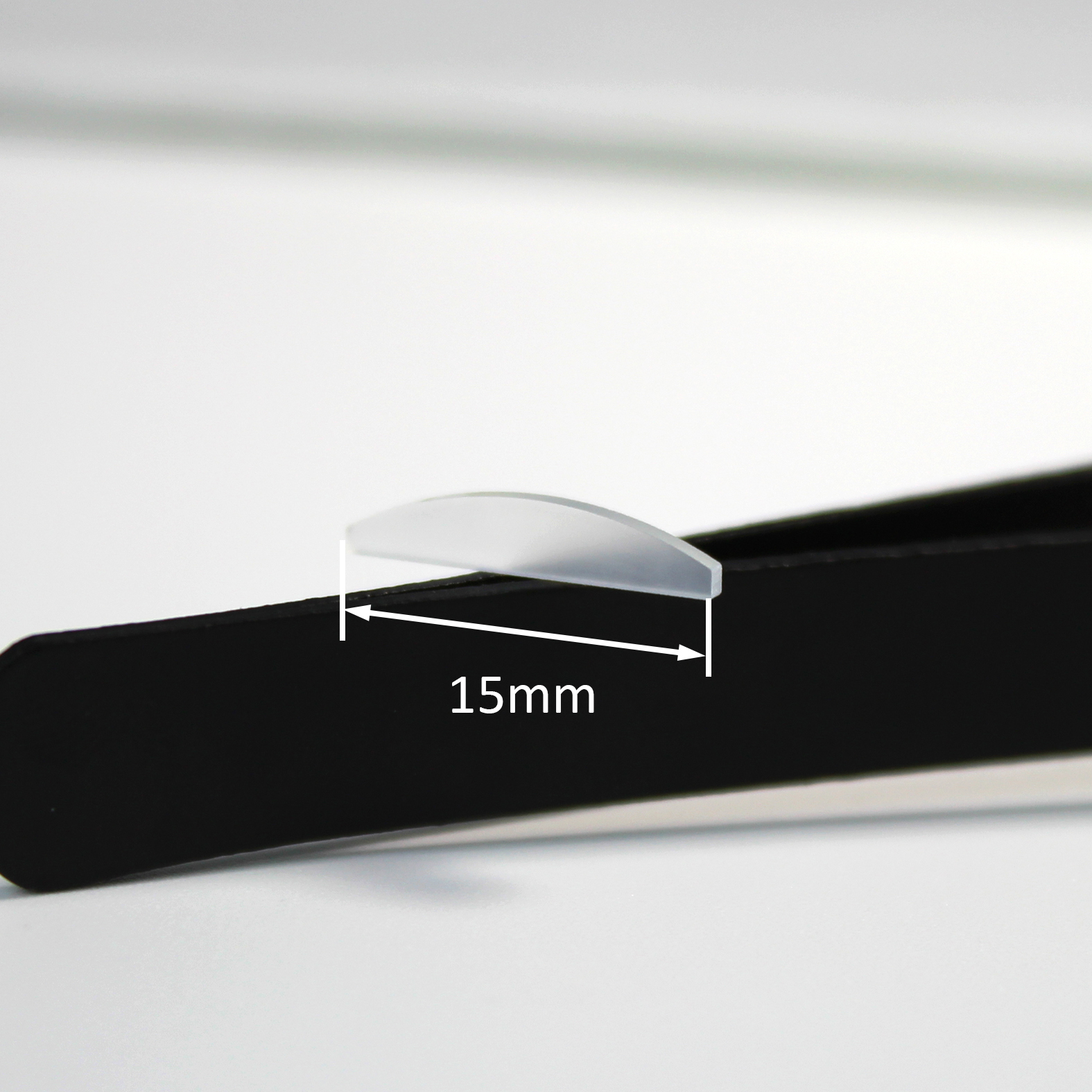

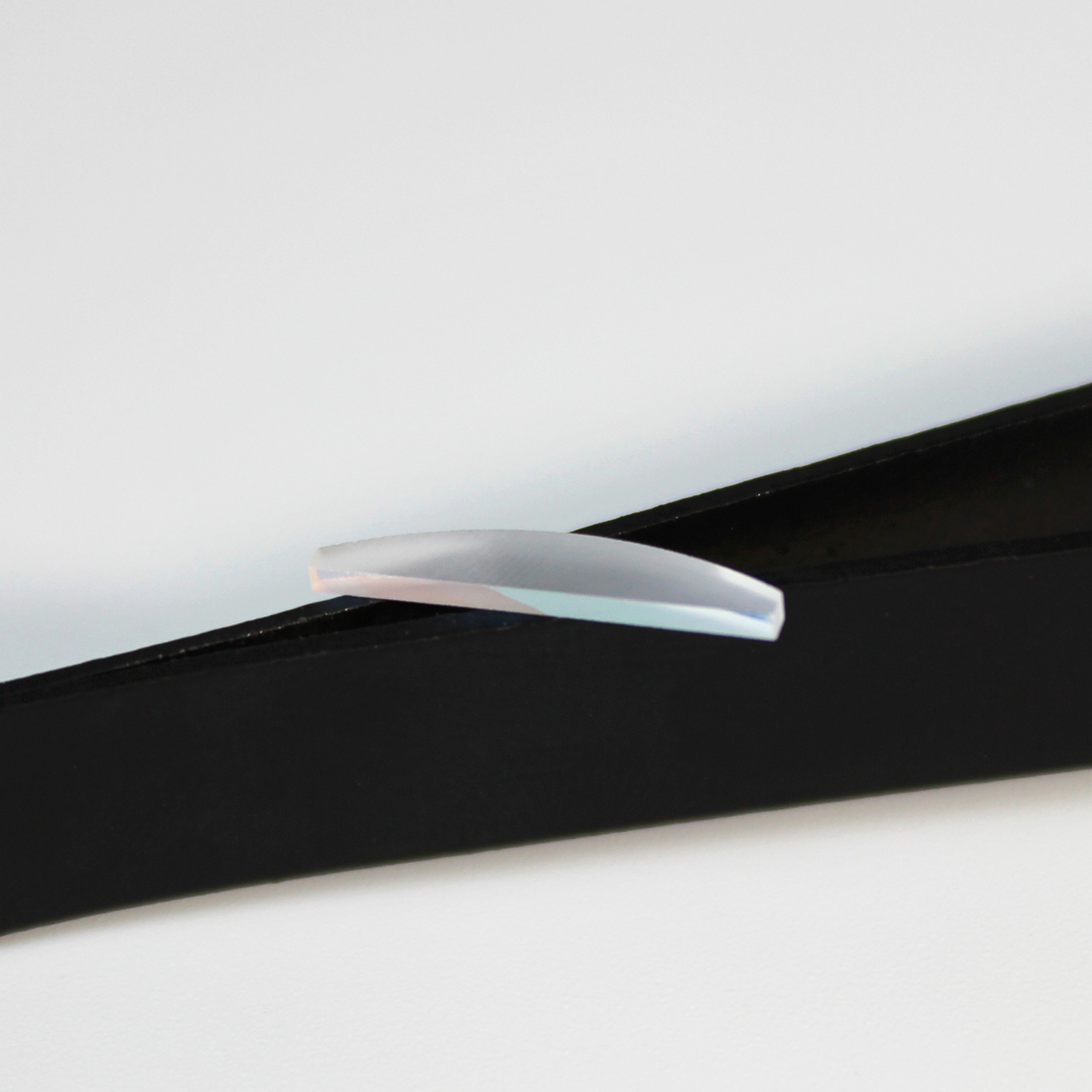

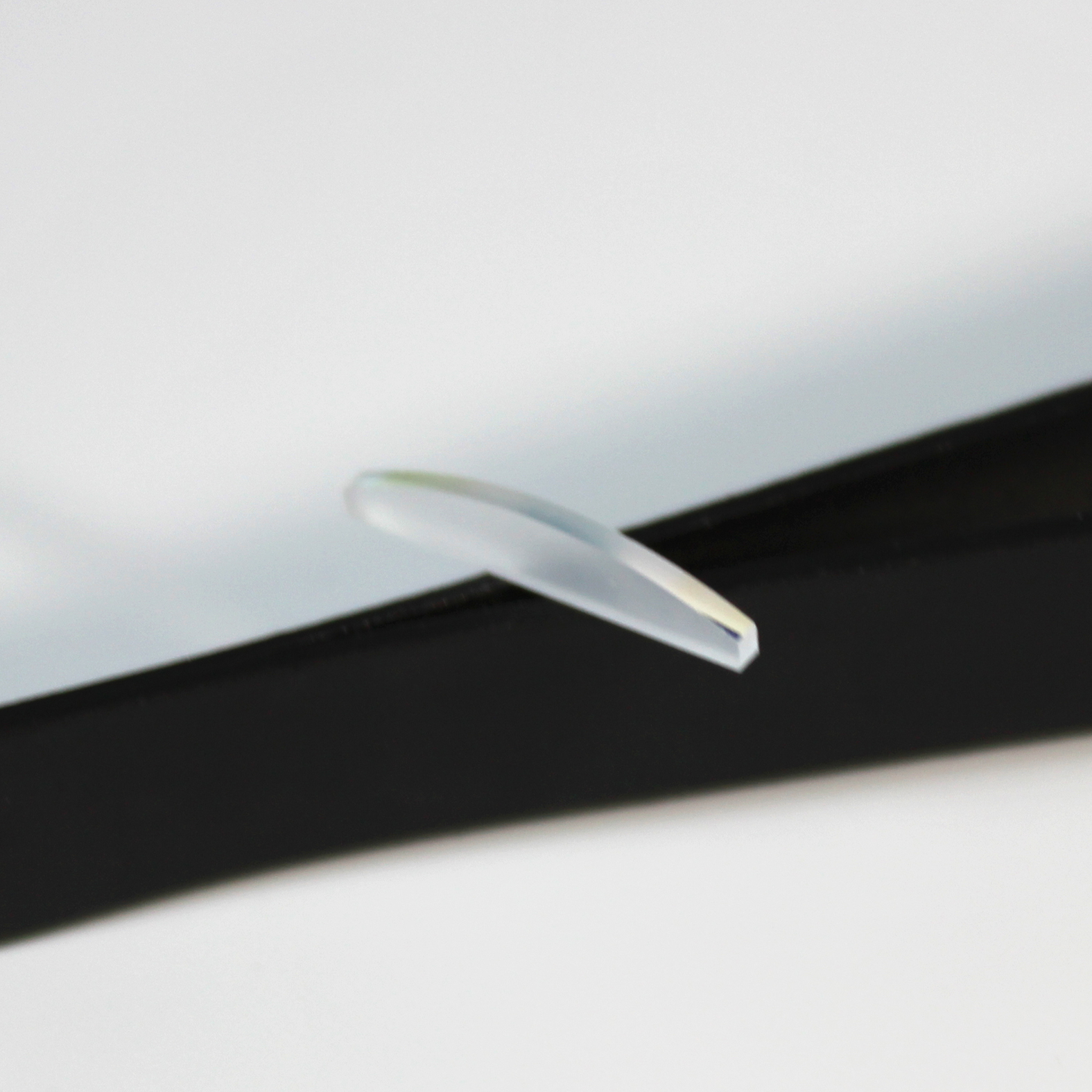

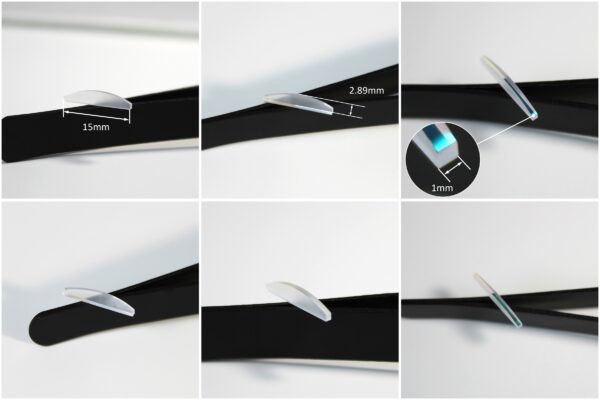

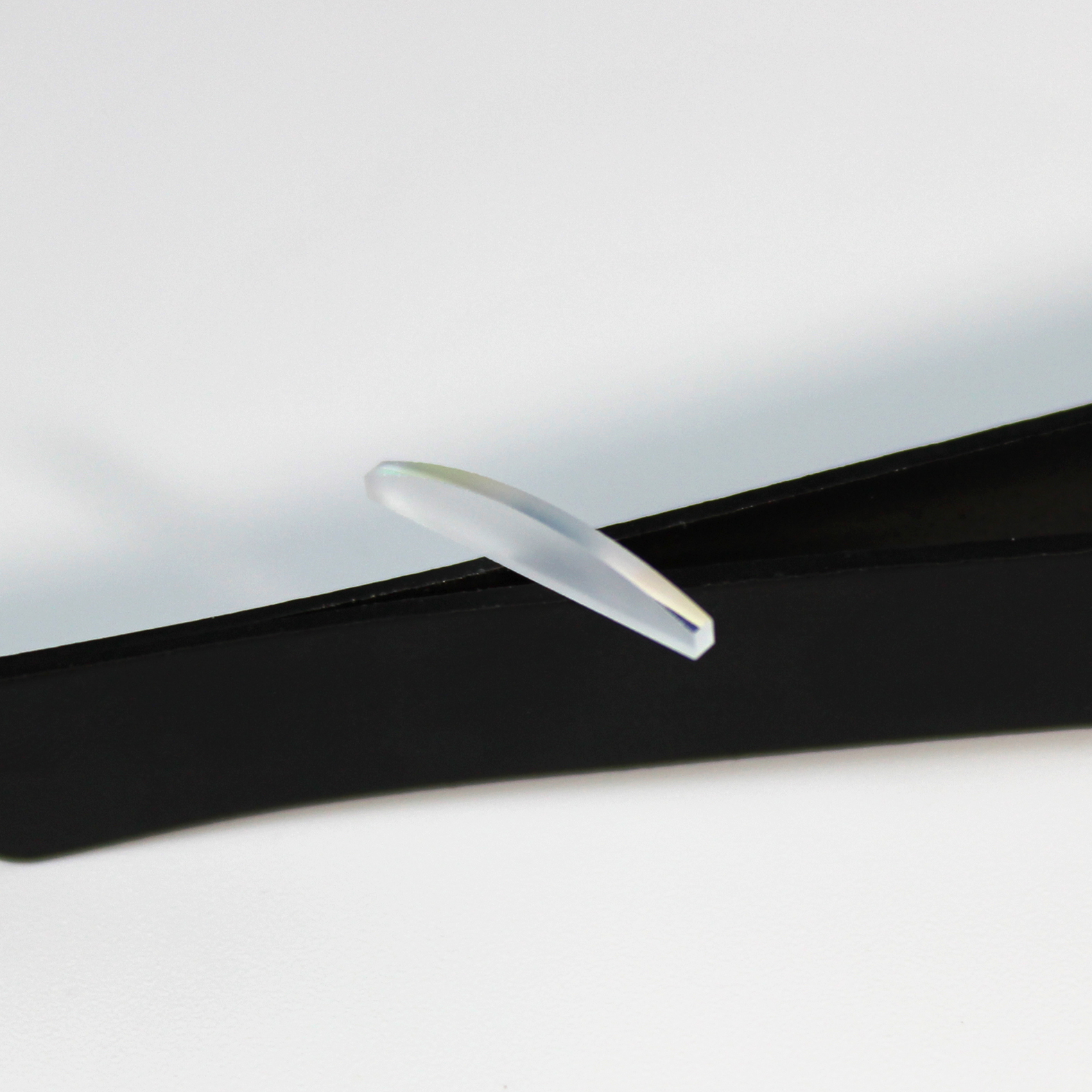

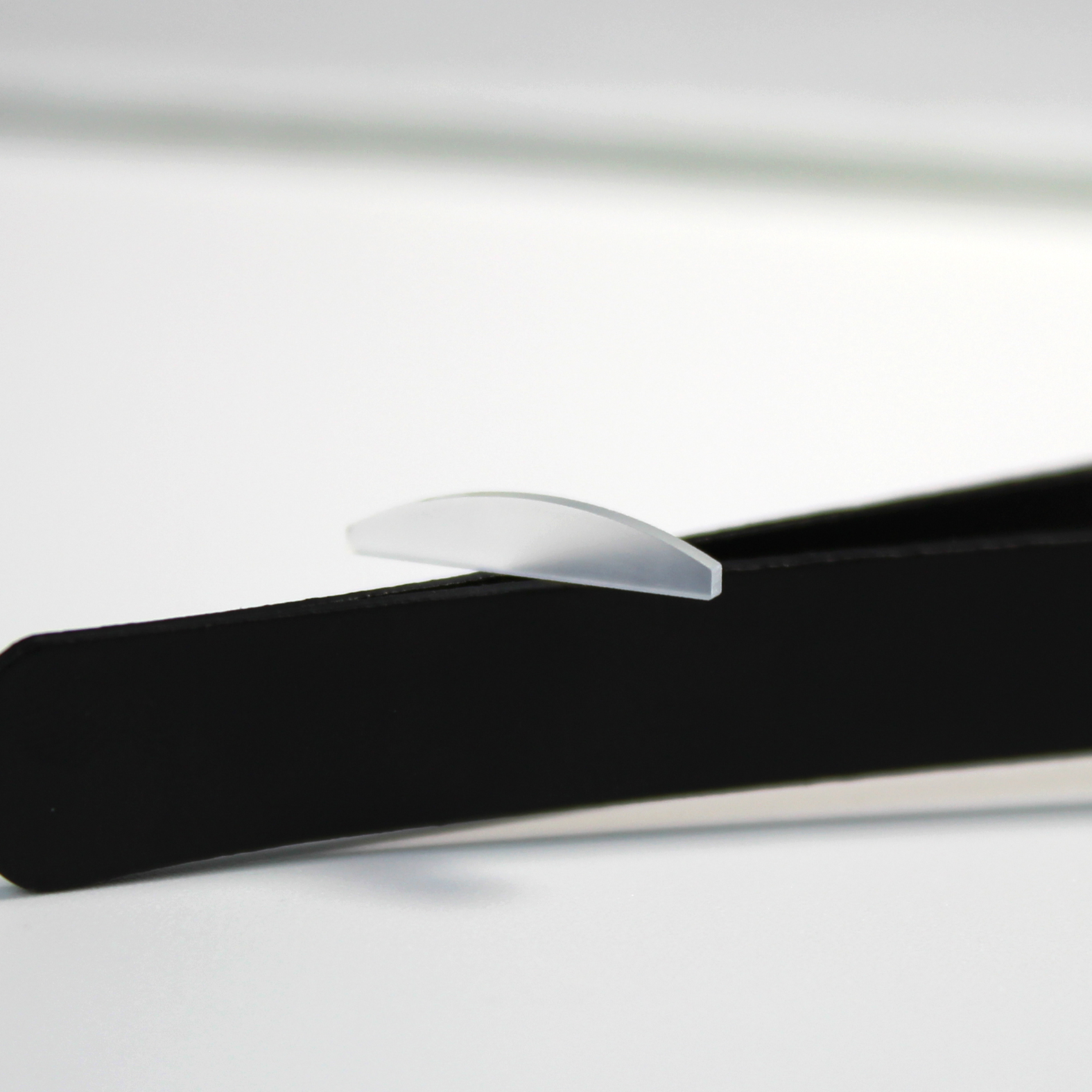

Picture of Cylindrical Lens
Key Features
- Single-axis focusing capability
- Accurate cylindrical surface processing
- Excellent beam shaping performance
- High optical transmission
- Stable optical performance
- Various material options available
- Custom dimensions and specifications
Applications
- Beam shaping systems
- Imaging equipment
- Optical measurement instruments
- Light line generation systems
- Precision optical assemblies
- Customized optical devices
Advantages of Custom Cylindrical Lens Manufacturing
- Flexible focal length design
- Custom curvature processing
- Different optical materials available
- Precision surface finishing
- Coating customization
- Prototype and volume production support
People Also Ask (FAQs)
What is a cylindrical lens used for?
A cylindrical lens is used to focus, expand, or reshape light along one direction in optical systems.
What is the difference between a cylindrical lens and a spherical lens?
A cylindrical lens focuses light in one dimension, while a spherical lens focuses light in two dimensions.
Can cylindrical lenses be customized?
Yes. Size, focal length, material, curvature, coating, and surface quality can be customized according to optical requirements.
Customization Options
- Custom lens dimensions
- Different focal lengths
- Various optical glass materials
- Surface coating options
- Precision polishing requirements
- OEM optical manufacturing
