What is a Flat Field Imaging Lens?
A flat field imaging lens is a precision optical lens designed to produce sharp and uniform images across the entire image plane. It minimizes field curvature and optical distortion, making it suitable for applications requiring consistent image quality from center to edge.
Why Use a High Resolution Flat Field Lens?
High resolution flat field lenses improve image accuracy by reducing edge blur and maintaining excellent optical performance throughout the field of view. They are widely used in systems where precise measurement, inspection, and image analysis are required.

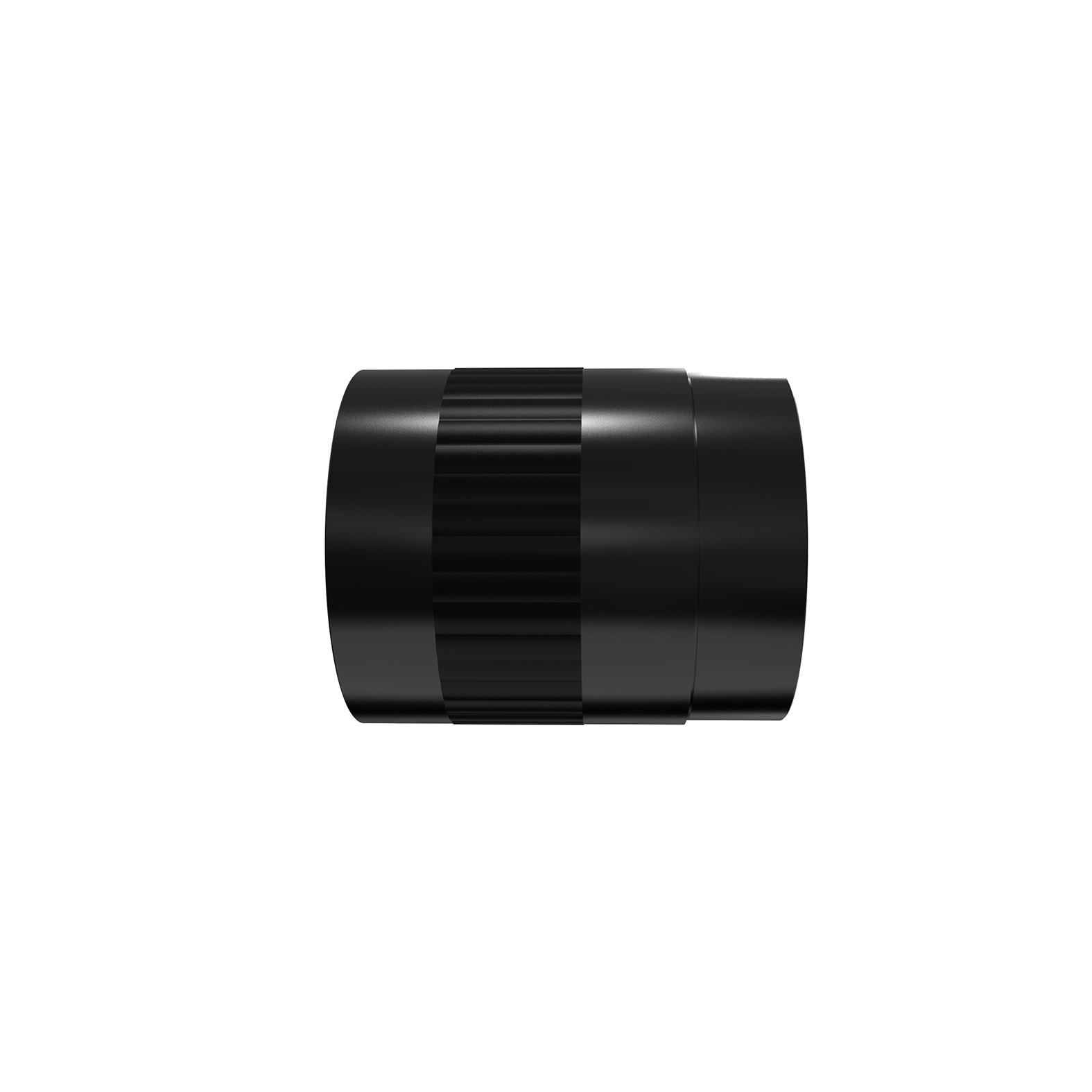

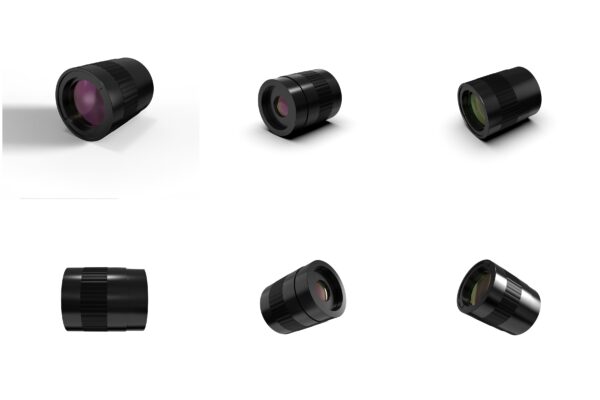

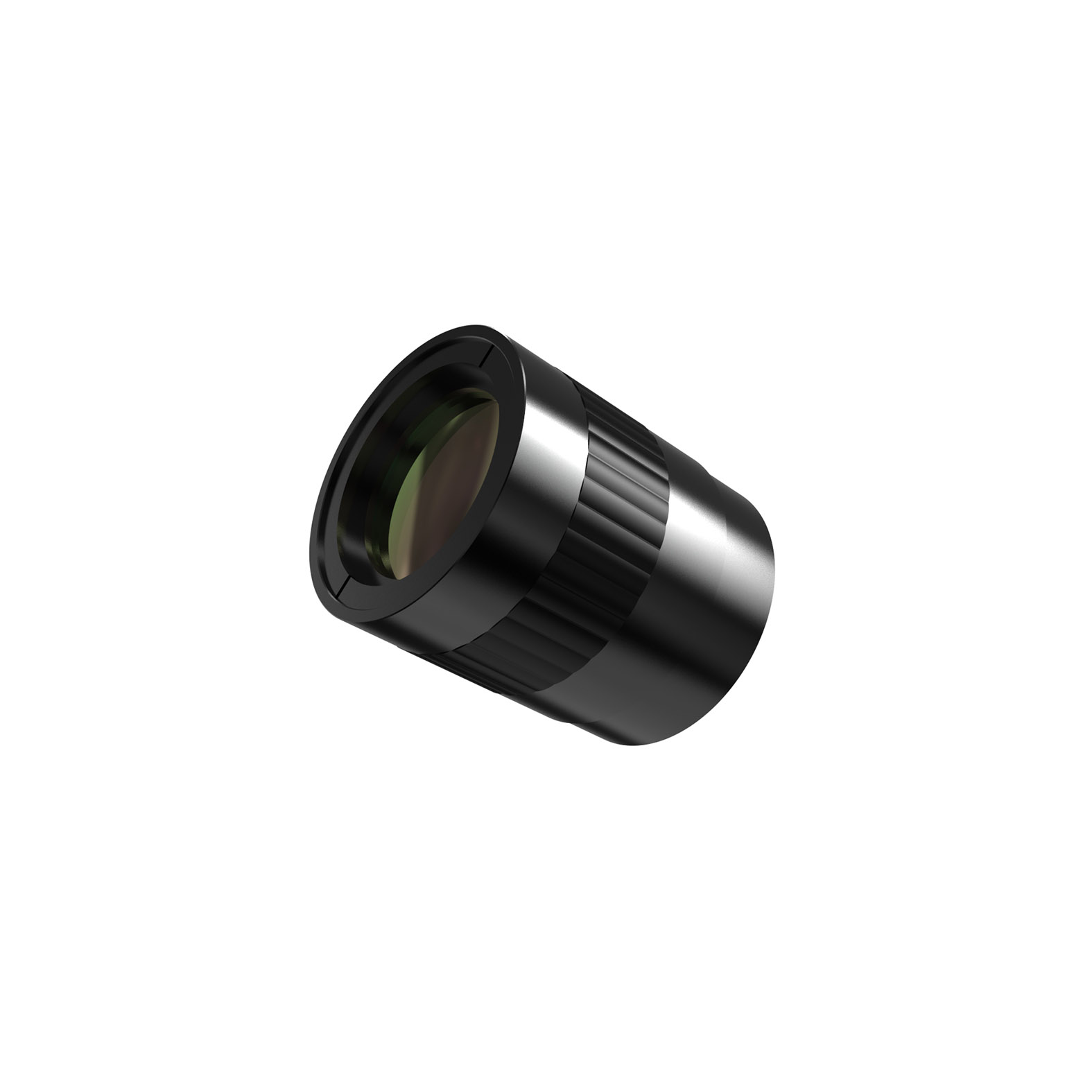

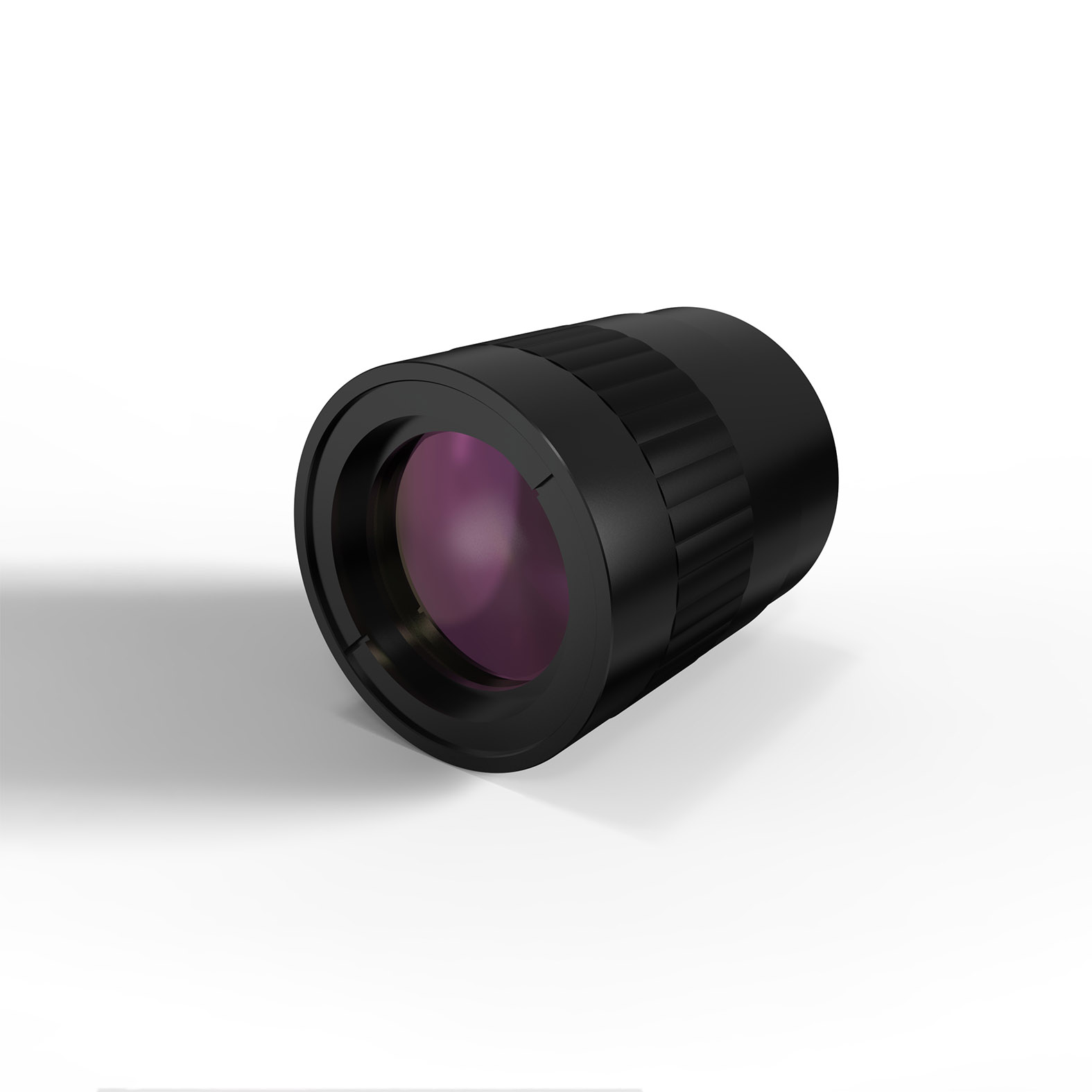

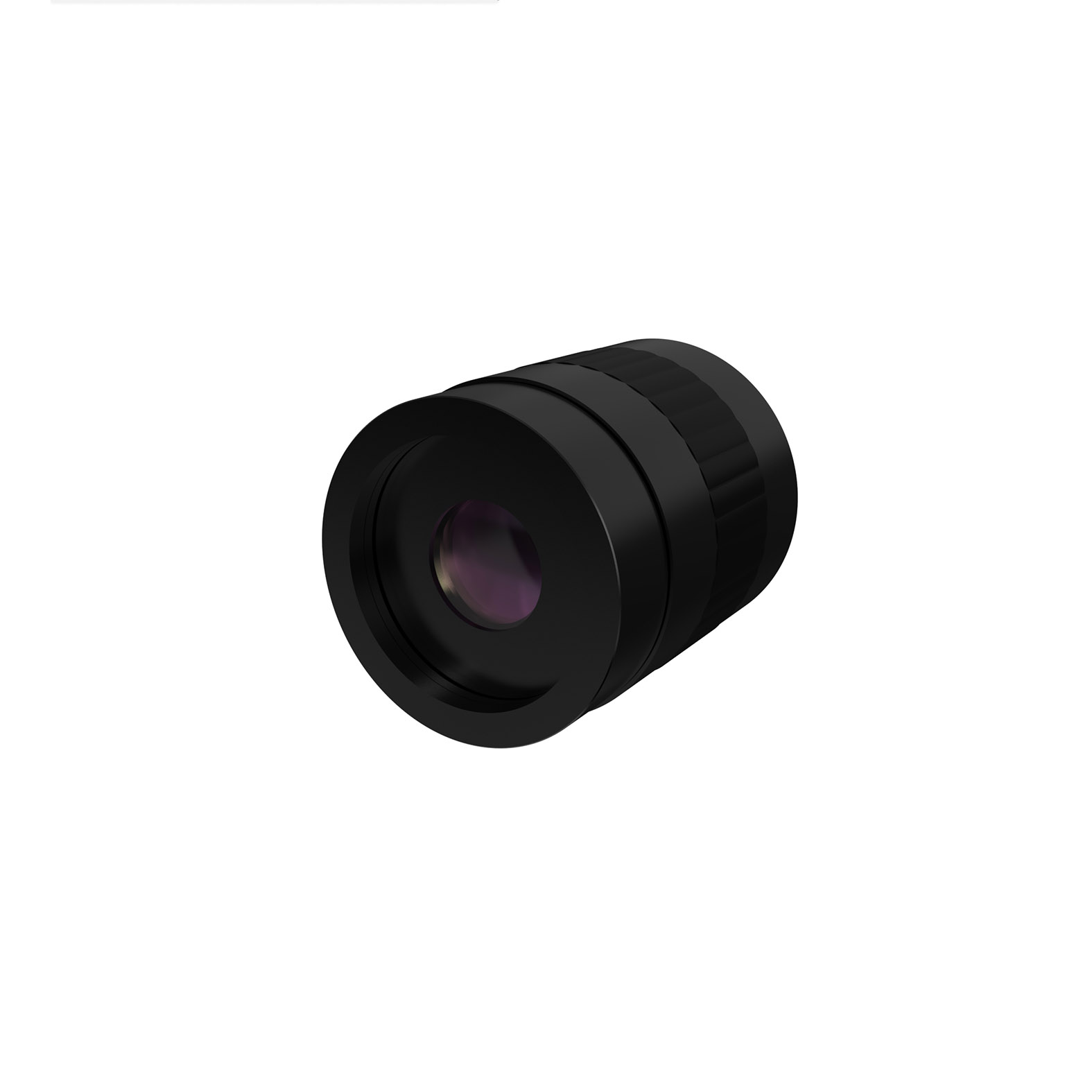

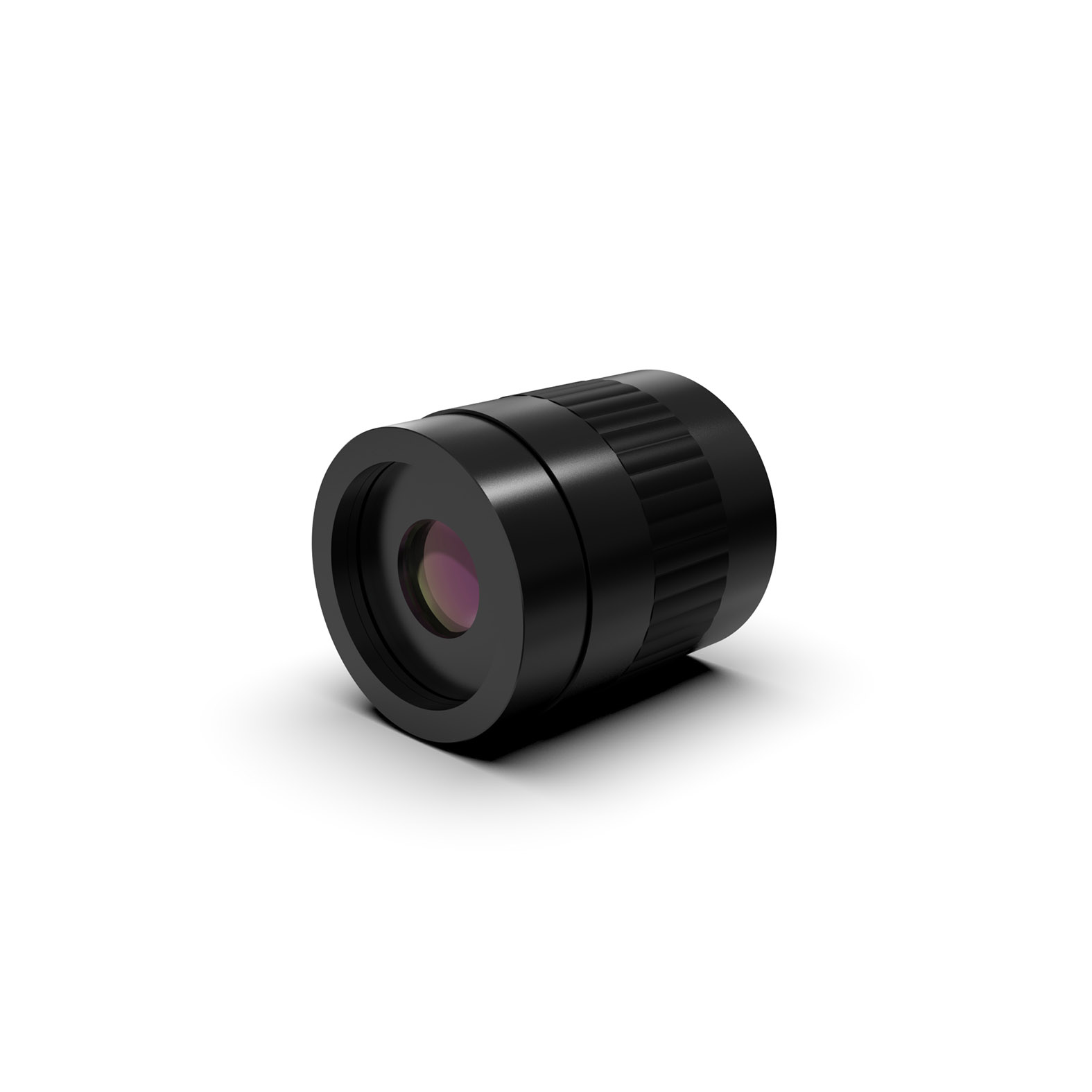

Picture of Flat Field Imaging Lens
Detailed Video of High-resolution flat-field imaging lens
Key Features of Flat Field Imaging Lenses
- High resolution image performance
- Excellent edge-to-edge image uniformity
- Low optical distortion
- Reduced field curvature
- Stable imaging quality
- Custom optical design capability
Applications of High Resolution Imaging Lenses
- Industrial Machine Vision Inspection
- Precision Measurement Systems
- Semiconductor and Electronics Inspection
- Microscopy and Scientific Imaging
- Digital Imaging and Documentation Systems
- Automated Optical Inspection (AOI) Systems
Advantages of Custom Flat Field Optical Lens Design
- Improved image accuracy
- Consistent image quality across the field
- Flexible optical configuration
- High precision manufacturing
- Suitable for OEM imaging systems
People Also Ask (FAQs)
Can flat field imaging lenses be customized?
Yes. Optical parameters including focal length, aperture, coating, mechanical dimensions, and imaging performance can be customized.
Customization Options
- Custom focal length design
- Different aperture configurations
- Special optical coatings
- Precision mechanical housing
- OEM prototype development
- Mass production support
