What is a Telecentric Lens?
A telecentric lens is a precision optical lens designed to maintain constant magnification and reduce perspective errors during imaging. Unlike conventional lenses, it provides more accurate object measurement by controlling the direction of incoming and outgoing light rays.
Why Use a Telecentric Imaging Lens?
Telecentric imaging lenses are widely used in applications requiring high measurement accuracy and consistent image quality. Their low distortion performance helps reduce measurement errors caused by object position changes, making them ideal for automated inspection systems.

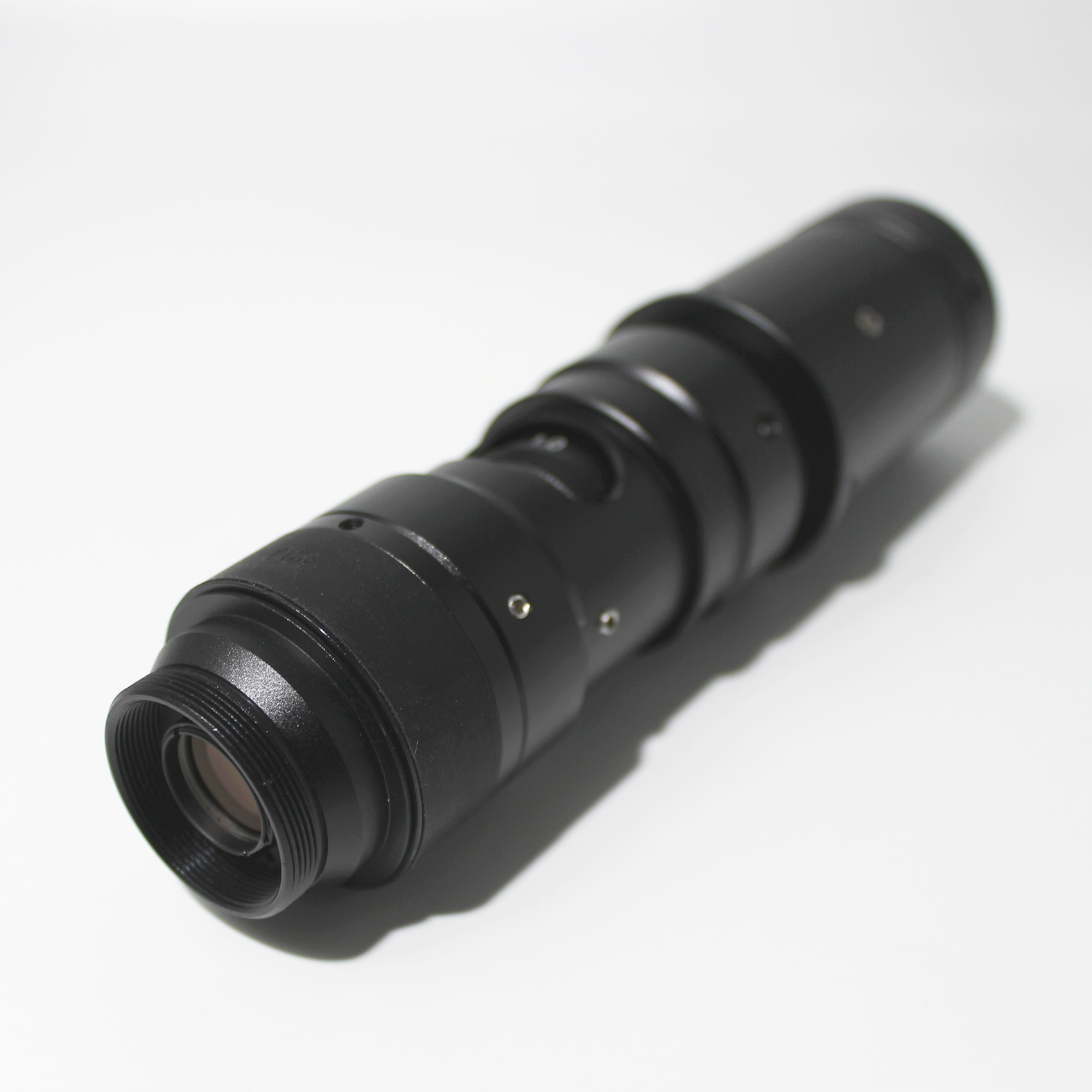

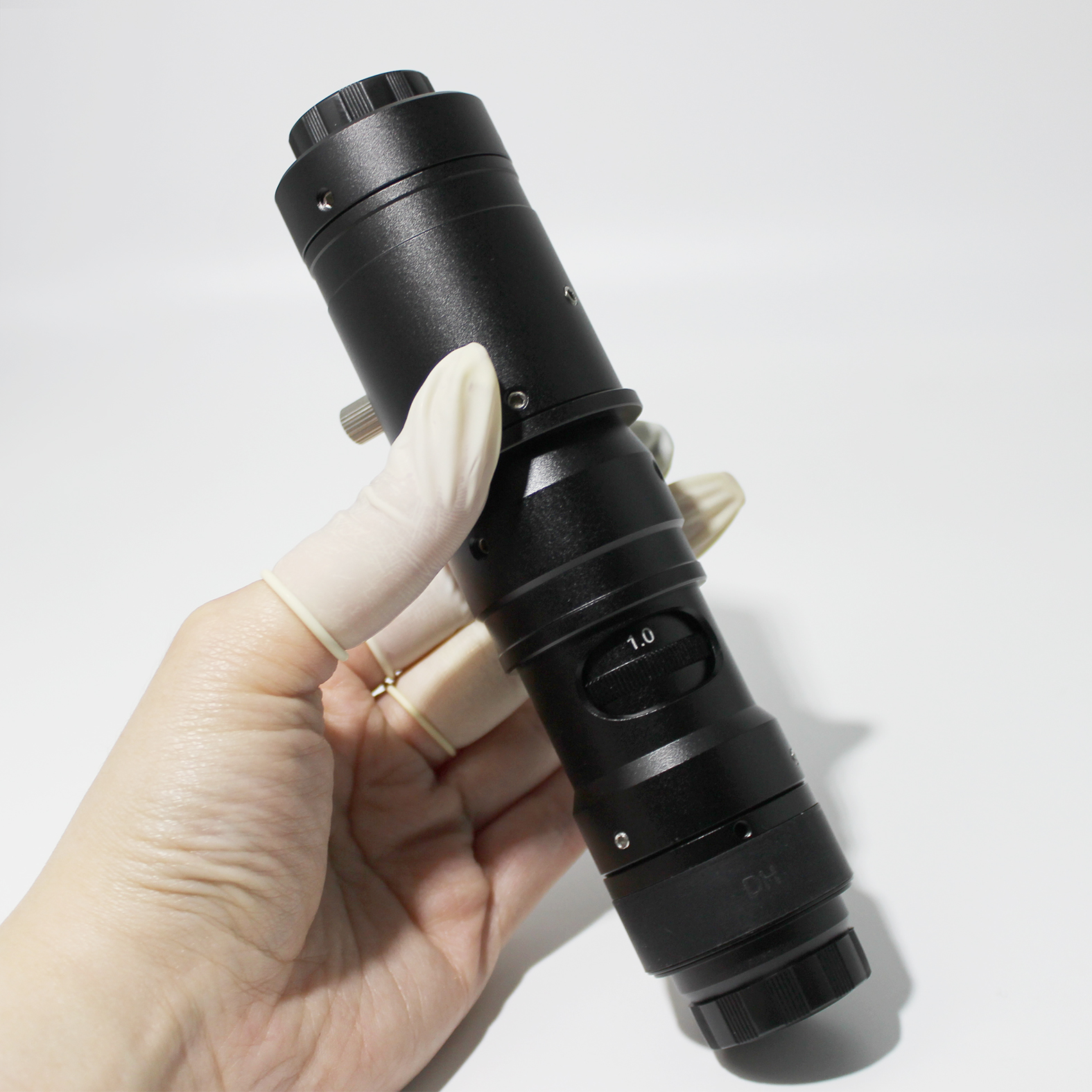

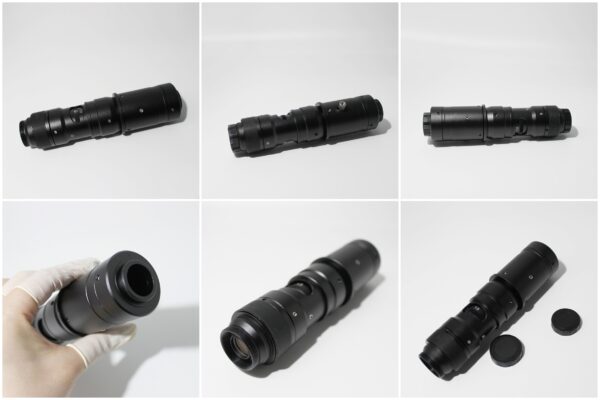

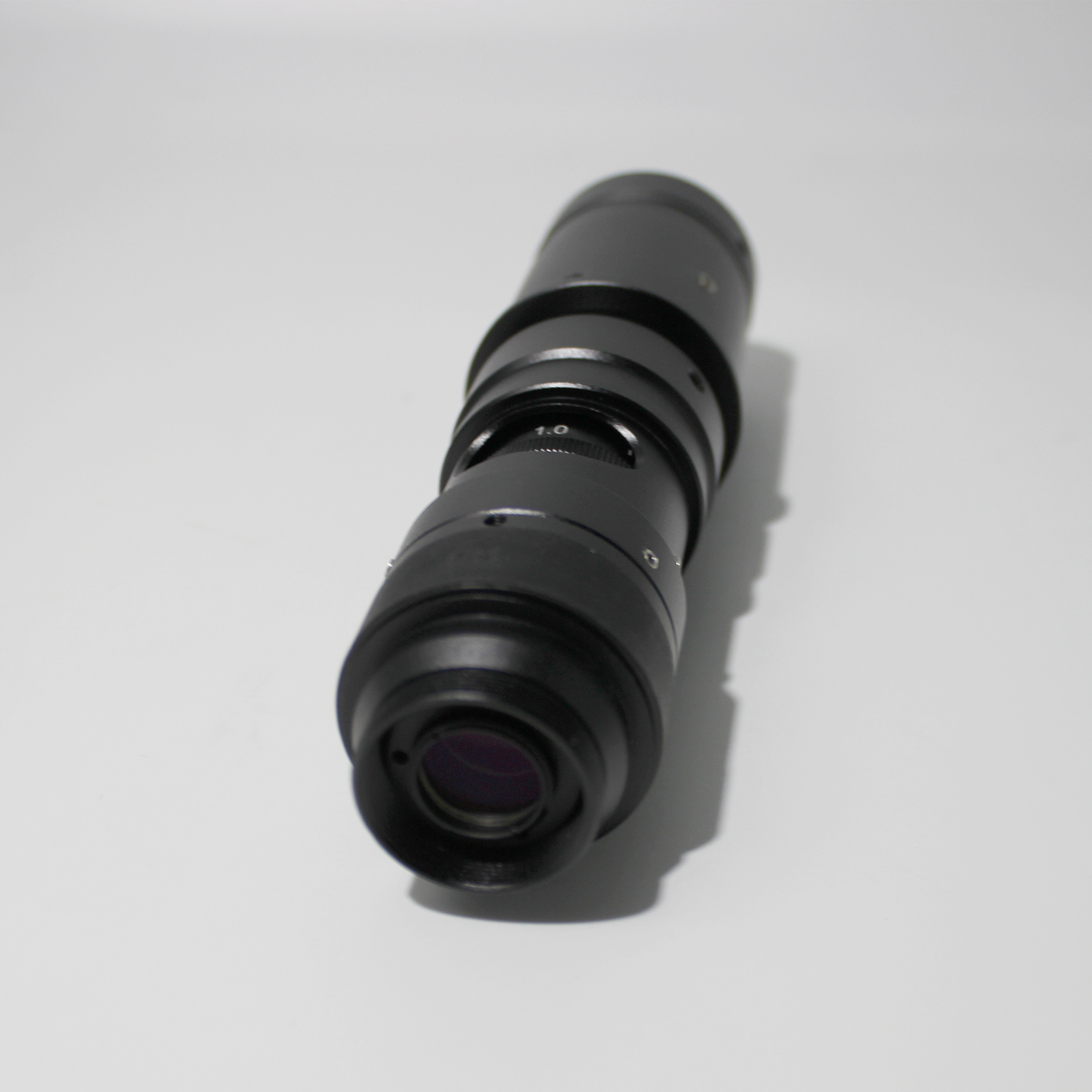

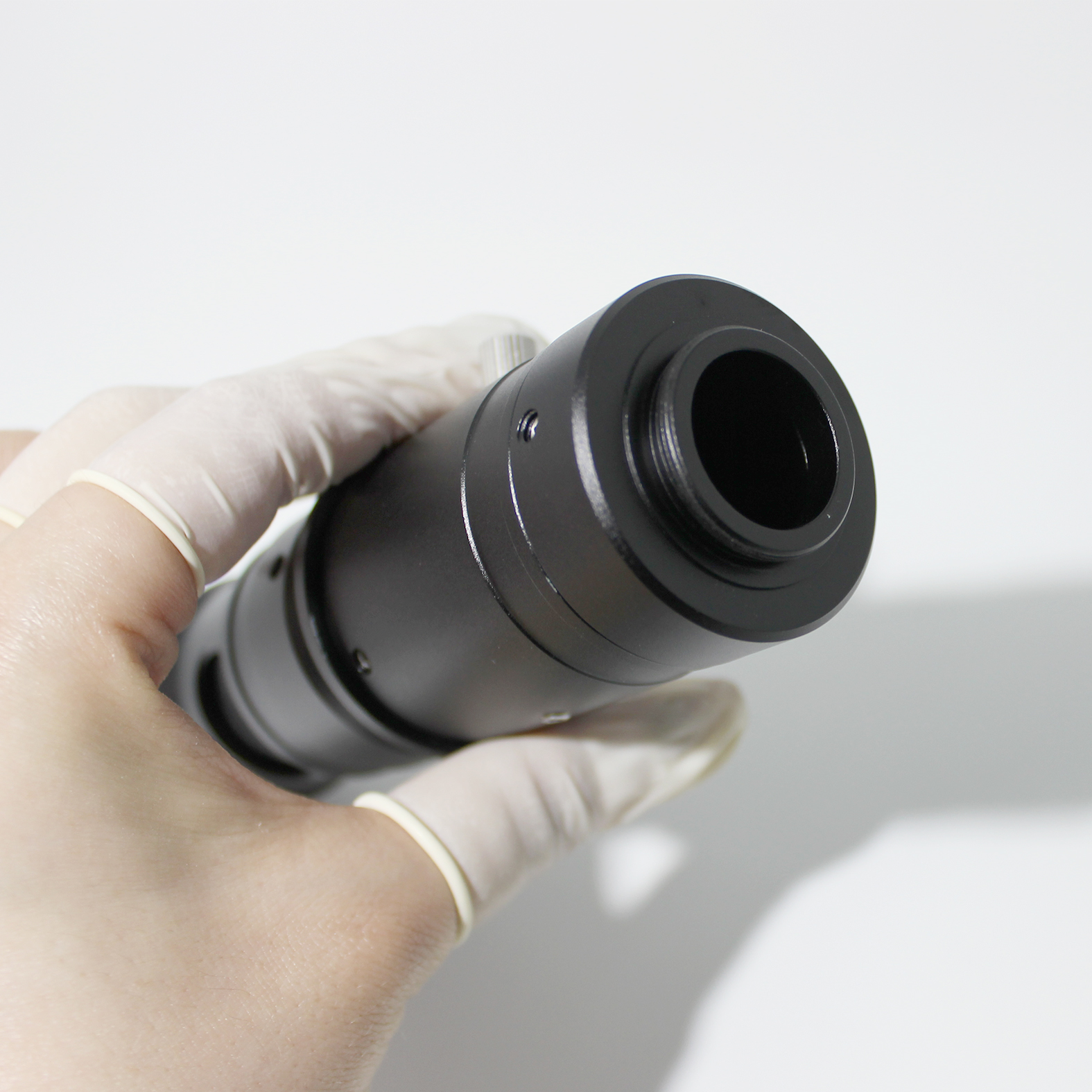

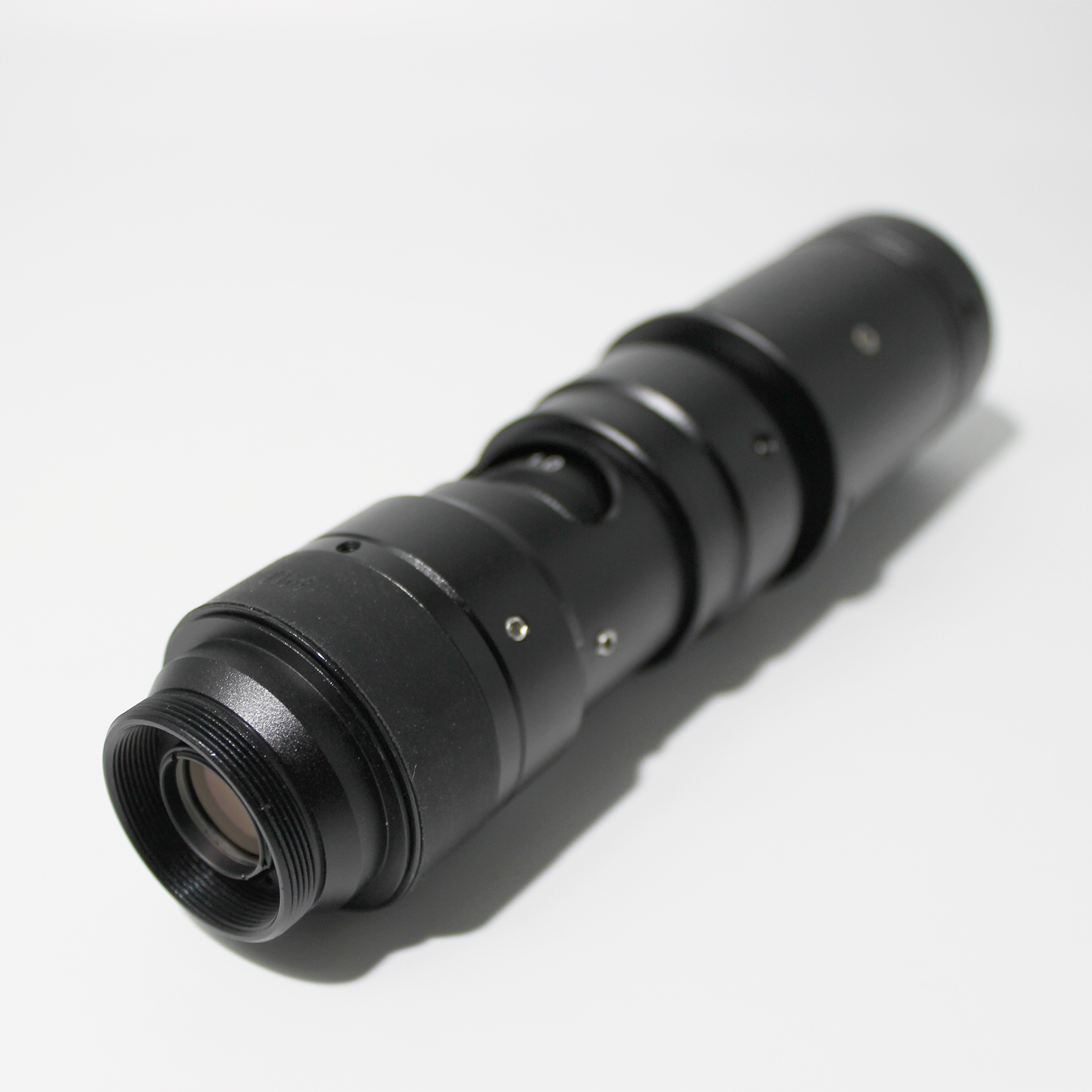

Picture of Telecentric Lens
Video of Telecentric Lens
Key Features of Telecentric Lenses
- Constant magnification imaging
- Low perspective distortion
- High measurement accuracy
- Excellent image uniformity
- High resolution optical performance
- Stable imaging quality
- Custom optical design available
Applications of Telecentric Imaging Lenses
- Precision Measurement Systems
- Industrial Machine Vision Inspection
- Semiconductor and Electronics Inspection
- Automated Optical Inspection (AOI) Systems
- High-Accuracy Dimensional Measurement
- Robotics and Automation Vision Systems
Advantages of Precision Telecentric Optical Design
- Improved measurement reliability
- Reduced optical distortion
- Accurate object size analysis
- Consistent imaging performance
- Suitable for automated inspection systems
- OEM customization support
People Also Ask (FAQs)
What is a telecentric lens used for?
A telecentric lens is mainly used for precision measurement, machine vision inspection, and applications requiring accurate object size analysis.
What is the advantage of a telecentric lens?
The main advantage is maintaining consistent magnification and reducing perspective errors, which improves measurement accuracy.
What is the difference between a telecentric lens and a normal lens?
A normal lens produces perspective changes when object distance changes, while a telecentric lens minimizes these effects for more reliable measurement results.
Customization Options
- Custom magnification ratio
- Different working distances
- Special optical coatings
- Custom mechanical housing
- High precision optical assembly
- OEM production support
