What is an Optical Polarizer?
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | K9 Optical Polarizer / Linear Polarizing Filter |
| Material | K9 Optical Glass |
| Dimensions | 100mm × 2mm |
| Minimum Polarization Ratio | ≥ 90% |
| Optical Transmission | High (>90%) |
| Surface Quality | 60/40 (custom options available) |
| Coating Options | Anti-Reflection (AR), UV, or IR Coating |
| Shape | Round / Square (customizable) |
| Working Wavelength Range | 400–700nm (Visible Spectrum) |
| Customization | Dimensions, Coatings, Mounts available upon request |

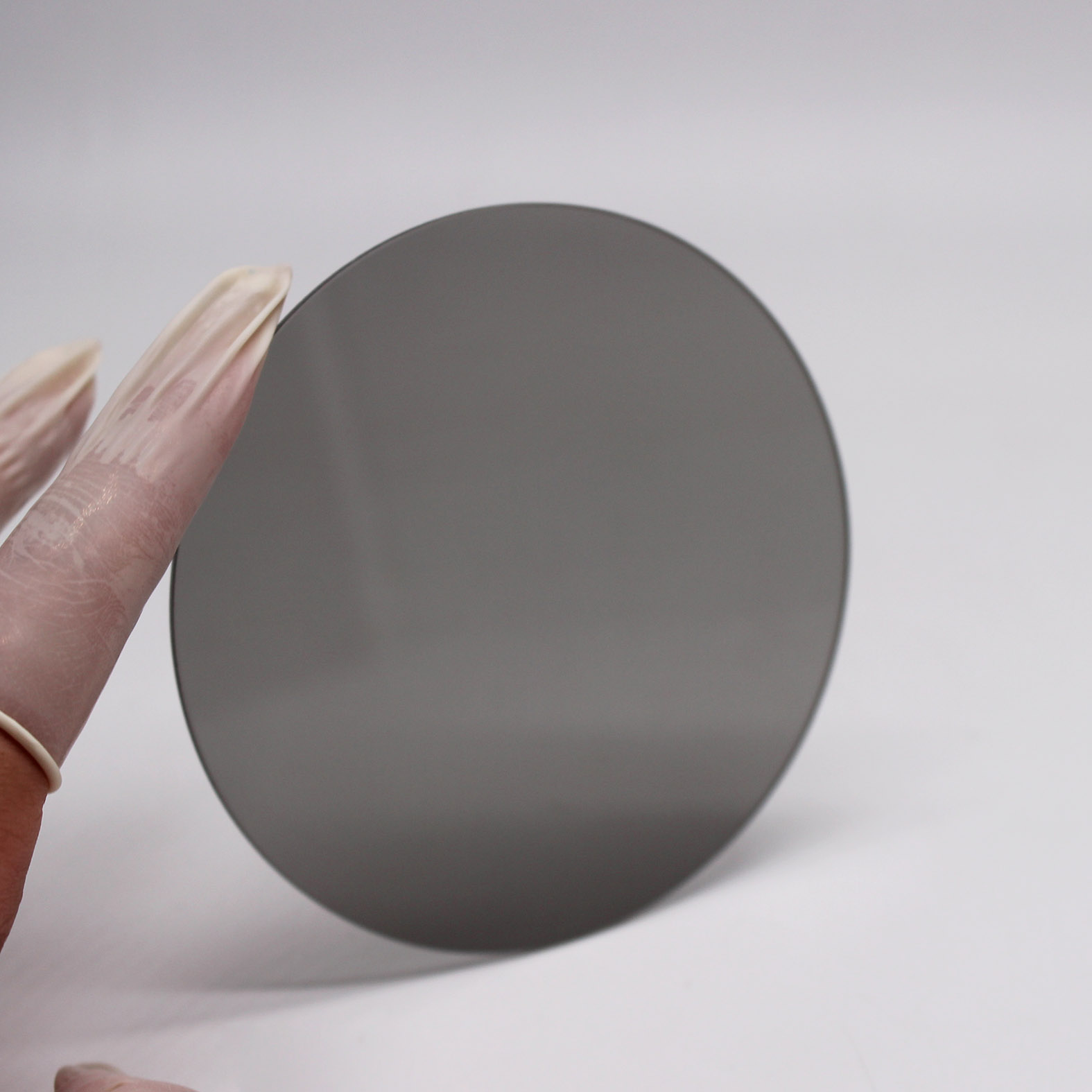

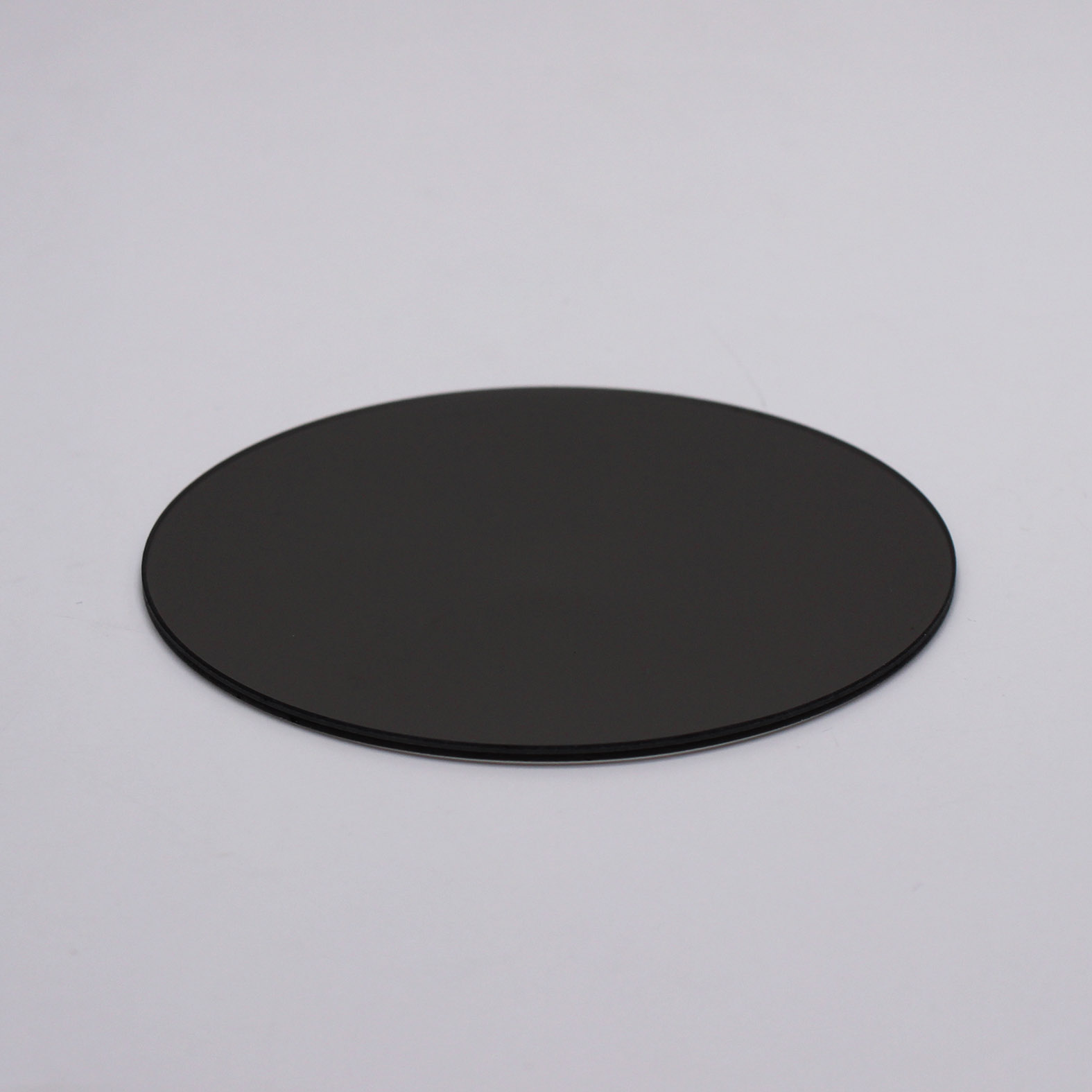

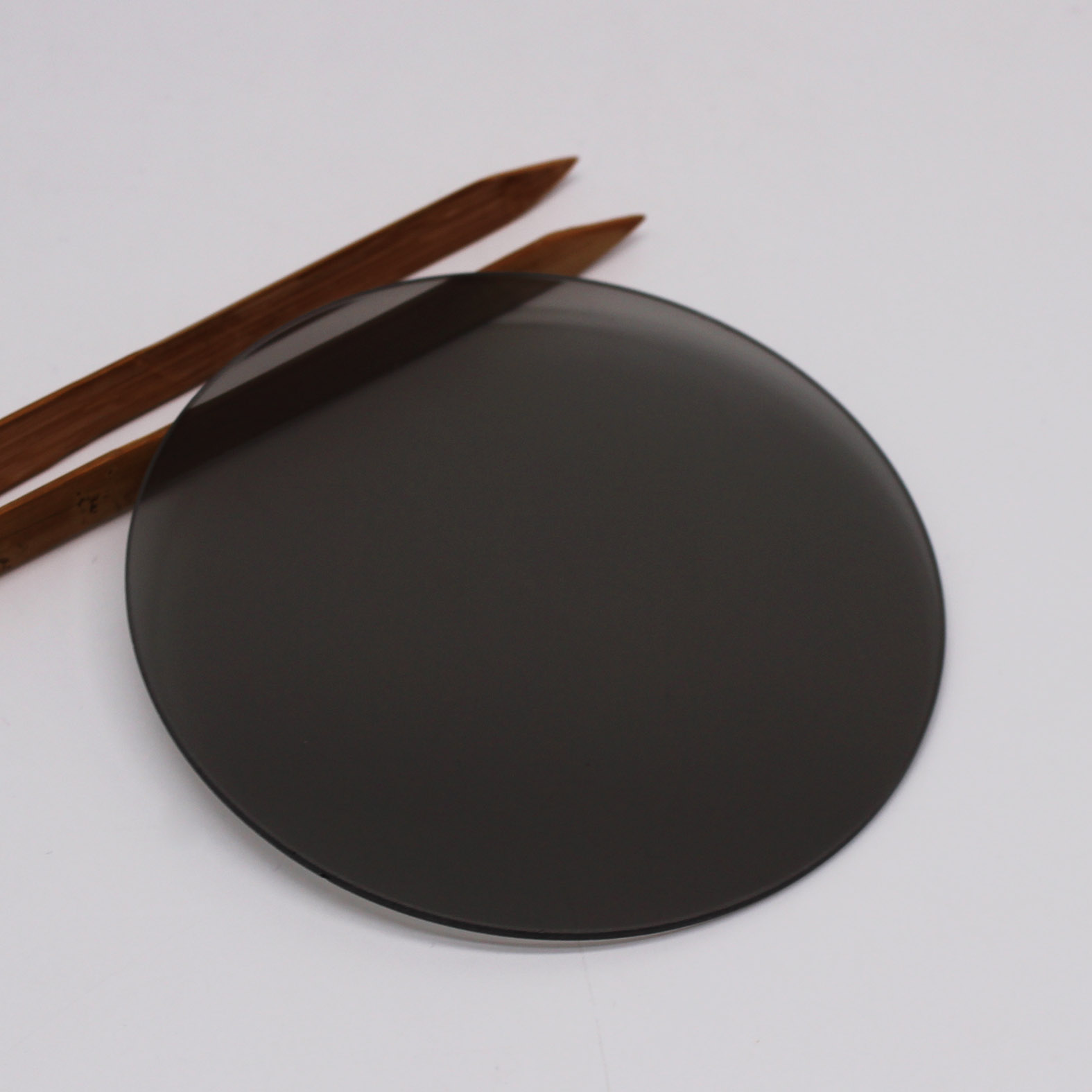

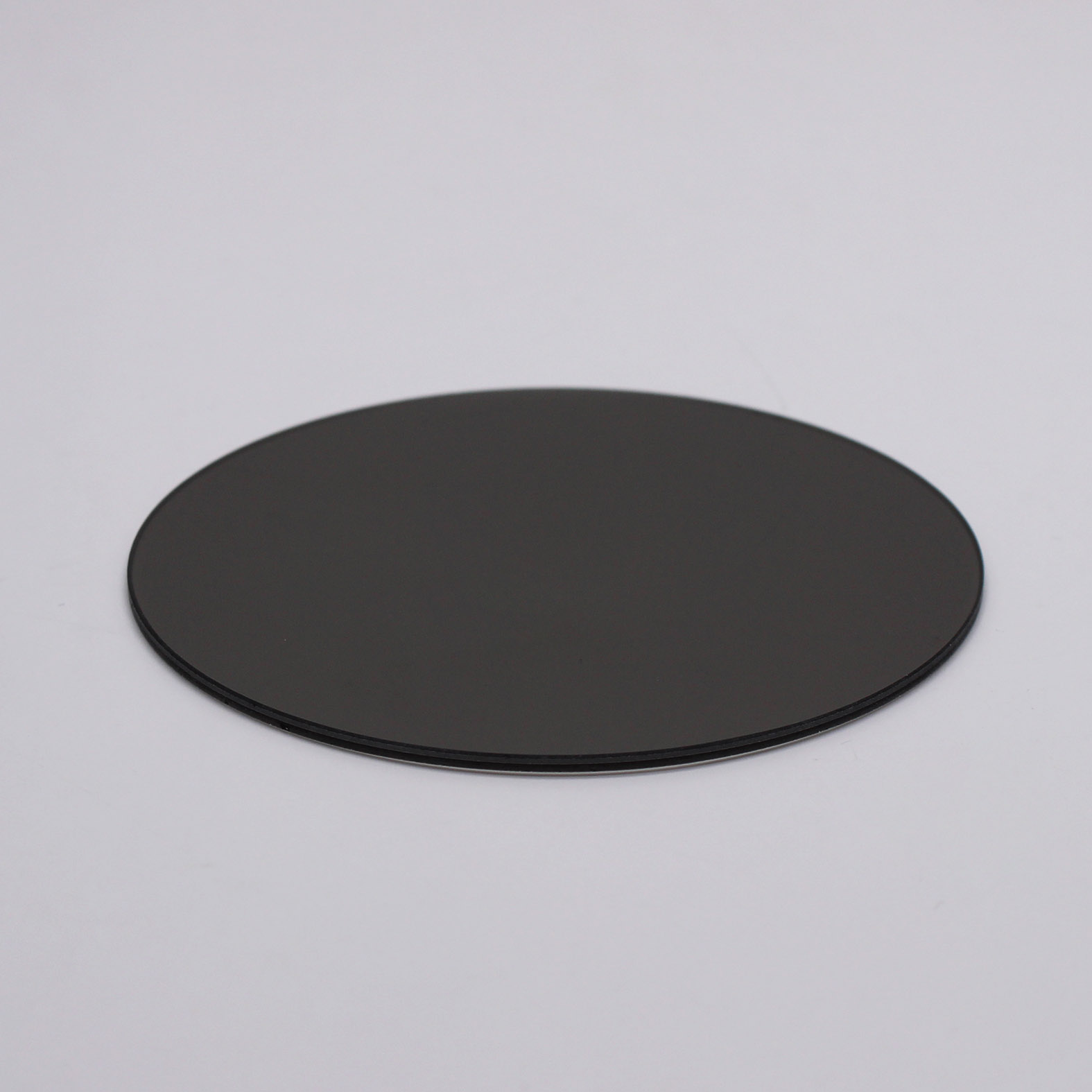

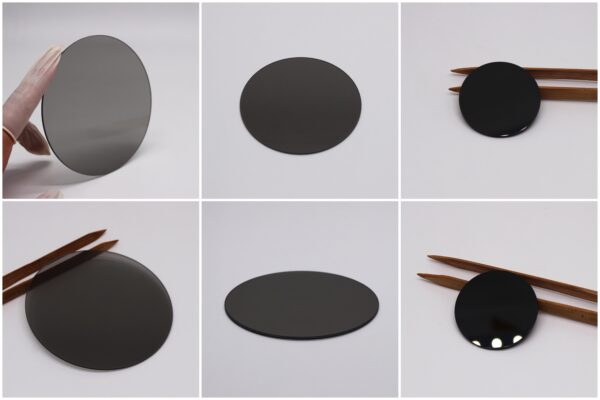

Pictures of Optical Polarizer
Detailed Video of K9 Polarizer
Production Factory of VY Optoelectronics Co.,Ltd.
Main Characteristics
- Constructed from optical-grade K9 glass substrate with high surface accuracy.
- Provides linear polarization with excellent extinction ratio and uniform optical quality.
- Designed for laser optics, scientific imaging, and polarization-sensitive instruments.
- Ensures high transmission and minimal birefringence.
- Custom polarizing optics available in various diameters and coatings.
Applications of the Polarizing Filter
- Laser Optics Systems: Beam separation, attenuation, and light control.
- Imaging & Microscopy: Enhances image clarity and reduces glare.
- Optical Testing Equipment: Improves measurement accuracy and repeatability.
- Research & Development: Ideal for polarization experiments and analysis.
- Industrial Vision Systems: Enhances object contrast in automated inspection.
Product Benefits and Advantages
- ✅ High Polarization Efficiency: ≥90% for stable optical output.
- ✅ Durable K9 Glass: Excellent transparency and mechanical strength.
- ✅ Precision Surface Quality: Reduces scattering and wavefront errors.
- ✅ Flexible Customization: Available in multiple sizes and coatings.
- ✅ Cost-Effective: Combines accuracy with competitive pricing.
People Also Ask (FAQ)
Q1: What is the difference between a polarizer and a polarization filter?
Both terms describe optical components that control light vibration. A polarization filter can vary in coating or design, but both perform the same function of polarizing light.
Q2: Why choose a K9 glass polarizing optic?
K9 optical glass offers high transparency, low internal stress, and superior polishing quality, making it a reliable material for precision optics.
Q3: Can this polarizing component be used with laser systems?
Yes, our K9 polarization element works effectively with low- to medium-power laser and imaging systems.
Q4: Do you provide custom polarizing optics?
Yes. We offer custom-made polarization components including size, coating, and mount design based on your requirements.
Q5: How to choose the right polarization element?
Consider your wavelength range, desired polarization ratio, and optical setup. Our engineers can recommend the right polarizing optic for your application.
