What Is a Hemispherical Shell Resonator?
A Hemispherical Shell Resonator is a precision component with a thin-walled hemispherical structure. It is designed to exhibit specific mechanical resonance characteristics based on its geometry and material properties.
Hemispherical Shell Resonator Specifications
| Material | Quartz |
| Diameter | 15mm |
| Thickness | 0.7mm |

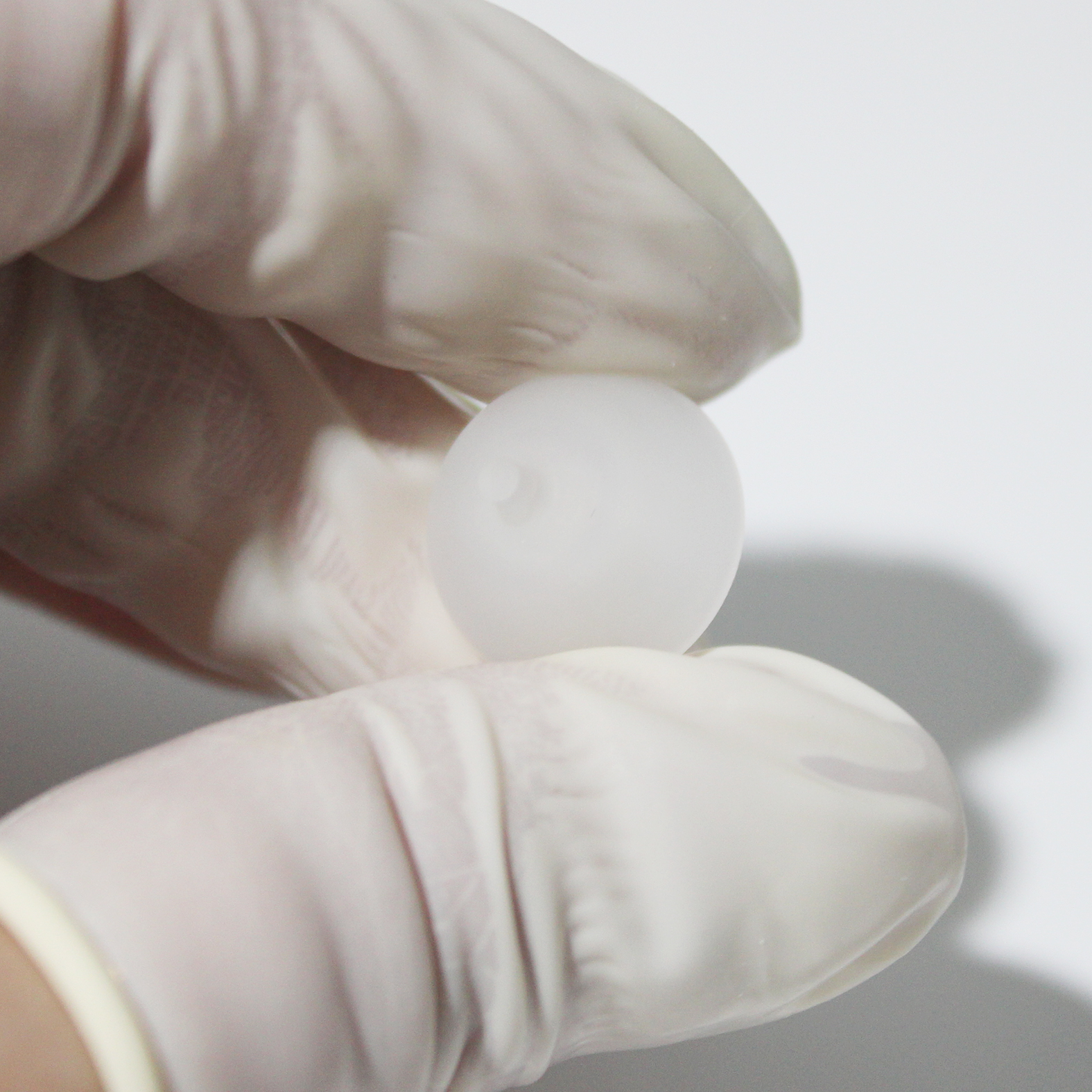

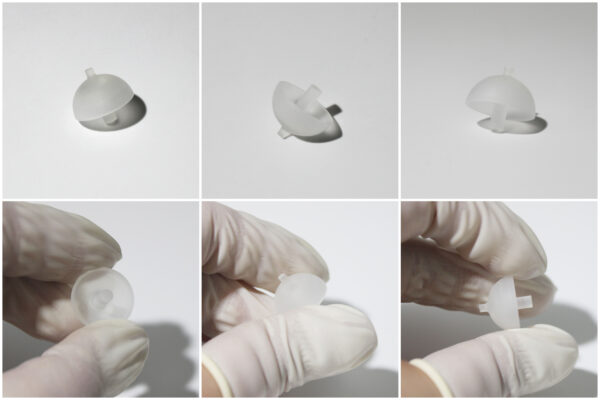

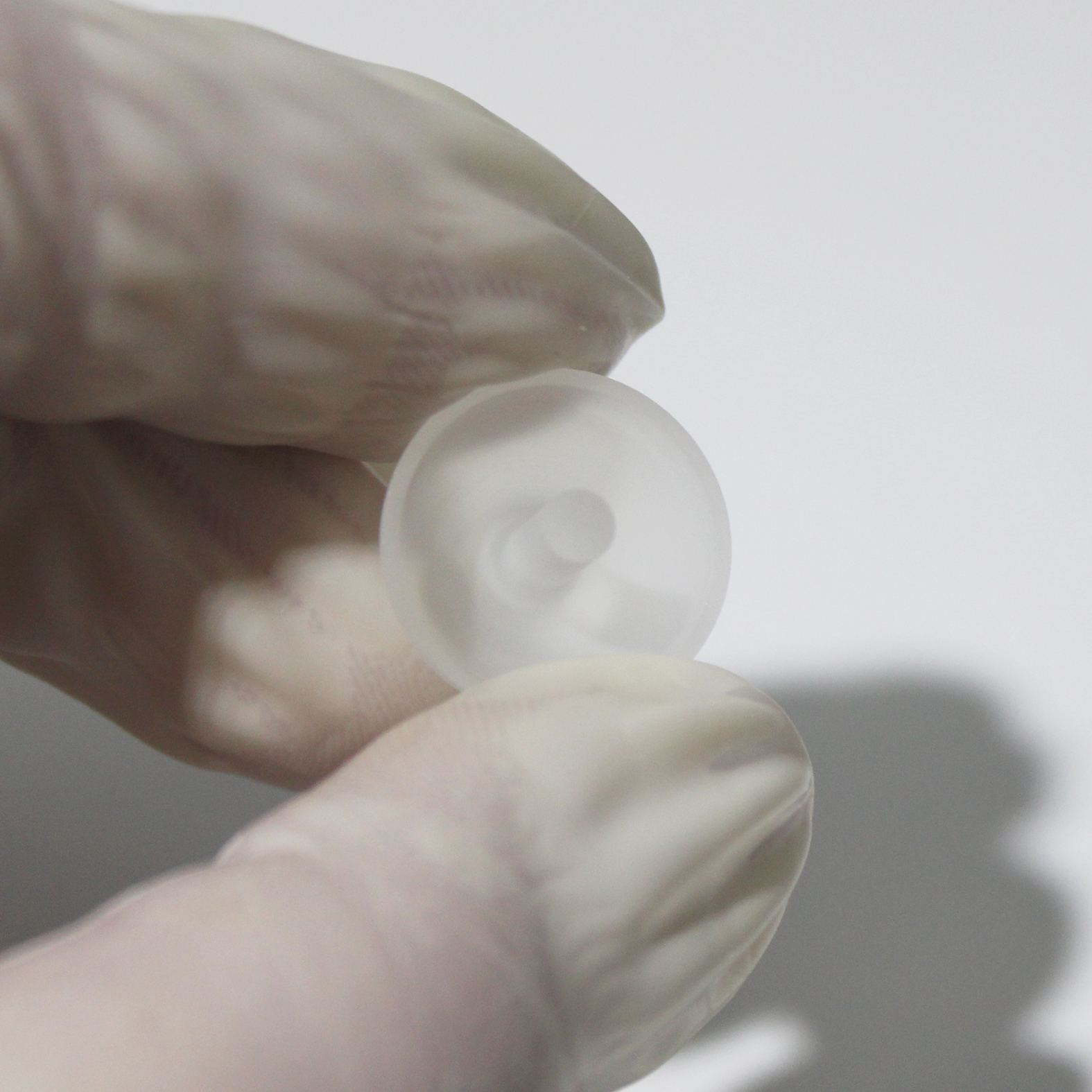

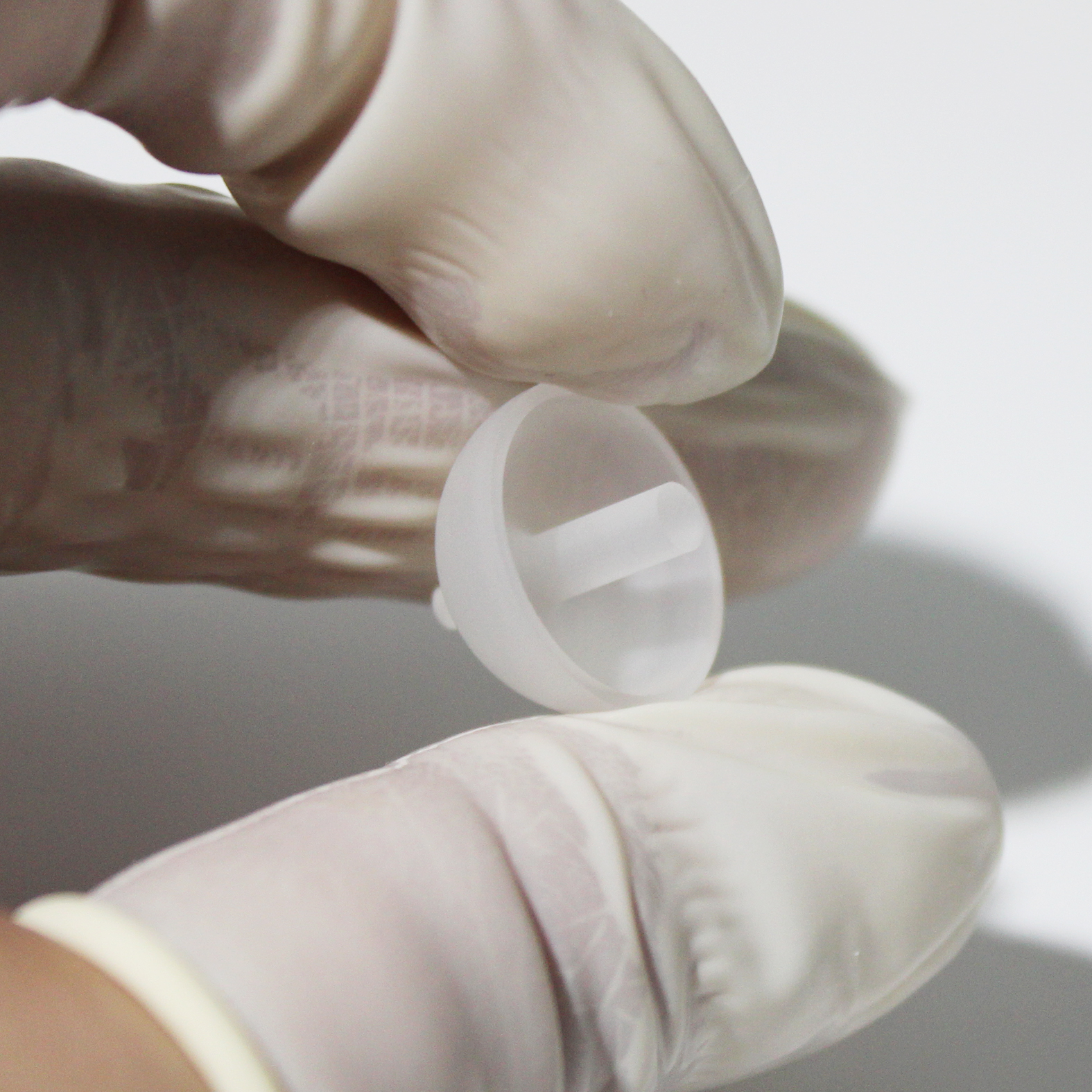

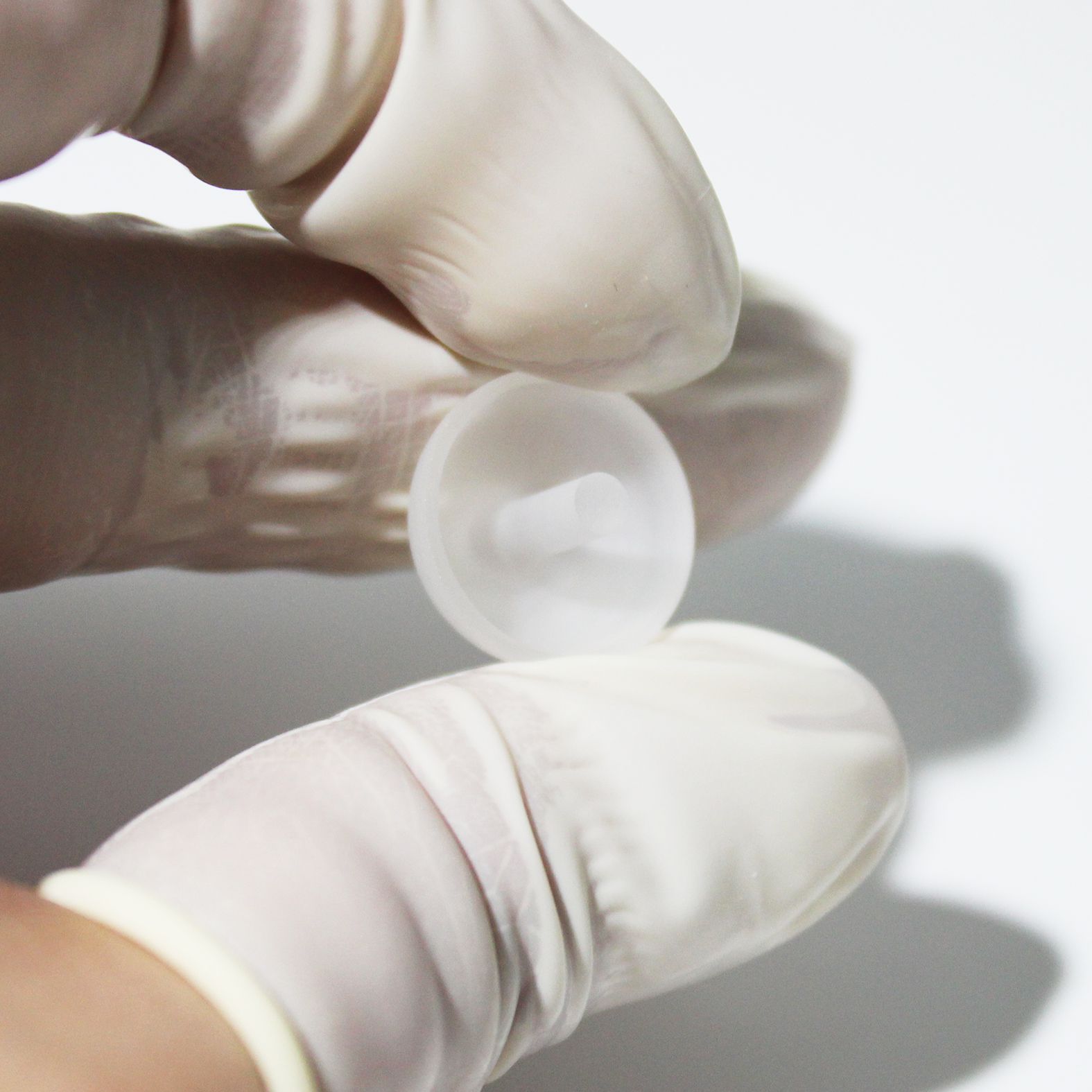

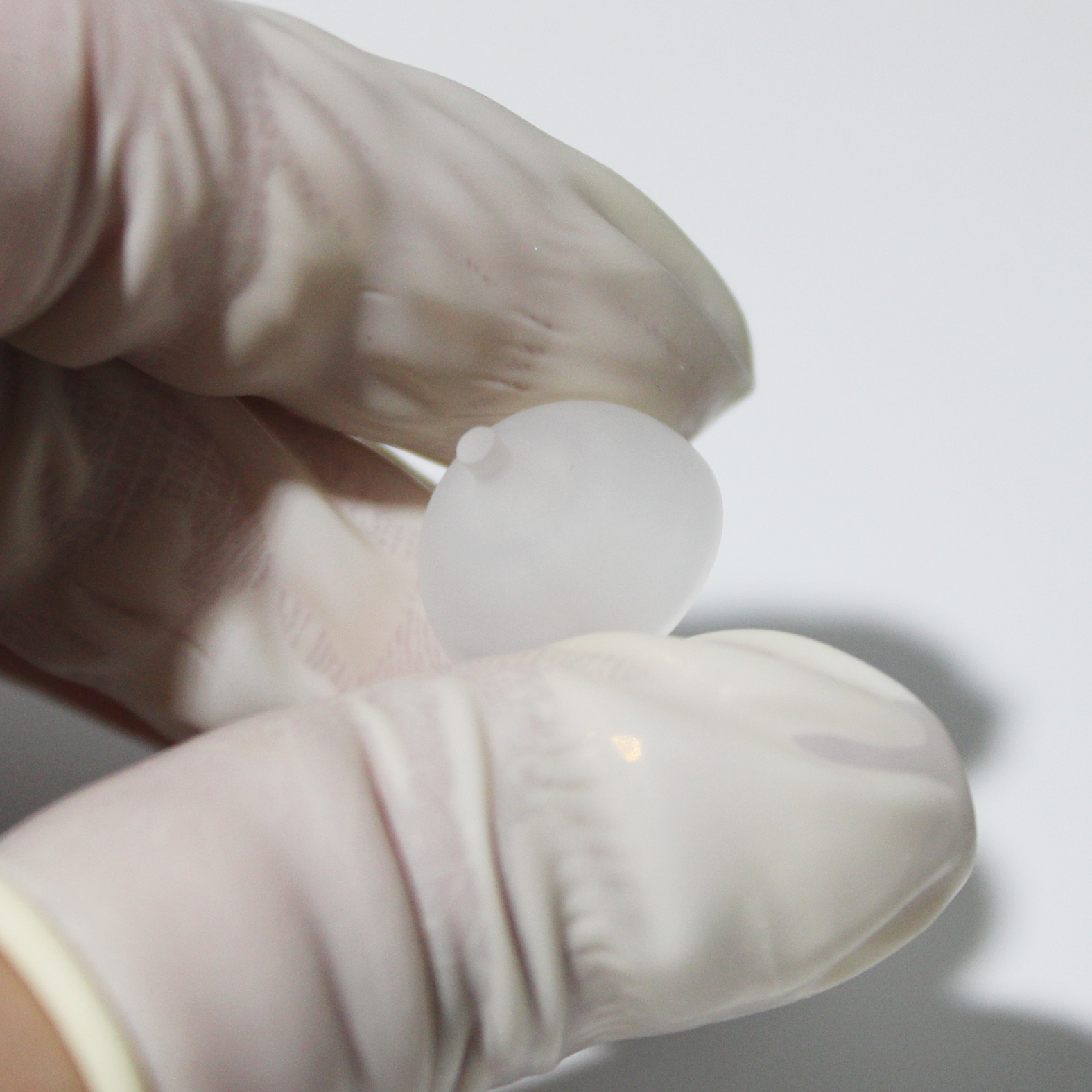

Picture of Resonator
Video of Hemispherical Resonator
Key Features of the Hemispherical Shell Resonator
- Thin-walled hemispherical geometry
- Controlled shell dimensions and curvature
- Wall thickness specified according to design
How Does a Hemispherical Shell Resonator Work?
A hemispherical shell can exhibit natural vibration modes when it is excited by an external force.
The shell geometry and material properties determine its dynamic response. In addition, wall thickness distribution and structural symmetry can affect the consistency of its vibration characteristics.
Applications of Hemispherical Shell Resonators
- Mechanical resonance research
- Laboratory measurement equipment
- Precision mechanical assemblies
Frequently Asked Questions
Can the shell dimensions be manufactured according to a drawing?
Yes. Outer diameter, shell height, curvature, wall thickness, and other dimensions can be evaluated according to customer drawings.
