What Are Plano Convex Lenses?
The curved surface helps converge transmitted light. As a result, these lenses are widely used when controlled focusing and light collection are required.
Plano Convex Lenses Specifications
| Material | Fused silica |

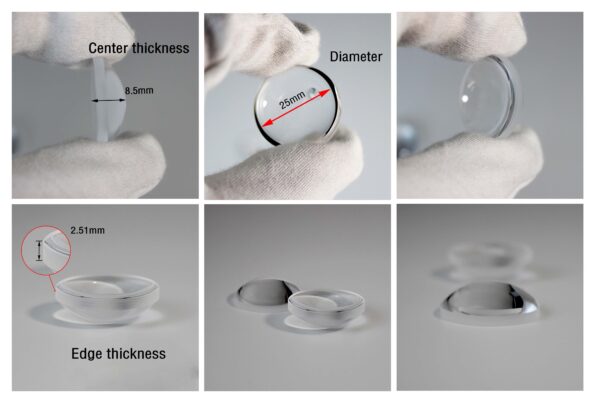

| Diameter | 25mm |
| Center Thickness | 8.5mm |
| Edge Thickness | 2.51mm |
| Surface Quality | 60-40 |
| Tolerance | +0.1mm |

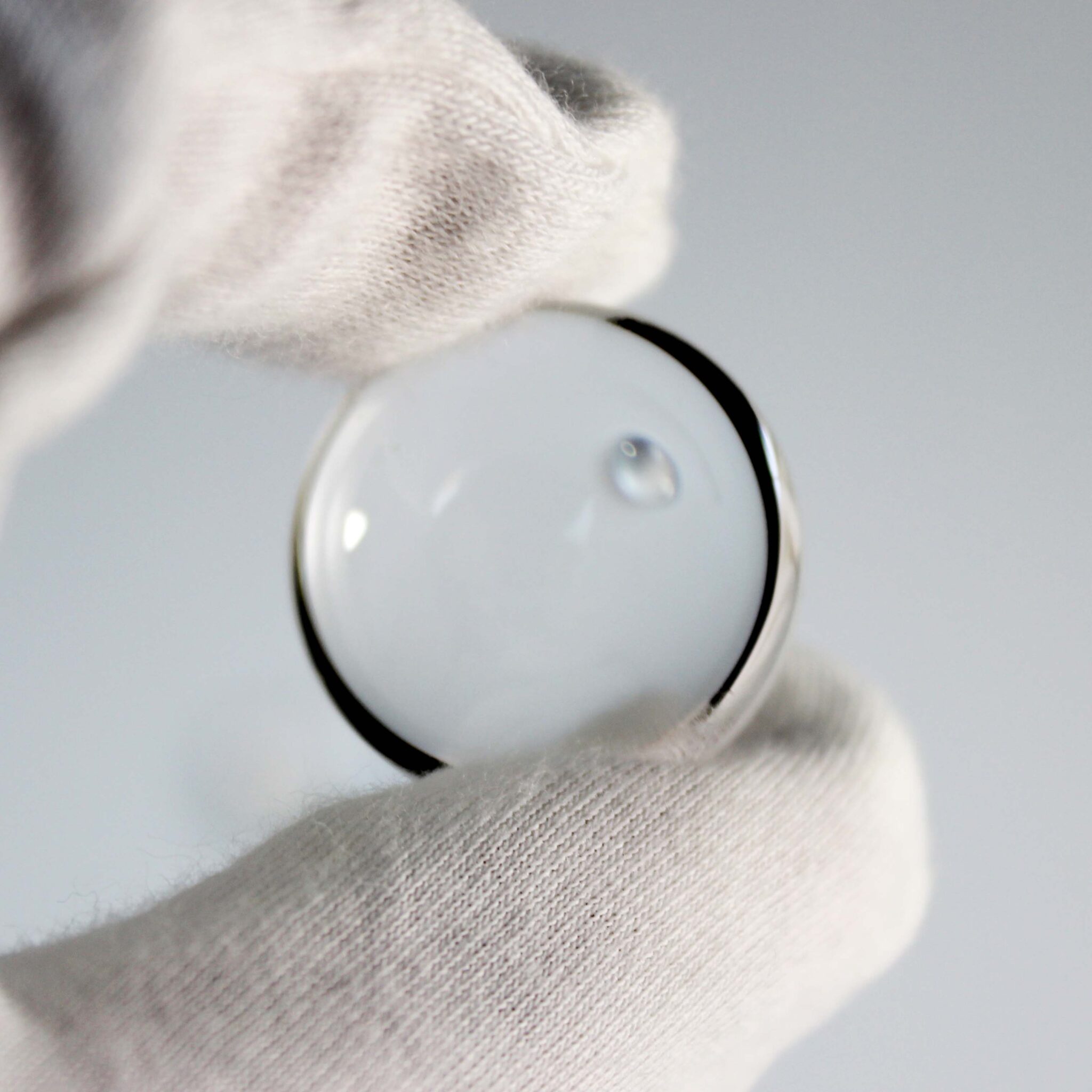

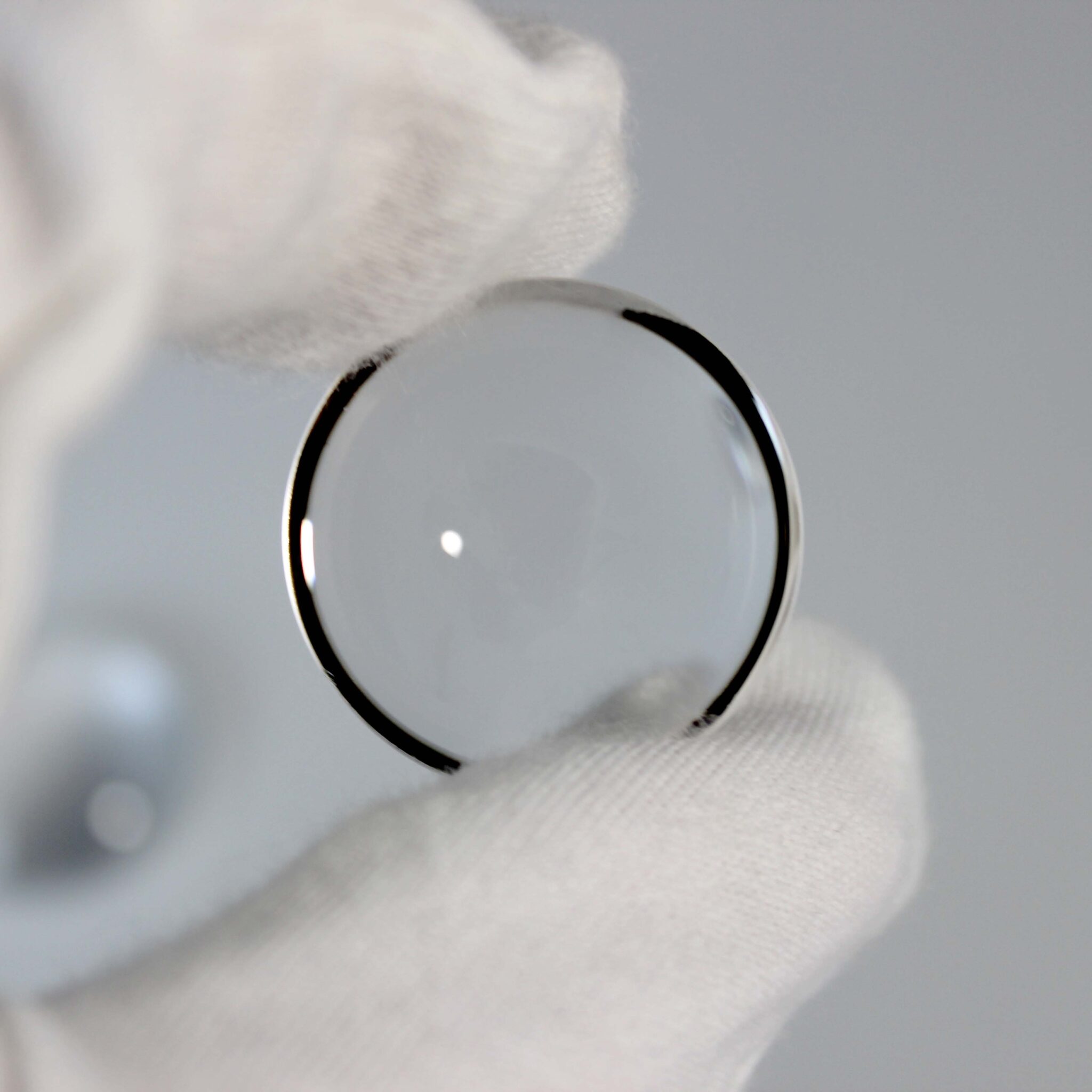

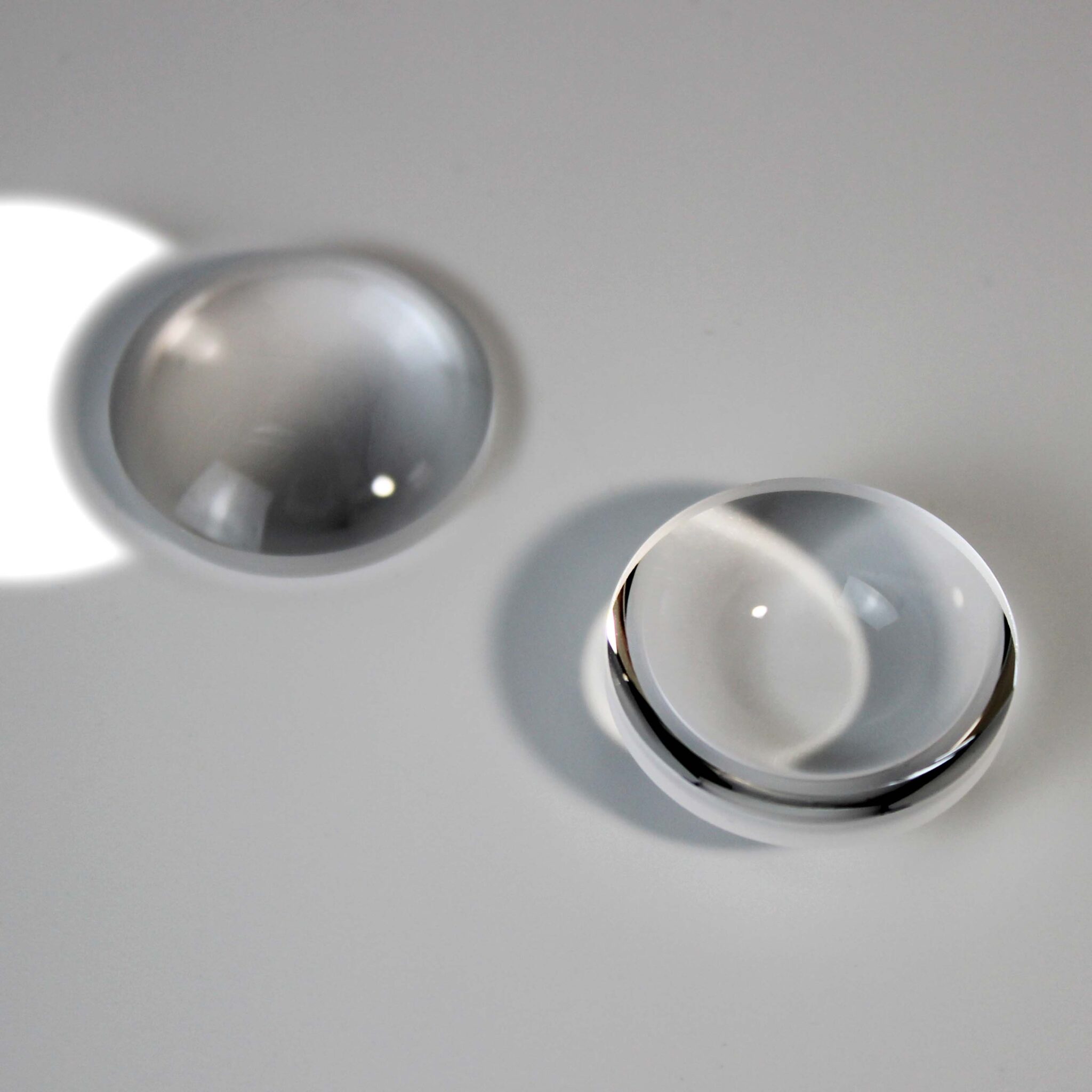

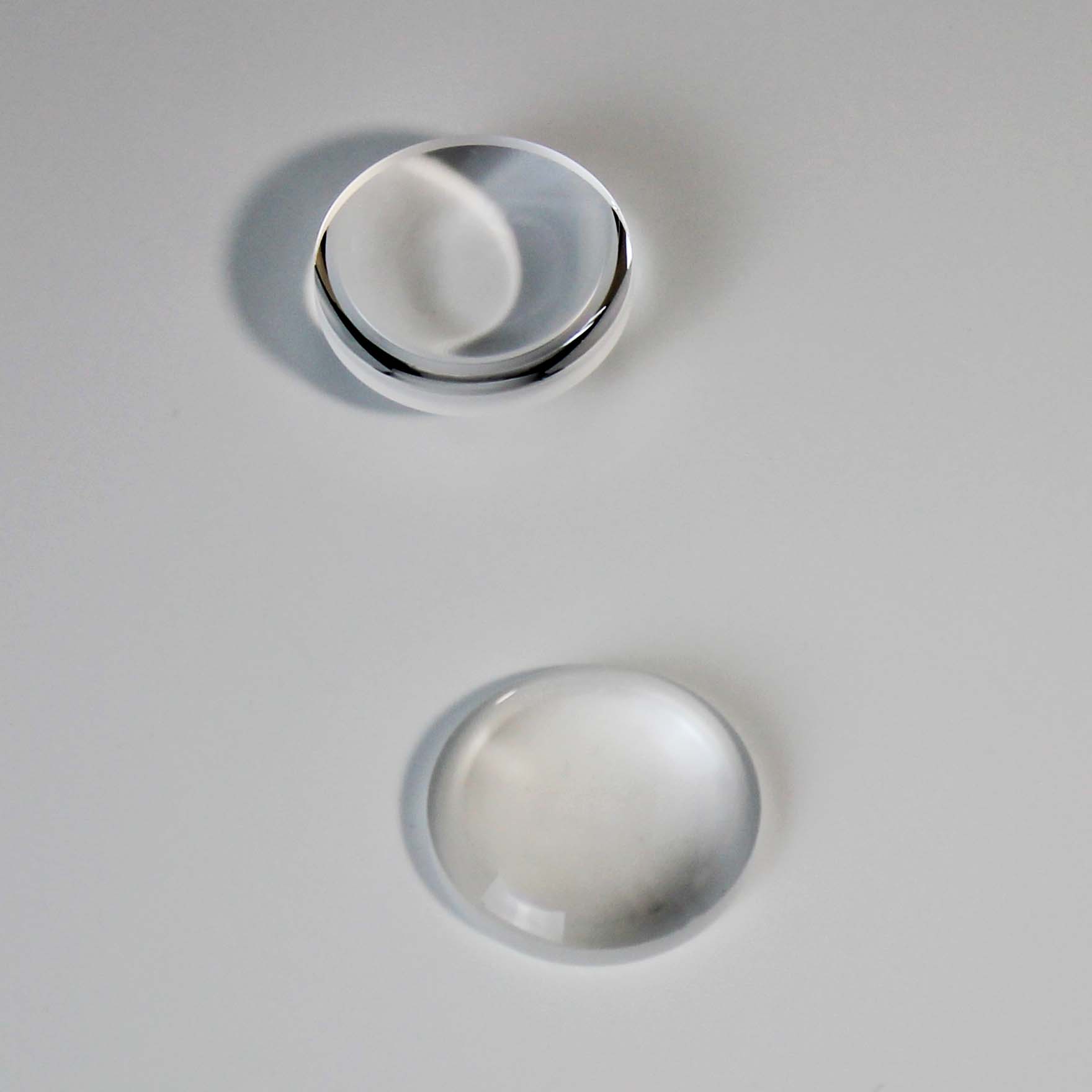

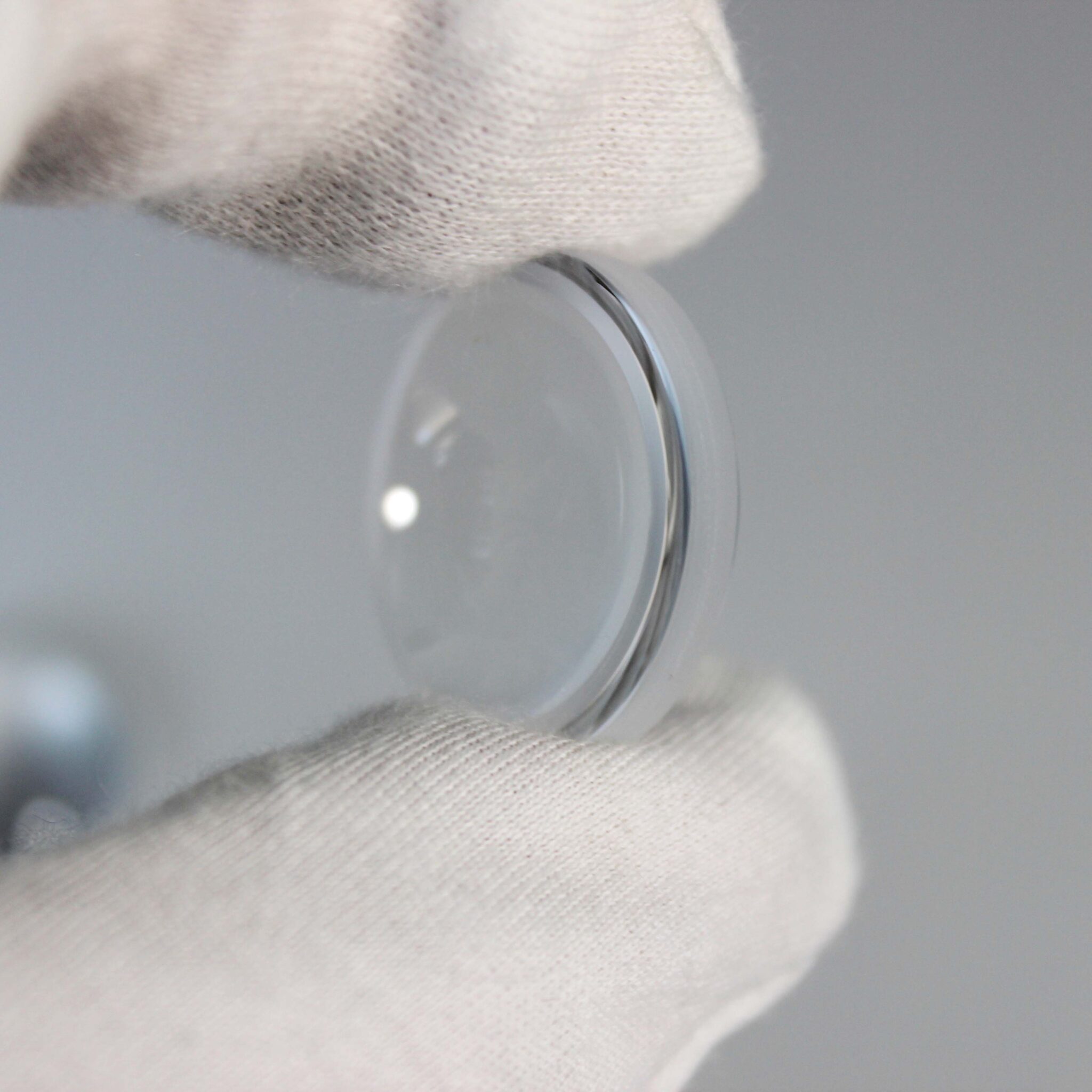

Picture of Plano-Convex Lenses
Video of Plano-Convex Lenses
Key Features of Plano Convex Lenses
- Precise lens geometry
- Smooth optical surfaces
- Good light transmission
- Different optical materials available
- Custom dimensions and coatings available
How Do Plano Convex Lenses Work?
A Plano Convex Lens changes the direction of transmitted light through its curved optical surface.
Because it has positive optical power, the lens can bring transmitted light toward a focal region. The focal length depends on the lens material, curvature, and overall optical geometry.
Optical Performance
The optical performance of a Plano Convex Lens depends on several factors. These include material, focal length, diameter, surface quality, and dimensional accuracy.
A smooth polished surface helps maintain stable light transmission. Accurate curvature also helps achieve the required focusing characteristics.
Applications of Plano Convex Lenses
- Machine vision equipment
- Laboratory optical systems
- Light collection assemblies
- Optical coupling systems
- Precision optical assemblies
What Materials Are Available?
Plano Convex Lenses can be manufactured from different optical glass materials according to the required optical performance.
The material selection can be based on refractive index, transmission characteristics, mechanical requirements, and the design of the optical system.
Can Plano Convex Lenses Be Customized?
Yes. VY Optics can manufacture Plano Convex Lenses according to customer drawings or technical specifications.
Customization can include material, diameter, focal length, center thickness, edge thickness, surface quality, dimensional tolerance, and optical coating.
Manufacturing Process
The manufacturing process may include cutting, shaping, grinding, polishing, cleaning, coating, and optical inspection.
Each process is controlled according to the required lens geometry and surface specifications. This helps maintain consistent optical quality between components.
Frequently Asked Questions
Can you manufacture Plano Convex Lenses from drawings?
Yes. VY Optics supports customized manufacturing based on drawings, samples, and technical specifications.
Why Choose Our Plano Convex Lenses?
VY Optics provides optical lens manufacturing, precision grinding, polishing, dimensional inspection, and coating services.
Our Plano Convex Lenses can be produced according to specific optical and mechanical requirements. This provides flexibility for different optical instruments and customized assemblies.
