What Is a Glass Ball Lens?
A Glass Ball Lens is a spherical optical component made from optical glass. Its curved surface refracts light as it passes through the lens.
Due to its compact shape, a glass ball lens can be integrated into optical assemblies with limited installation space. Its optical performance depends on the glass material, ball diameter, surface quality, and refractive index.
Glass Ball Lens Specifications
| Diameter | 50mm |
| Material | K9 |

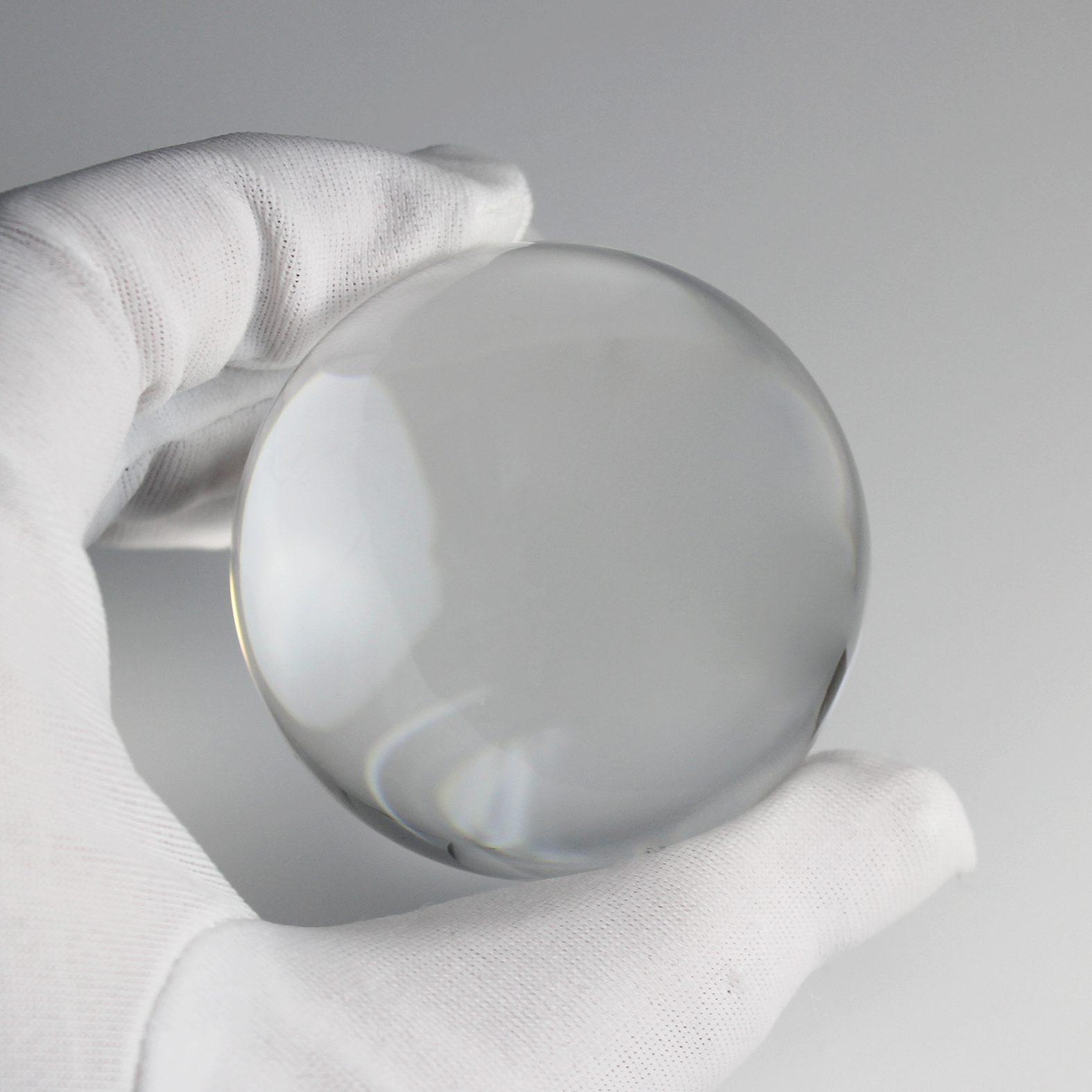

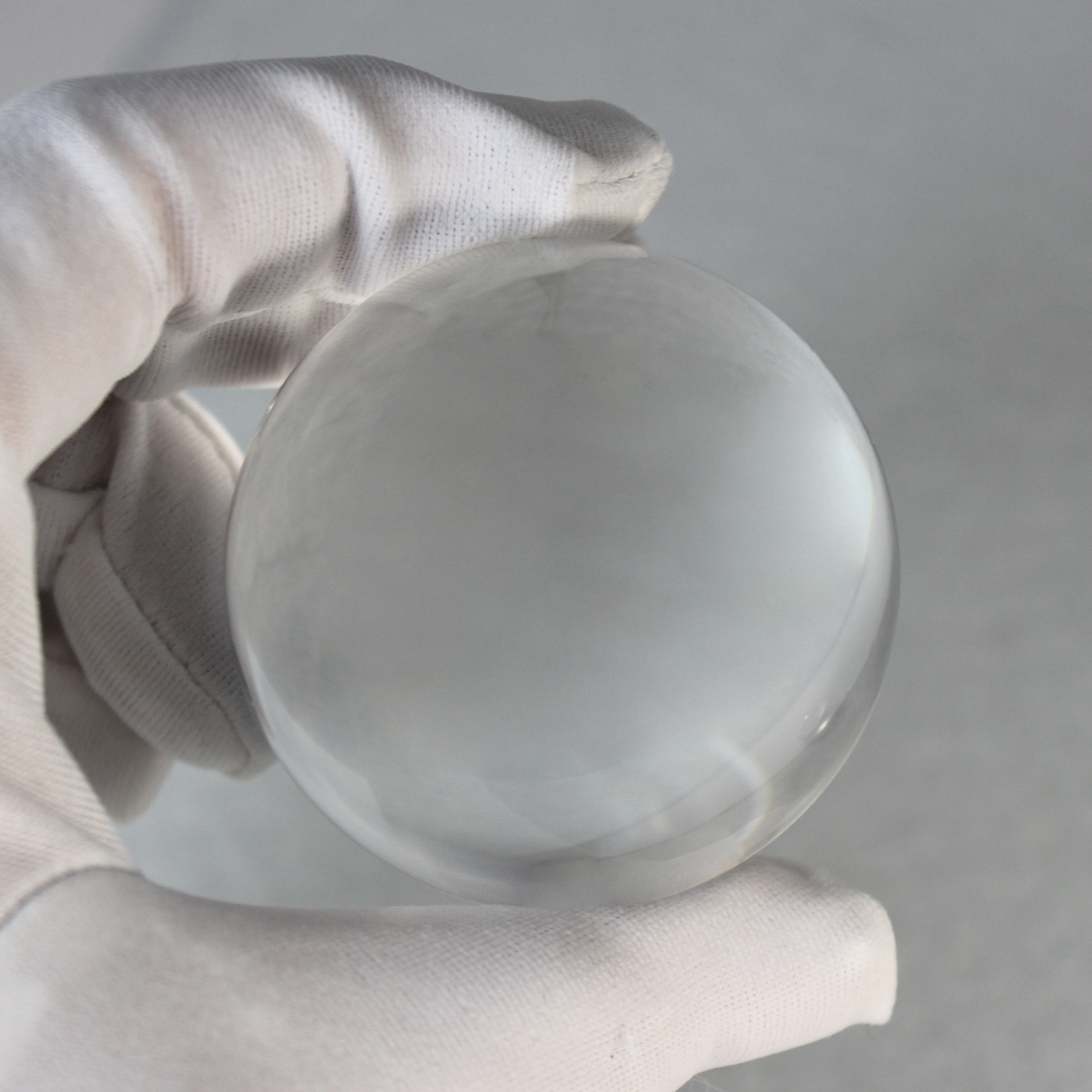

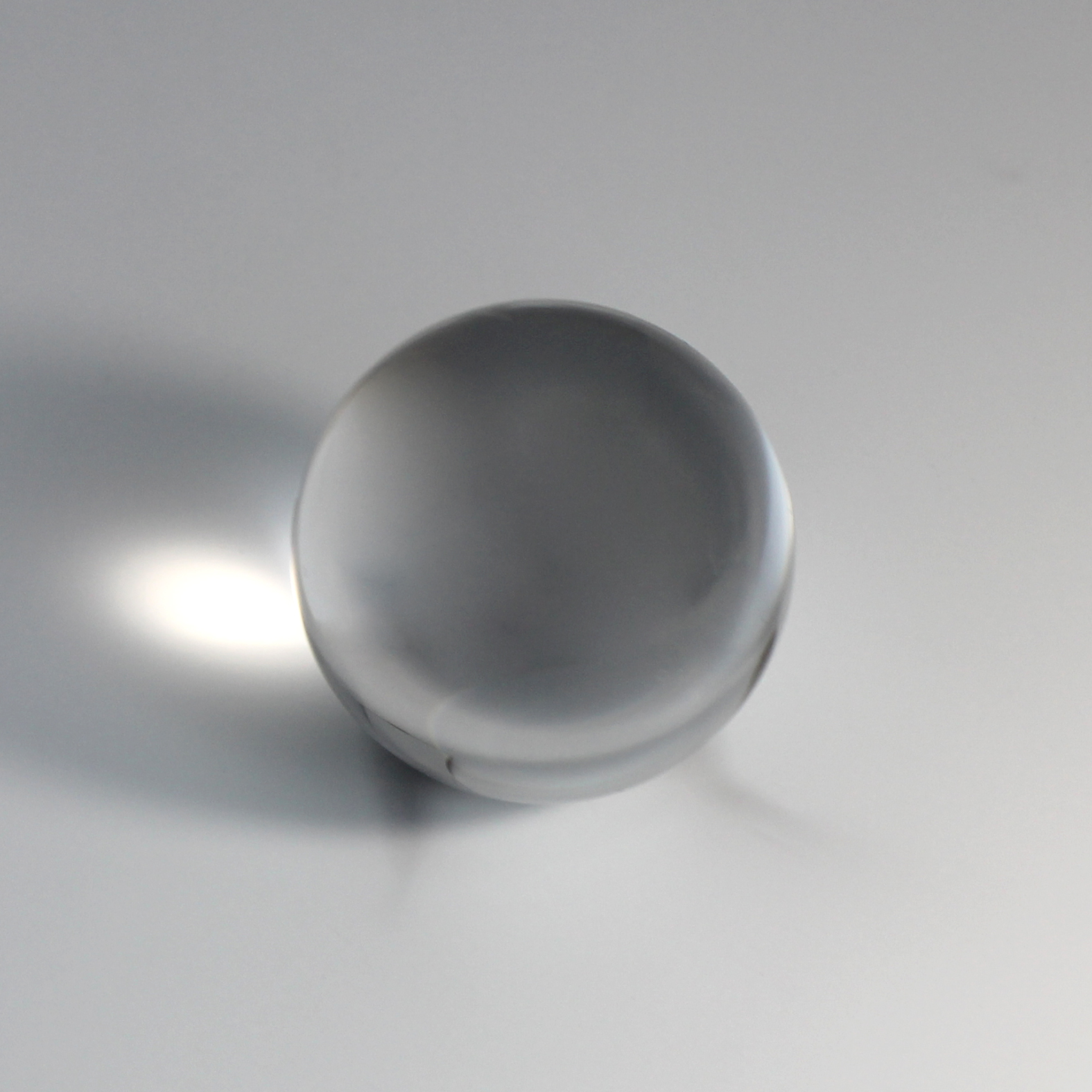

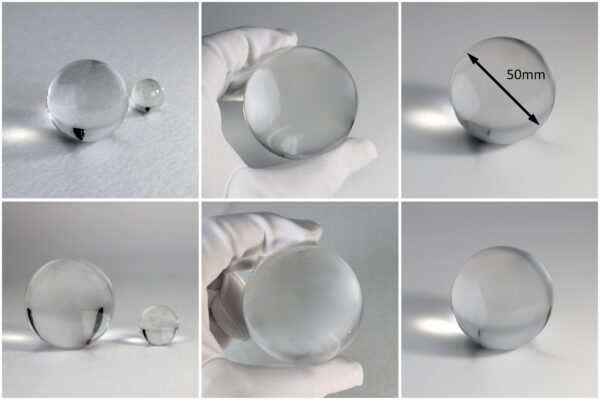

Picture of Glass Ball Lens
Video of Optical Ball Lens
Key Features of the Glass Ball Lens
- Complete spherical optical geometry
- Compact structure for optical integration
- Light refraction through curved optical surfaces
- Multiple glass material options
- Custom diameter and dimensional tolerance
How Does a Glass Ball Lens Work?
A Glass Ball Lens refracts light at its curved glass surfaces. The resulting light path depends on the refractive index, ball diameter, and surrounding optical media.
In a suitable optical arrangement, the lens can help couple light between components or change the divergence of an incoming beam.
Optical Performance and Surface Quality
The performance of a Glass Ball Lens depends on its material properties, spherical accuracy, diameter, and surface finish.
A consistent spherical shape helps maintain predictable refraction. In addition, a suitable polished surface can reduce unwanted scattering caused by surface imperfections.
Applications of Glass Ball Lens
- Optical fiber coupling systems
- Light source coupling assemblies
- Compact optical instruments
- Optical sensor assemblies
- Laboratory optical equipment
Can the Glass Ball Lens Be Customized?
Yes. Glass Ball Lenses can be specified according to the requirements of an optical system.
Customization may include glass material, ball diameter, dimensional tolerance, surface quality, and applicable coatings. Customers can provide a drawing or technical specification for evaluation.
Manufacturing and Quality Inspection
The manufacturing process may include glass preparation, spherical shaping, grinding, polishing, cleaning, and dimensional inspection.
Inspection requirements depend on the lens diameter and intended optical use. Dimensional consistency and surface quality are important factors in the performance of the finished component.
Frequently Asked Questions
What is the difference between a Glass Ball Lens and a Half Ball Lens?
A Glass Ball Lens has a complete spherical shape. A Half Ball Lens has a hemispherical shape with a flat surface. Their optical behavior and mounting requirements differ.
What information is needed for a quotation?
Please provide the ball diameter, glass material, surface quality, dimensional tolerance, quantity, and any specific optical requirements. A drawing or sample can also help clarify the specifications.
Why Choose VY Optics?
VY Optics provides optical component processing and customized manufacturing based on technical drawings and project specifications.
By confirming material, diameter, surface quality, and optical requirements, customers can select a suitable Glass Ball Lens for their optical assemblies.
