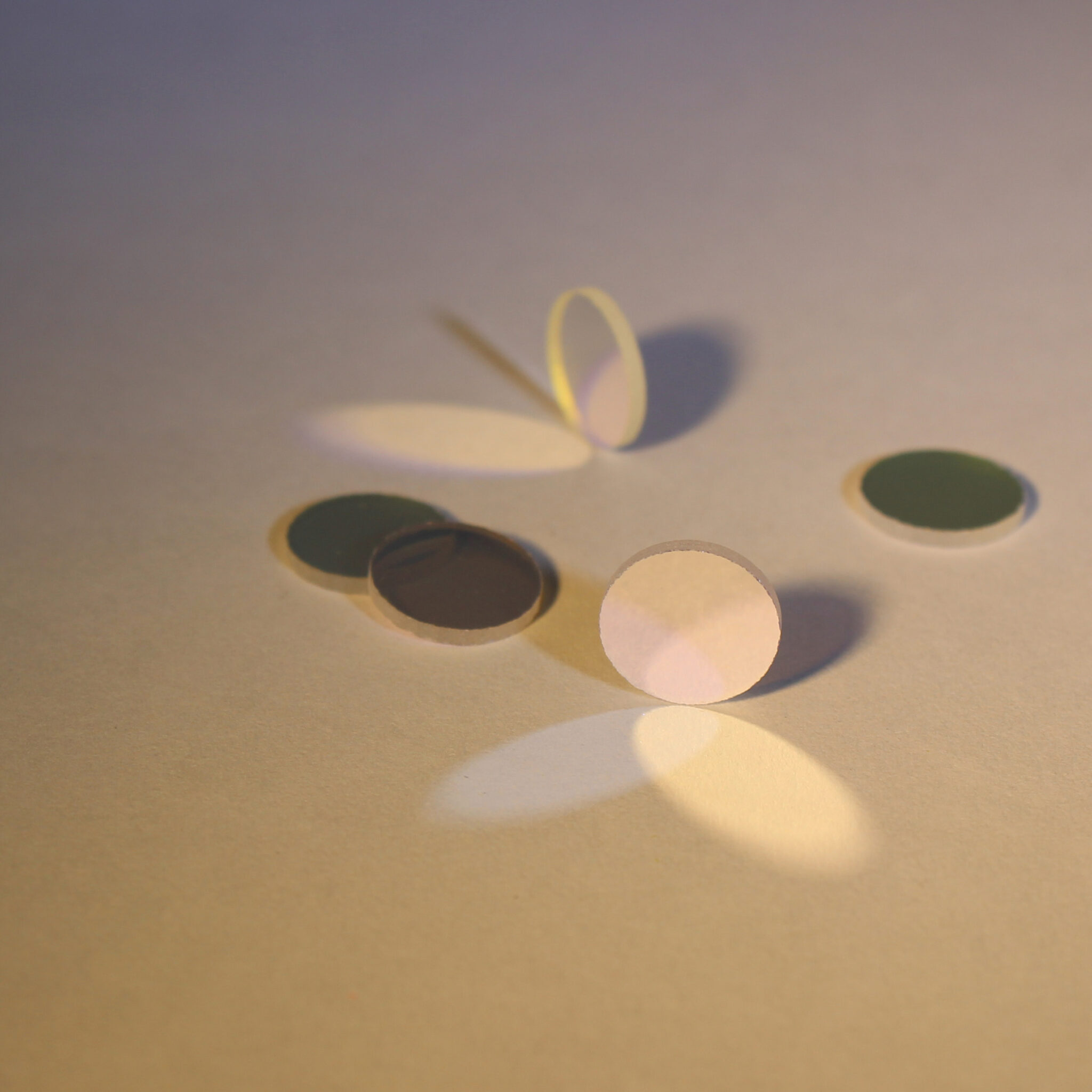

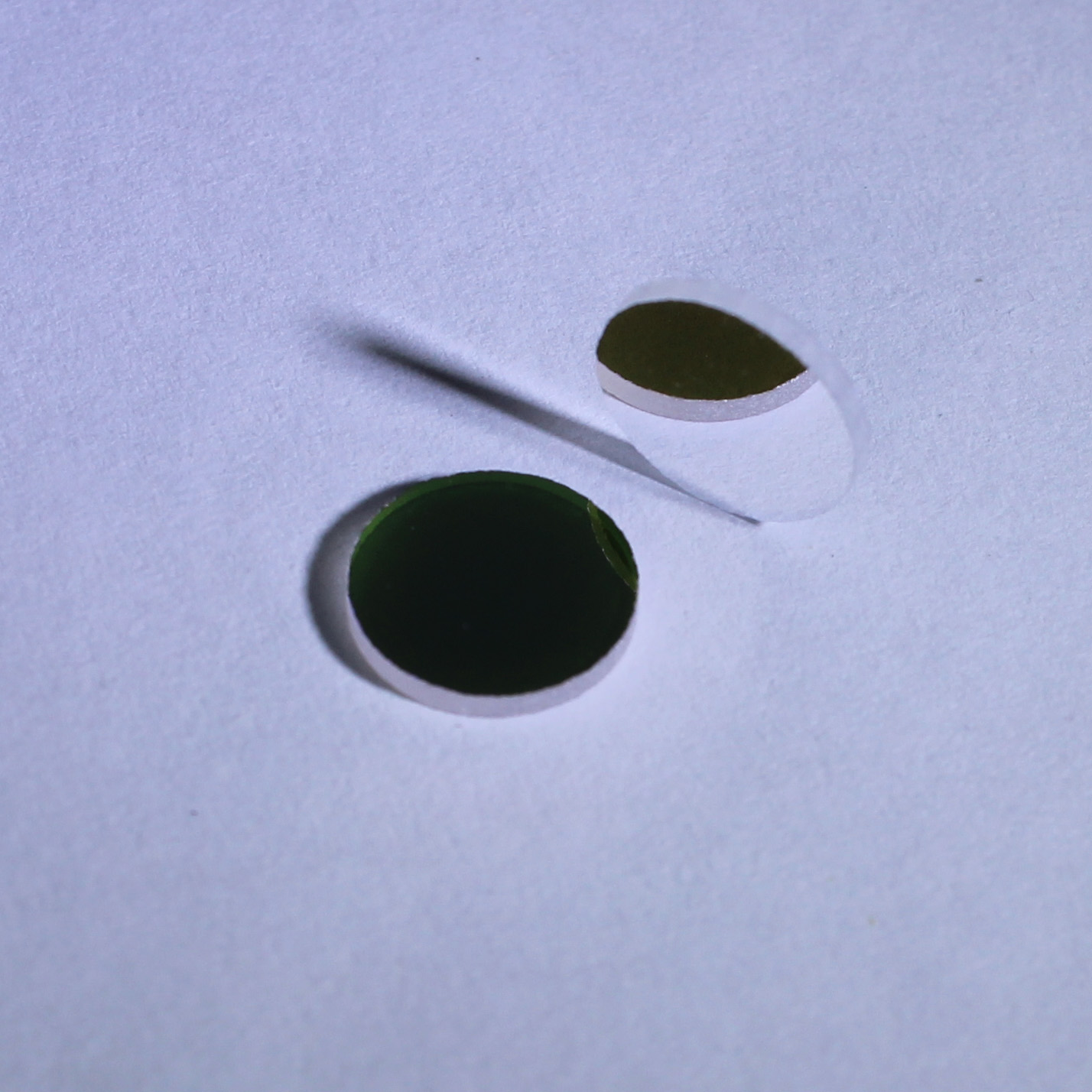

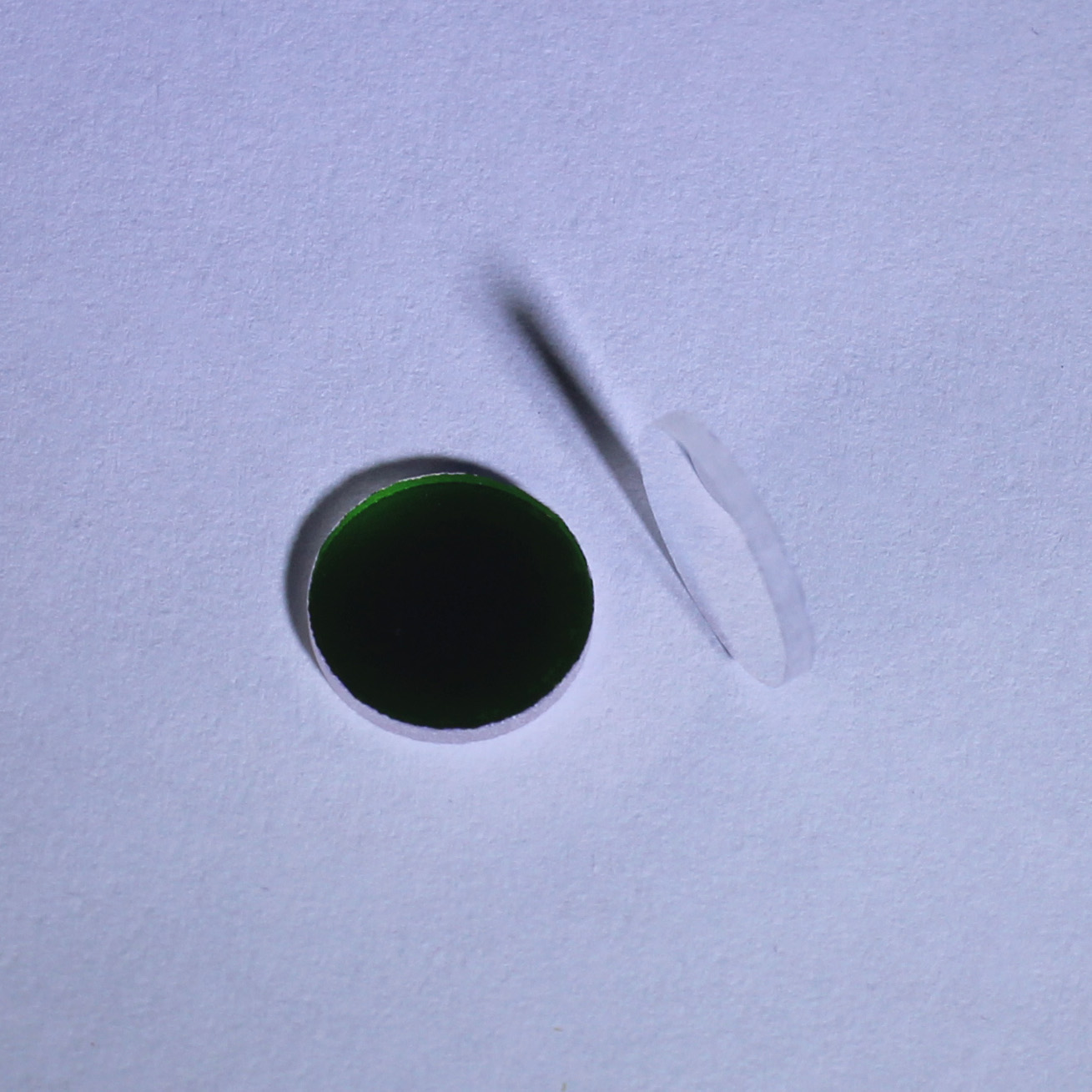

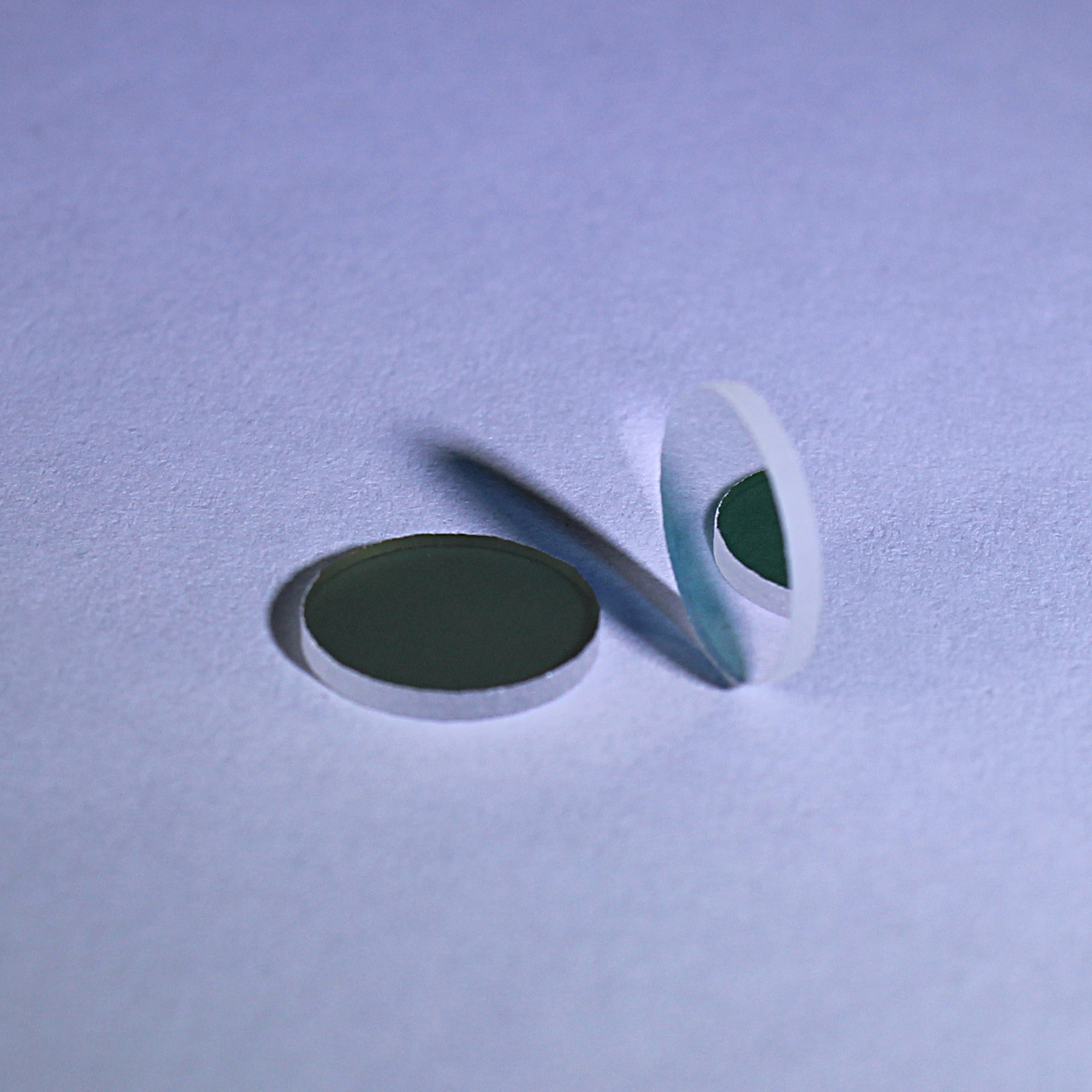

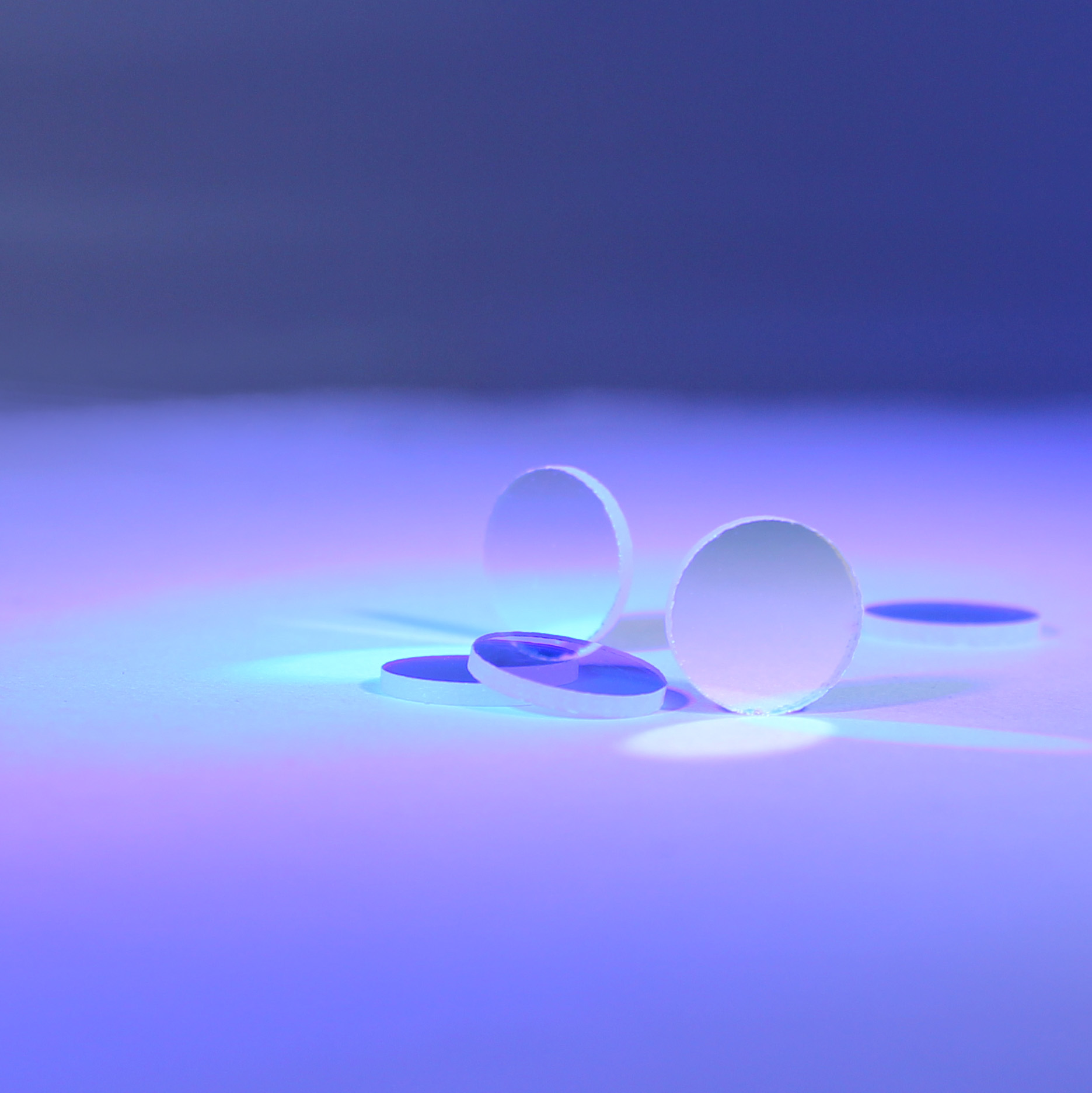

What is a Triple Bandpass Filter?
A triple bandpass filter is an optical filter designed to transmit three selected wavelength bands while reducing transmission outside these bands. It combines multiple transmission windows within a single optical filter and is suitable for systems that require selective multi-band light transmission.
Specifications of Triple Bandpass Filter
| Diameter | 9mm |
| Useful Range | 543-558nm,653-668nm, 835-865nm |
| FWHM | 20nm, 20nm, 45nm |
| Tolerance | +/-10nm |
| Peak Transmission | ≥85% |
| Surface Quality | 40/20 |
Video of Triple Bandpass Filter
Key Features
- Three selected transmission bands
- Precise spectral transmission control
- Effective out-of-band suppression
- Stable optical performance
- High quality optical substrate
- Precision coating technology
Applications
- Optical measurement instruments
- Spectral detection equipment
- Imaging systems
- Optical sensors
- Machine vision equipment
Triple Bandpass Filter Manufacturing
We provide customized triple bandpass filter manufacturing based on required transmission bands and optical specifications. Substrate material, dimensions, thickness, coating structure, transmission range, and spectral performance can be customized according to customer requirements.
Customization Options
- Three customized transmission bands
- Customized center wavelengths
- Customized bandwidth
- Optical glass substrate selection
- Custom filter dimensions
- Multilayer optical coating
People Also Ask (FAQs)
What is a triple bandpass filter used for?
It is used for selective multi-band light transmission in optical measurement, imaging, sensing, and spectral detection systems.
Why Choose Our Triple Bandpass Filters?
- Customized multi-band spectral design
- Precision optical coating technology
- Accurate wavelength control
- High quality optical substrates
