What Is a Truncated Triangular Prism?
A Truncated Triangular Prism is an optical component with a triangular pyramid structure and a truncated top surface.
Its multiple optical facets can change the direction of transmitted light through controlled refraction.
Truncated Triangular Prism Specifications
| Material | K9 |
| Length | 250mm |
| Coating | Silver reflective coating & black paint |
| End Surfaces | Two end surfaces polished bright |

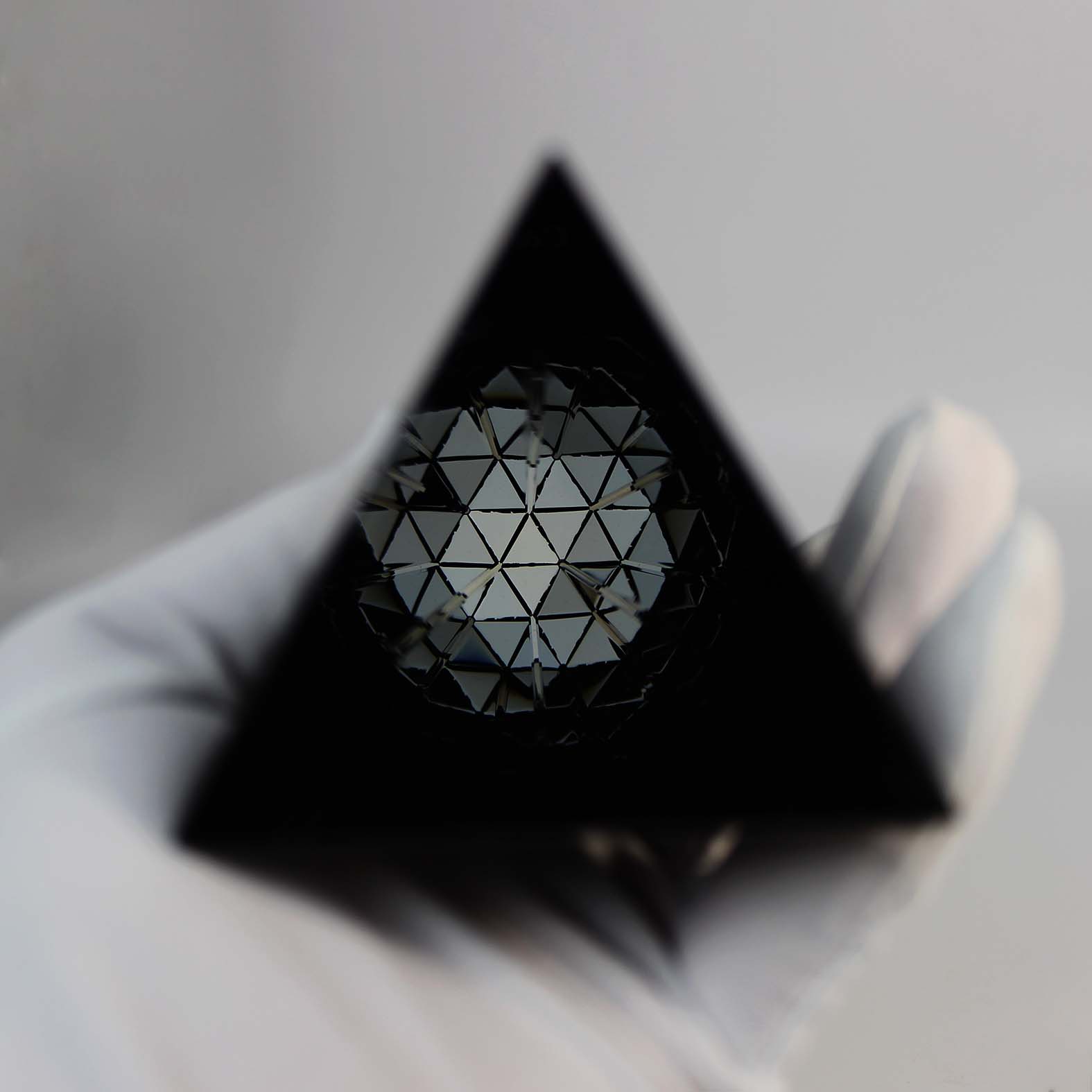

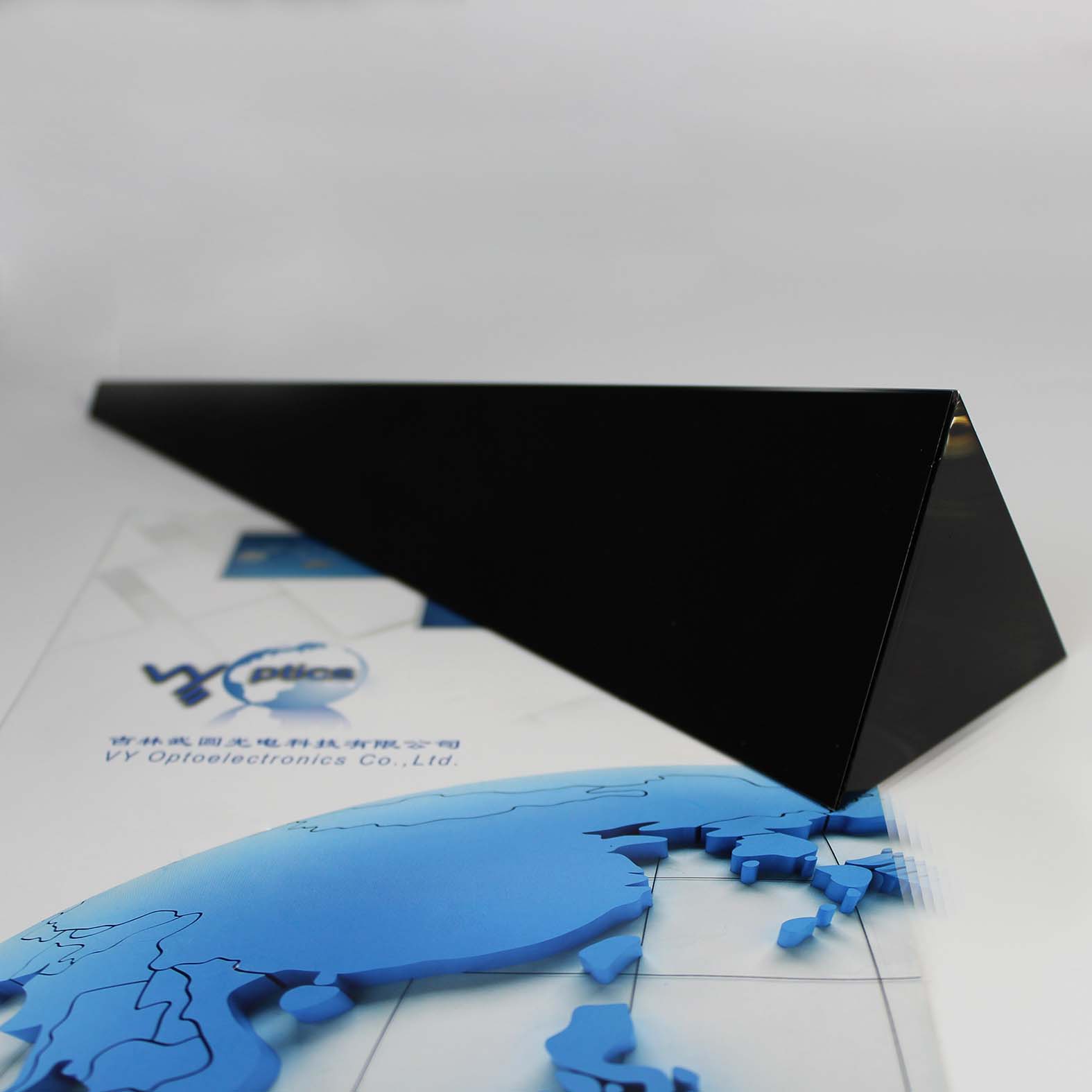

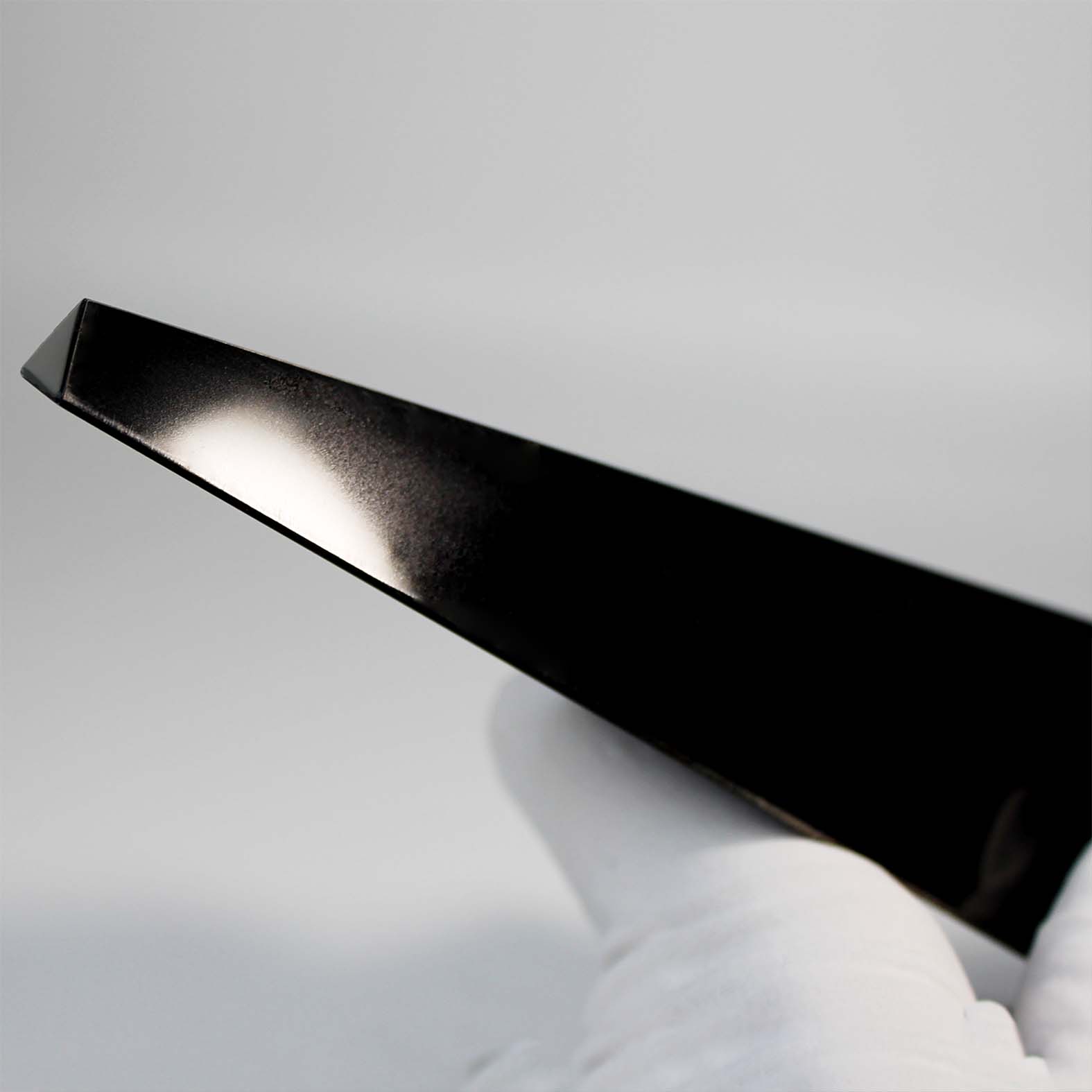

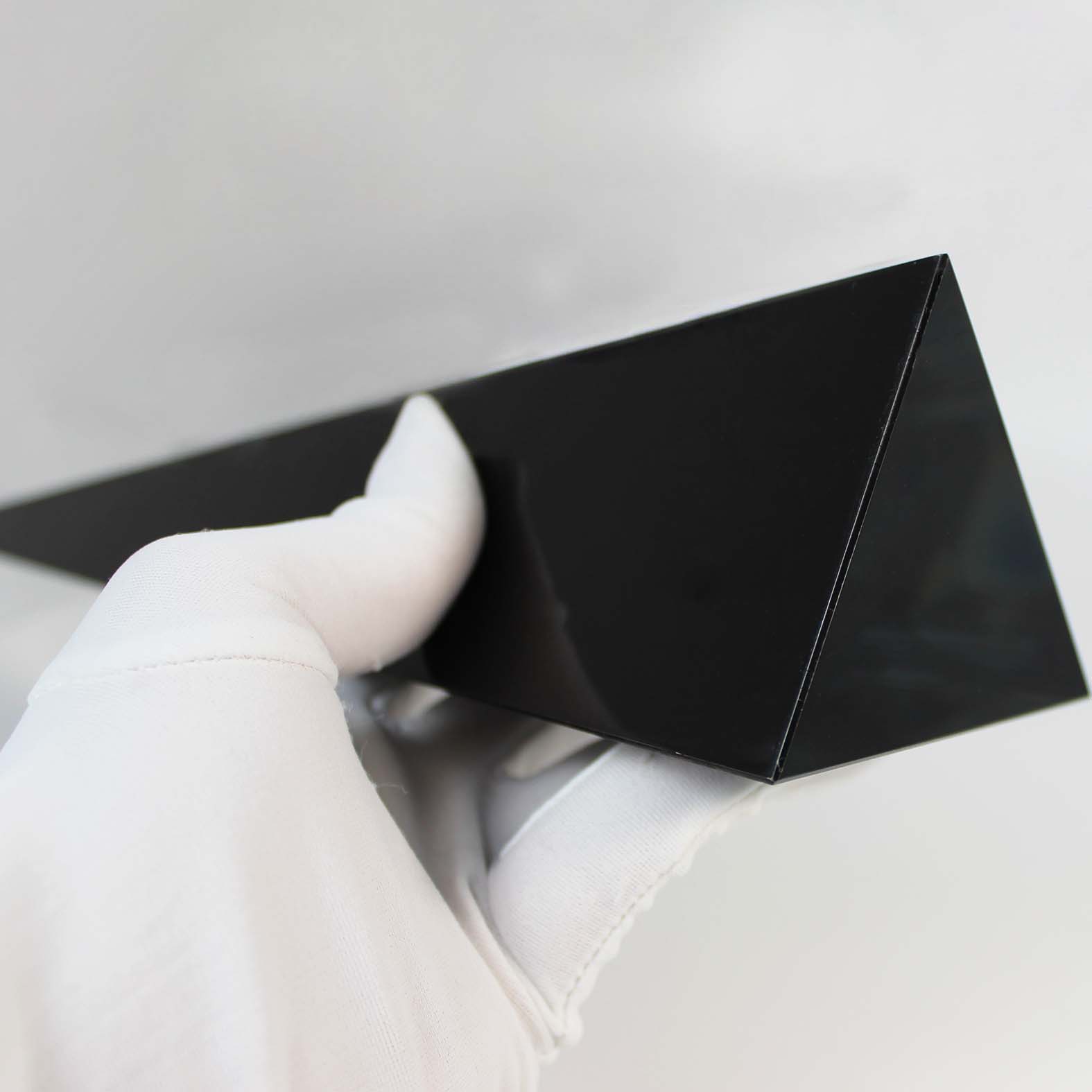

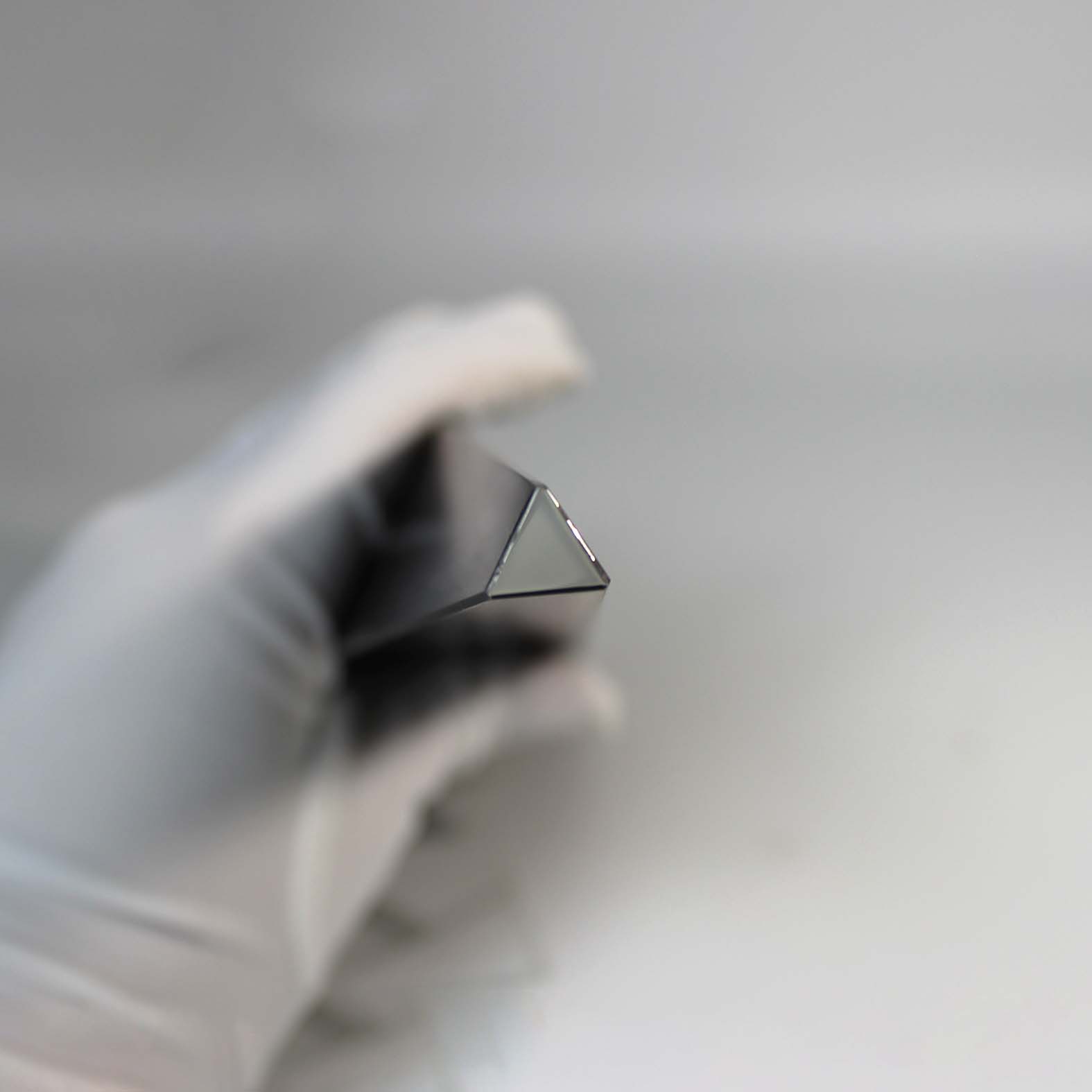

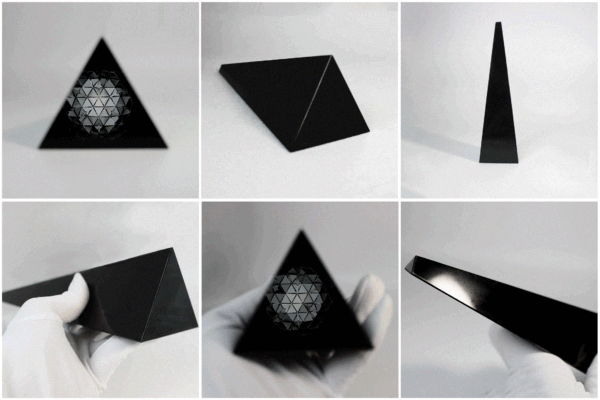

Picture of Prism
Video of Triangular Pyramid
Key Features of Truncated Triangular Prism
- Distinctive truncated triangular geometry
- Multiple precision optical facets
- Controlled facet angles
- Accurate dimensional processing
- Smooth optical surface options
- Good light refraction performance
- Stable optical geometry
- Custom specifications available
How Does a Truncated Triangular Prism Work?
Light changes direction when it passes through the optical surfaces of the prism.
The triangular geometry creates controlled refraction at different facets. The truncated top surface also changes the overall optical path compared with a complete triangular pyramid.
Therefore, facet angles and dimensional accuracy are important factors in the optical design.
Optical Surface Quality
The optical performance of a Truncated Triangular Prism depends on its material, facet geometry, surface quality, and dimensional accuracy.
Fine grinding and polishing can be used to achieve the required surface condition.
Accurate facet processing also helps maintain consistent optical behavior between individual components.
Applications of Truncated Triangular Prism
- Optical instruments
- Imaging systems
- Measurement equipment
- Laboratory optical systems
- Light transmission assemblies
Can the Truncated Triangular Prism Be Customized?
Yes. VY Optics can manufacture Truncated Triangular Prisms according to customer drawings, samples, or technical specifications.
Customization options may include material, overall dimensions, facet angles, truncated top size, surface quality, dimensional tolerance, and optical coating.
Frequently Asked Questions
What is the shape of a Truncated Triangular Prism?
It has a triangular pyramid structure with the top portion removed or truncated, creating an additional top surface.
Can an optical coating be added?
Yes. Coating options can be provided according to the required optical performance.
Why Choose Our Truncated Triangular Prism?
VY Optics provides precision optical component processing, surface polishing, dimensional inspection, and customized manufacturing.
Our Truncated Triangular Prisms can be produced according to drawings, samples, and detailed technical requirements for prototype development and optical assembly production.
