What is a Quartz Bulb Tube?
A quartz bulb tube is a specially formed glass component manufactured from quartz material with a bulb-shaped or expanded tubular structure. Its geometry can be designed according to specific equipment and assembly requirements.

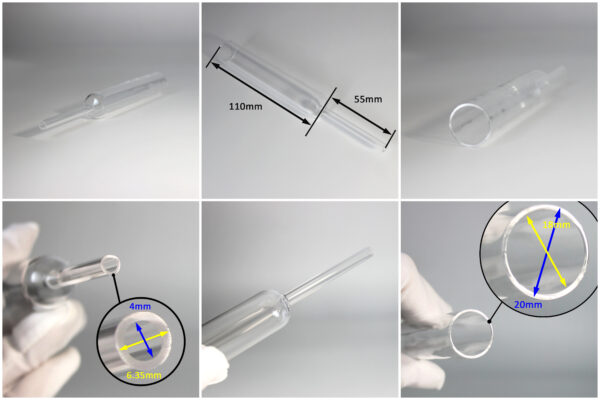

Specifications of Quartz Bulb Tube
| Material: | JGS2 |
| Length: | 165mm |
| Outer Diameter: | 20mm/6.35mm |
| Inner Diameter: | 18mm/4mm |

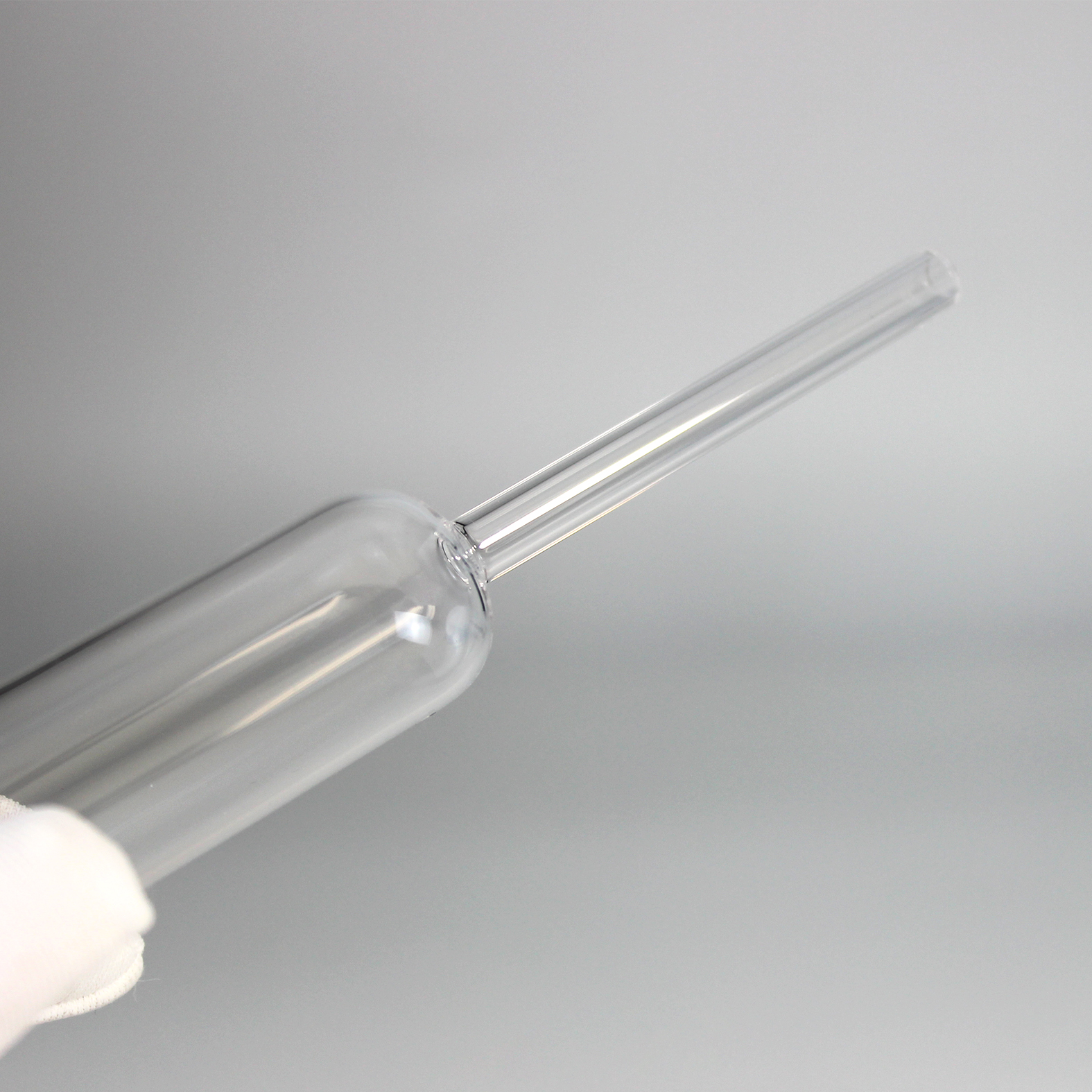

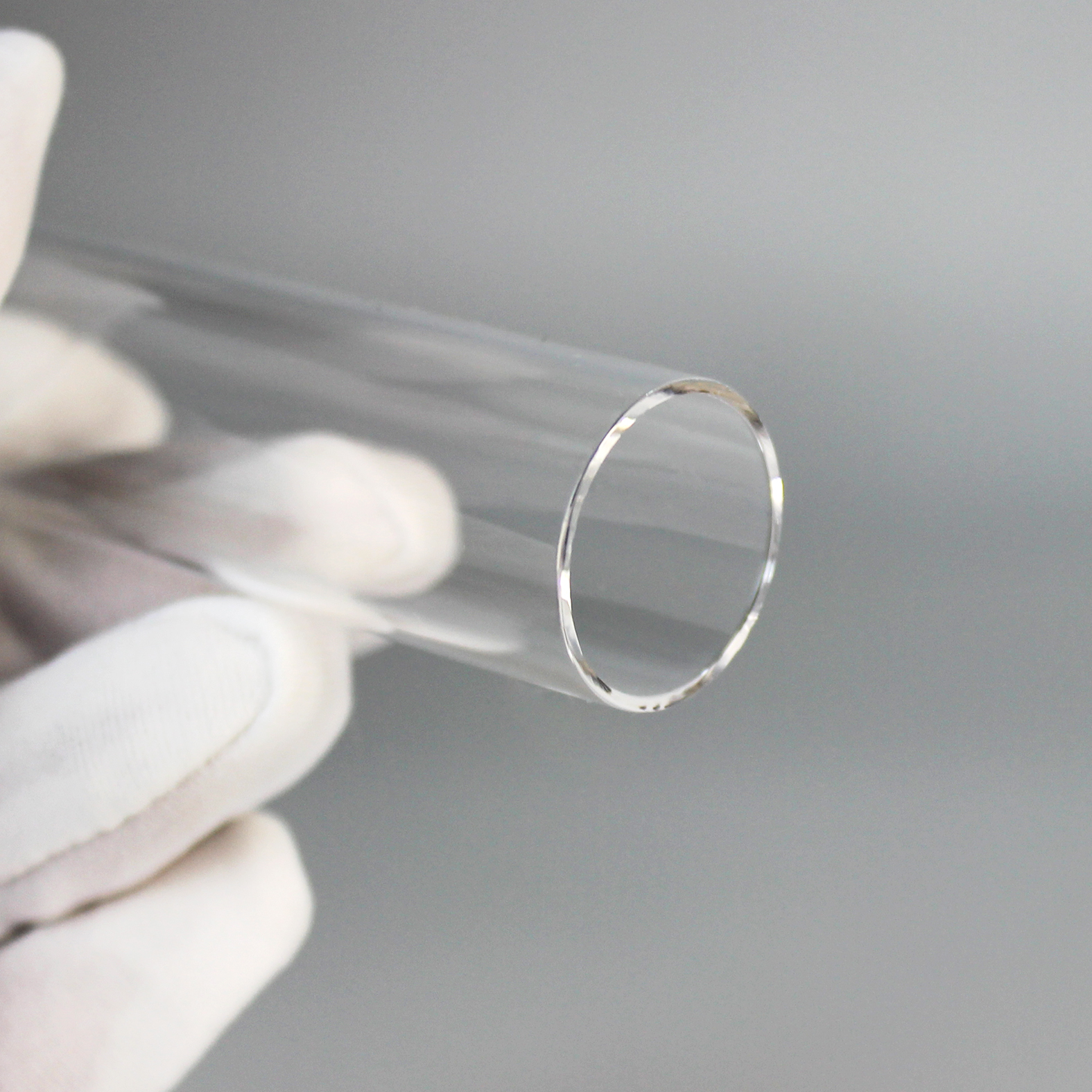

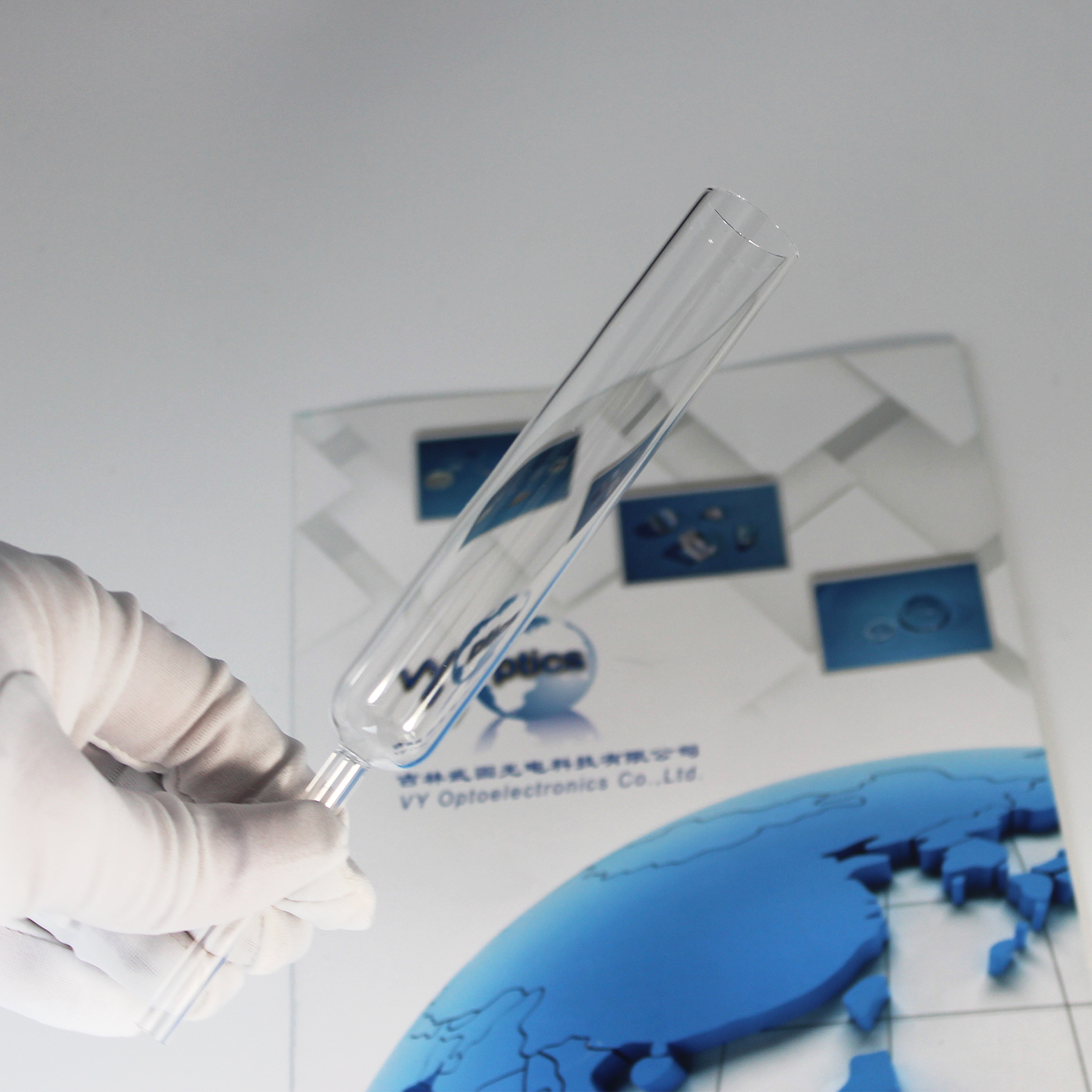

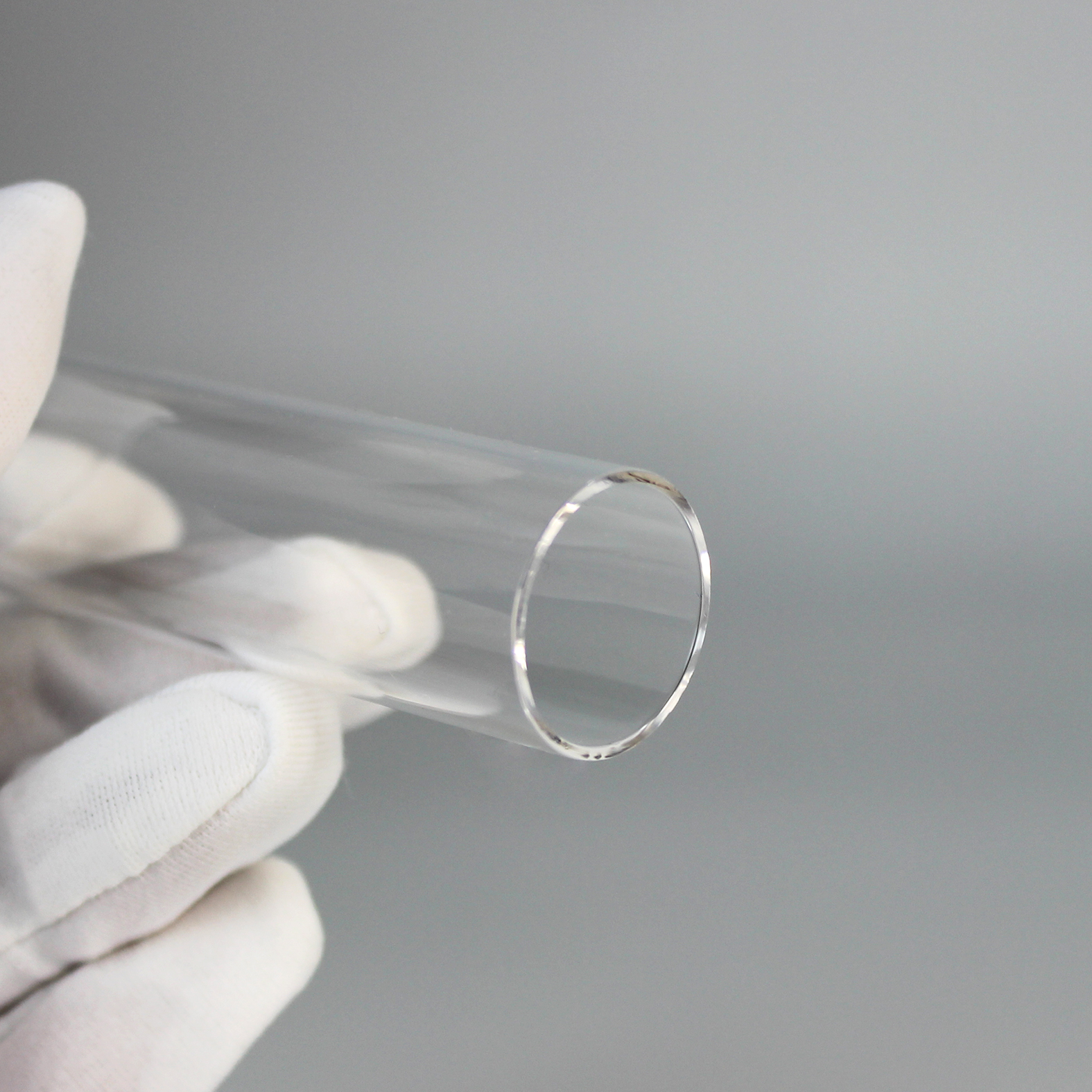

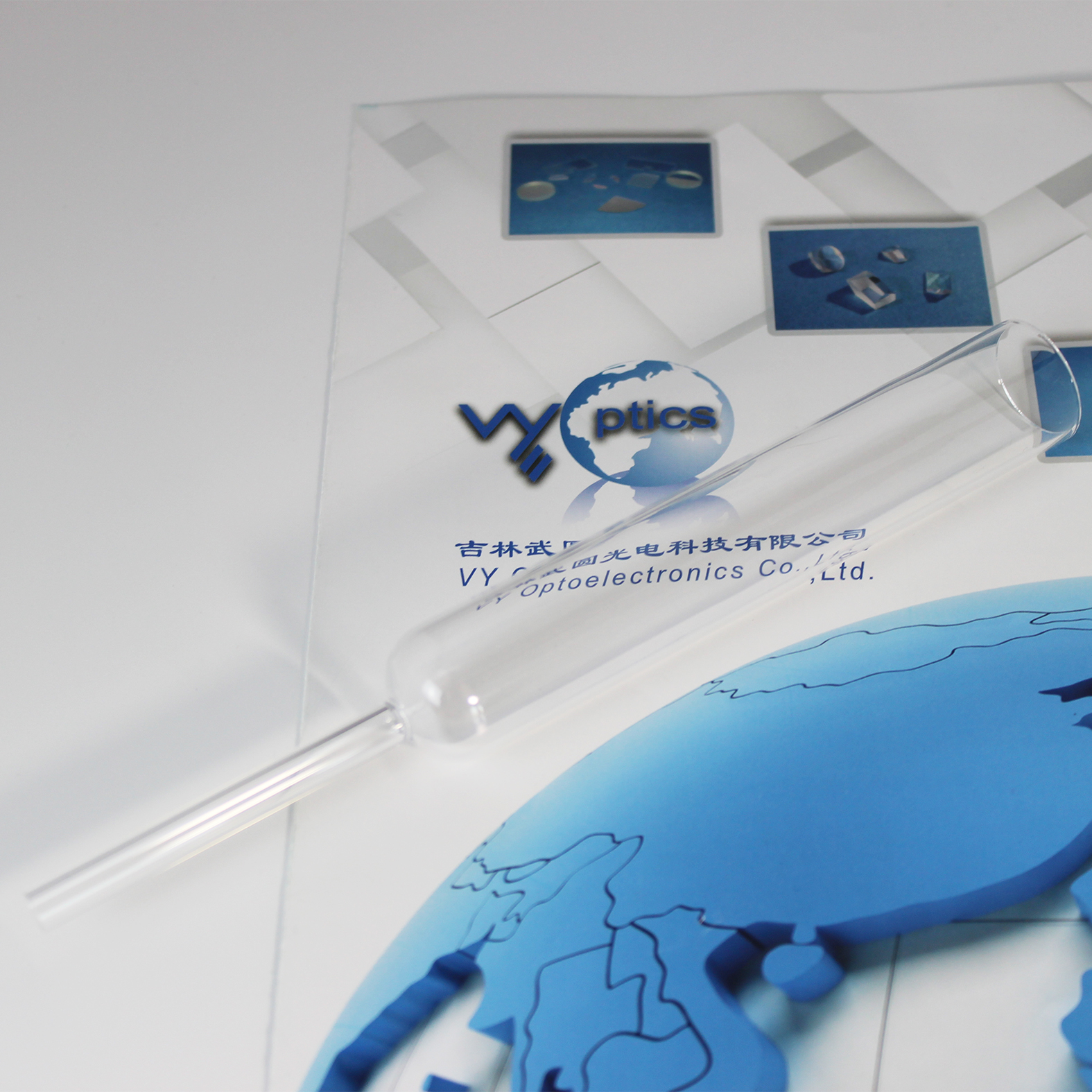

Picture of Quartz Tube
Video of Glass Tube
Key Features
- High quality quartz glass material
- Special-shaped bulb tube structure
- Excellent thermal stability
Customization Capabilities
- Custom outer and inner diameter
- Custom bulb geometry
- Different wall thicknesses
- Custom tube length
- Special openings and connection structures
- Surface polishing
Applications
- Laboratory equipment
- Glass instrument components
- Specialized equipment assemblies
- Thermal processing equipment
- Precision glass components
Manufacturing Process
Quartz bulb tubes are manufactured through controlled glass forming and precision processing. Depending on the design, processes may include tube forming, cutting, grinding, polishing, drilling, and dimensional inspection.
People Also Ask (FAQs)
Can quartz bulb tubes be customized?
Yes. Diameter, length, wall thickness, bulb shape, openings, and other structural dimensions can be customized according to drawings.
