What is a Right Angle Prism?
A Right Angle Prism is a solid optical prism designed to deflect or reflect a light beam by 90 degrees. It uses total internal reflection or reflective coating to change the light path while maintaining image quality and beam stability.
How does a Right Angle Prism work?
A Right Angle Prism works by allowing light to enter through one face and reflect internally at the hypotenuse surface. The reflected beam exits at a right angle relative to the incident beam.
Optical Prism Specifications
| Material: | K9 |
| Flatness: | 0.5λ |
| Coating: | AR Coating |
| Surface Quality: | 60-40 |
| Size: | 37mm*37mm*45mm |

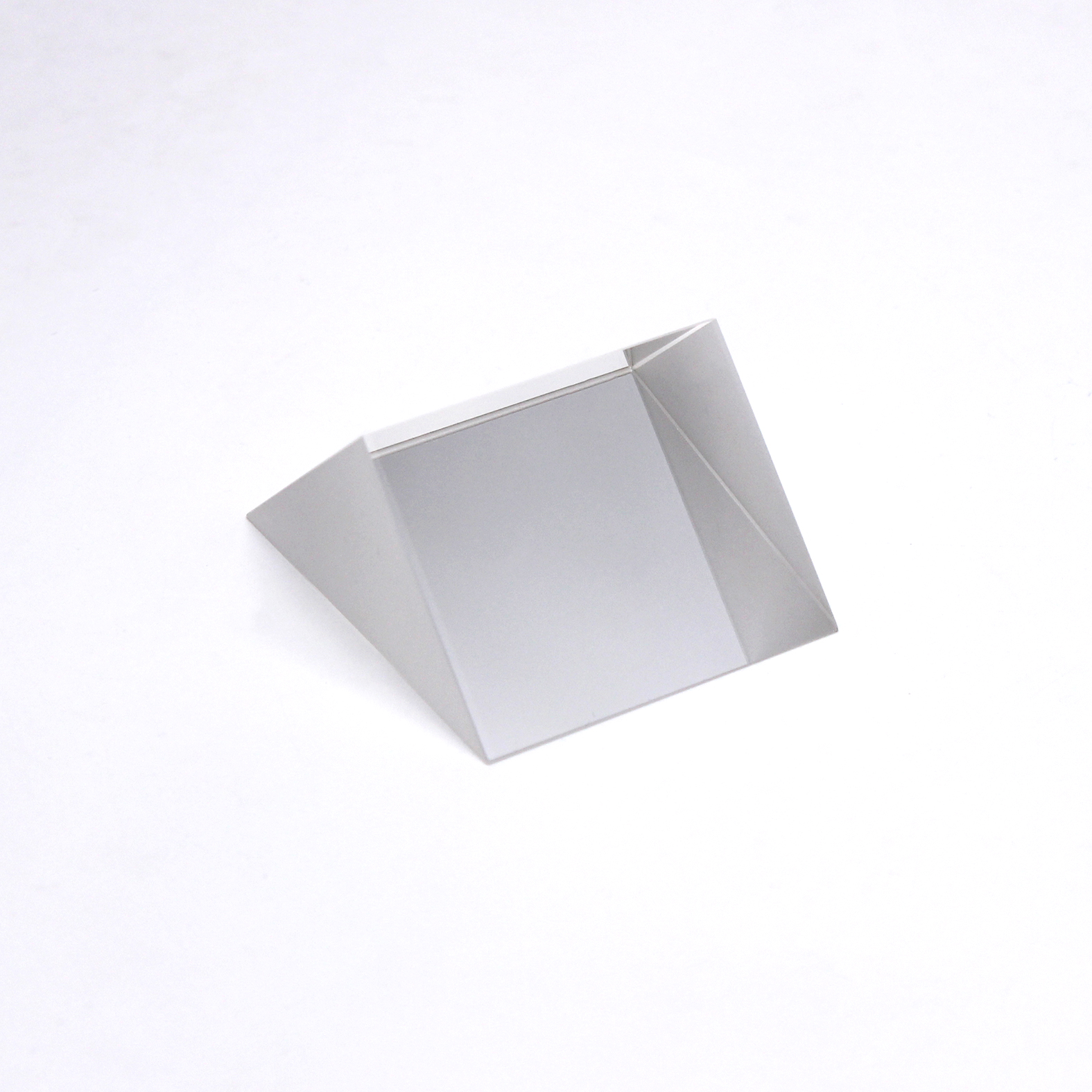

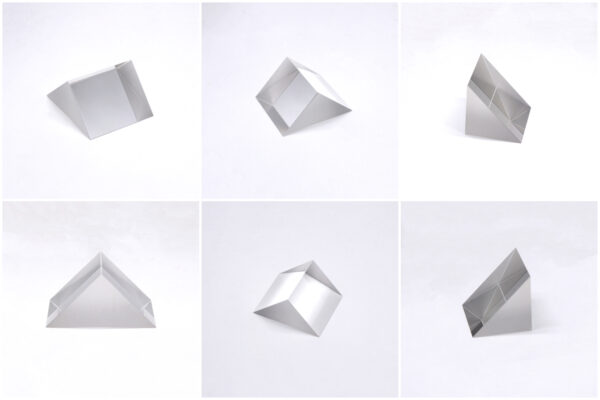

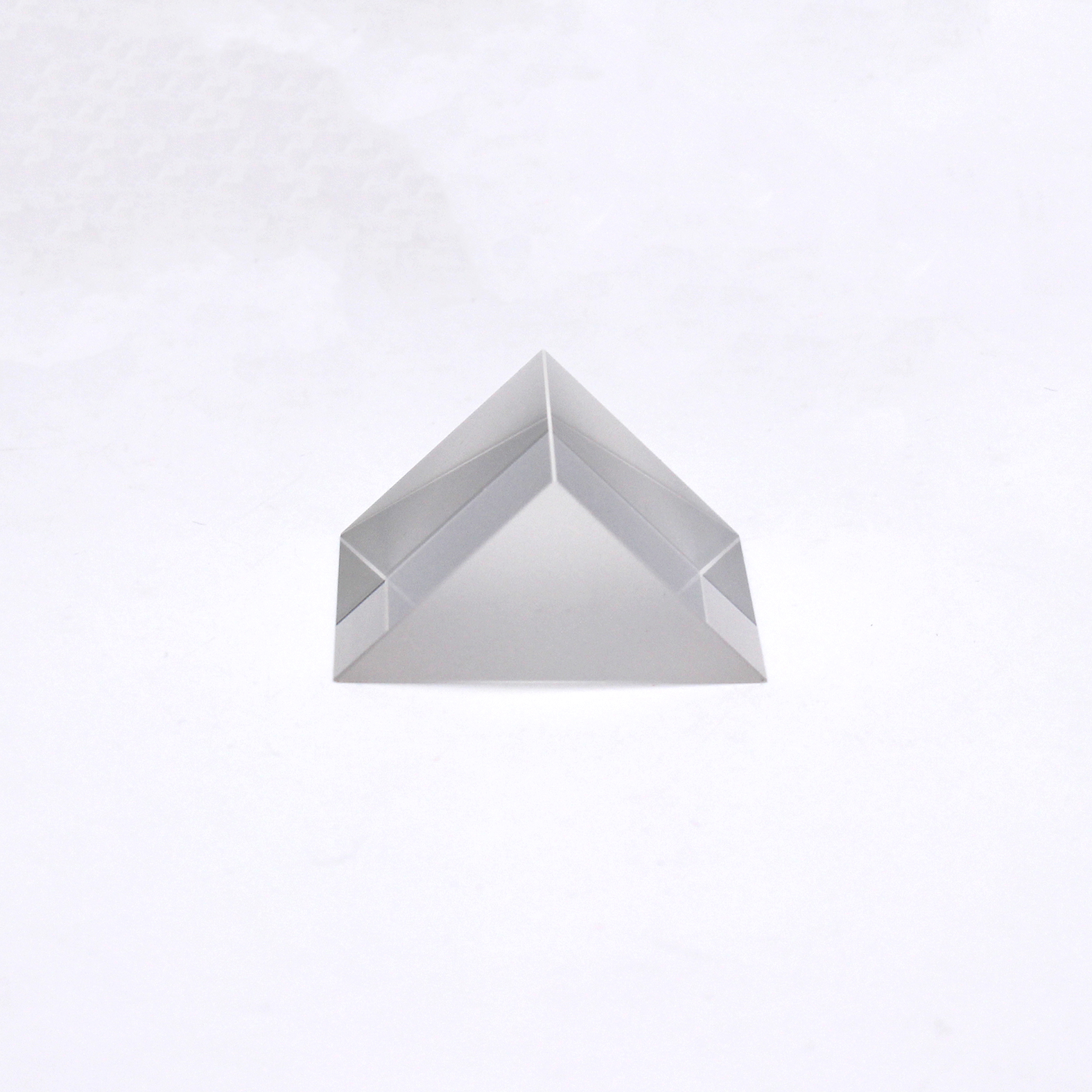

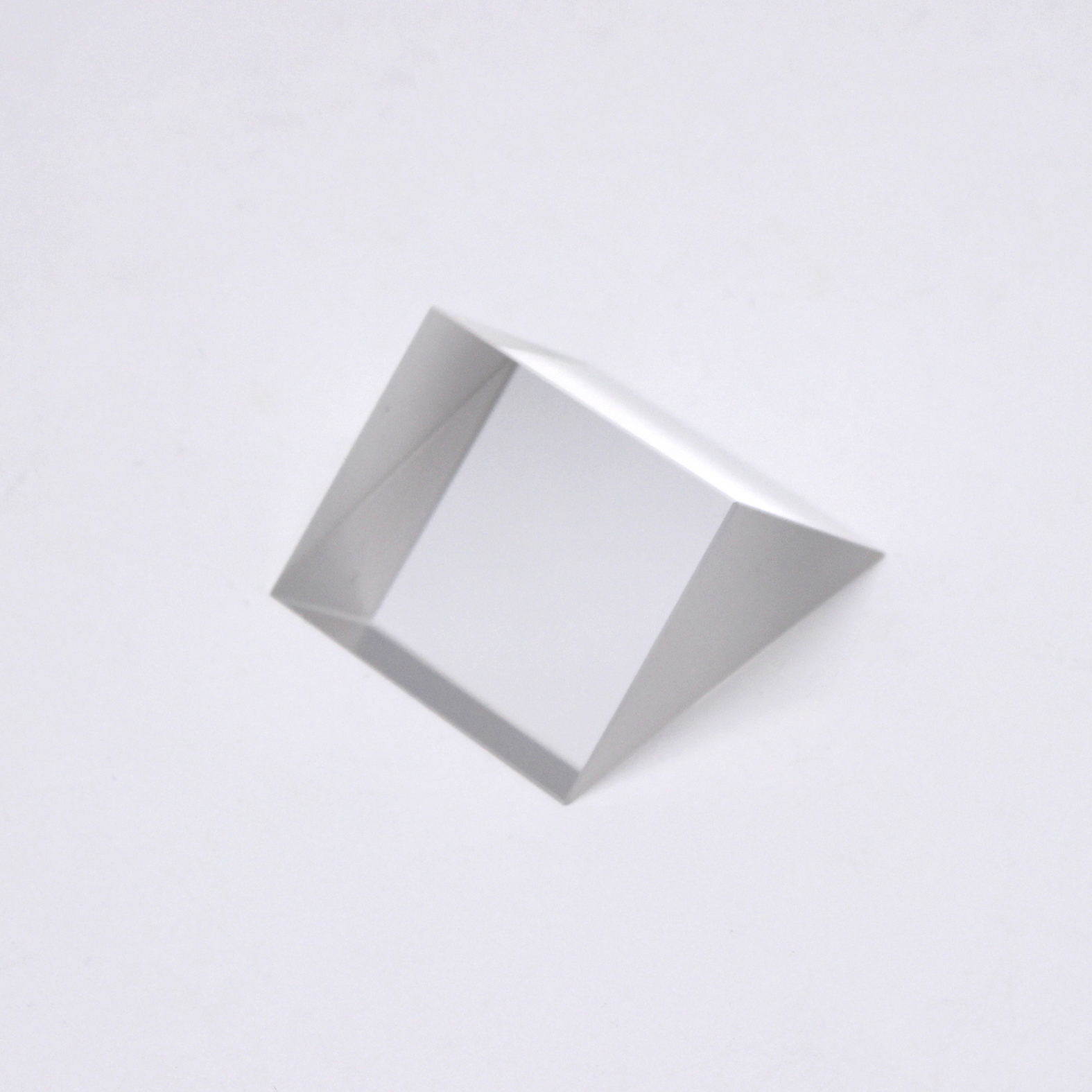

Picture of Optical Prism
Video of Right-Angle Prism
Key Features of Optical Right Angle Prism
- Accurate 90 degree beam deviation
- High surface flatness and angular accuracy
- Optional anti reflection or reflective coating
Typical Applications
- Laser beam steering systems
- Medical and laboratory imaging equipment
- Industrial vision and inspection devices
Advantages of Our Custom Optical Prism Solutions
- In house precision machining and polishing
- Flexible material and coating selection
- Support for custom drawings and specifications
People Also Ask
What materials are used for Right Angle Prisms?
Common materials include BK7 optical glass for visible light applications and fused silica for UV or high power laser environments.
