What Is a Sapphire Prism?
A sapphire prism is an optical component made from synthetic sapphire. It is designed to redirect light or support specific optical path arrangements. Its performance depends on the prism geometry, material properties, surface quality, and any applied optical coating.
Sapphire Prism Specifications
| Material | Sapphire |
| Surface Quality | 60-40 |
| Coating | AR + Blacking |

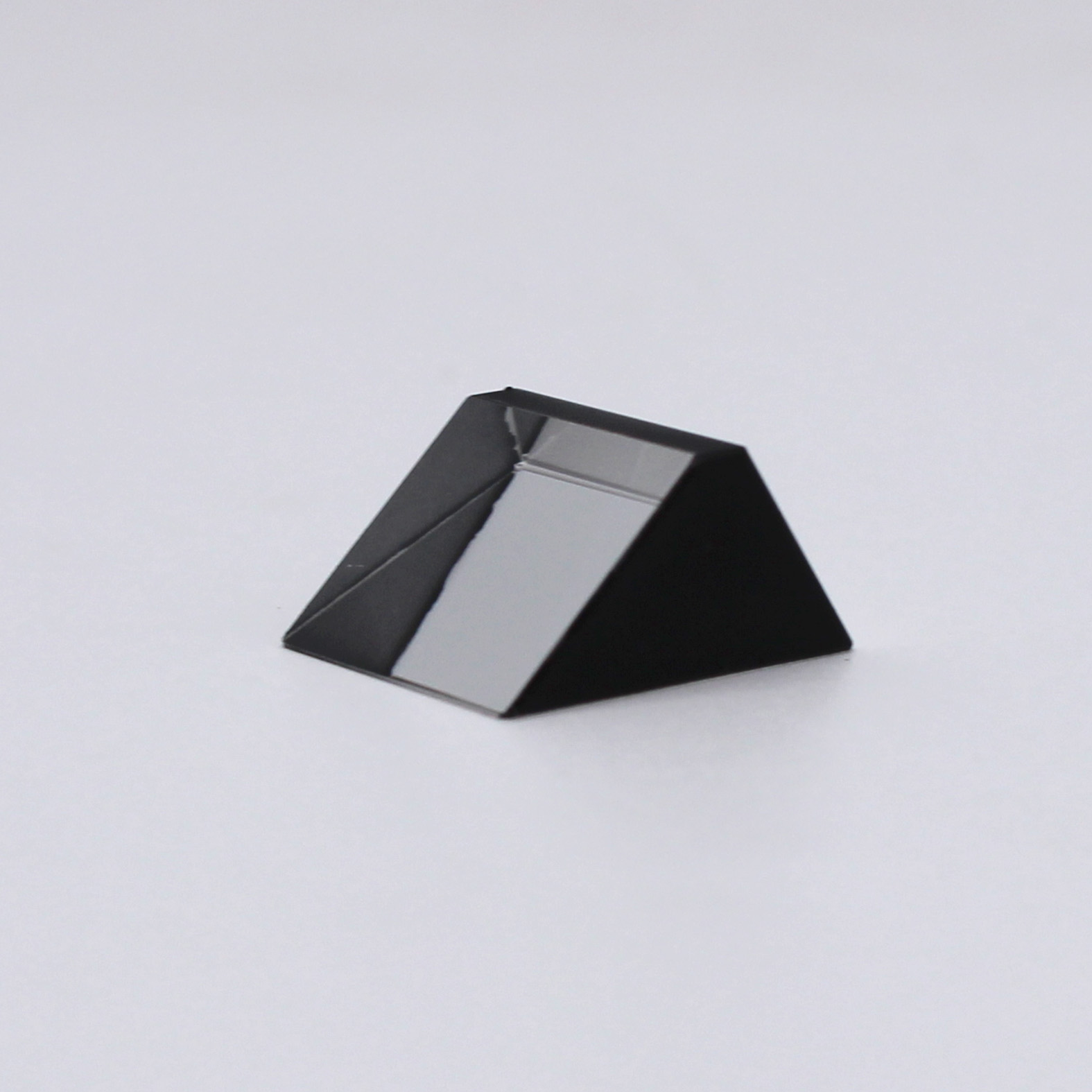

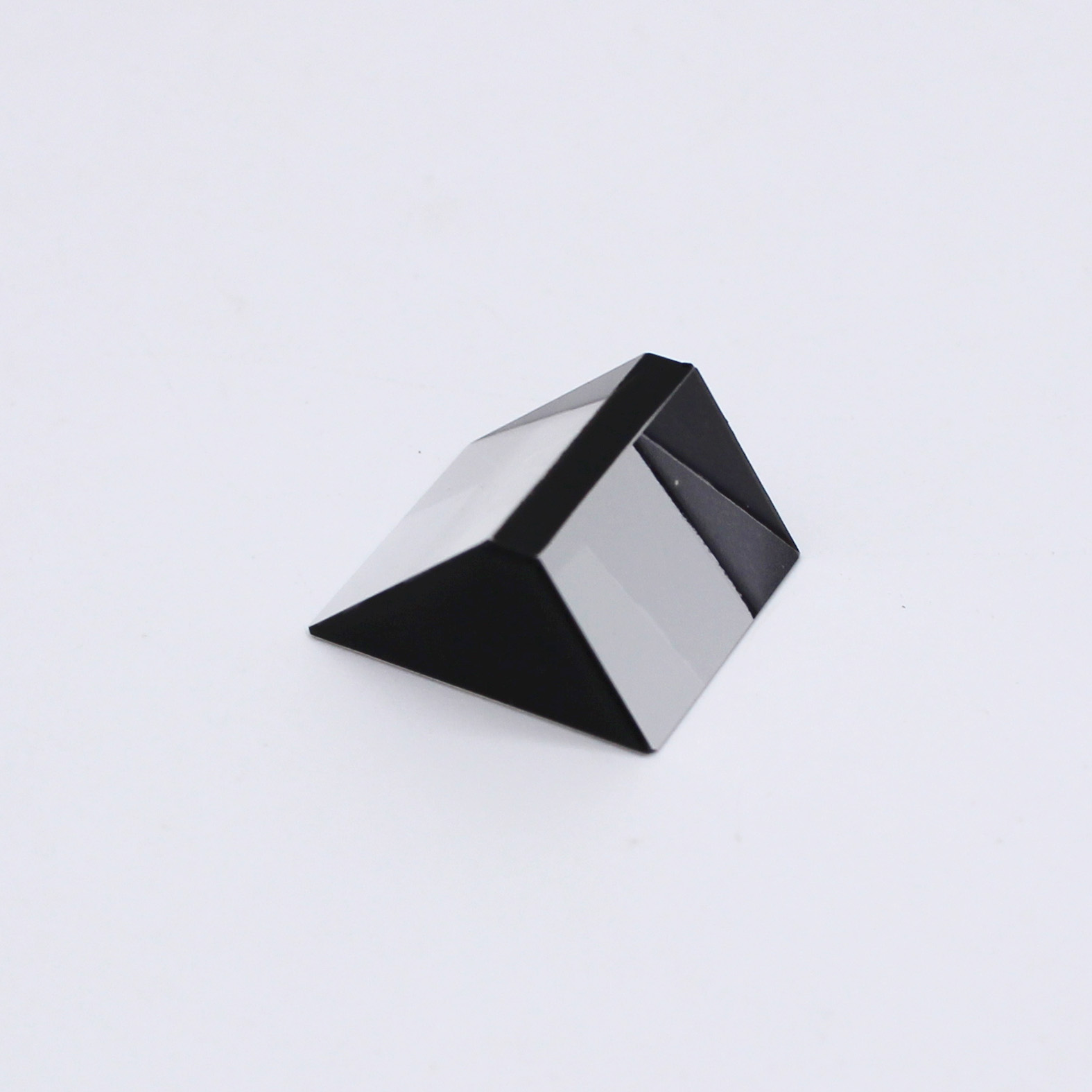

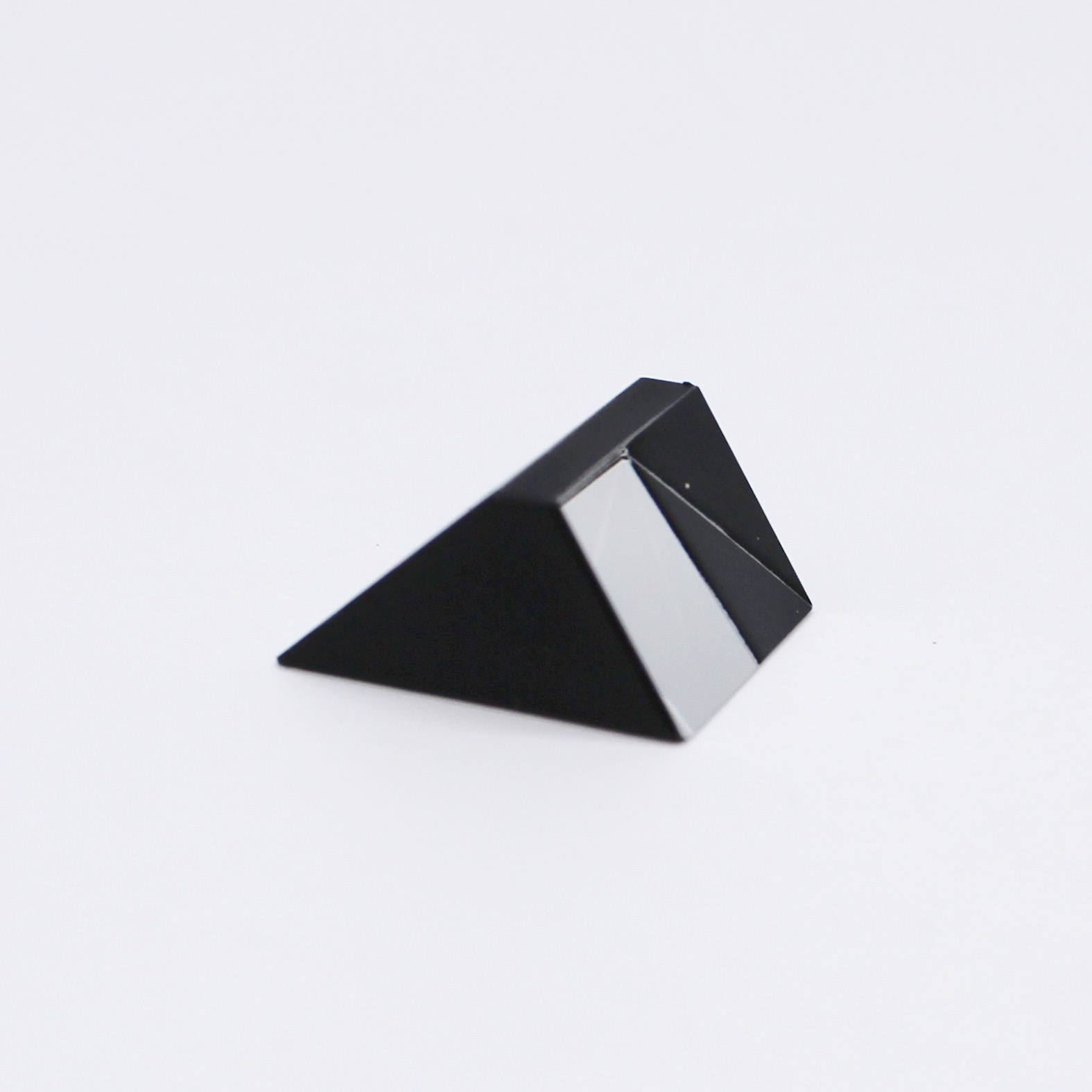

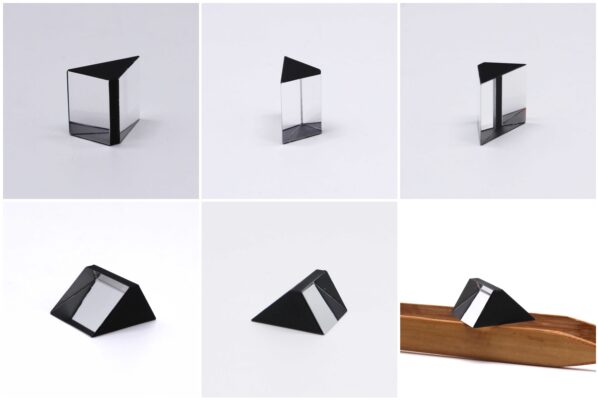

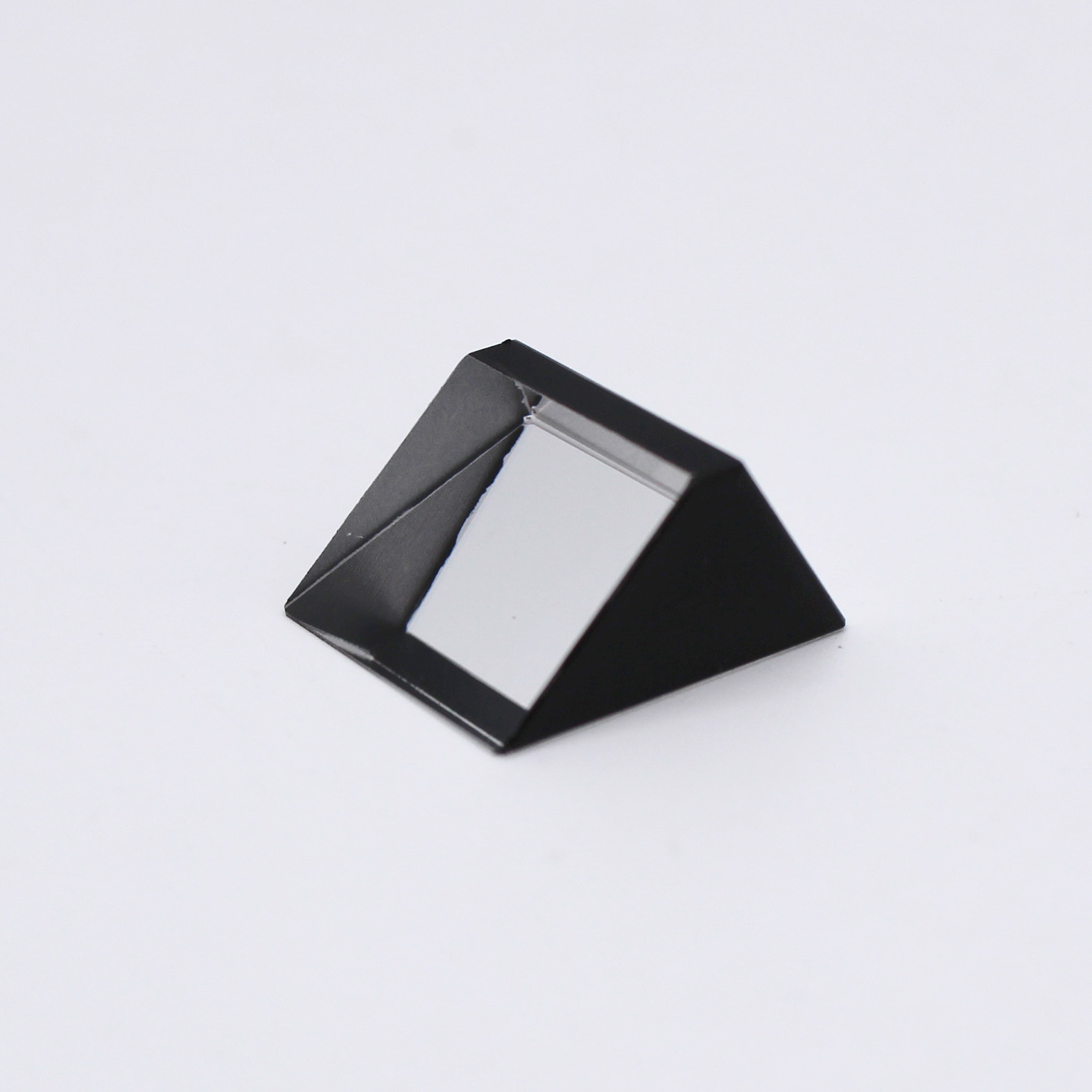

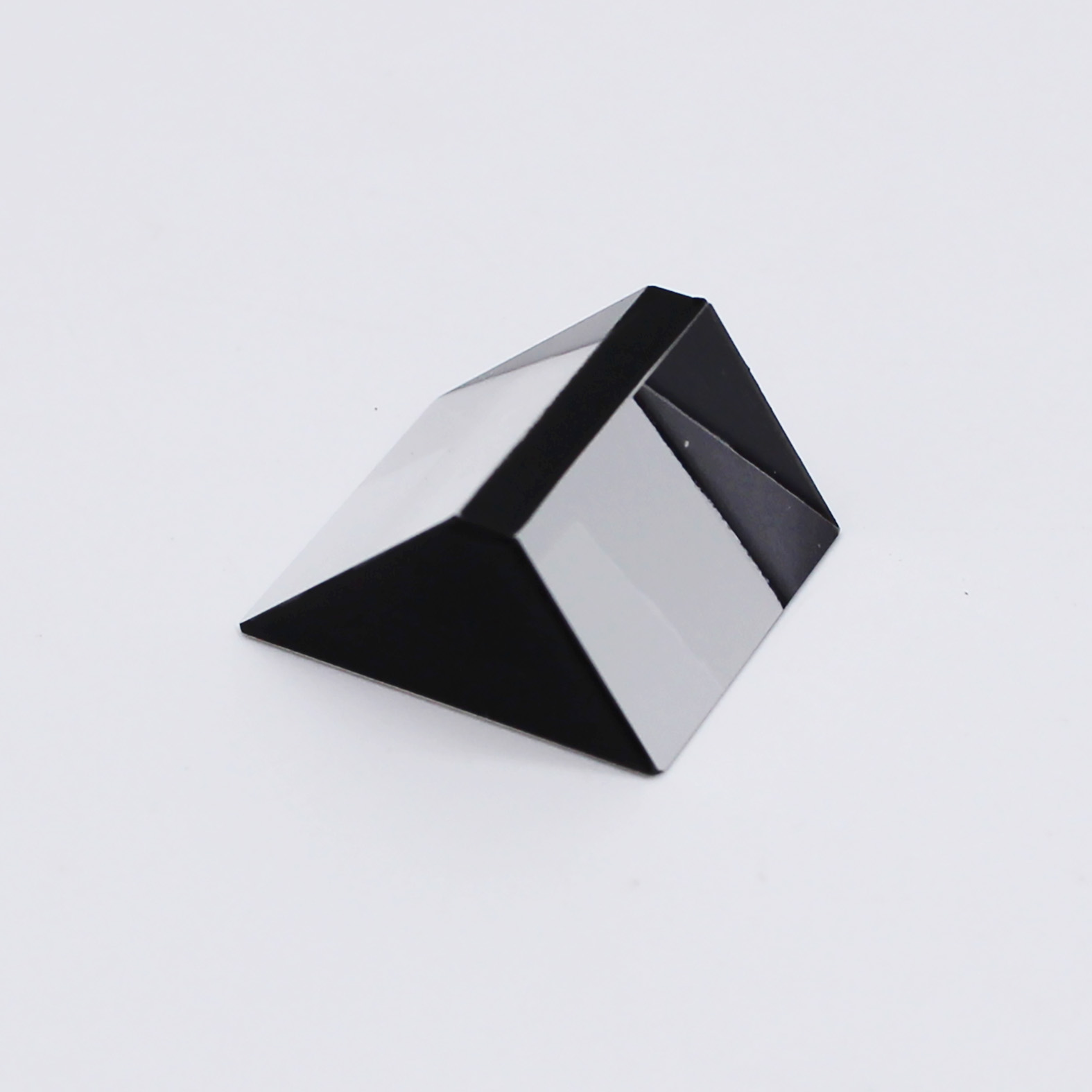

Picture of Prism
Video of Optical Prism
Key Features of Sapphire Optical Prisms
- High Hardness: Sapphire has high hardness and good resistance to surface wear.
- Durable Material: Its mechanical properties make sapphire suitable for selected demanding optical designs.
- Optical Design Flexibility: Prism geometry can be selected according to the required light path.
- Material Stability: Sapphire offers useful physical properties for optical component design.
How Does a Sapphire Prism Work?
A sapphire prism changes the direction of light through refraction, reflection, or a combination of both. The exact optical effect depends on the prism shape, surface angles, material refractive index, and the design of the surrounding optical system.
Applications of Sapphire Prisms
- Optical instruments and assemblies
- Light path adjustment systems
- Optical measurement equipment
- Laboratory optical setups
- Optical research and testing equipment
- Specialized optical components requiring a hard material
How to Choose the Right Sapphire Prism
- Prism Geometry: Specify the required prism type and optical angles.
- Dimensions: Provide the overall size and any mounting or positioning requirements.
- Wavelength Range: Identify the operating wavelength range to assess material and coating suitability.
- Surface Quality: Confirm the required surface finish and optical tolerances.
Sapphire Prism Manufacturing and Supply
VY Optics supports optical component sourcing and manufacturing discussions based on customer drawings and technical requirements. For a sapphire prism inquiry, please provide the desired geometry, dimensions, optical angles, wavelength range, surface quality, and coating requirements where applicable.
Frequently Asked Questions
What are the advantages of sapphire prisms?
Sapphire is known for its high hardness and wear resistance. These properties can be useful when material durability is an important design consideration.
Can a sapphire prism have an optical coating?
Coating options depend on the required wavelength range, incidence angle, and optical function. Please provide your coating specifications for evaluation.
