Chromatic Confocal Dispersive Objective Lens for Precision Optical Measurement Systems and Equipment

Chromatic Confocal Dispersive Objective Lens for Precision Optical Measurement Systems and Equipment

Item No: X-VY-DO50/0.22

The chromatic confocal dispersive objective lens is an optical component designed for chromatic confocal measurement systems. It introduces controlled chromatic dispersion along the optical axis, allowing different wavelengths to focus at different positions. When integrated with a suitable light source and spectral detection system, it can support non contact distance, displacement, height, and thickness measurement. Optical design, working range, and mechanical dimensions can be specified according to system requirements.

Effective Focal Length: 49.9 mm
Object-Side Numerical Aperture: NA 0.22
Image-Side Numerical Aperture: NA 0.145
Transverse Magnification: -1.54x (Inverted Image)
Operating Wavelength Range: 400-700 nm (Visible Spectrum)

Quote Now

    Contact Info

    Additional Information

    What Is a Chromatic Confocal Dispersive Objective Lens?

    A chromatic confocal dispersive objective lens is an optical component used in chromatic confocal measurement systems. It is designed to create a controlled relationship between wavelength and focal position along the optical axis.

    Product Specification

    Effective Focal Length49.9 mm
    Object-Side Numerical ApertureNA 0.22
    Image-Side Numerical ApertureNA 0.145
    Transverse Magnification-1.54x (Inverted Image)
    Operating Wavelength Range400-700 nm (Visible Spectrum)

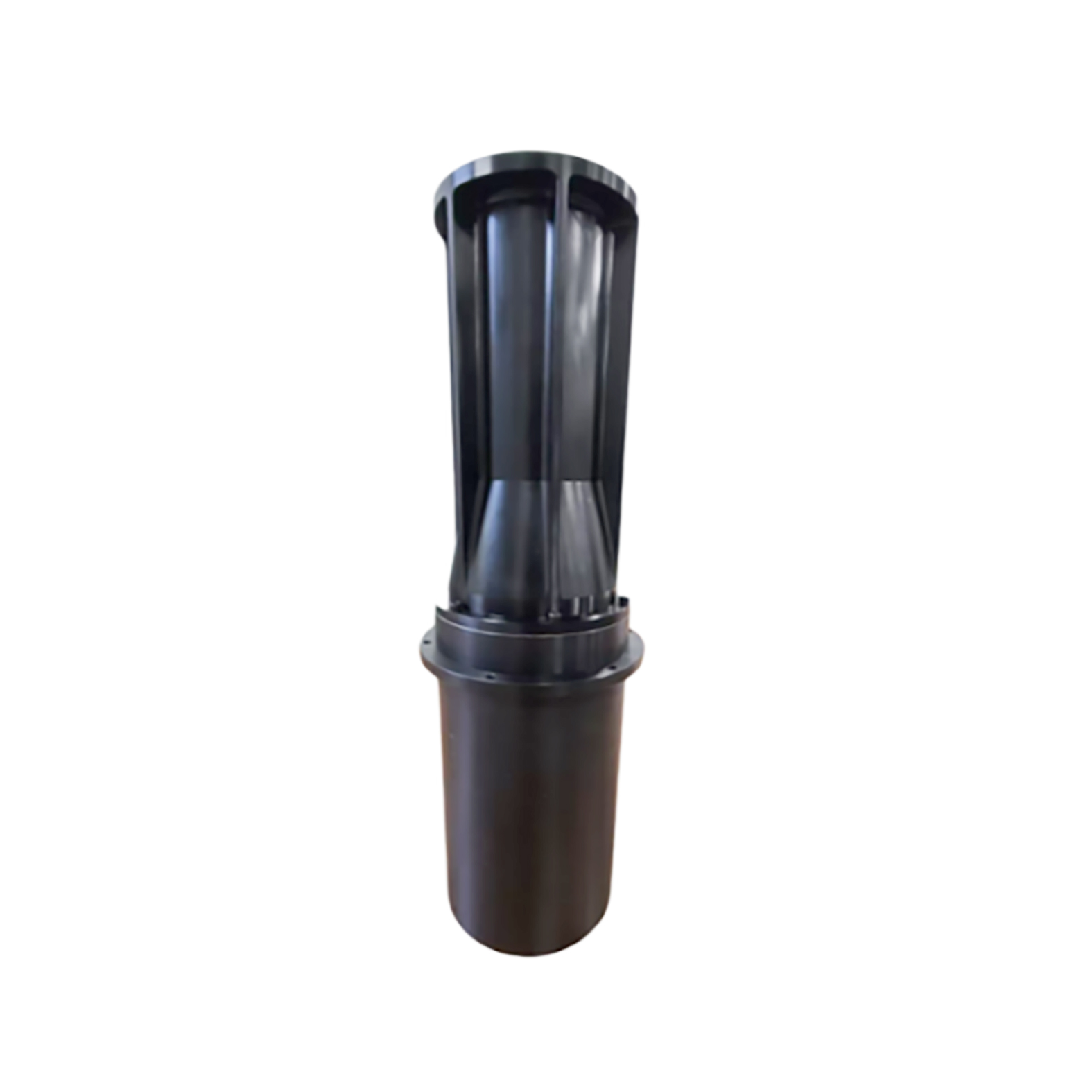

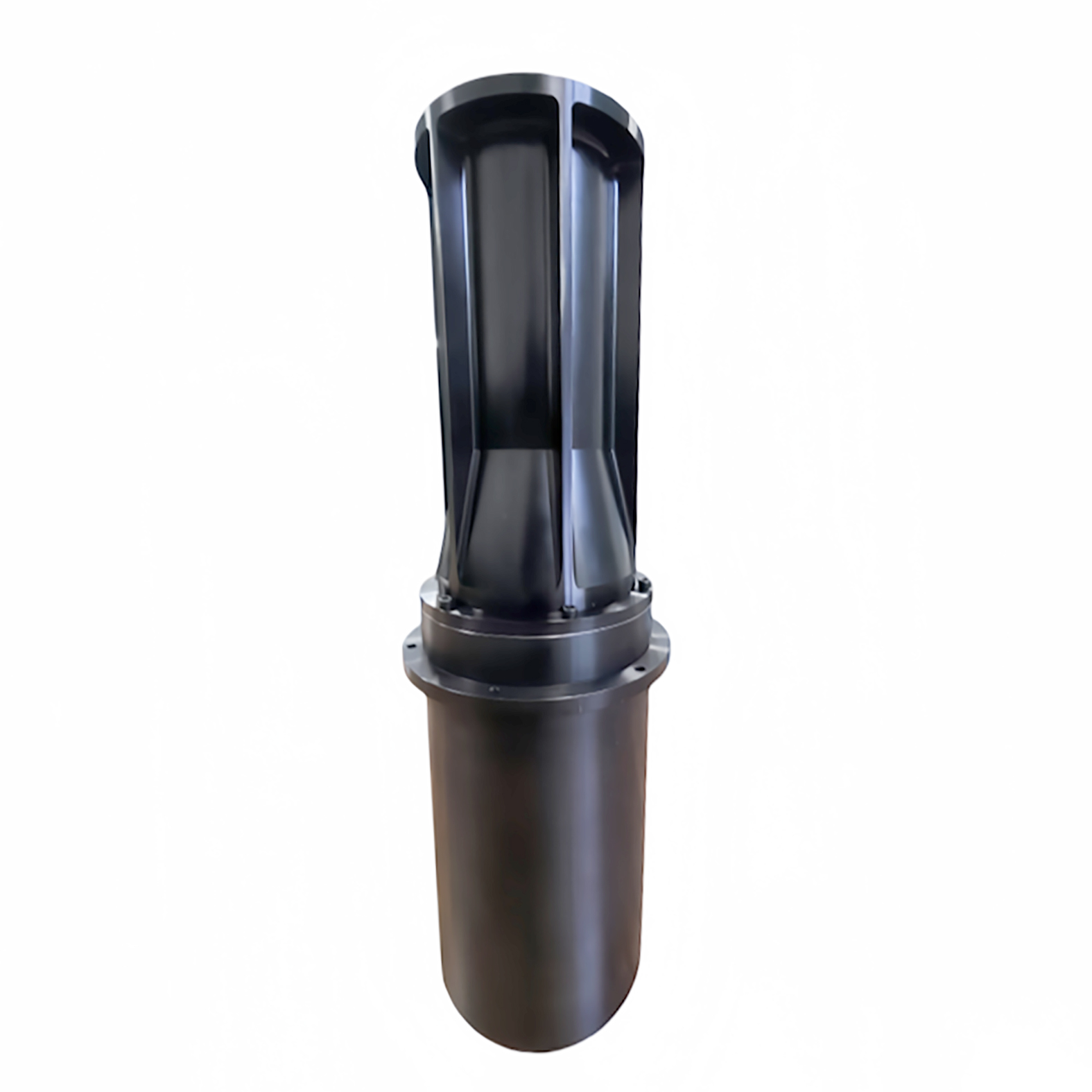

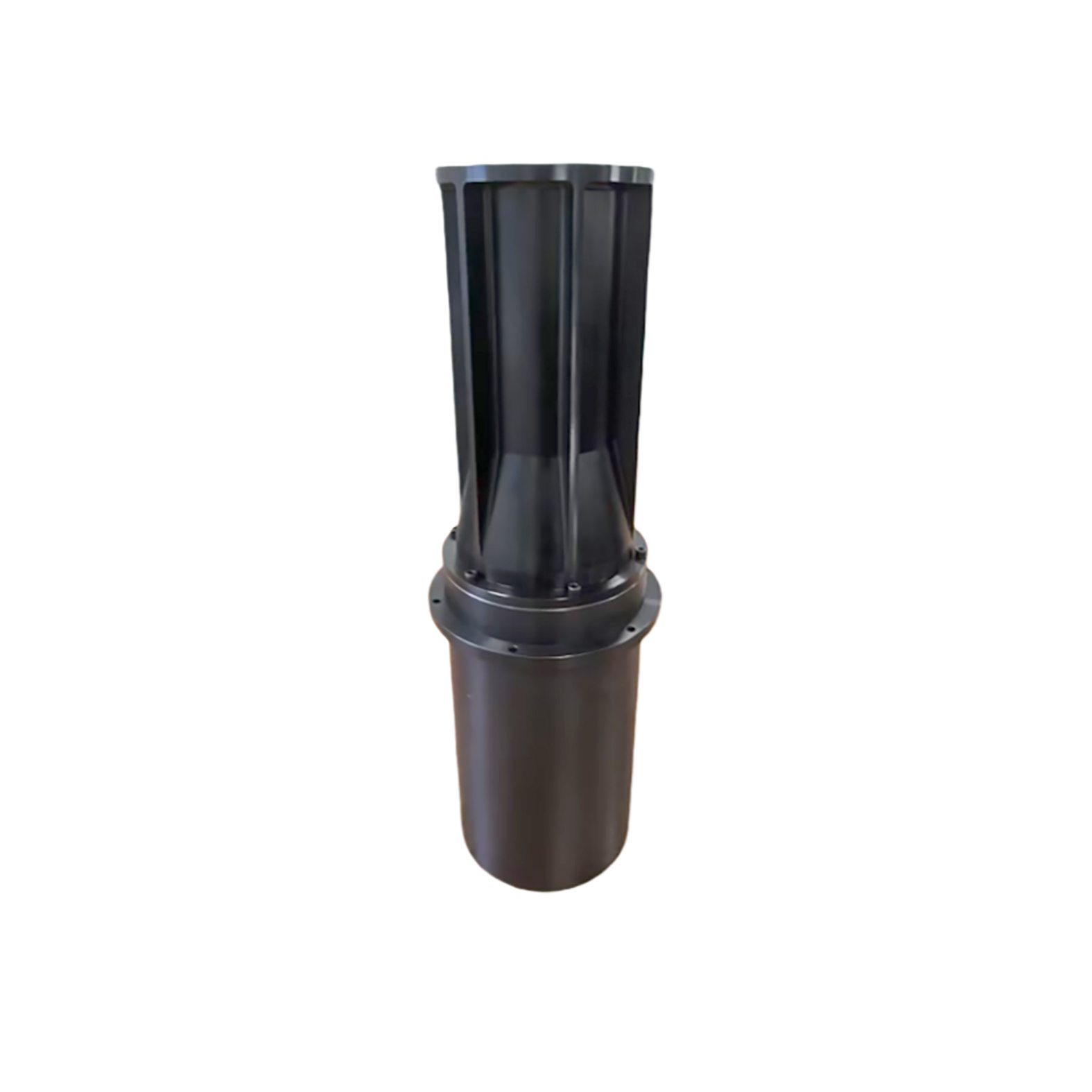

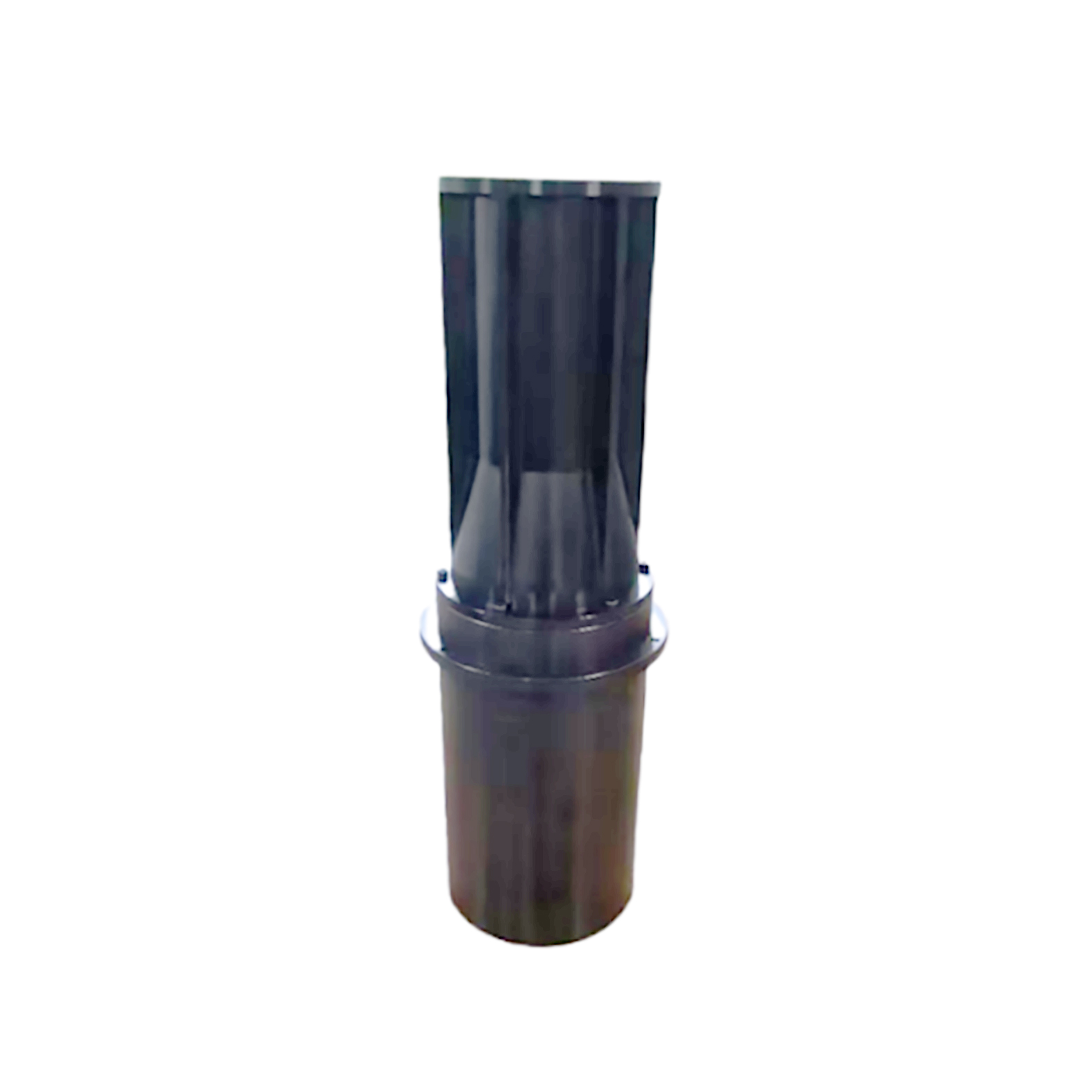

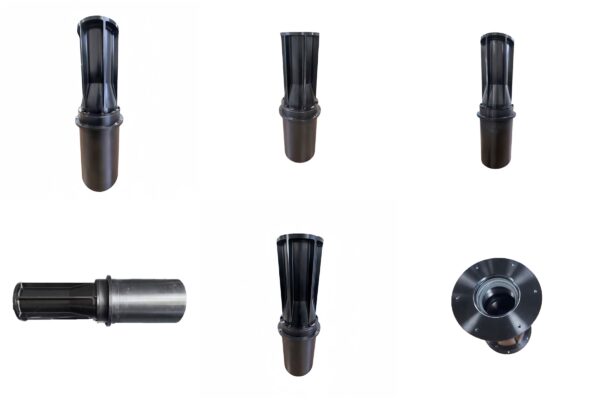

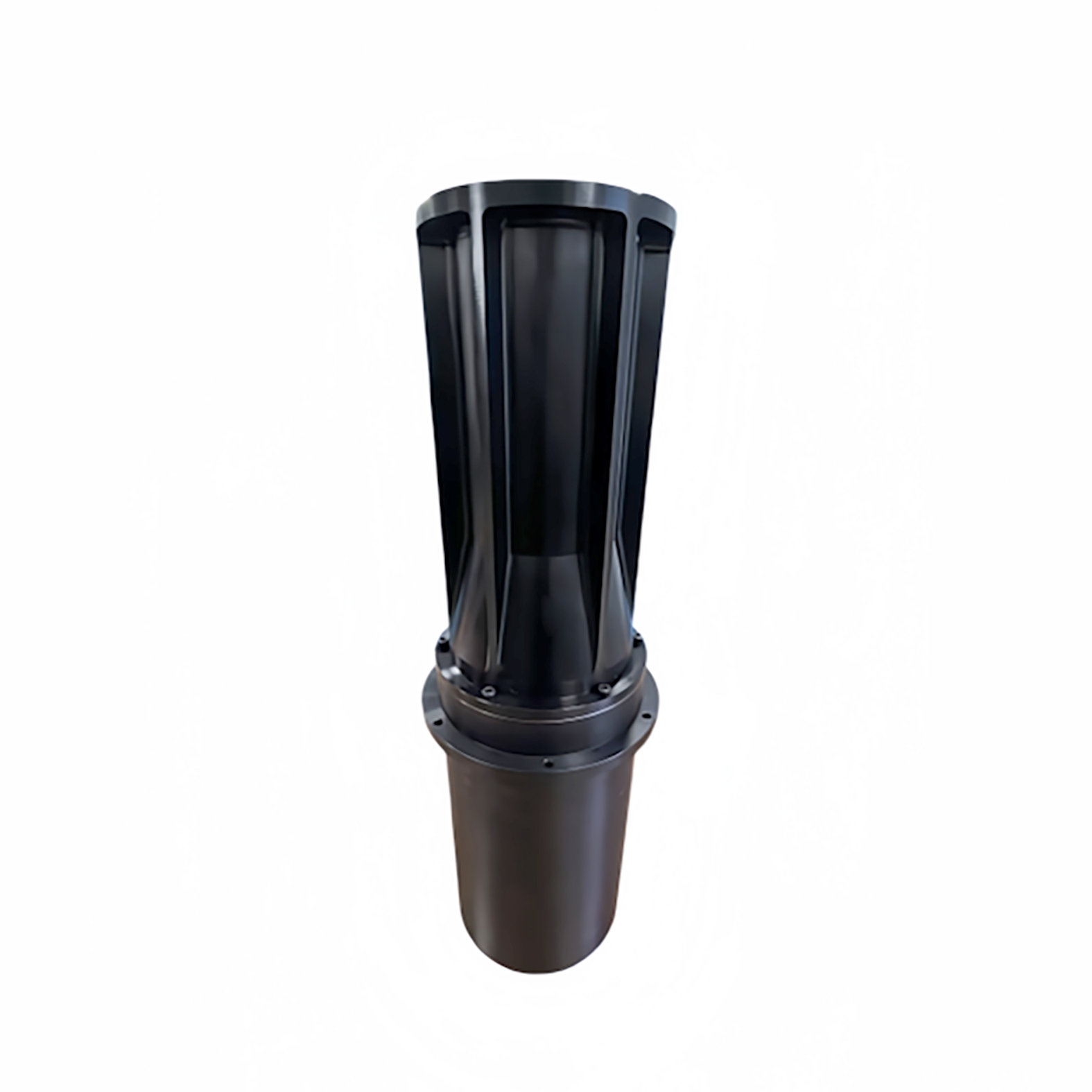

    Picture of Objective Lens

    Chromatic confocal dispersive objective lens for precision optical measurement systems

    Video of Chromatic Confocal Dispersive Objective Lens

    Key Features

    • Controlled Chromatic Dispersion: Designed to create wavelength-dependent focal positions.
    • Optical Measurement Integration: Suitable for integration into compatible chromatic confocal measurement systems.
    • Non Contact Measurement Support: Can be used in systems that measure surfaces without physical contact.

    Typical Applications

    • Precision distance and displacement measurement
    • Surface height and profile measurement
    • Thickness measurement systems
    • Precision dimensional inspection
    • Industrial optical metrology equipment
    • Automated measurement and quality control systems

    Frequently Asked Questions

    Can the objective lens be customized?

    Optical and mechanical specifications can be evaluated according to drawings, system interfaces, and measurement requirements.
