What is a Cutting Spherical Lens?
A cutting spherical lens is a spherical optical component manufactured through controlled cutting and precision processing. Its optical surface follows a spherical geometry, while the lens diameter, thickness, edge profile, and other dimensions can be processed according to specific requirements.
Specifications of Cutting Spherical Lens
| Material | Glass |
| Size | 34*34mm |
| Center thickness | 16mm |
| Focal length | 200mm |
| Tolerance | +0.1mm |

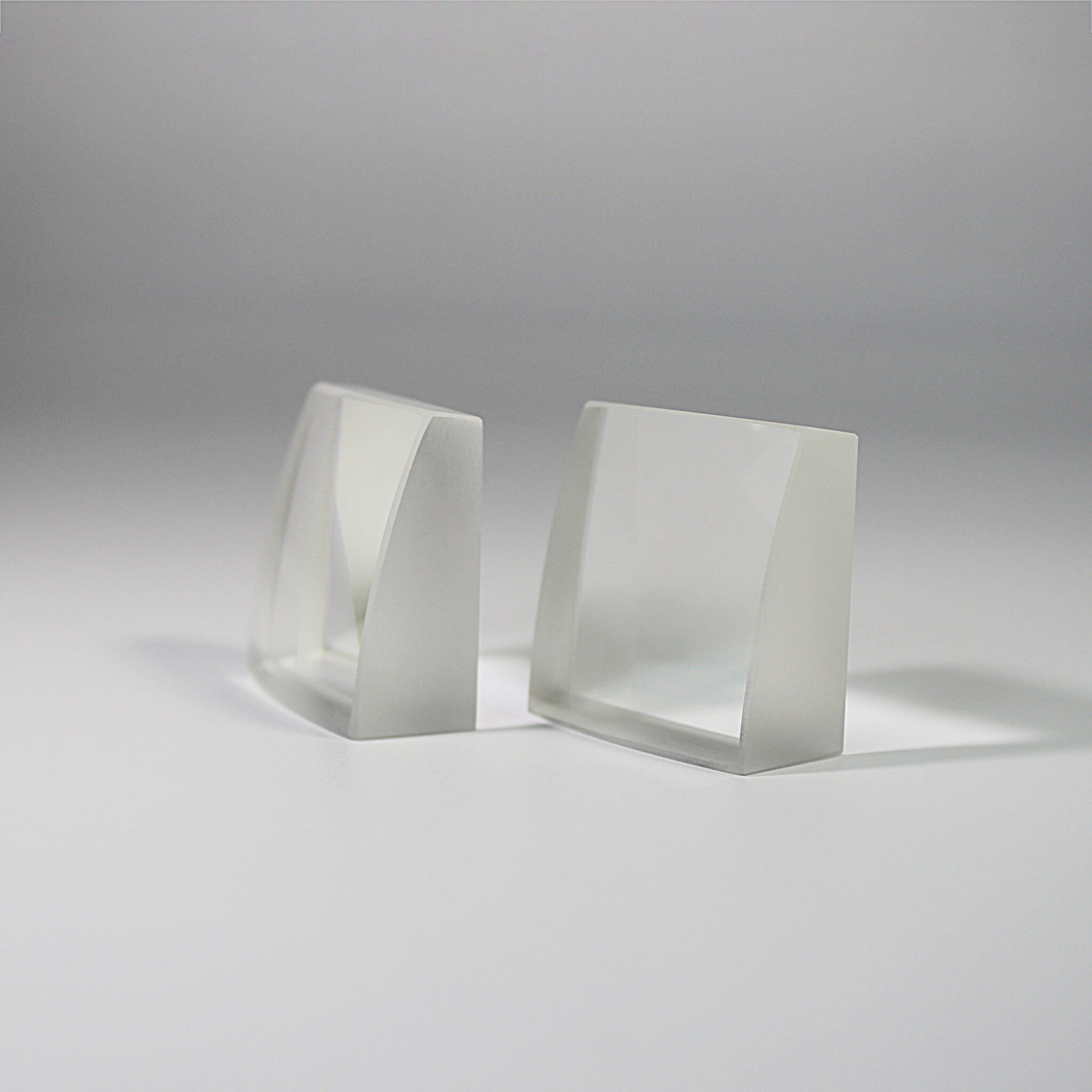

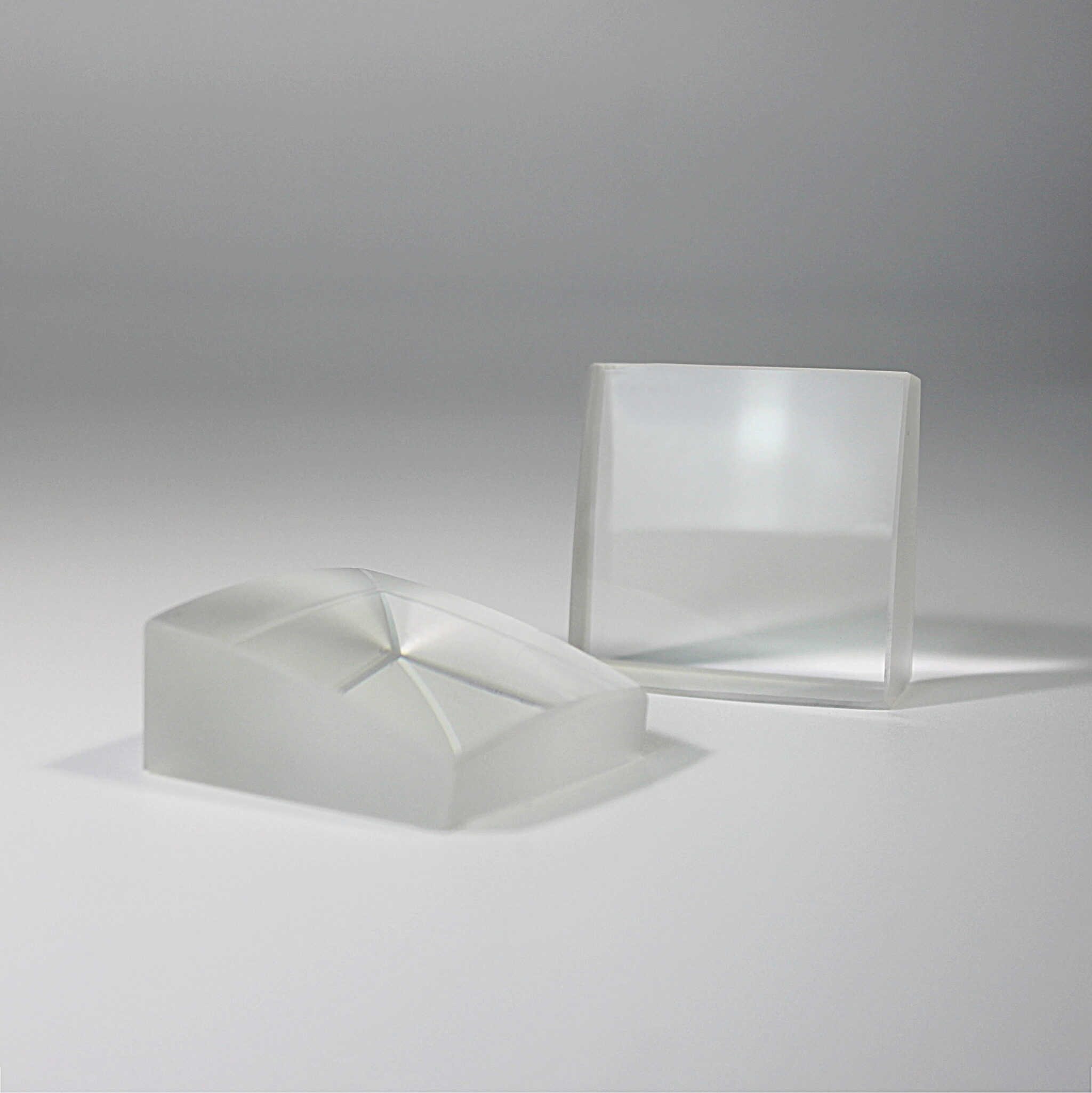

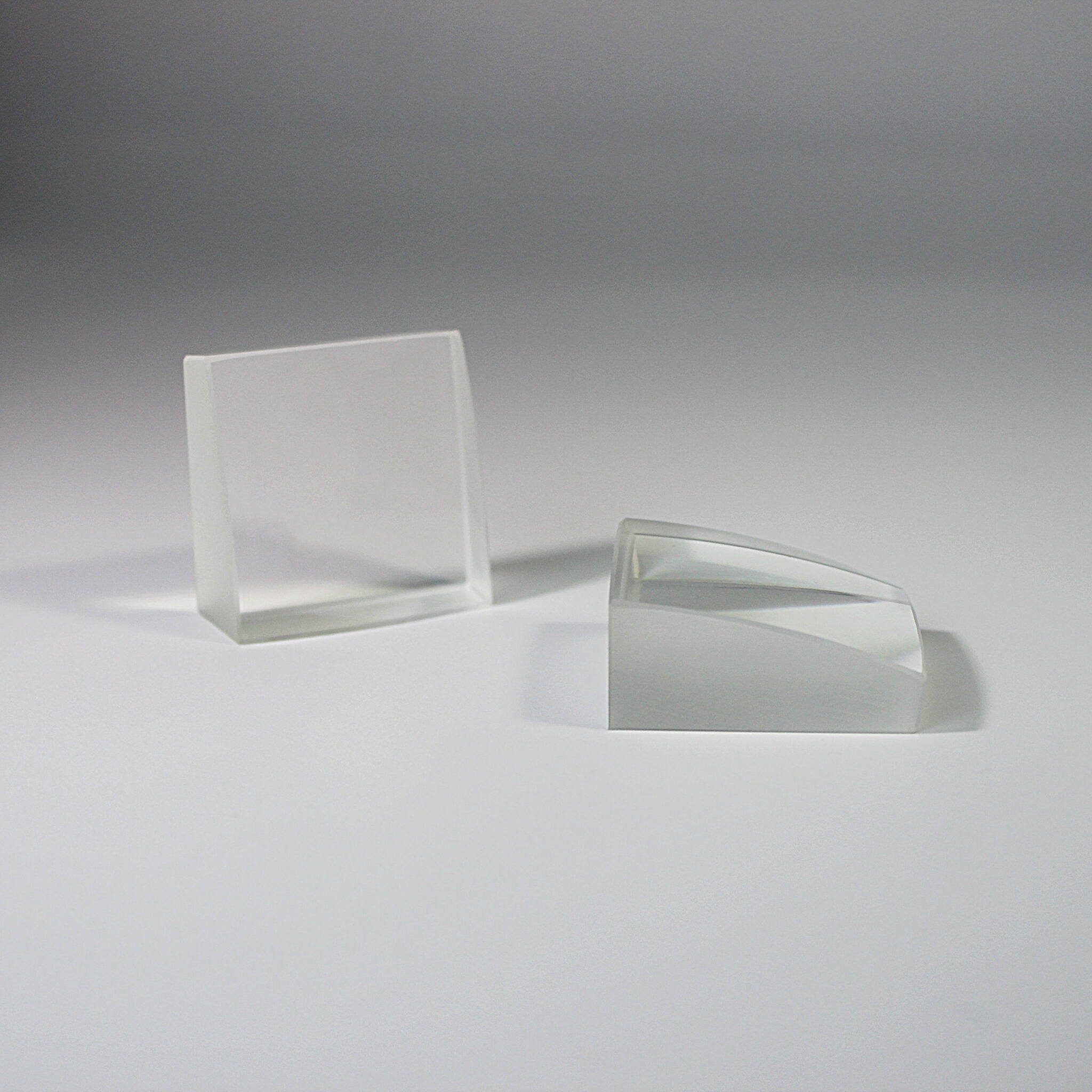

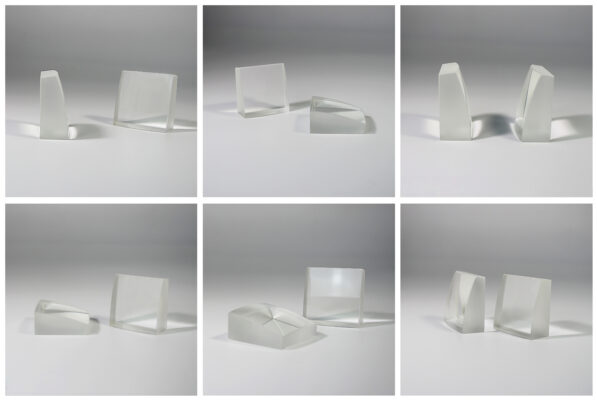

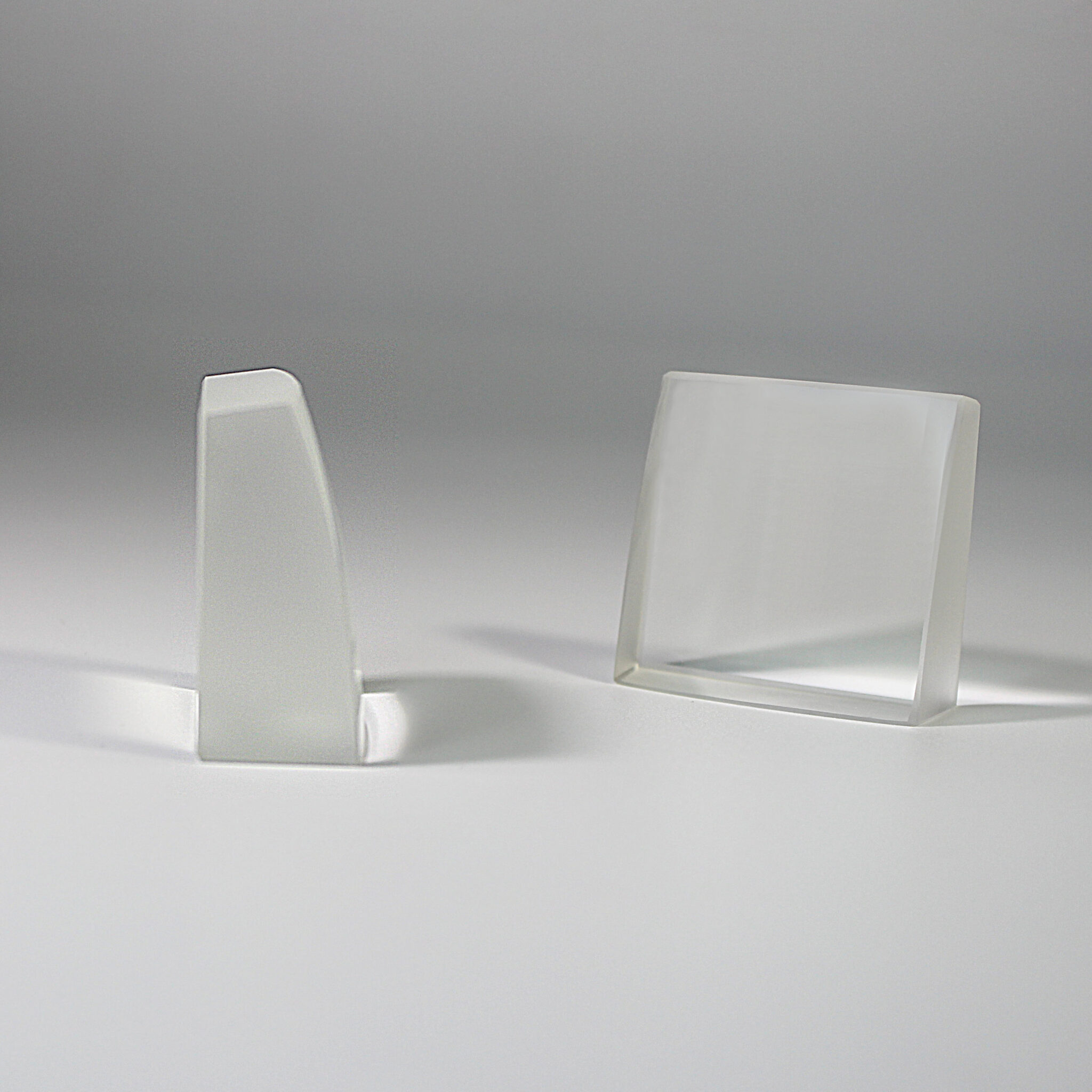

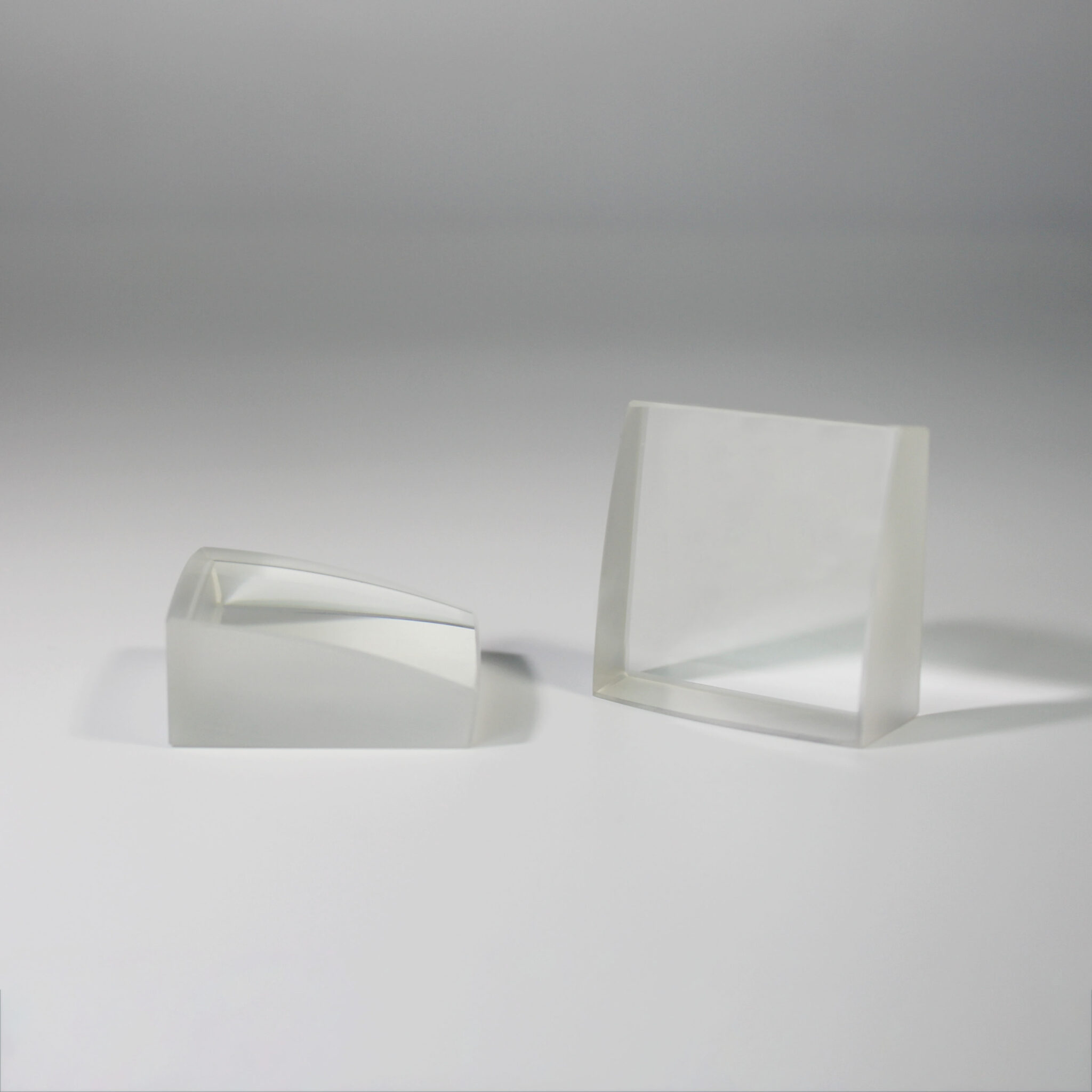

Picture of Cutting Lens
Video of Cutting Lenses
Key Features
- Accurate spherical optical geometry
- Precision cutting and edging
- Controlled lens dimensions
- Fine optical surface polishing
Applications
- Optical instruments
- Imaging equipment
- Measurement systems
- Machine vision equipment
- Laboratory optical instruments
- Manufacturing Process
Spherical lenses can be manufactured through a series of precision processes including material preparation, cutting, grinding, polishing, edging, cleaning, coating, and optical inspection. Each process can be controlled according to customer drawings and technical specifications.
People Also Ask (FAQs)
Can spherical lenses be manufactured according to drawings?
Yes. Custom spherical lenses can be manufactured according to customer drawings, dimensional tolerances, optical specifications, and surface requirements.
