What is a Triangular Pyramid Prism?
A triangular pyramid prism is a geometric optical component featuring a pyramidal structure with triangular facets. The prism is manufactured with controlled angles, dimensions, and optical surfaces to achieve predictable light refraction and optical path adjustment.
How Does a Triangular Pyramid Prism Work?
When light enters and exits the optical faces of the prism, its direction changes according to the geometry of the surfaces and the refractive index of the material. The precise relationship between the triangular facets determines the resulting optical path and refraction characteristics.
Specifications of Triangular Pyramid Prism
| Size | 6.35cm × 6.35cm × 6.35cm × 12.7cm |
| Material | K9 Glass |
| Surface | All surfaces polished to clear |

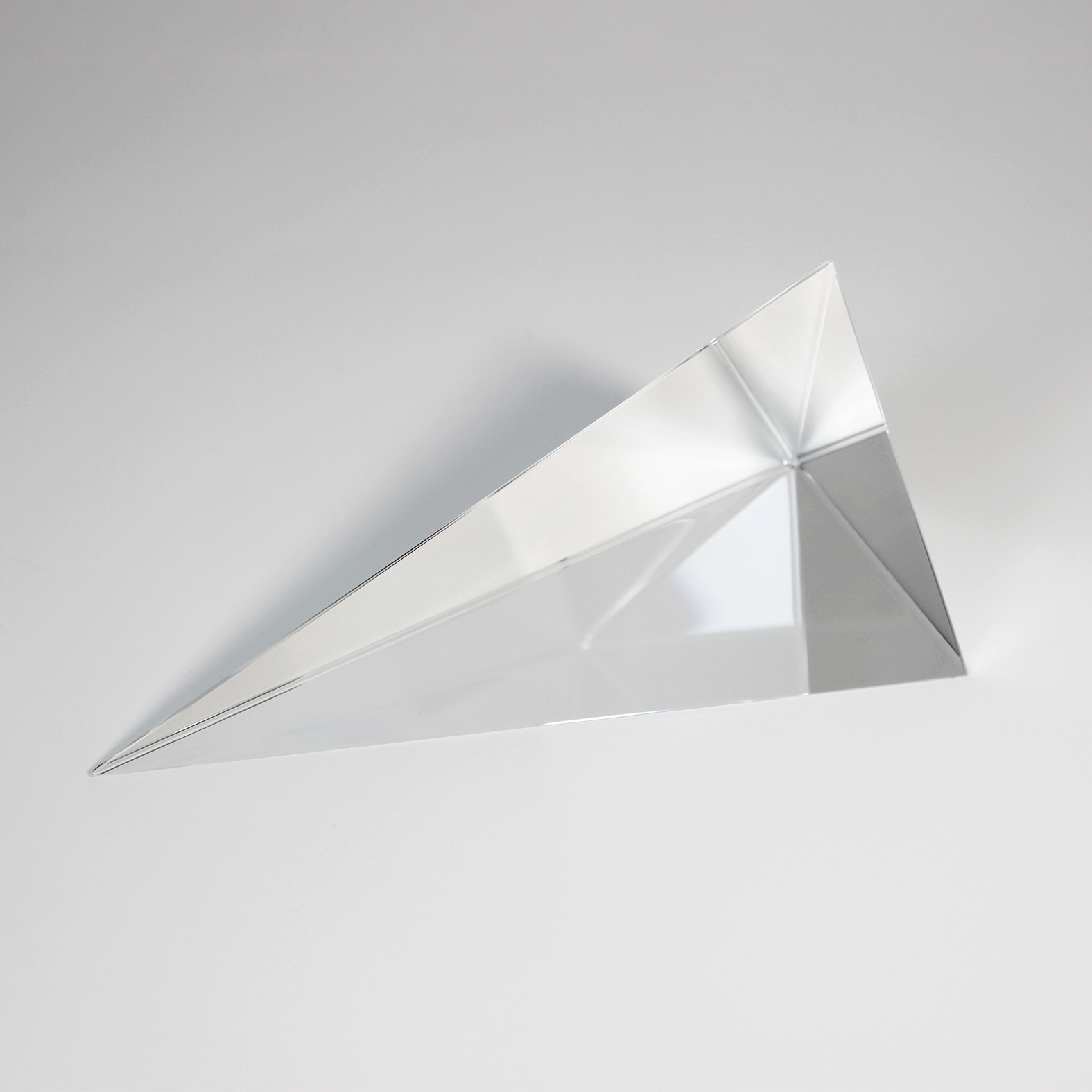

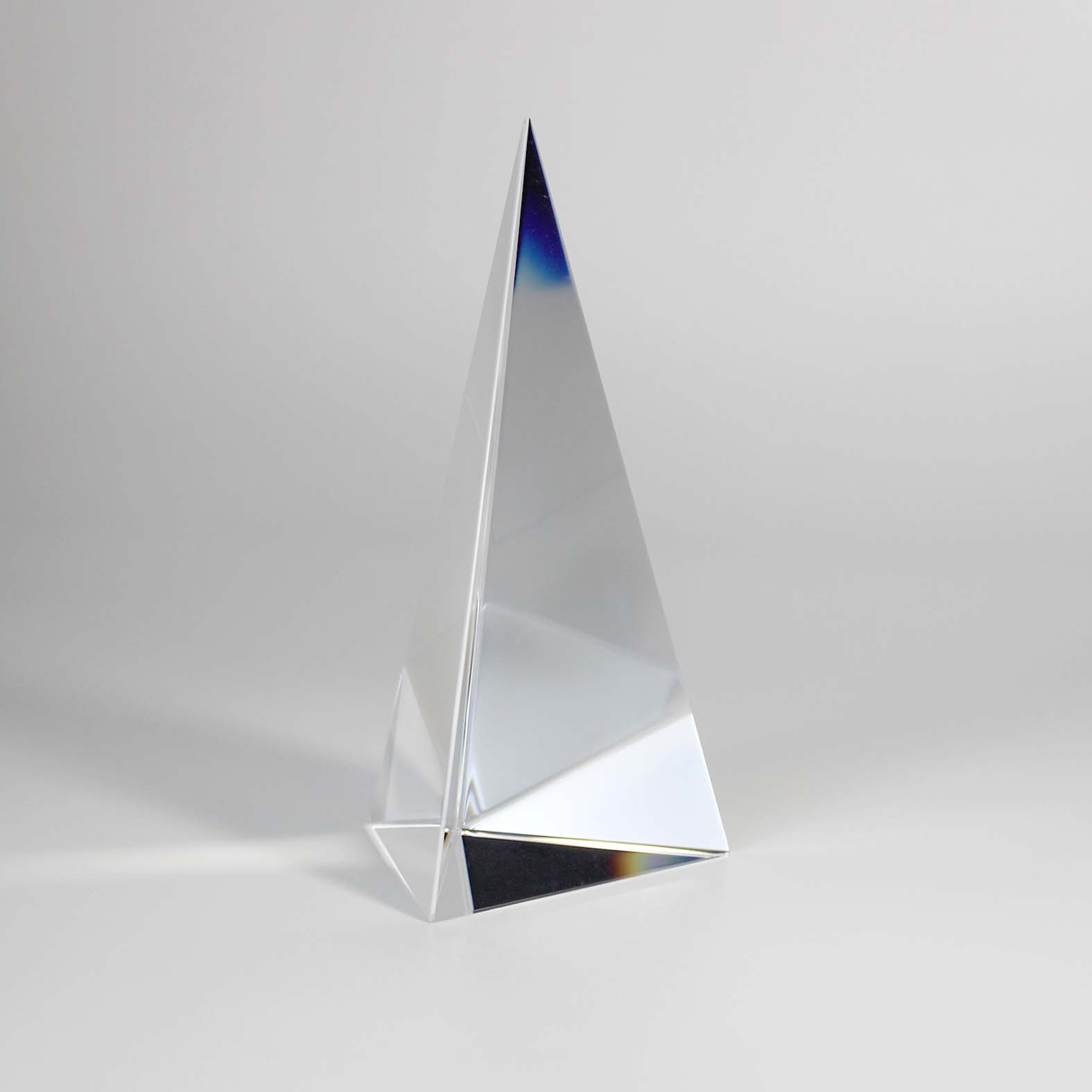

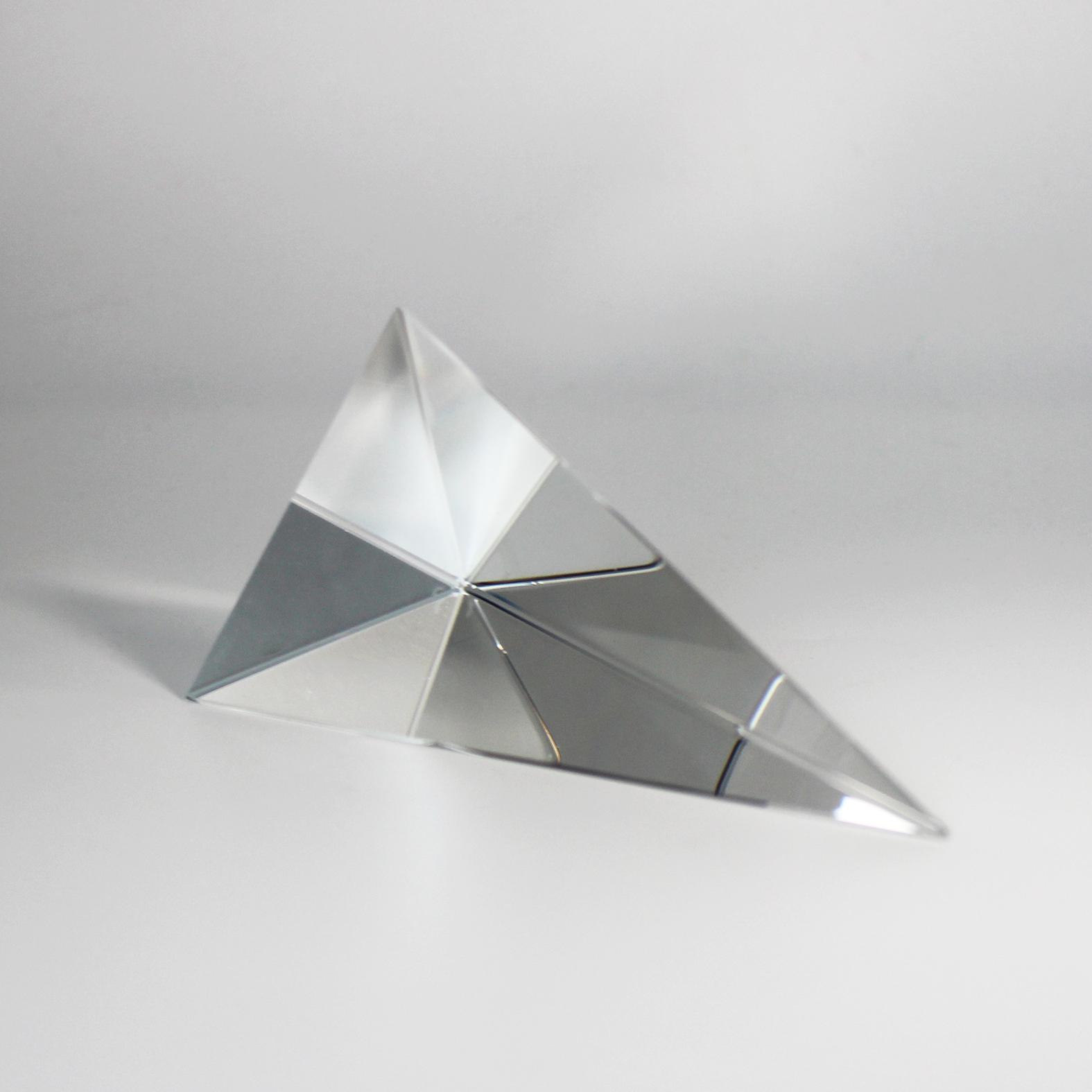

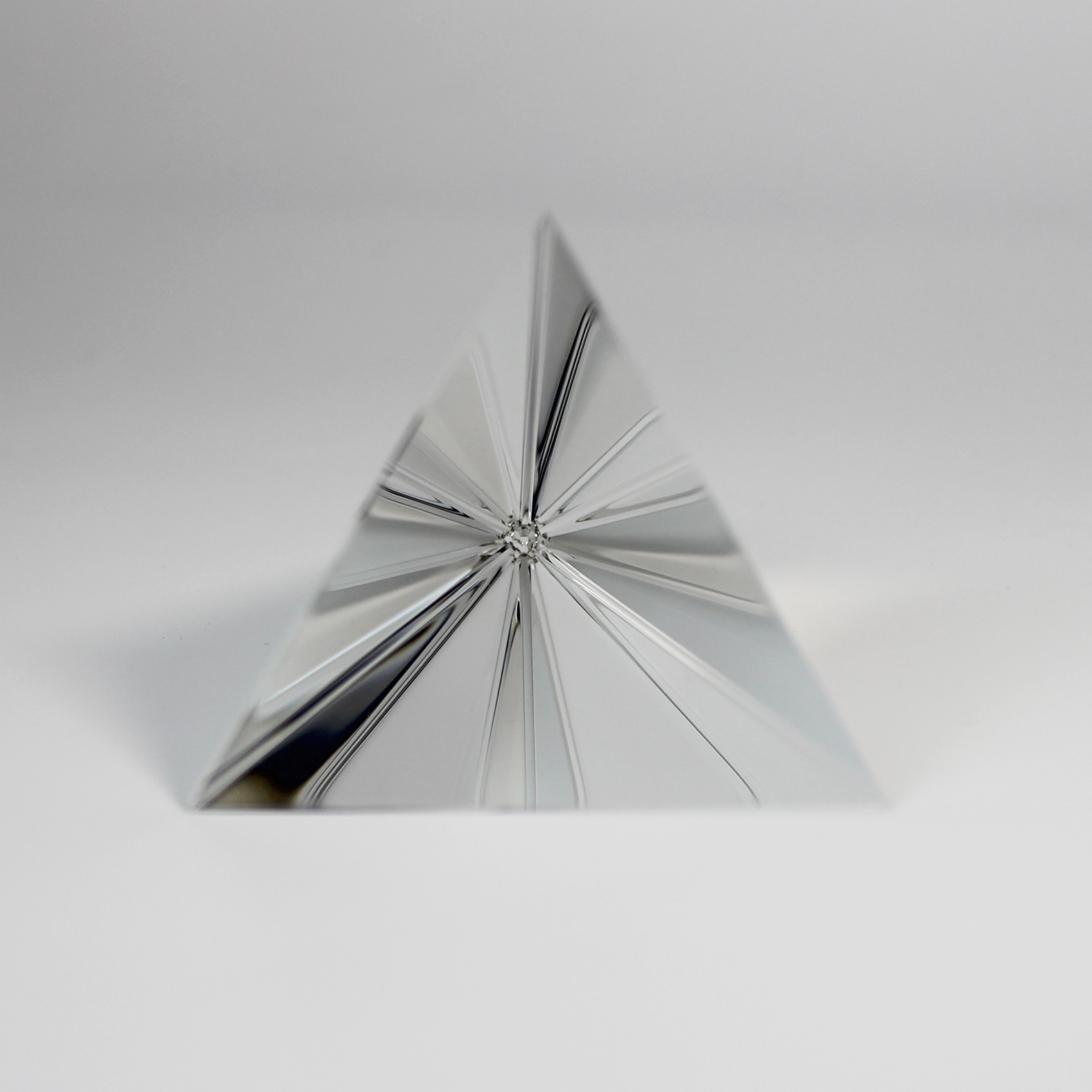

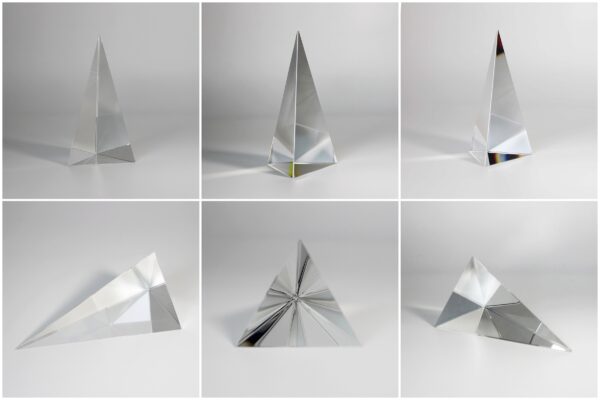

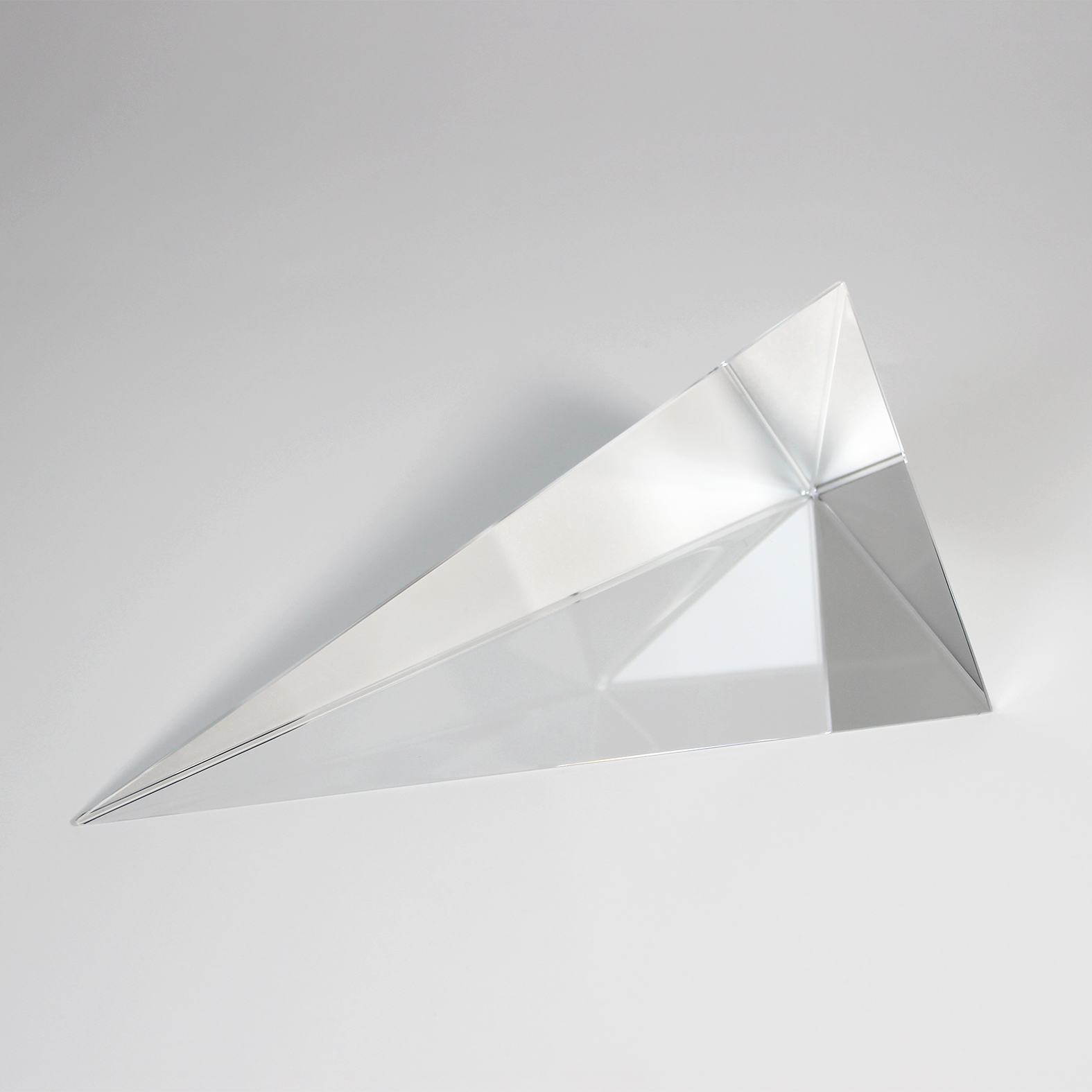

Picture of Triangular Pyramid Prism
Video of Glass Prism
Key Features
- Triangular pyramid optical geometry
- Precisely controlled facet angles
- High quality optical surfaces
- Accurate geometric dimensions
- Good light refraction performance
- Fine grinding and polishing
- Customized optical materials
- Optional optical coating
Optical Characteristics
The optical characteristics of a triangular pyramid prism are determined by its geometry, material refractive index, facet angles, and surface accuracy. Precise angular processing helps maintain consistent optical path control and predictable refraction performance.
Applications
- Optical instruments
- Imaging assemblies
- Light refraction systems
- Optical measurement equipment
- Laboratory instruments
- Machine vision equipment
- Precision optical assemblies
Customization Options
- Base dimensions
- Overall height
- Facet angles
- Optical material
- Surface quality
- Dimensional tolerance
- Edge processing
- Optical coating
Manufacturing of Triangular Pyramid Prisms
We provide precision manufacturing of triangular pyramid prisms according to optical drawings and technical specifications. Cutting, grinding, angular processing, polishing, edging, cleaning, coating, and inspection can be controlled according to the required optical and mechanical parameters.
People Also Ask (FAQs)
Can a triangular pyramid prism have an optical coating?
Yes. Optical coatings can be applied to selected surfaces according to the required wavelength range and transmission or reflection characteristics.
Why Choose Our Triangular Pyramid Prisms?
- Precision angular processing
- Accurate geometric control
- High quality optical polishing
- Multiple optical material options
- Customized dimensions and angles
- Optional optical coating solutions
- Drawing-based manufacturing
- Prototype and production support
