Wholesale Customized K9 Optical Cemented Achromatic Double Lens for Sale
Wholesale Customized K9 Optical Cemented Achromatic Double Lens for Sale
Item Number:X-P22D2T14401B
Achromatic lenses, usually consisting of two optical elements cemented together.It is the most cost-effective lens for good polychromatic illumination and imaging.Achromatic are excellent focusing components for reducing chromatic aberration of broadband light sources used in many analytical and medical devices.
- Material: H-K9L and SF2
- Dimension: 25.40mm
- Tolerance: +/-0.01mm
- Surface Accuracy: lambda
- Surface Quality: 40-20
- Clear Aperature: 87%
- Coating: AR @400-700nm, R≤0.5%
An achromatic lens can be defined as a lens which is made by a combination of two different types of lenses carrying different focal powers in a manner such that the images formed by the light of both the combined lenses are free from chromatic aberration or achromatism.
- • Normal size in item list be suggested for your choice
- • MgF2,VIS-NIR coating available
- • Low cost, cemented design
Most commonly used and the earliest example of an achromatic lens is the achromatic doublet. An achromatic doublet is made from a pair of glasses, of which one is typically a concave and another is convex. The concave element of the doublet is composed of flint glass (with higher dispersion); the convex element, however, is made up of crown glass (with low dispersion). These two elements are placed (cemented) next to each other in such a manner that the chromatic aberration of the one element is balanced by the chromatic aberration of another. There are various types of achromatic lenses, which differ in the type of lens elements and optical properties.

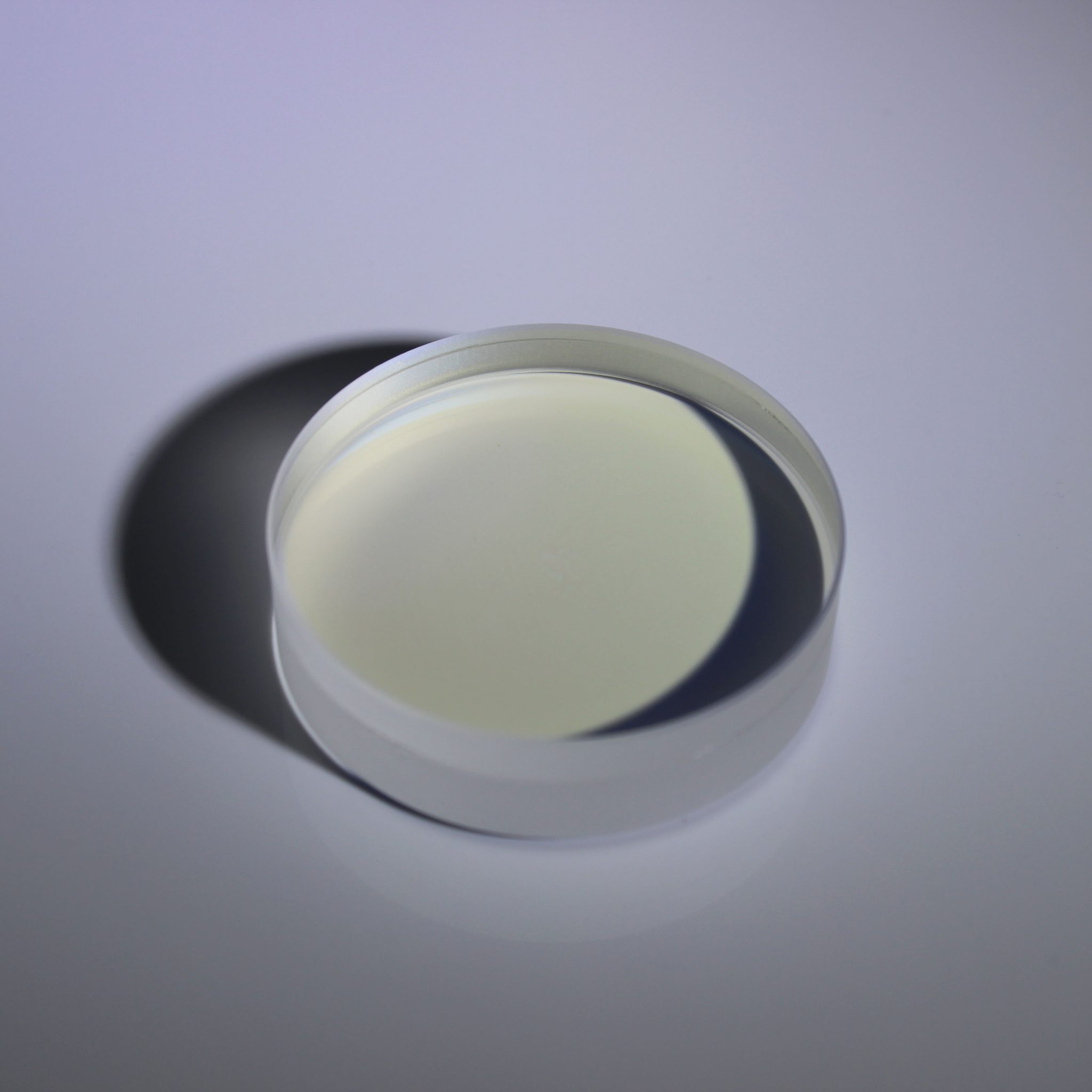

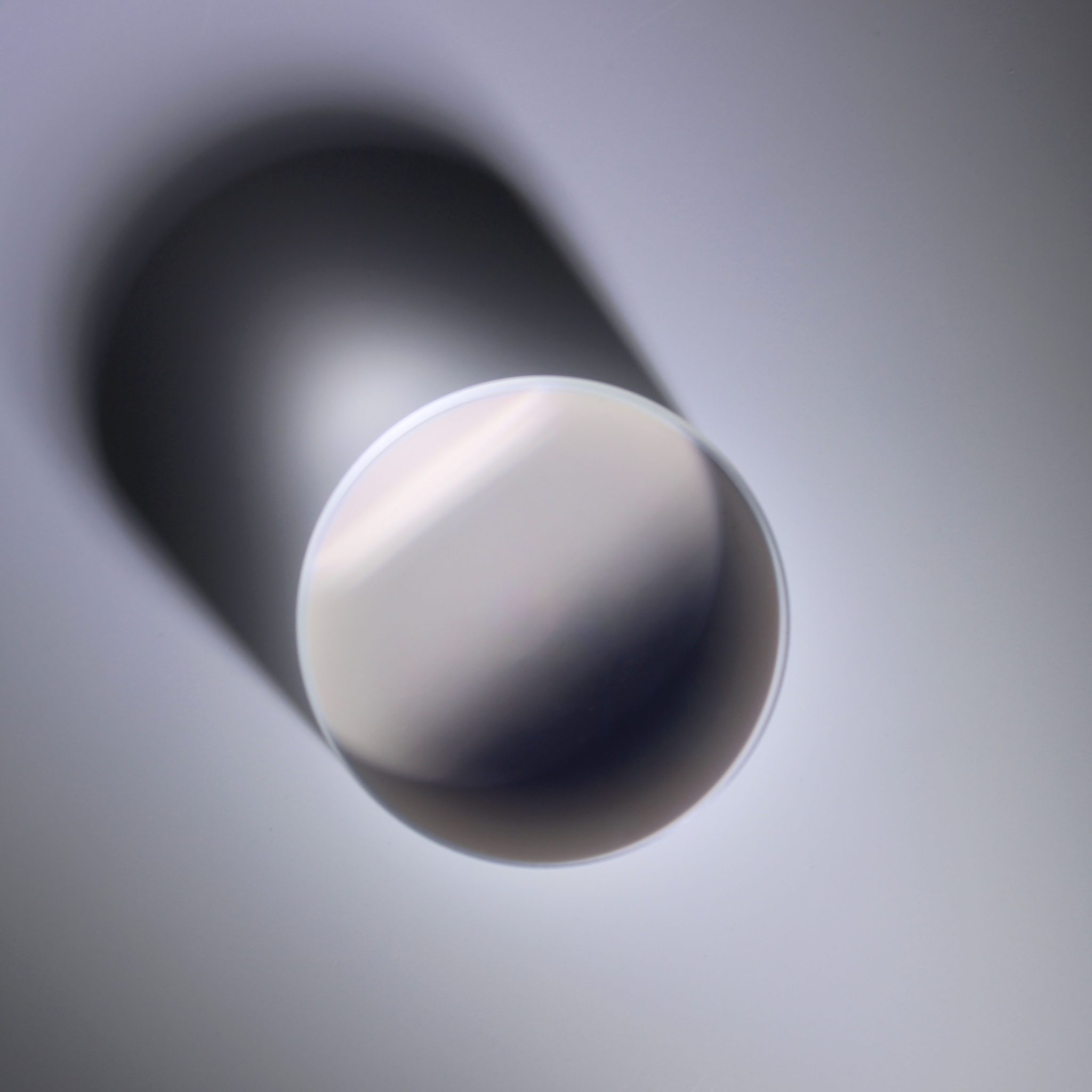

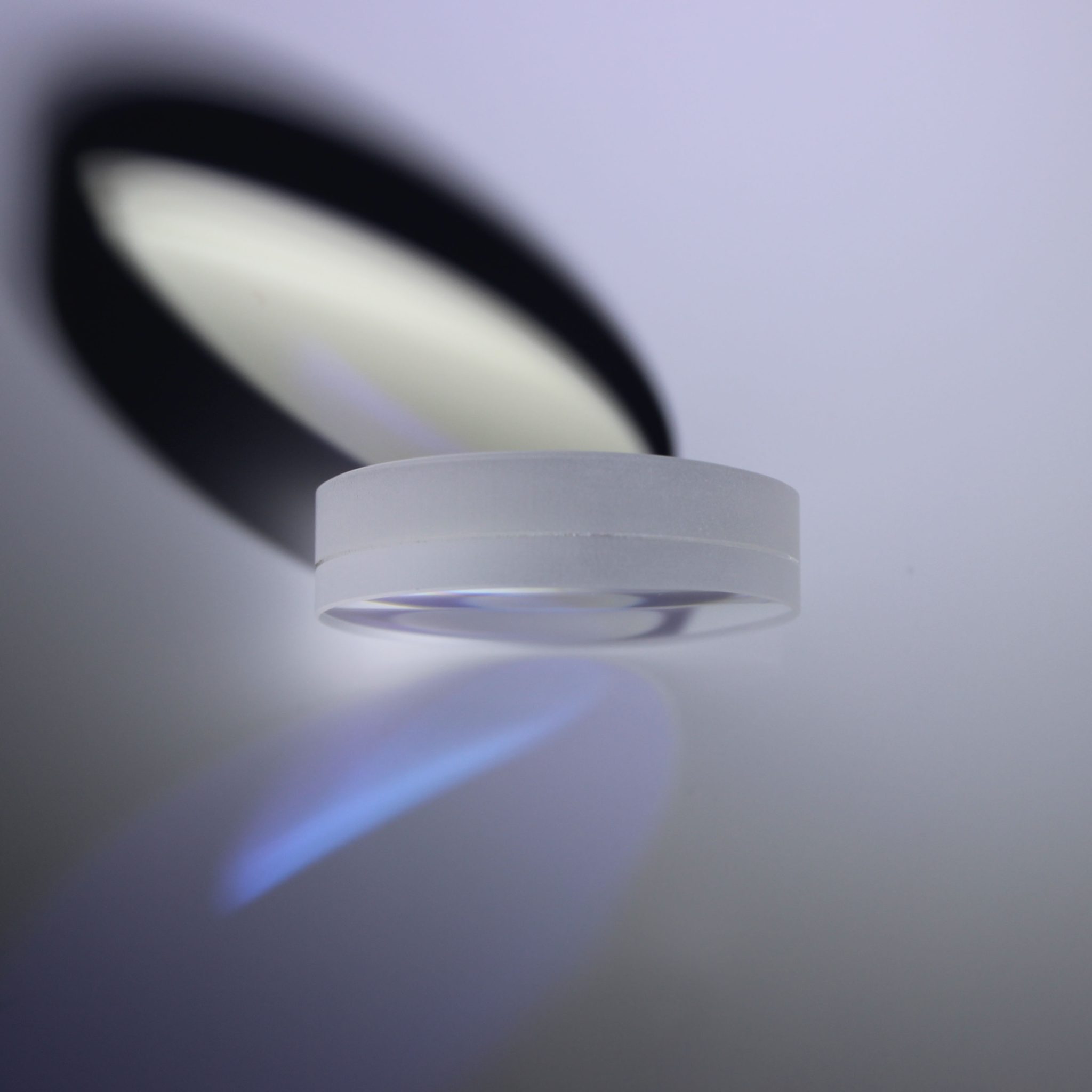

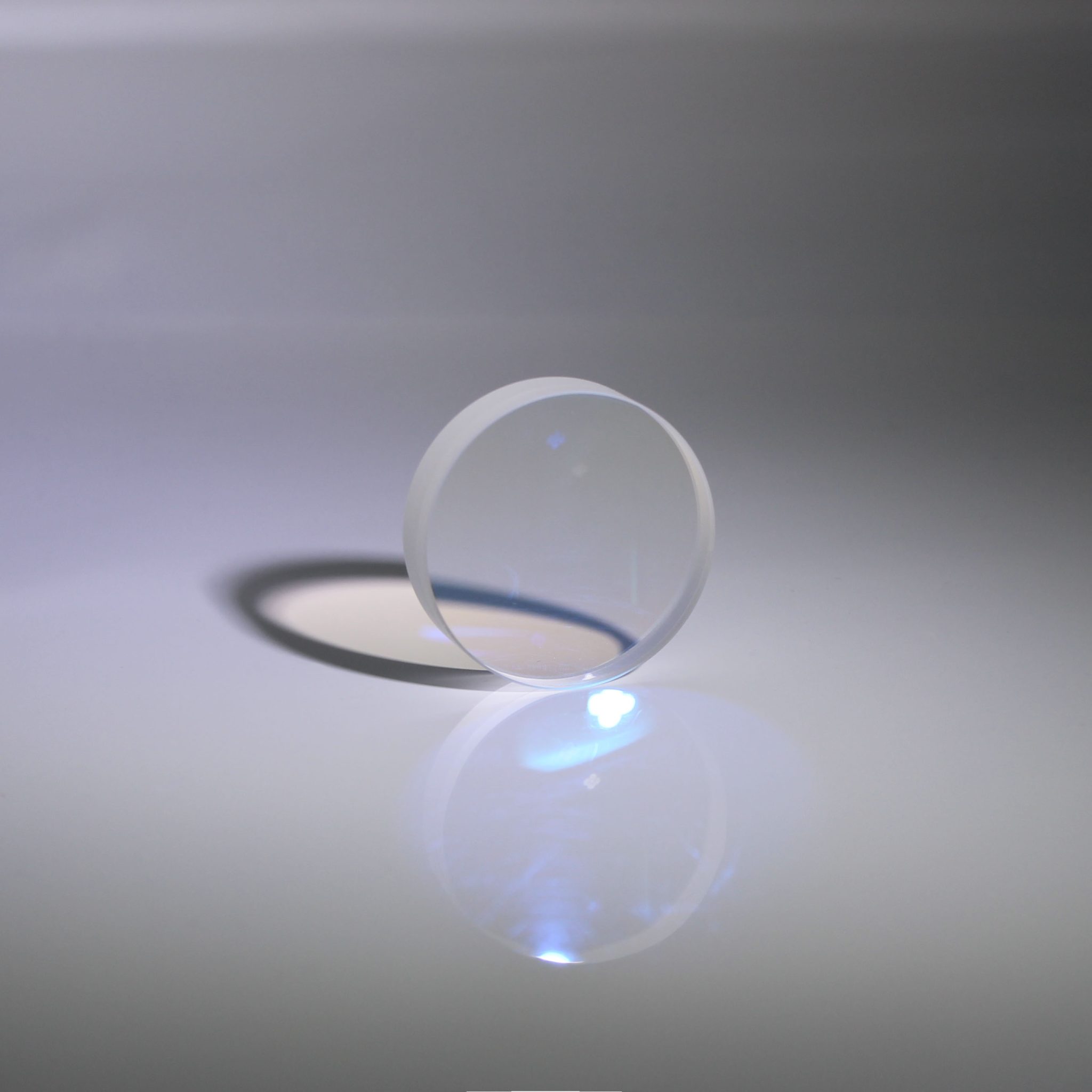

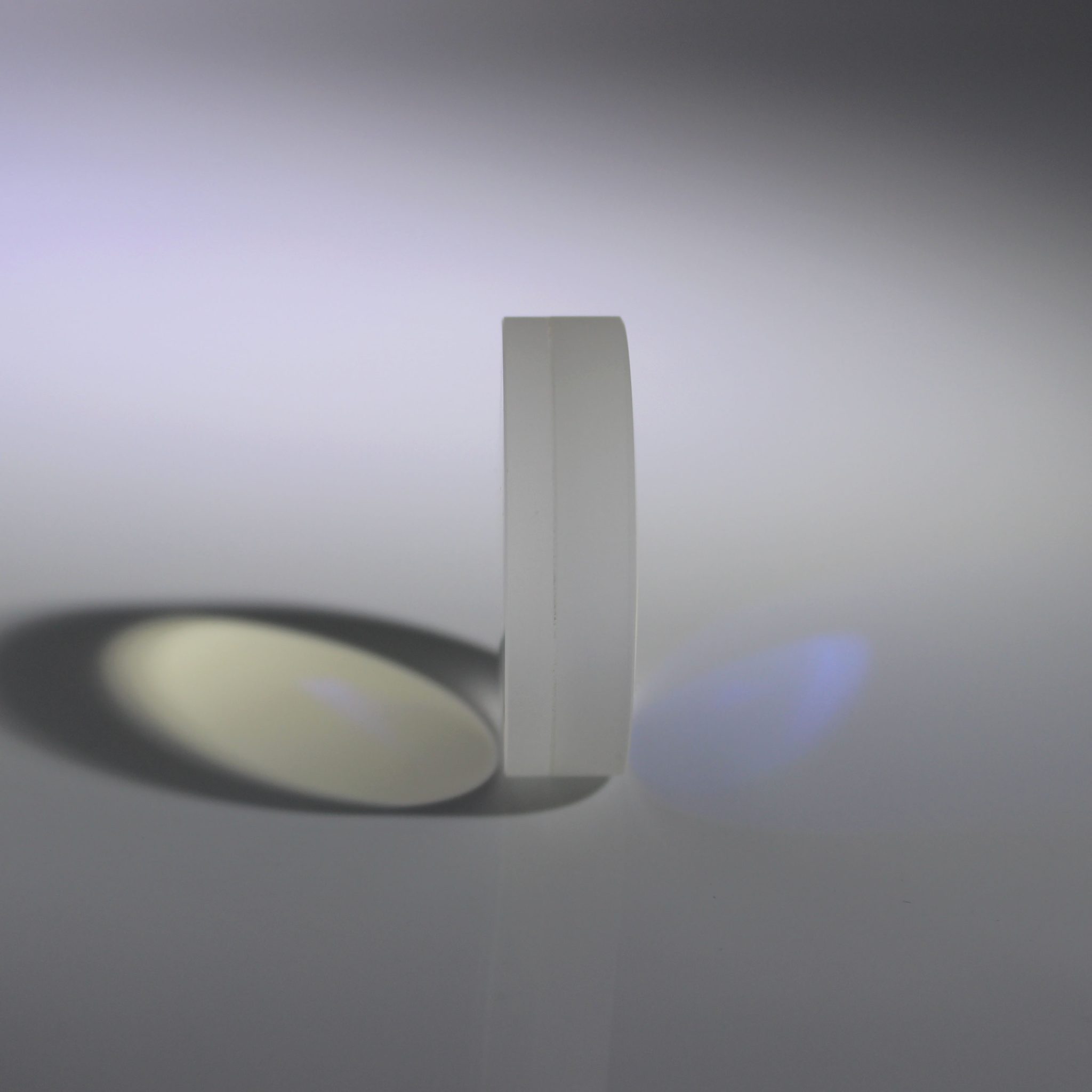

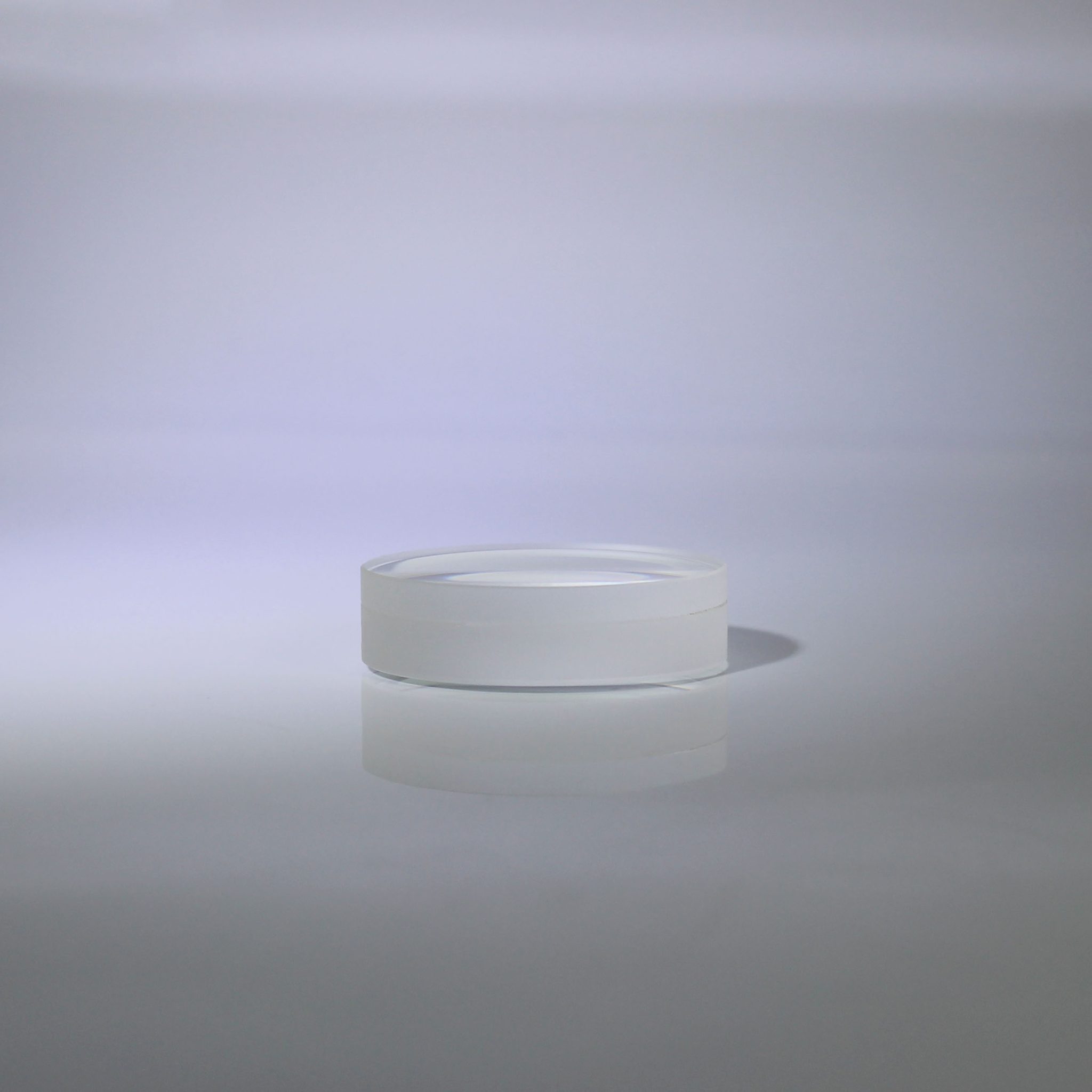

++ Achromatic lens as picture show is cemented by a diameter 25.4mm concave spherical lens and double convex lens, used for laser apparatus. Please contact us freely if it's interesting, we'd like to provide a best solution for your project and a competitive price for your reference. Thanks.
The detailed video of Achromatic lens is as follows:
