What is half ball lens?

Half-Ball lenses are a kind of convex lenses in hemispherical shape that made of optical glass with good transparency and refractive parameters. It is usually made by cutting Ball Lenses in half.

Comparing to ball lenses, they are more compact and easier to mount.

Application of glass half ball lens

Optical glass half ball lenses are as beam collimator for optical fibers, emitters and detectors. Other applications include endoscope, bar-code scanning and laser measurement etc..


Main Specifications of Half ball lenses

 Material: BK7, B270, Borosillicate glass, UV Fused Silica or any other glass crystal material, plastic and SI, Ge and other infrared material are also available

•  Tolerance on half Ball Lens Diameter: +/- 0.001mm
•  Toleranace on half ball lens Thickness: +/- 0.01mm
•  Half Ball Lens Roundness: < 0.001mm
•  Surface Quality of Half Ball lens: 20/10 scratch and dig or better
•  Half Ball Lens Cleaning: Class 100 clean room
•  Half Ball Lens Packing: in Waffle plastic trays
•  Each Half Ball Lens is checked: 100% under microscope before Delivery.
•  All Half Ball Lenses are cleaned and packed: in Class 100 clean room area.

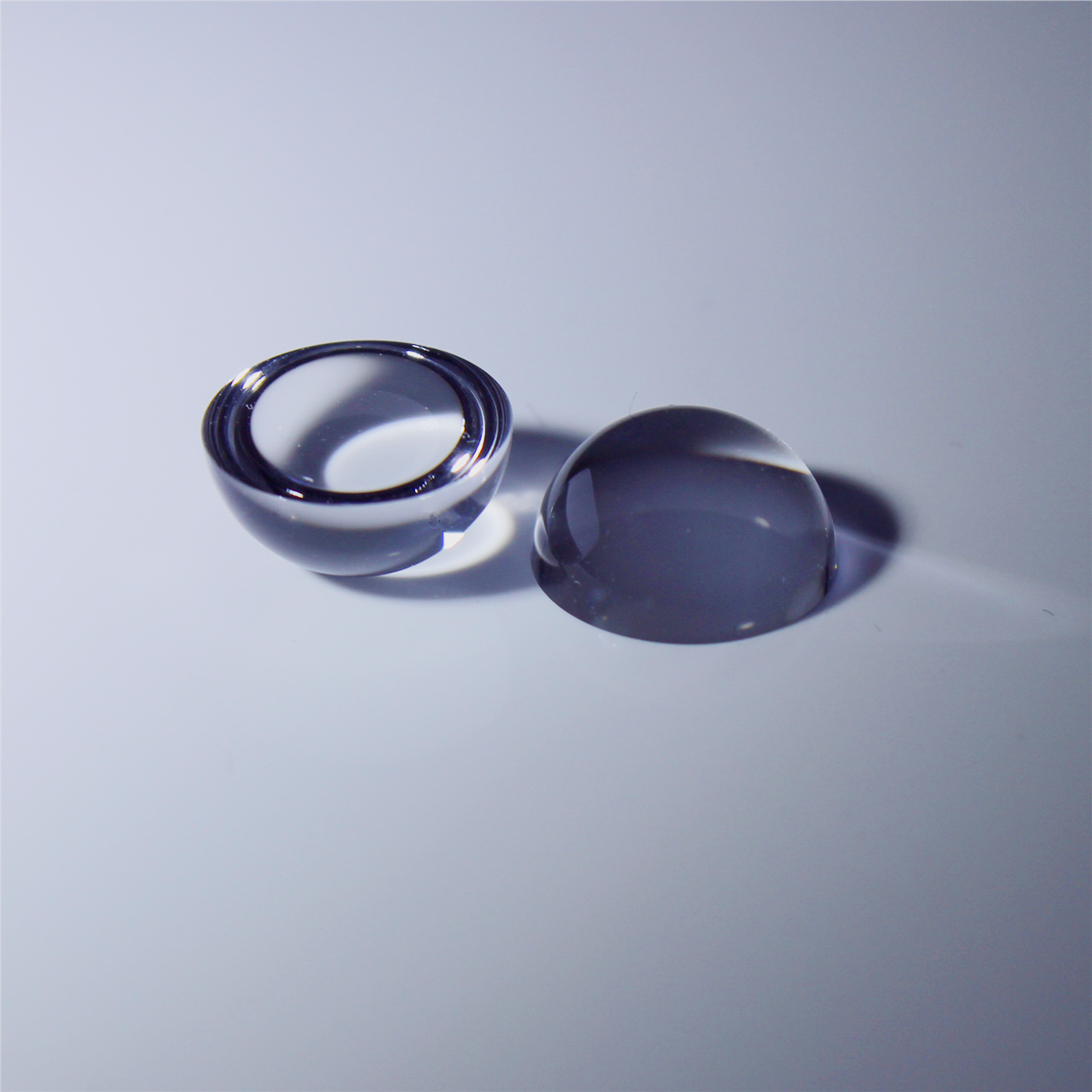

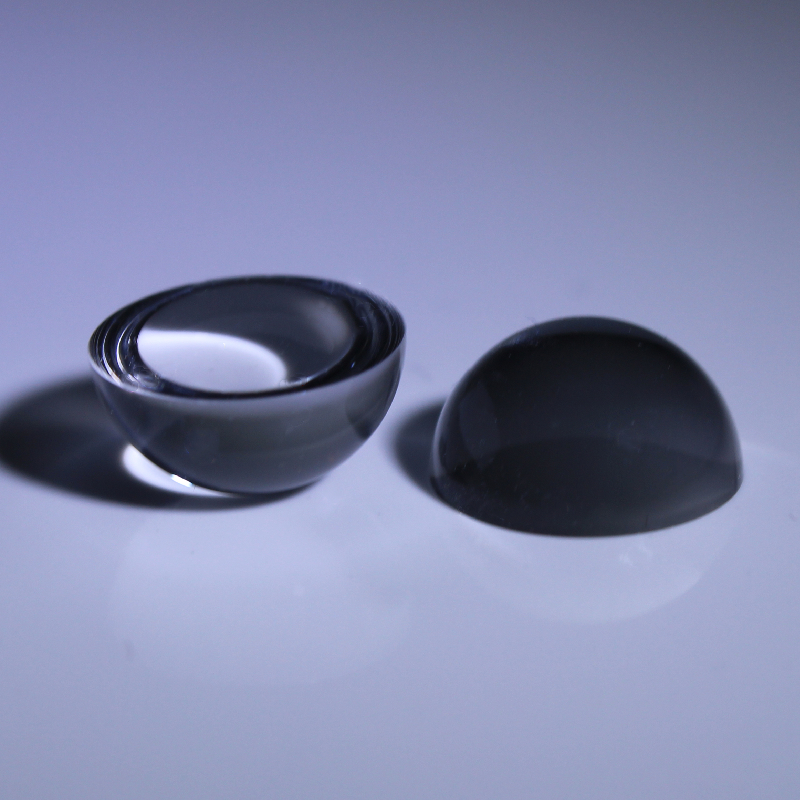

Pictures of polished half ball lens

Specifications of optical crystal half ball lens

Video display of optical glass half ball lenses

Drawing of Half ball lens and ball lens

Why to Choose VY Optoelectronics Co.,Ltd.?

• Low cost, high volume - Yield as big as 1000,000pcs/month. Un-beatable price.
• Any optical glass/crystal/plastic/infrared glass you can imagin - BK7, B270, Borosillicate glass, UV Fused Silica, PYREX, PMMA, Si, Ge…
• Freedom for Designer to Optimize System
• As big as 150mm diameter(D) lens Available, and a lot of different size lens on shelf for quick delivery for the diameter of 2~20mm
• Customized Height(T) of Lens - from ball lens to very thin lens, any height can be achieved
• Unique Technology - High efficiency on production / Free of dirties and contamination after polishing, no additional cleaning needed.
• Quick Delivery and Low Cost for Samples - It's not moulded, so no mould investment.
• ISO certificated company

People also ask

• What is the effective focal length of a ball lens?
  The effective focal length is equal to the index of refraction (denoted here by n) times the diameter of the ball lens (D), divided by 4(n-1). We can write this as EFL = [n D]/[4(n-1)]. The back focal length equals the effective focal length – D/2.

• What magnification does a ball lens have?
  Ball lenses are highly transparent spheres made with optical glass. Some of the earliest microscope lenses — developed by Antoni van Leeuwenhoek — relied on surface tension to form small spheres from melted glass. These lenses achieved magnifications as large as 275x and were as small as 1.5 mm in diameter.

• What is a half ball lens?
  Ball lenses are completely spherical lenses most commonly used to couple light in and out of fibers. Half-ball lenses are hemispheres. We supply high precision grade-3 ball lenses, midrange grade-25 ball lenses and commercial grade-100 ball lenses offering all grades to suit any application.
