China Factory Hot SaleBeauty Machine Hair Removal Optical Laser Part ND YAG Crystal Rod Lens

Item Number:X-P22L5M12001B

Nd:YAG (neodymium-doped yttrium aluminum garnet; Nd:Y3Al5O12) is a crystal that is used as a lasing medium for solid-state lasers. The dopant, triply ionized neodymium, Nd(III), typically replaces a small fraction (1%) of the yttrium ions in the host crystal structure of the yttrium aluminum garnet (YAG), since the two ions are of similar size.[1] It is the neodymium ion which provides the lasing activity in the crystal, in the same fashion as red chromium ion in ruby lasers.


  • Material: Nd(Ce)YAG Cr:YAG
  • Dimension: Dia. 3.00mm
  • Thickness: 55.00mm
  • Tolerance : +/-0.10mm


VY Optoelectronics Co.,Ltd. Production capacity of YAG rod lenses

VY Optoelectronics Co.,Ltd. can also produce YAG single crystal product, CTH: YAG, Er:YAG, Ho:YAG, Yb:YAG, Undoped YAG and so on, with the maximal diameter of 4-6 inches, as well large-size magneto-optical single crystal TGG and TSAG . We can provide the various special crystal rods, large-size and high-concentration laser crystal slab, crystal substrates, and other special products under the requirements of the customers.

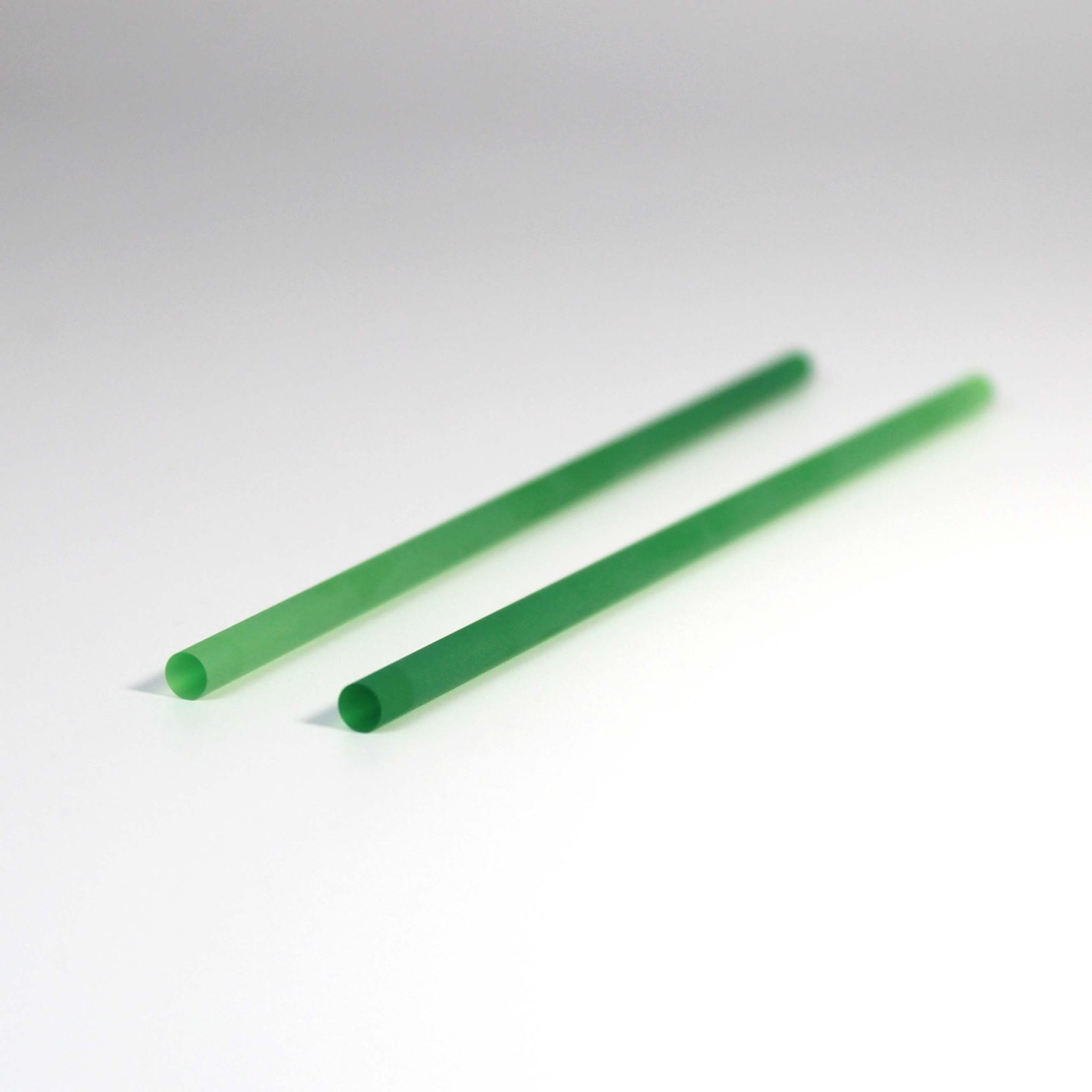

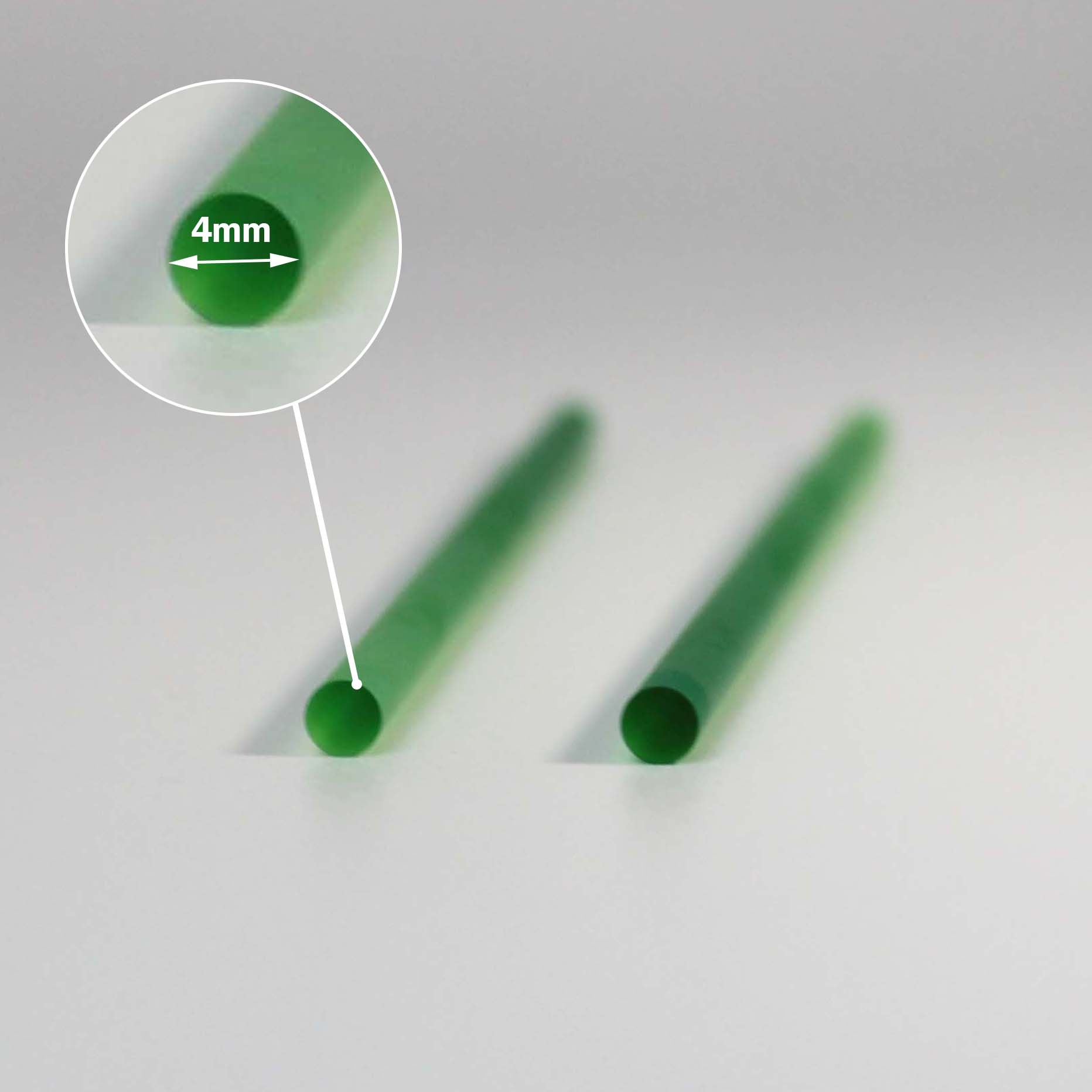

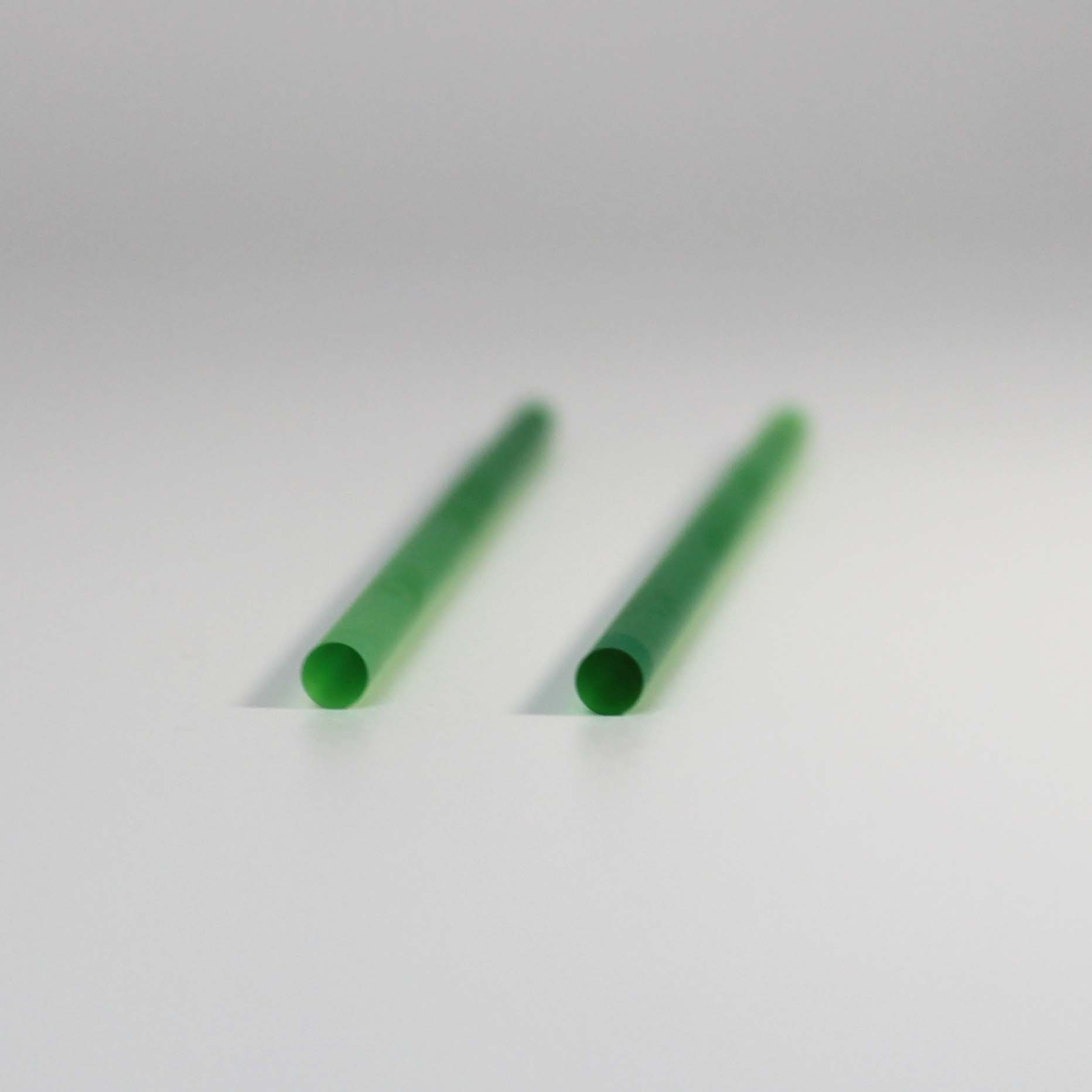

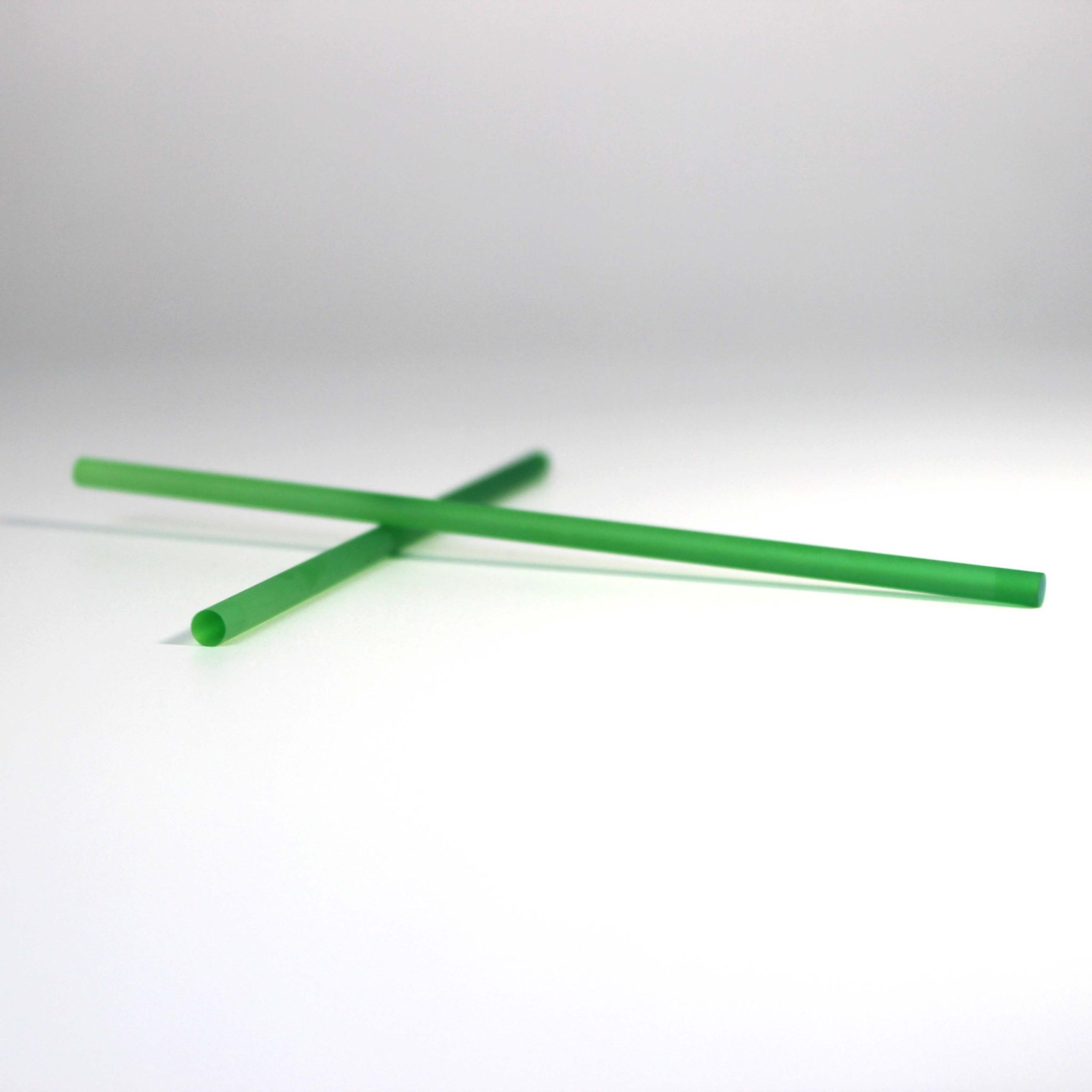

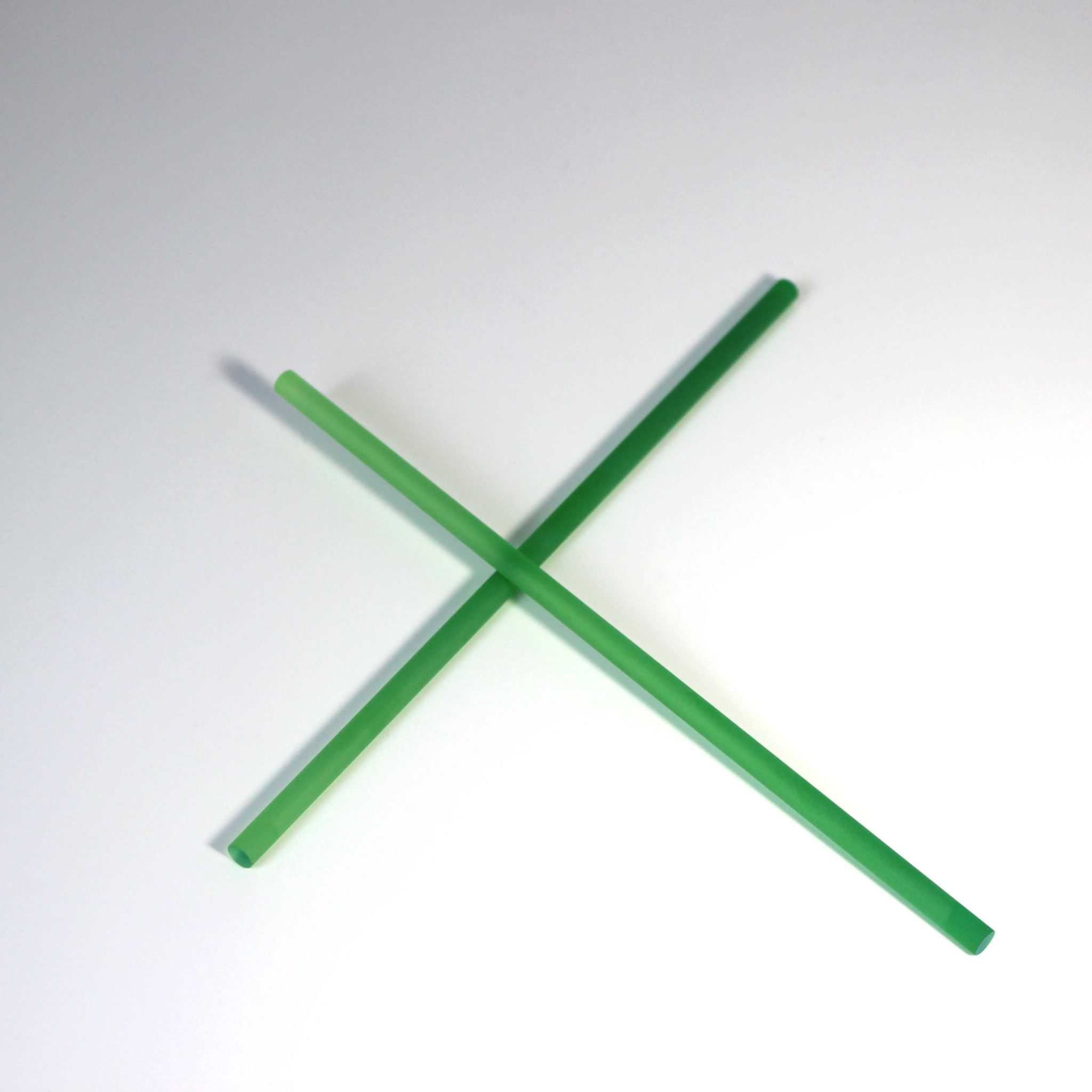

Customized ND YAG Crystal Rod Lens picture show:




Specificaitons of yag laser crystal lens

Specificaitons Data
Diameter 4mm
Length 130mm
Coating Both endssurfaces



Detailed video introduction of Crystal YAG rod lens

Nd:YAG Rods Laser Crystal Lenses

Neodymium doped Yttrium Aluminum Garnet (Nd:YAG) is the most commonly employed solid state lasing medium for material processing applications.
Nd:YAG has relatively good optical absorption and conversion efficiency, low lasing threshold and good thermal dissipation for high power operation.
Nd:YAG (neodymium-doped yttrium aluminum garnet; Nd:Y3Al5O12) is a crystal that is used as a lasing medium for solid-state lasers. The dopant, triply ionized neodymium, Nd(III), typically replaces a small fraction (1%) of the yttrium ions in the host crystal structure of the yttrium aluminum garnet (YAG), since the two ions are of similar size. It is the neodymium ion which provides the lasing activity in the crystal, in the same fashion as red chromium ion in ruby lasers.



Capabilities of YAG crystal VY Optoelectronics Co.,Ltd can produce

  • Rod size:  3- 30mm in diameter and 1 - 300mm in length
  • Slabs: (3-50)mm Length *(3-8)mm Width *(30-200)mm Height
  • Nd dopant concentration : 0.3% - 1.1%
  • Polishing
  • AR-coating or/and dichroic coating



Advantage of Nd:YAG Crystal

During the last decade, Nd:YVO4 has been developed as a promising substitutes for Nd:YAG in diode-pumped lasers due to its high absorption and emission cross-sections. However, the applications of Nd:YVO4 are limited due to its poor physical-mechanical properties and growth difficulty etc. Now, we have developed the high-doped Nd:YAG (SUPER-Nd:YAG) recently. It shows high absorption cross-section and have many advantages over Nd:YVO4:
Due to the cubic symmetry and high quality, Nd:YAG is easy to operate with TEMoo mode

  • Nd:YAG can be Q-switched with Cr4+:YAG directly
  • Nd:YAG can produce blue laser with the frequency-doubling of 946nm
  • Nd:YAG can be operated in a very high power laser up to kW level


VY Optoelectronics Co.,Ltd. customized yag rod lens of laser-rod-cooling jacket and laser rod bonding in different materials.

Video of VY Optics’ optical lenses production workshop

People also ask

  • What are the benefits of YAG laser?
    YAG Laser technology, which utilizes highly concentrated beams of light to penetrate the skin and ablate (vaporize) problem areas, can address sun damage, wrinkles, and scars. This technique, known as skin resurfacing, removes the top layers of skin.


  • What are the side effects of Nd:YAG laser treatment?
    Redness, swelling and itching immediately after the procedure that may last a few days after treatment. Rarely, skin pigment may absorb too much light energy and blistering can occur (this settles by itself) Changes in skin pigmentation.


  • What does YAG mean in lasers?
    YAG stands for the medium in which laser light is created (Yttrium Aluminum Garnett). It is a non-invasive, quick, safe, outpatient procedure and can be performed on both eyes at the same sitting if required.


  • What is a Nd:YAG laser used for?
    Nd:YAG lasers are used in ophthalmology to correct posterior capsular opacification, after cataract surgery, for peripheral iridotomy in patients with chronic and acute angle-closure glaucoma, where it has largely superseded surgical iridectomy, for the treatment of vitreous eye floaters, for pan-retina


  • What are the side effects of the YAG?
    YAG laser capsulotomy is generally a very safe procedure. However, there are some risks and side-effects which includes an increase in floaters, raised intraocular pressure, inflammation, haloes/glare, lens damage, retinal tear/detachment. Your glasses prescription may also change after the laser treatment.

Want to learn more / get a quote? Just click here to contact us now~
