High Quality All Surface Polished Optical Glass Quartz Tube
High Quality All Surface Polished Optical Glass Quartz Tube
Item Number:X-P23V3Y14301Y
Glass tubes are mainly cylindrical hollow-wares. Their special shape combined with the huge variety of glass types (like borosilicate, flint, aluminosilicate, soda lime, lead or quartz glass), allows the use of glass tubing in many applications. For example, laboratory glassware, lighting applications, solar thermal systems and pharmaceutical packaging to name the largest.
- Material: K9, BK7 and other optical glass
- Dimension: 0.8mm-20mm
- Surface Accuracy: lambda/10
- Size Tolerance: +/-0/0.1mm
- Angle Tolerance: +/- 1 degrees
- Coating: Optional
About glass tube：
Glass tubes are made of soda-lime, borosilicate or quartz material and they have broad range of quality. Glass tubes are widely used in laboratory, chemical industry, biology industry, gardening, and so on.
According to different dimension and accuracy, glass tubes can be divided into normal glass tube, precision glass tube and heavy wall capillary tube three kinds.
With good chemical, mechanical and thermal properties, small tolerance and various dimension, the glass tubes are widely used in daily life, industry and laboratory.

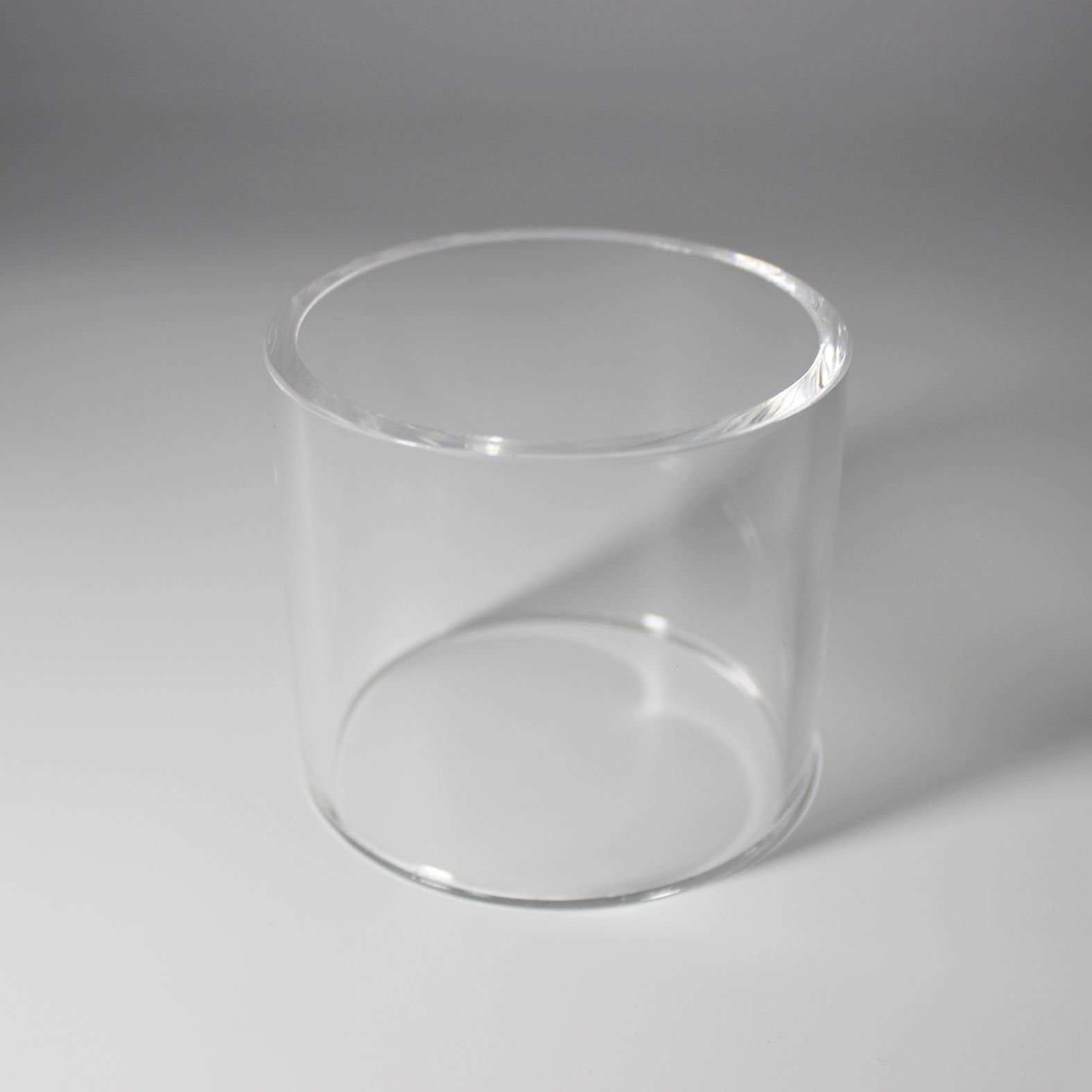

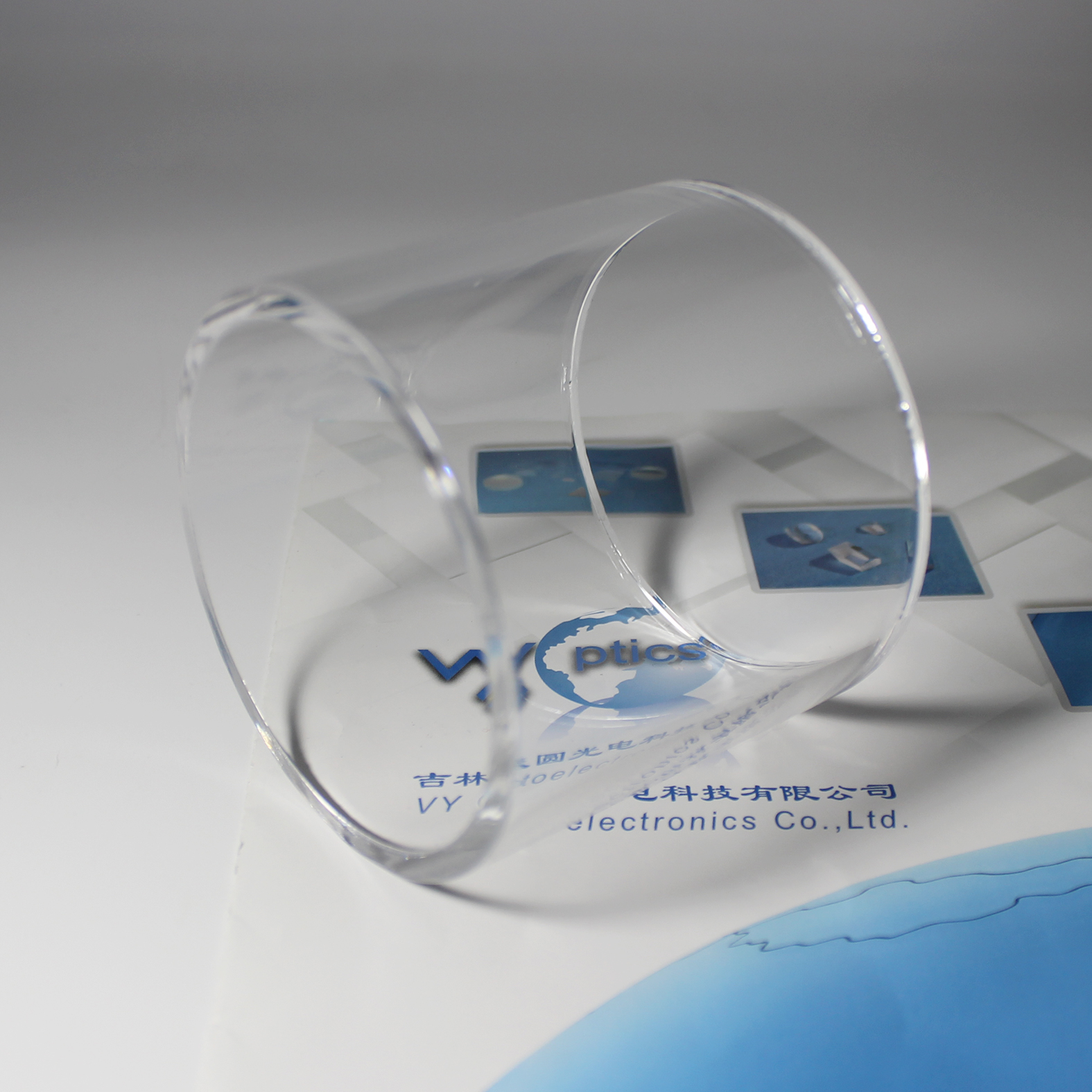

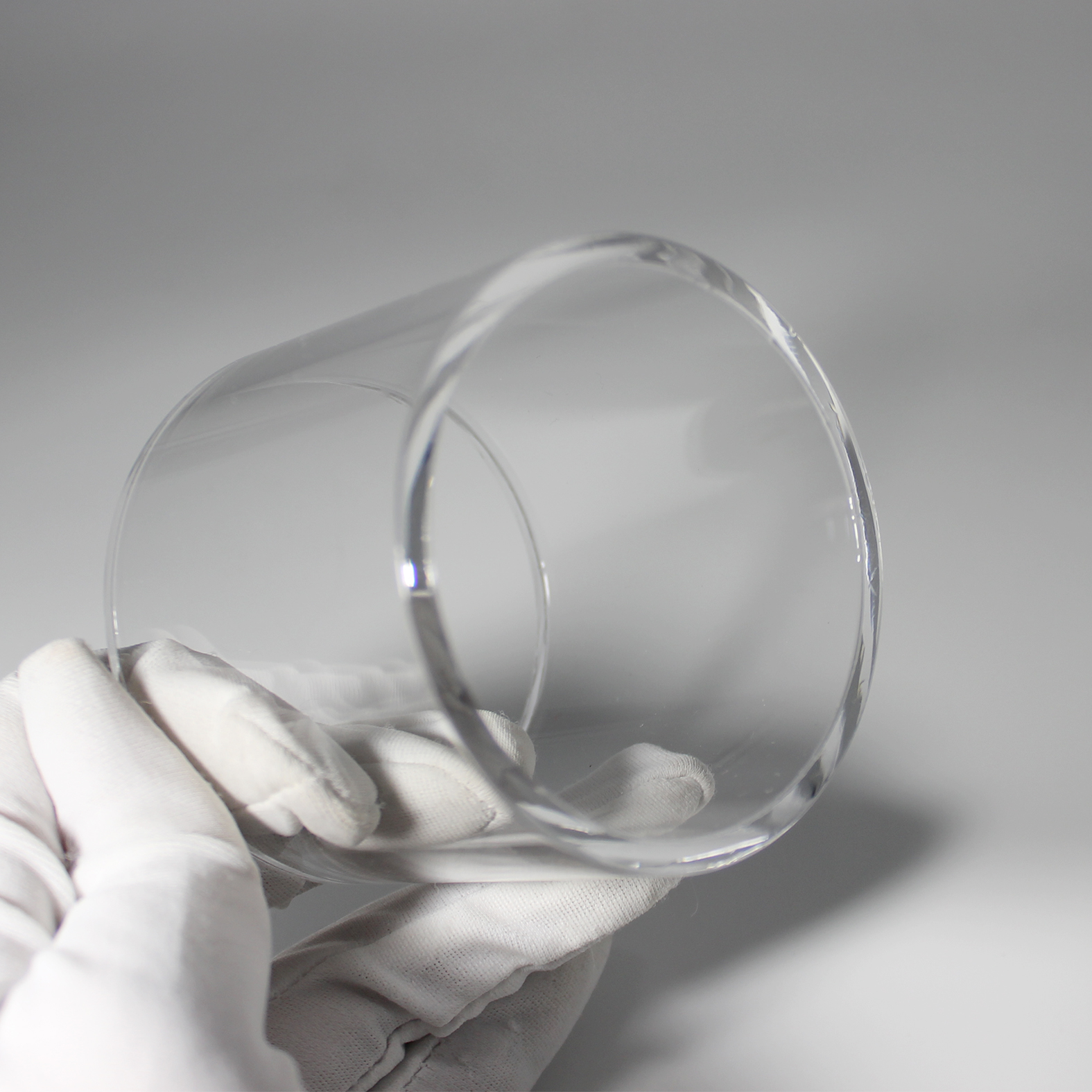

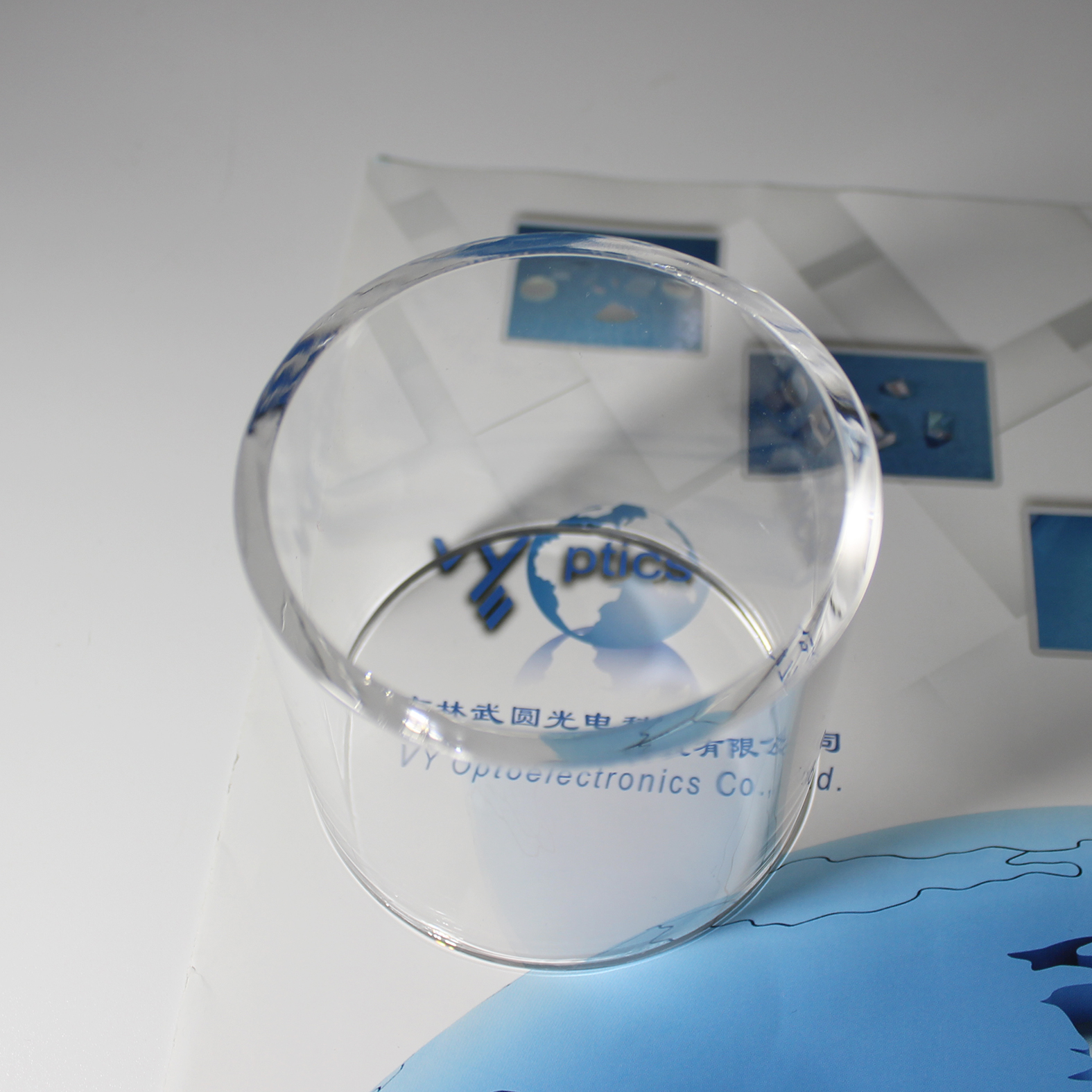

Pictures of Quartz Tube
Specifications of Quartz tubes
| Specification | Data |
| Material | Quartz |
| Length | 60mm |
| Outer Diameter | 70mm |
| Inner Diameter | 62mm |
Detailed video of Quartz Glass Tubes
Optical Lenses Production workshop of VY Optics
People also ask
- What is the purpose of the glass tube?
Laboratory glass tubingis used in many laboratories or industrial workplaces to connect other items of glassware or equipment and to convey or deliver chemicals, solvents, liquids, gases and other products.
- How Strong is Quartz Tube?
The material is extremely strong in compression, with design compressive strength of better than 1.1 x 10 9 Pa (160,000 psi). Surface flaws can drastically reduce the inherent strength of any glass, so tensile properties are greatly influenced by these defects
