Item Number:X-P22Z1X8901Y
Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens.Rod Lenses used to focus collimated light into a line in laser and imaging systems are available in a range of micro sizes.
- Material: K9, BK7 and other optical glass
- Dimension: 0.8mm-20mm
- Surface Accuracy: lambda/10
- Size Tolerance: +/-0/0.1mm
- Angle Tolerance: +/- 1 degrees
- Coating: Optional
What is rod lens?
Optical Glass rod lens are cylindrical lenes which has the geometrical form of a cylinder and has a polished mantle, while the two flat end surfaces may be ground. It is analogous to a ball lens for
focusing in both directions.
Types of Optical Rod Lenses
Rod lenses are available with different optical materials, glasses like fused silica and BK7, but also with crystalline materials like YAG or silicon, e.g. for infrared optics.
A rod lens can have diameters of a few millimeters, but there are also cylindrical microlenses with substantially smaller diameters. Small-diameter rod lenses are frequently used as fast-
axis collimators for diode bars.

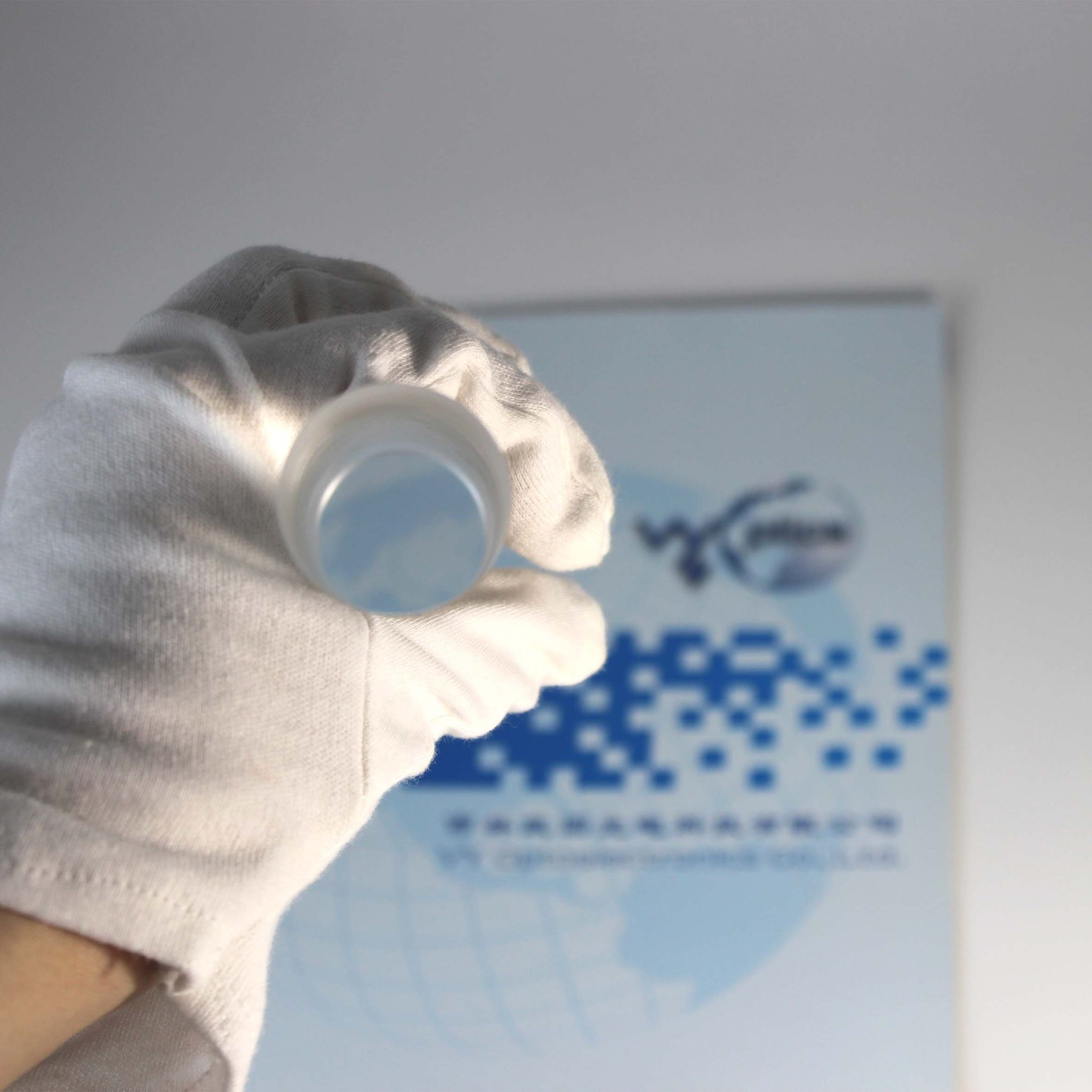

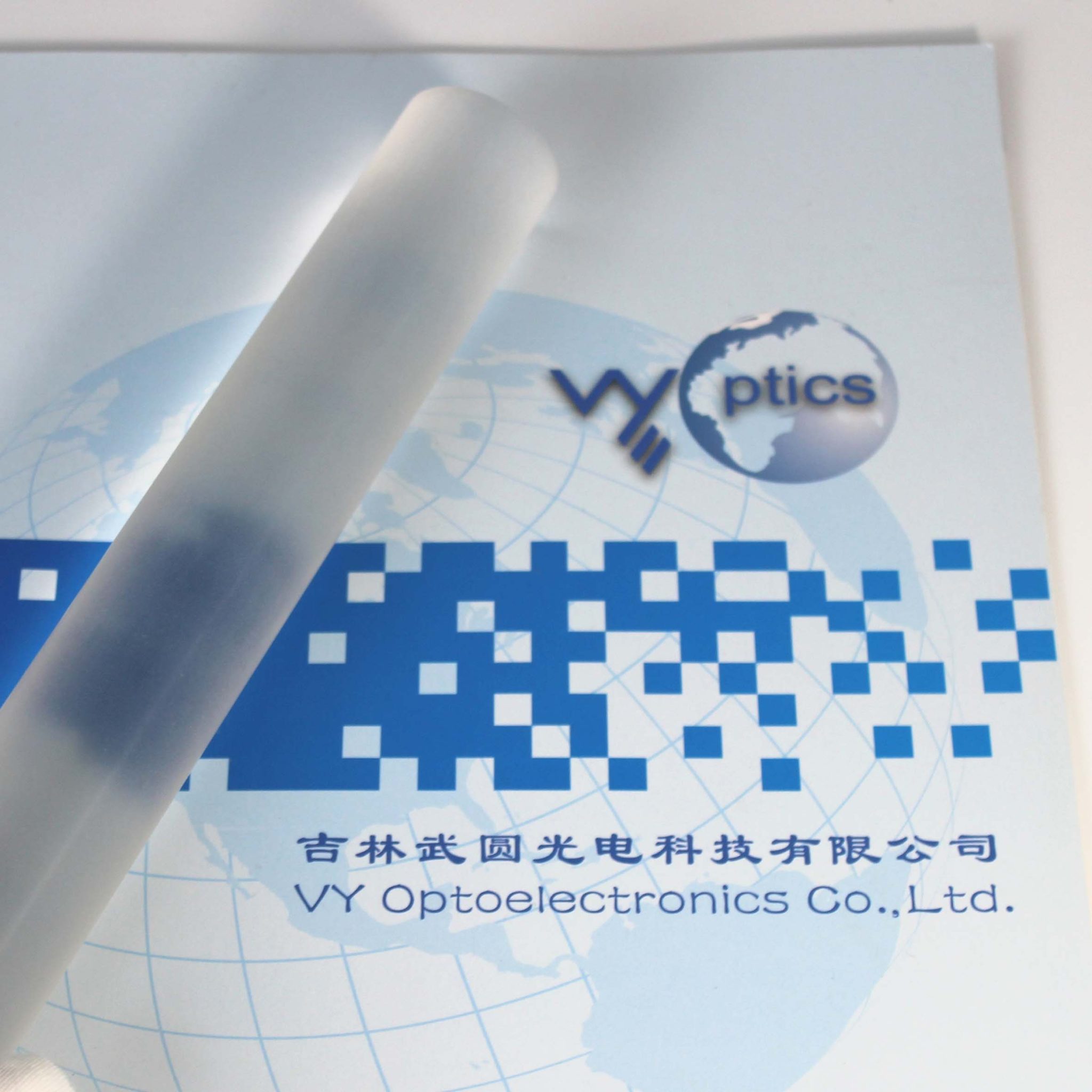

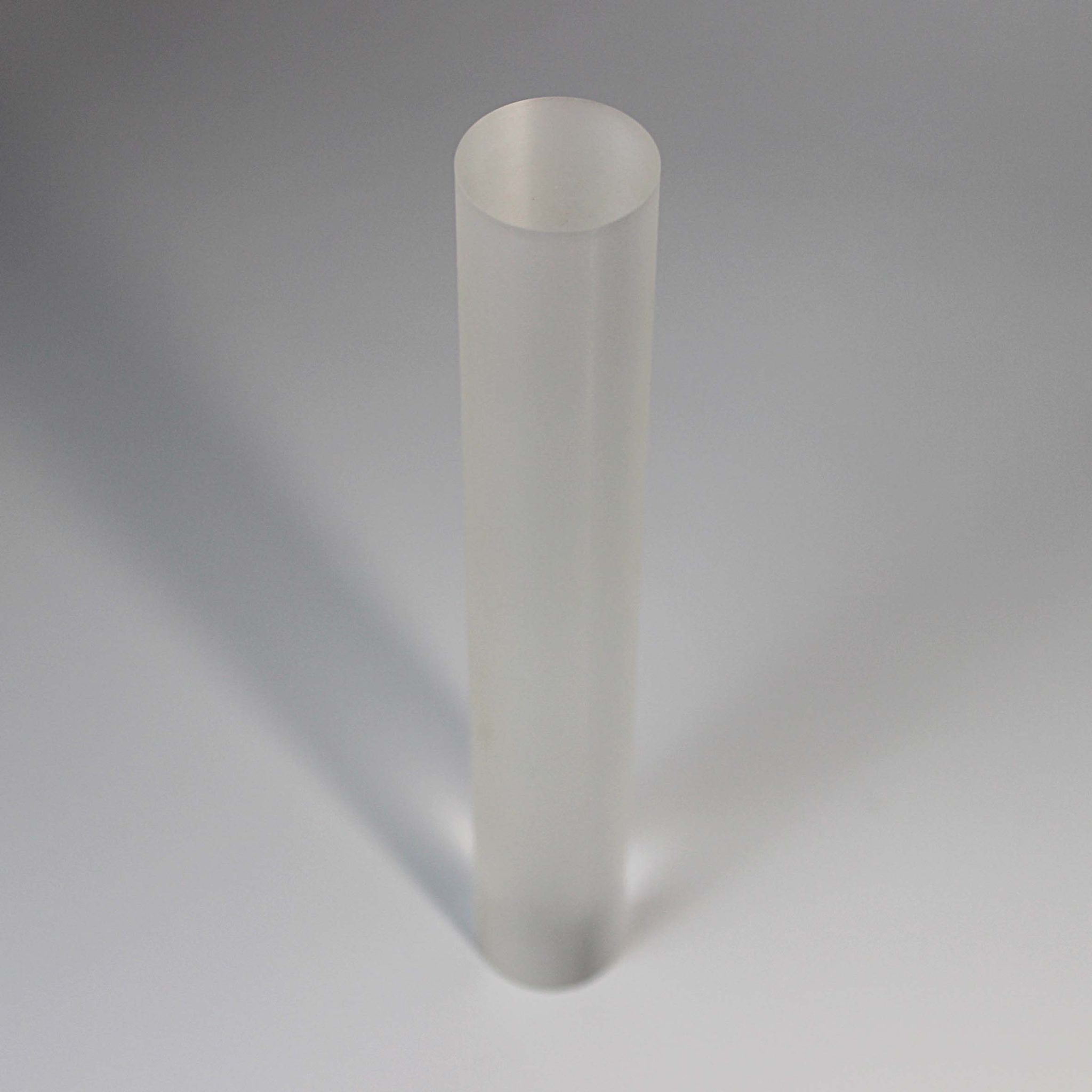

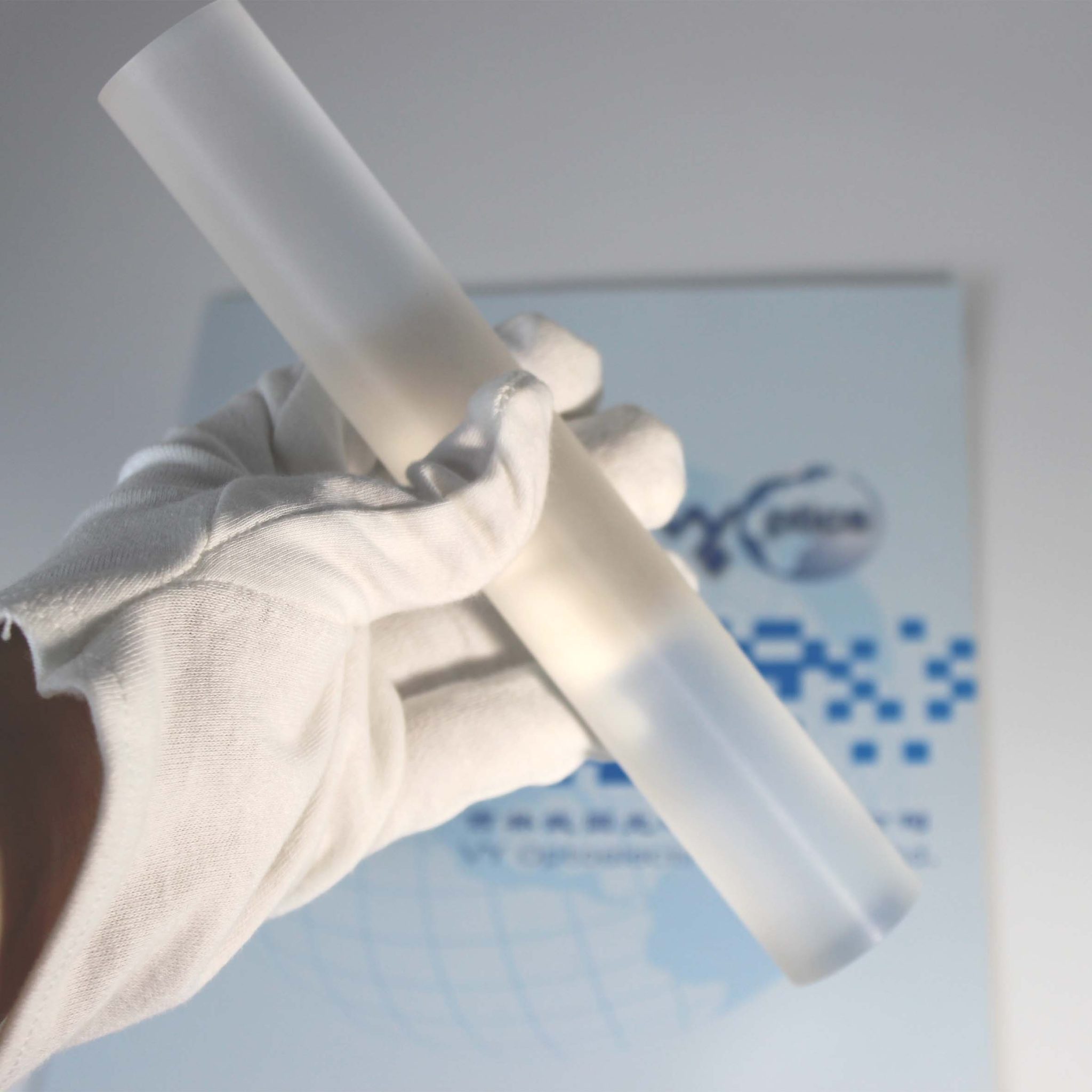

Pictures of VY optical glass CaF2 rod lenses
Specifications of custom flange optical rod lens
Specification | Data |
Material | CaF2 |
Length | 200mm |
Diameter | 30mm |
Surfaces | both surfaces polished |
Detailed video of CaF2 crystal rod lens
Focal Length of optical glass rod lens
There are two different definitions of focal length of a rod lens. The effective focal length, which is the distance between a plane through the center of the lens and the beam waist of an initially collimated input beam, is given by the equation f=nD/4(n-1)
Drawing of optical rod lenses
Optical Lenses Production workshop of VY Optics
