Customized High Quality Optical LiNbO3 wafer LT Window in Stock from China
Customized High Quality Optical LiNbO3 wafer LT Window in Stock from China
Item Number:X-P22L1T14701
Lithium Niobate (LiNbO3) is a well-developed crystalline material characterized by a high electromechanical coupling coefficient, a wide range of transparency, and excellent chemical and mechanical stability.Single side polishing/double side polishing are all available, cutting angle X/Y/Z etc.They can be used in a wide range of applications including telecommunications and sensing, surface acoustic devices, integrated optics, and novel wavelength generating and refracting elements.VY Optoelectronics Co.,Ltd. can customize various grades and sizes of LiNbO3 wafers according to your requirements.
- Material: LT, LN etc..
- Dimension: 76.20mm
- Thickness: 0.50mm
- Surface Accuracy: lambda/8
- Surface Quality: 20/10
- Tolerance: +/-0.01mm
- Parallelism: 30"
Performance of stoichiometric linbo3 wafers
Lithium Niobate (LN) is a ferroelectric material with excellent electro-optic, nonlinear, and piezoelectric properties. Lithium niobate crystals are important materials for optical waveguides, mobile phones, piezoelectric sensors, optical modulators and various other linear and non-linear optical applications.
Application of linbo3 crystal
Lithium Niobate (LiNbO3) applications include electro-optic modulator and Q-switch for Nd:YAG, Nd:YLF and Ti:Sapphire lasers as well as modulator for fiber optics.
We also supply "black" wafers free of pyroelectric discharge.
LiNbO₃ finds wide application in electro-optics, acousto-optics, nonlinear optics, waveguides, and fiber optic gyroscopes (FOGs). Attractive fundamental properties of lithium niobate include a wide transparency range, high electro-optic, and nonlinear optic coefficients, very high electromechanical coupling coefficients, and chemical and mechanical stability.
VY Optoelectronics Co.,Ltd.'s ability to process linbo3 wafer
Our abundance experience at growing and mass production for Optical grade Lithium Niobate. We are equipped with advanced facilities at Crystal growing, wafer lapping, polishing and checking, all finished products are passed at Testing of curie Temp and QC inspection.

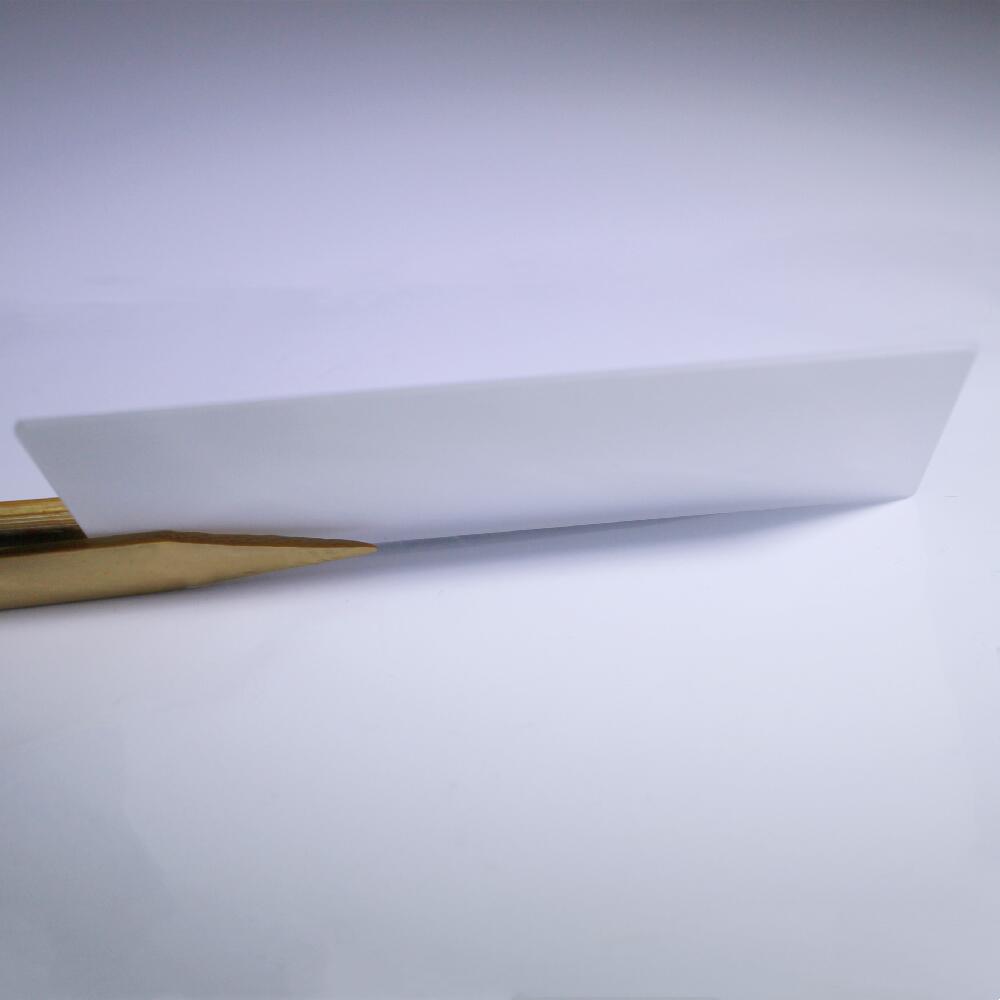

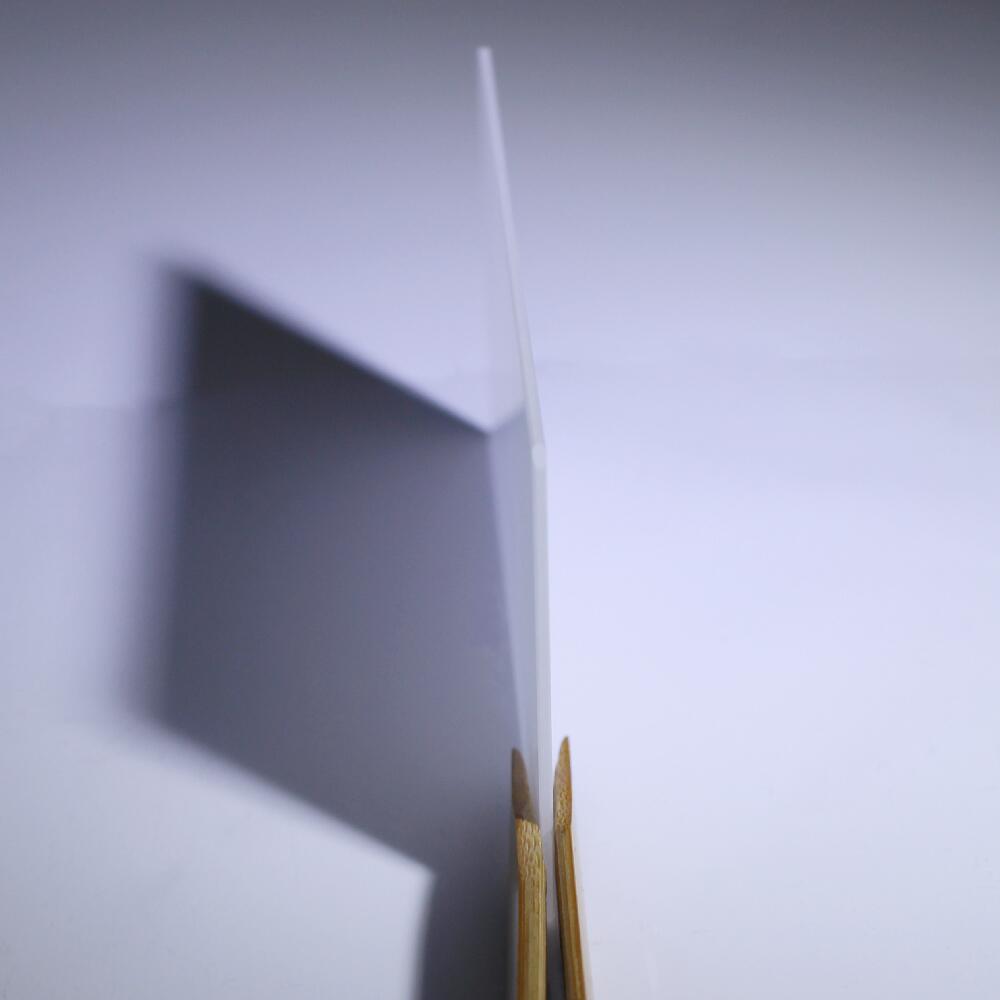

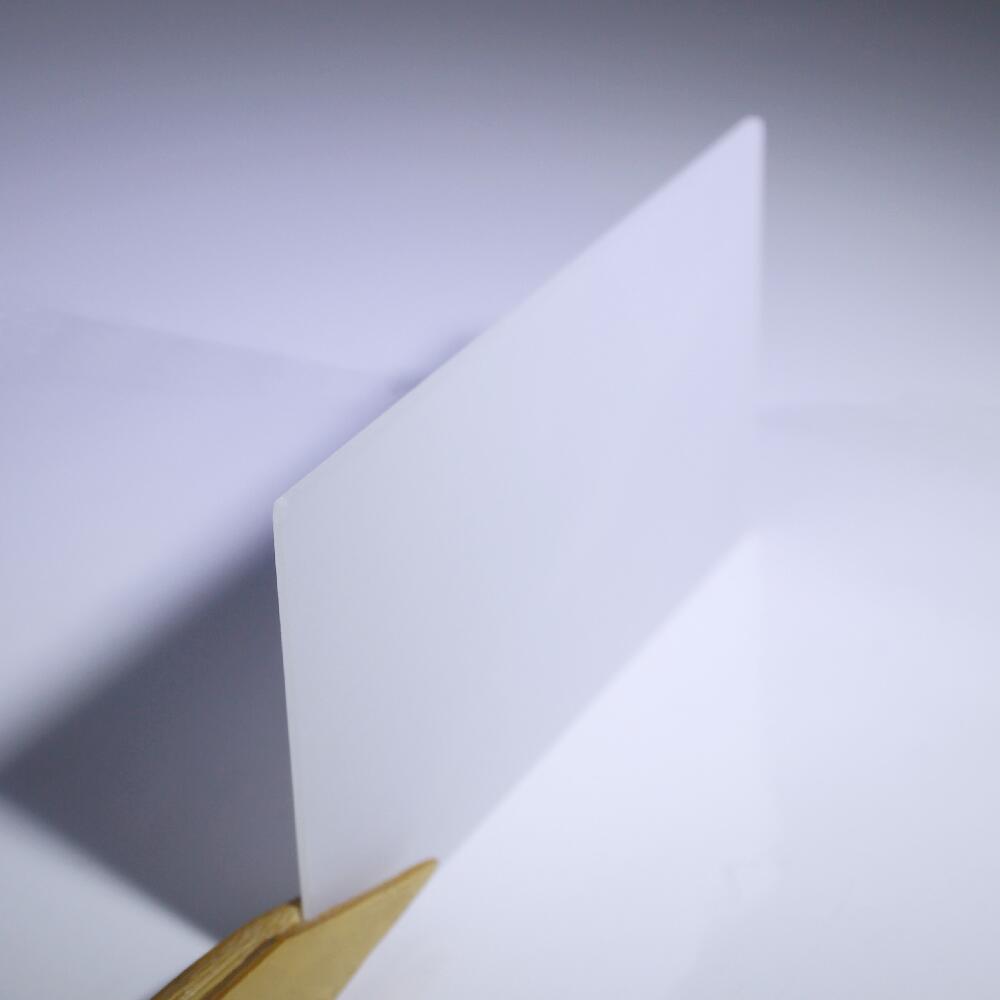

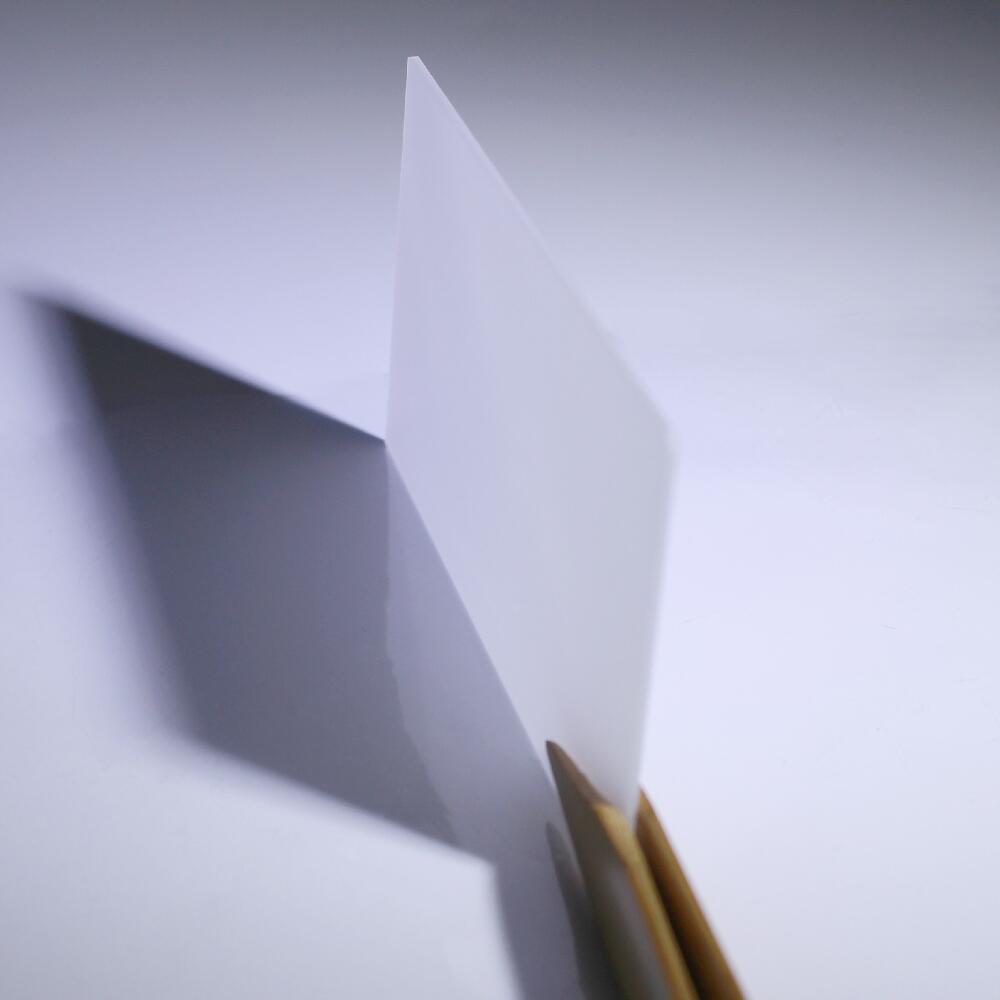

Picture display of linbo3 crystal window
Video of optical linbo3 lens
Specifications of linbo3 crystal wafer
| Specification | data |
| Length | 76mm |
| width | 40mm |
| thickness | 1mm |
| grade | SAW |
| cut | X |
People also ask
- What material is LiNbO3?
Lithium niobate (LiNbO 3) is a synthetic salt consisting of niobium, lithium, and oxygen. Its single crystals are an important material for optical waveguides, mobile phones, piezoelectric sensors, optical modulators and various other linear and non-linear optical applications.
- Is LiNbO3 a semiconductor?
LiNbO3 is a semiconductor material employed in the development of several technological devices and processes.
- What are the applications of LiNbO3?
Lithium Niobate (LiNbO3) applications include electro-optic modulator and Q-switch for Nd:YAG, Nd:YLF and Ti:Sapphire lasers as well as modulator for fiber optics.
- Is LiNbO3 a piezoelectric?
Lithium niobate (LiNbO3) is known for its high Curie temperature, making it an attractive candidate for high-temperature piezoelectric applications (>200 °C); however, the literature suffers from a paucity of reliable material properties data at high temperatures.
