What is a 10.6 um Focusing Objective Lens?
A 10.6 um focusing objective lens is a precision optical component designed to collect and focus light at a wavelength of 10.6 um. Its optical design can be optimized to provide accurate focusing, controlled aberration, and stable optical transmission.
How Does a Focusing Objective Lens Work?
A focusing objective lens uses a carefully designed combination of optical surfaces to converge incoming light toward a defined focal position. The focal length, working distance, aperture, lens configuration, and surface accuracy all affect the final focusing performance.
Specifications of 10.6 um Focusing Objective Lens
| Input Beam Diameter | 10-25 mm (Customizable) |
| Compatible Laser Sources | Continuous Wave (CW) / Pulsed CO2 Lasers |
| Available Focal Lengths | 50 mm / 75 mm / 100 mm / 127 mm (Selectable) |
| Focused Spot Size | Dependent on Input Beam Diameter and Focal Length; Typical: 50-200 um |
| Cooling Options | Passive Air Cooling / Air-Cooled Lens Barrel / Water-Cooled Mount (Optional) |

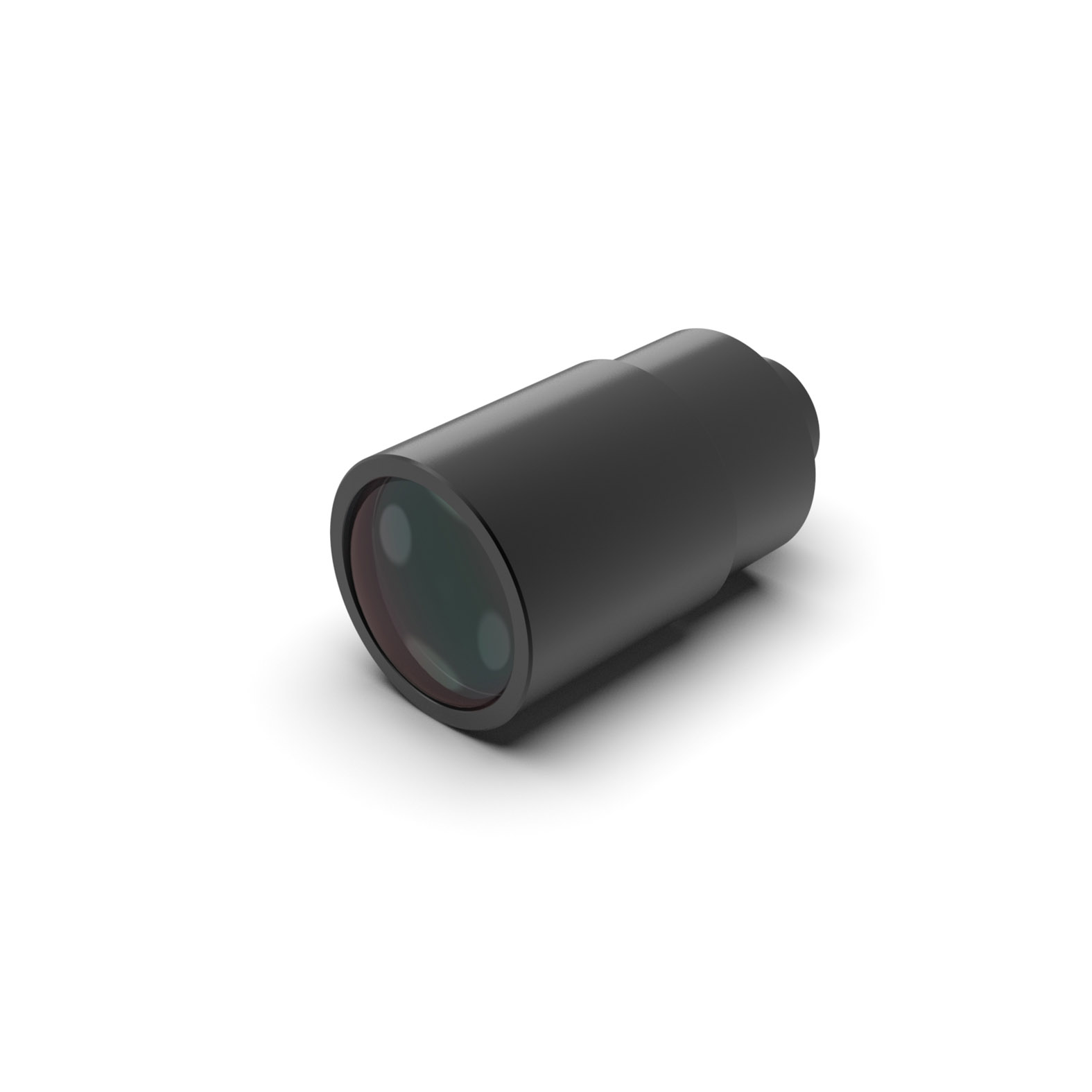

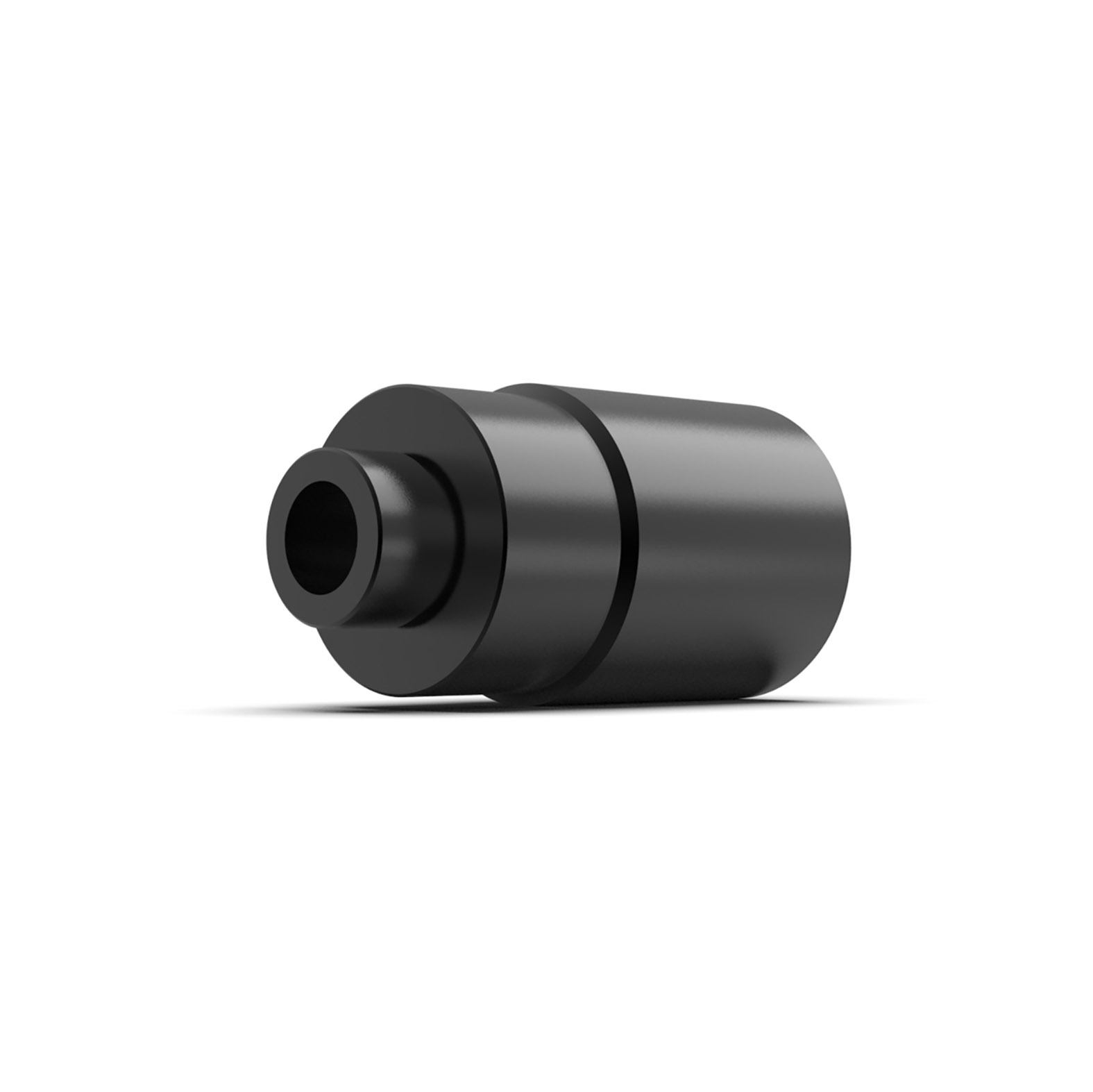

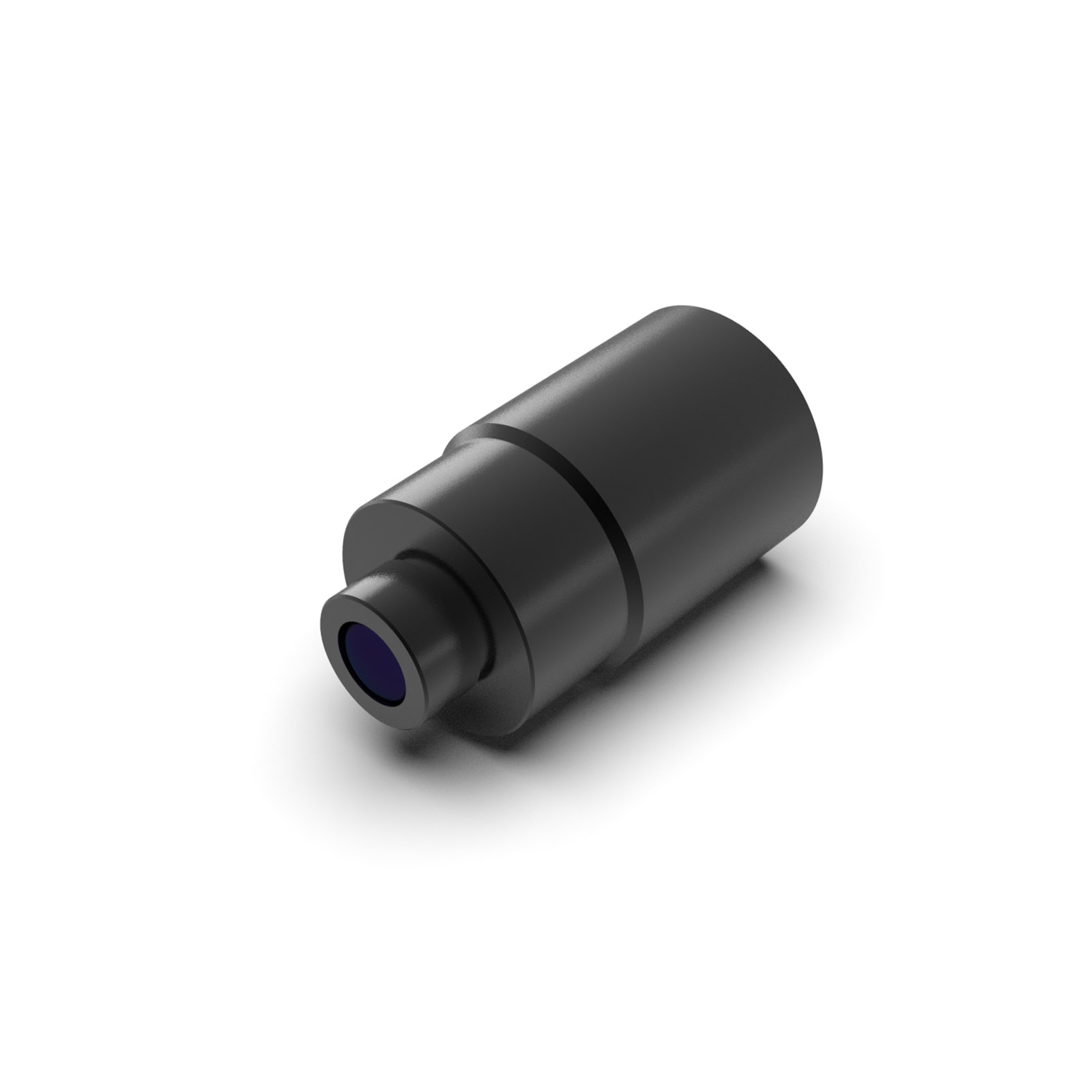

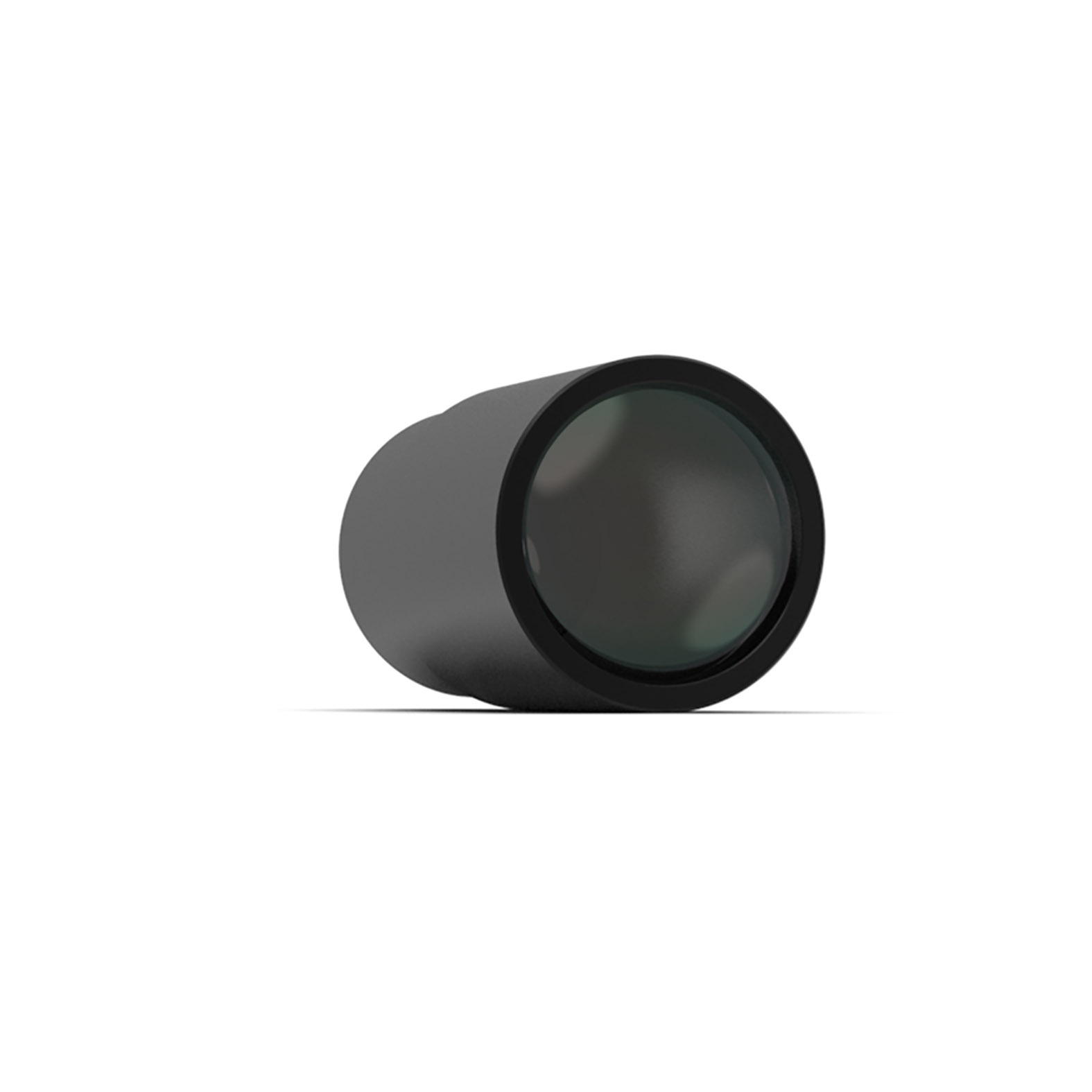

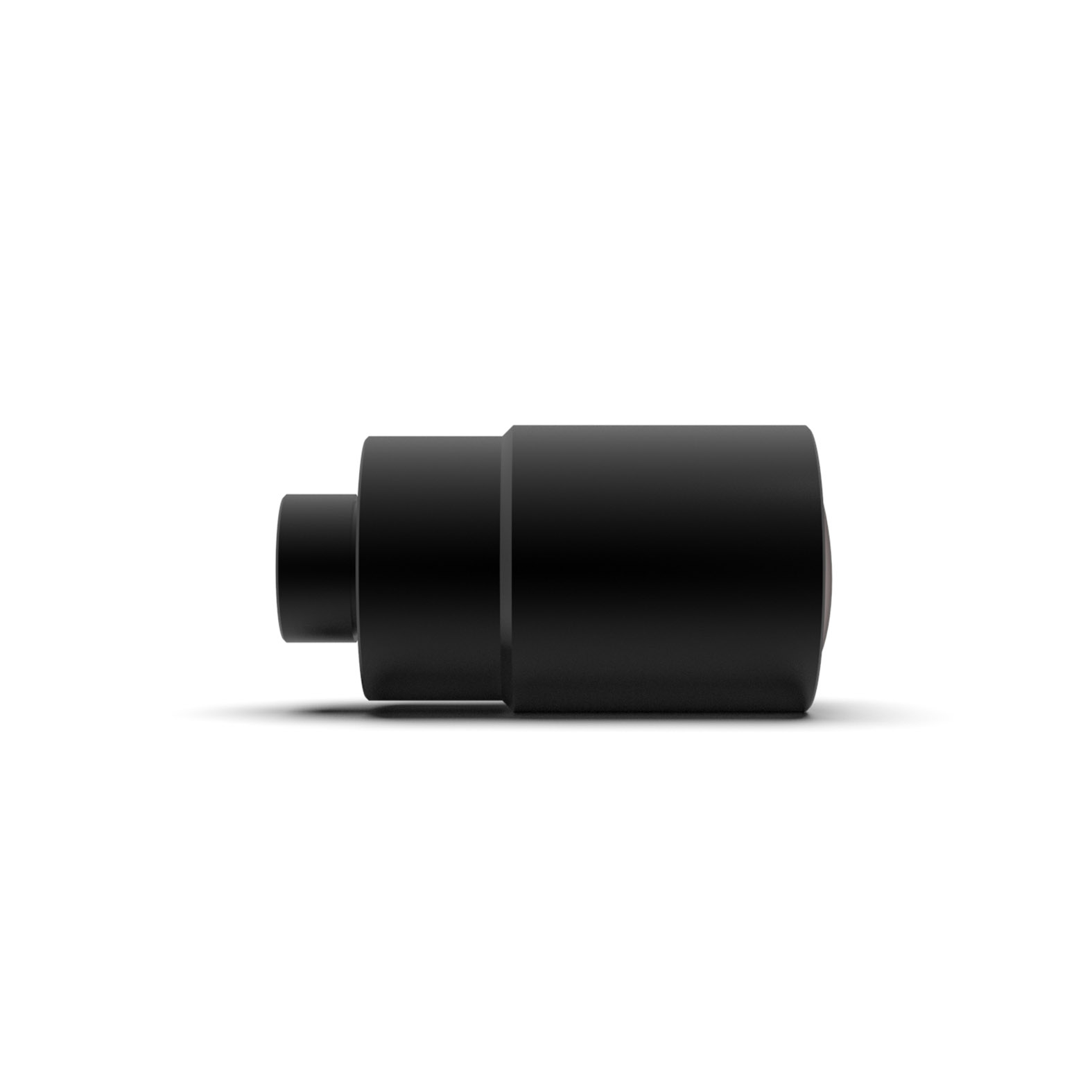

Picture of 10.6 um CO2 Laser Cavity Machining Focusing Objective Lens
Video of Objective Lens
Key Features
- Optimized for 10.6 um wavelength
- Accurate beam focusing
- Precision optical configuration
- Controlled optical aberration
- High quality optical surfaces
- Stable optical transmission
- Customized focal length options
- Customized working distance options
Optical Performance
The focusing performance of the objective lens depends on the optical material, lens configuration, focal length, aperture, surface accuracy, and coating characteristics. Each parameter can be optimized to achieve the required optical performance at the specified wavelength.
Applications
- Optical focusing systems
- Beam processing equipment
- Precision optical instruments
- Optical measurement equipment
- Laboratory optical systems
- Industrial optical equipment
- Customized optical assemblies
Customization Options
- Focal length
- Working distance
- Clear aperture
- Lens diameter
- Optical material
- Surface quality
- Optical coating
- Mechanical interface
- Overall dimensions
Manufacturing of 10.6 um Focusing Objective Lenses
We provide precision manufacturing of focusing objective lenses according to optical drawings and technical specifications. Optical material selection, lens fabrication, grinding, polishing, coating, assembly, and inspection can be controlled according to the required optical and mechanical parameters.
People Also Ask (FAQs)
Can the working distance be customized?
Yes. Working distance can be customized together with focal length, aperture, lens dimensions, and other optical parameters.
Why Choose Our Focusing Objective Lenses?
- Precision optical design
- Accurate focusing performance
- High quality optical processing
- Customized optical parameters
- Precision surface finishing
- Customized optical coatings
- Prototype and production support
