What is a Dove Prism?
A Dove prism is a reflective optical prism designed for image inversion and image rotation applications. When the prism is rotated around its optical axis, the transmitted image rotates at twice the angle of the prism rotation, making it highly useful in precision optical systems.
Why Use Optical Dove Prisms?
Dove prisms provide compact image manipulation capabilities without requiring complex optical assemblies. They are widely used in laser optics, machine vision systems, interferometers, optical inspection equipment, and scientific research instruments.

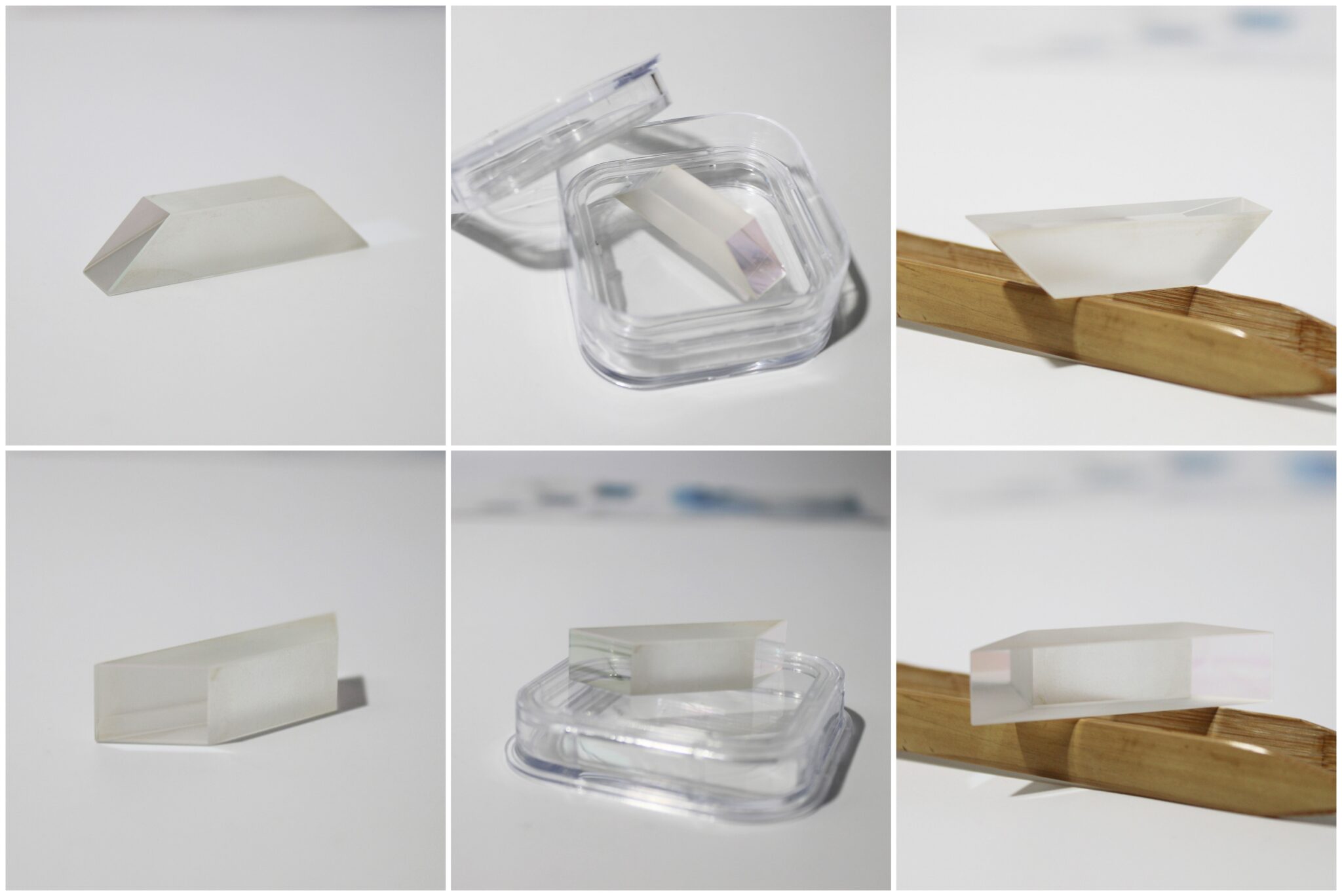

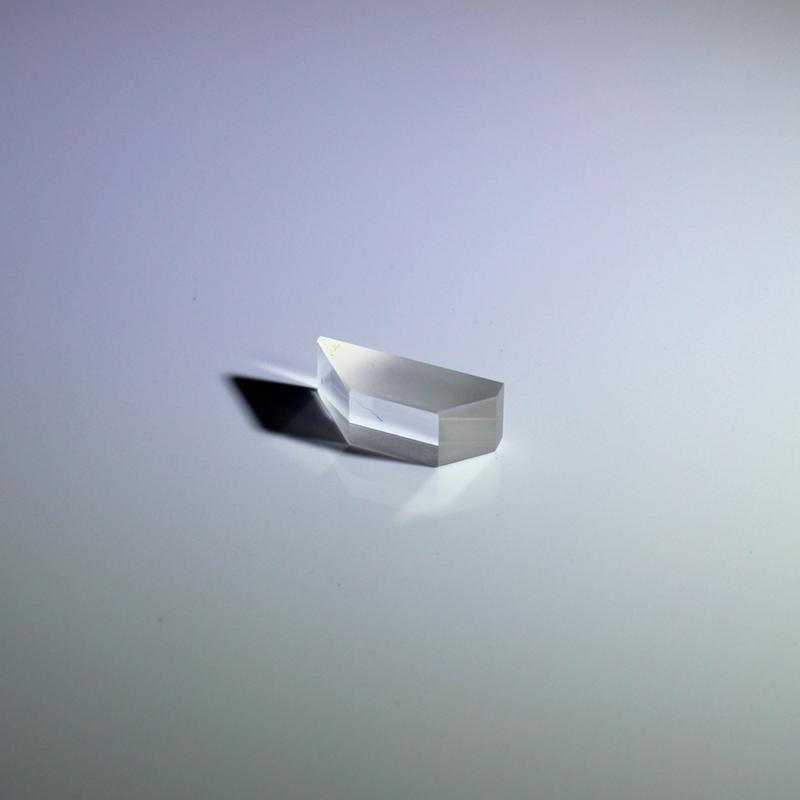

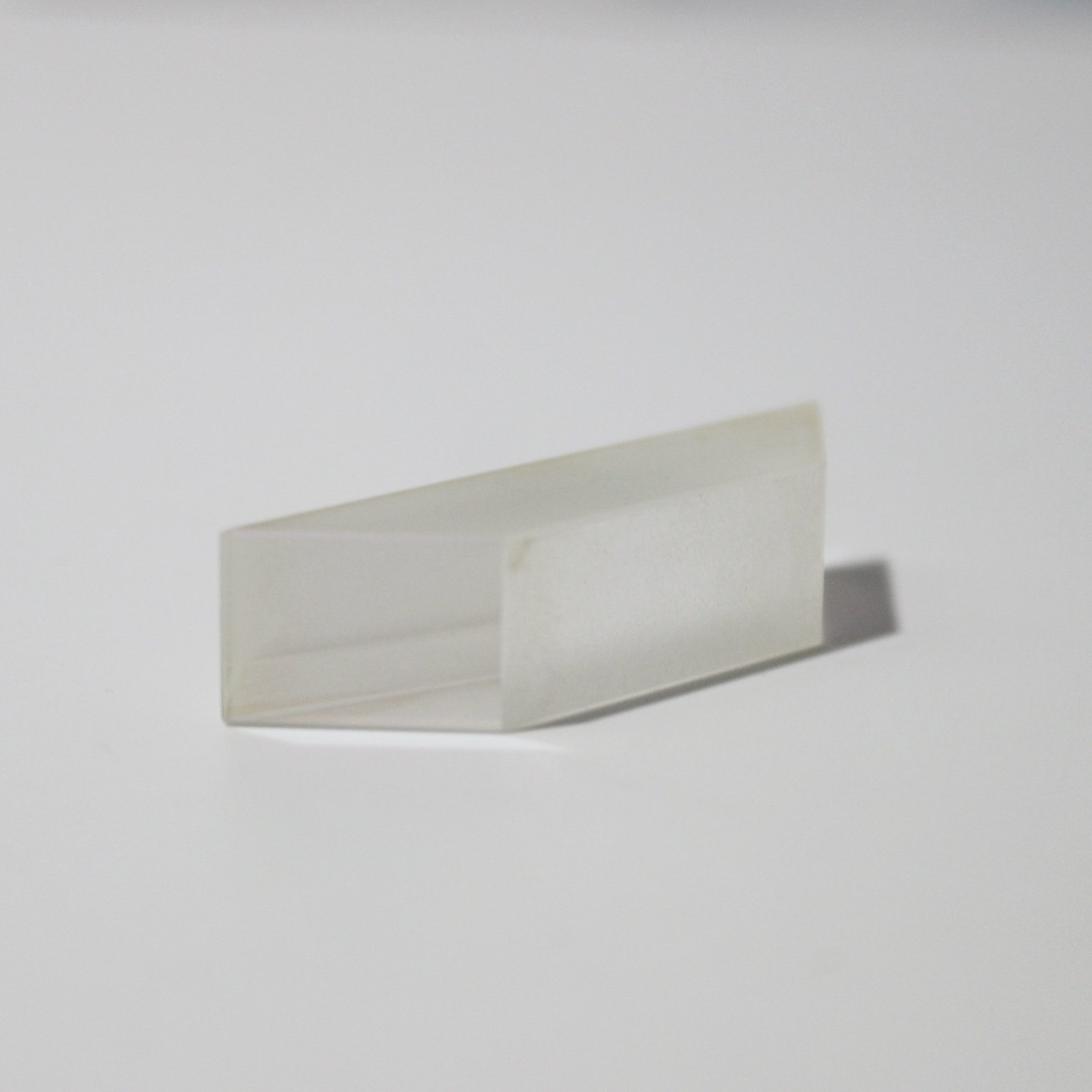

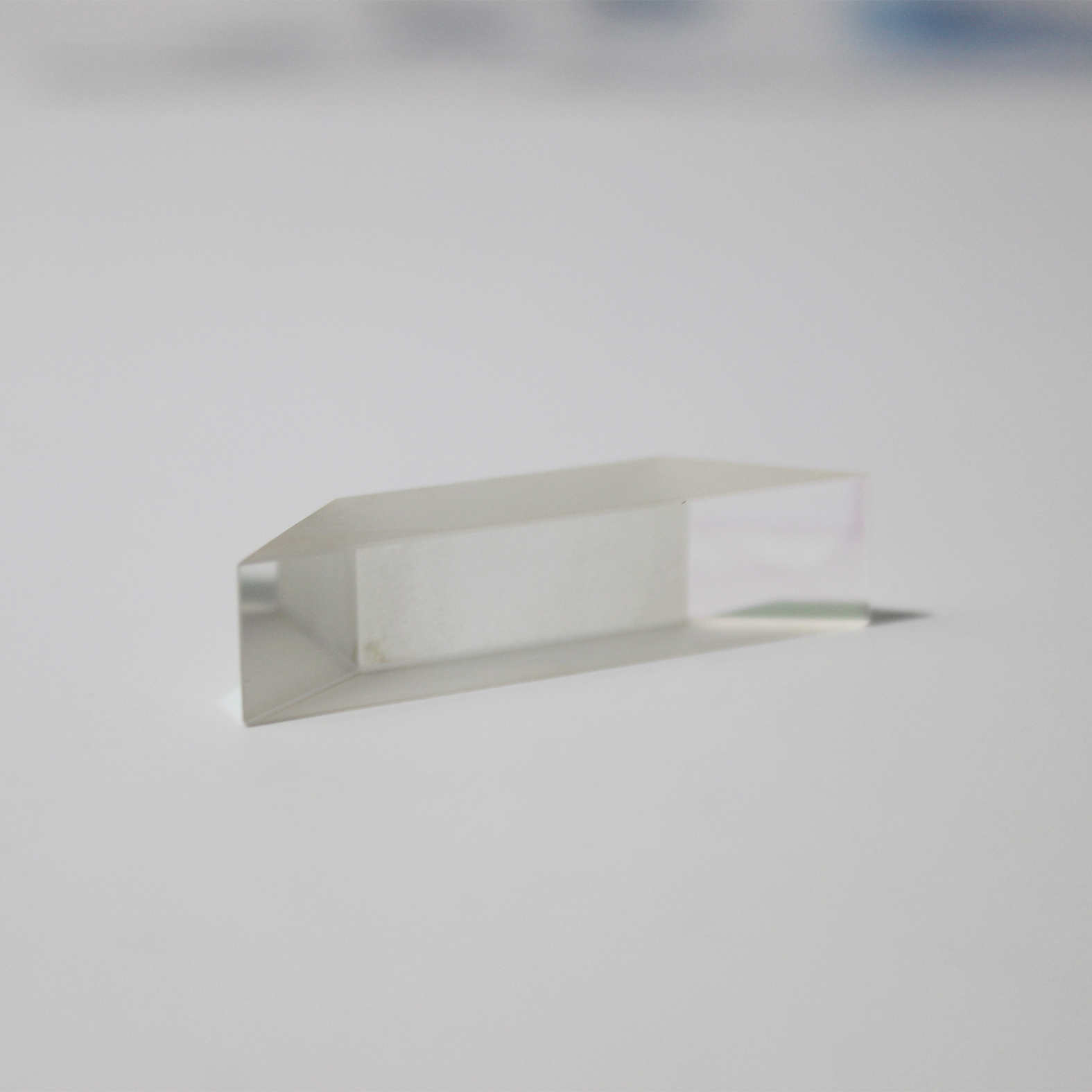

Picture of Optical Dove Prisms
Video of Prism
Key Features of Optical Dove Prisms
- Accurate image inversion capability
- Precise image rotation performance
- Compact optical system integration
- Excellent optical transmission efficiency
- Precision polished optical surfaces
- Custom sizes and coatings available
Applications of Dove Prism Optics
- Laser beam steering systems
- Machine vision equipment
- Optical inspection systems
- Interferometers and photonics devices
- Scientific research instruments
- Industrial optical assemblies
Advantages of Precision Dove Prism Components
- Reliable image rotation performance
- High optical accuracy
- Compact and lightweight design
- Stable optical characteristics
- Suitable for OEM optical projects
People Also Ask (FAQs)
What materials are available for Dove prisms?
Common materials include BK7 optical glass, fused silica, sapphire, and other specialty optical materials.
What industries use Dove prisms?
Dove prisms are widely used in laser systems, machine vision, metrology, scientific research, and industrial optical equipment.
Customization Options
- Custom prism dimensions
- Precision optical polishing
- AR and custom optical coatings
- Tight tolerance manufacturing
- OEM and volume production support
- Custom inspection and packaging solutions
