What Is a Focus Adjustable Inner Wall Inspection Lens?
A focus adjustable inner wall inspection lens is an optical lens designed to capture images of internal surfaces inside tubes, bores, and cylindrical components. Its adjustable focus function allows the imaging setup to be adapted to different object distances.
Focus Adjustable Inner Wall Inspection Lens Specifications
| Item | Parameter |
| Effective Focal Length | -2.212 mm |
| Working F-Number | F/2.8 |
| Image-side NA | 0.179 |
| Maximum Full Field of View | Approx. 78° |
| Design Wavelength | 486/588/656 nm |
| Entrance Pupil Diameter | 0.81 mm |

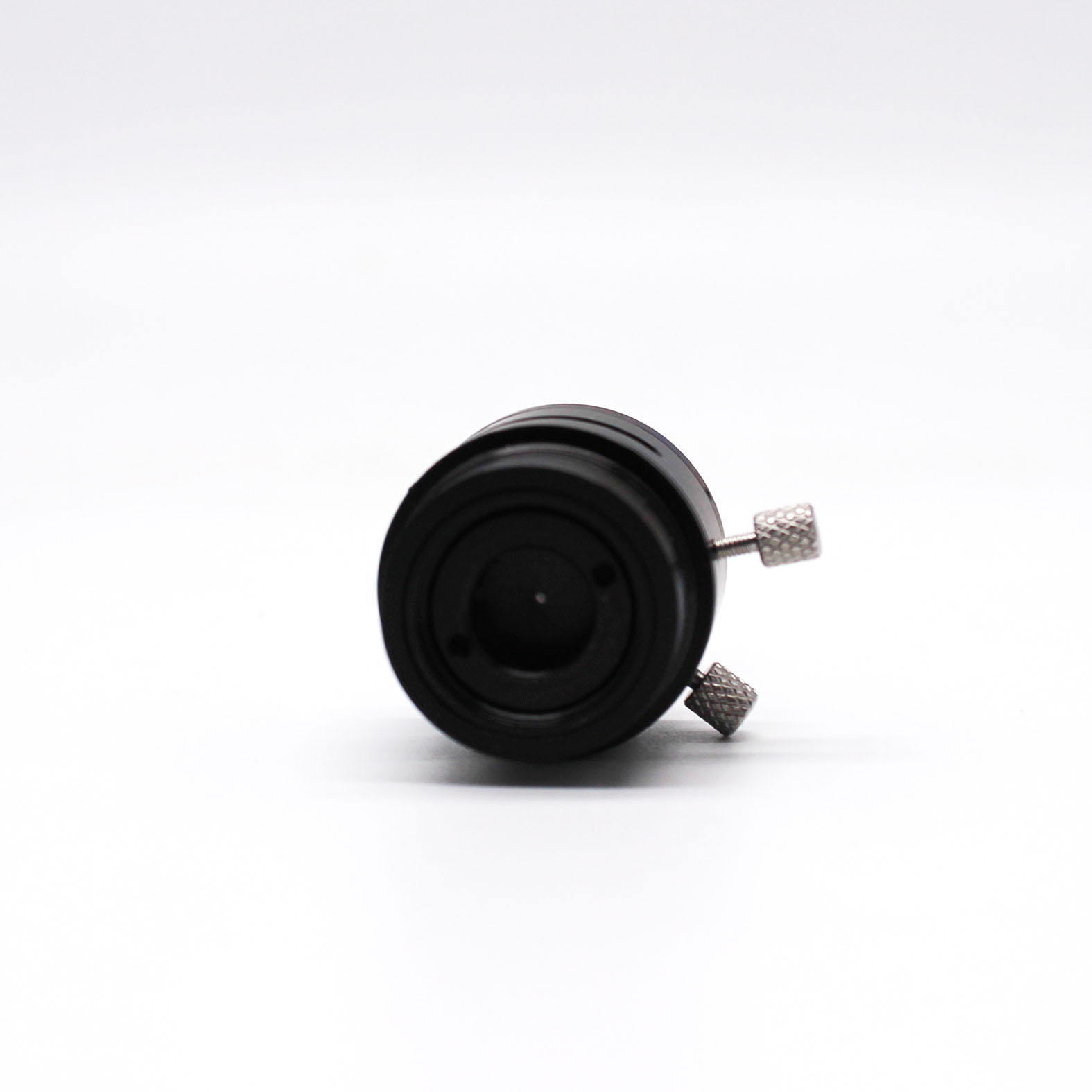

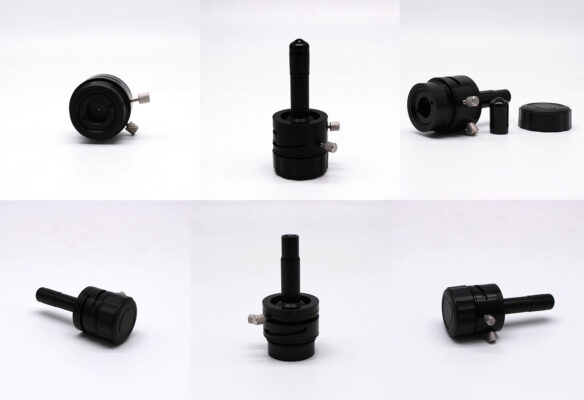

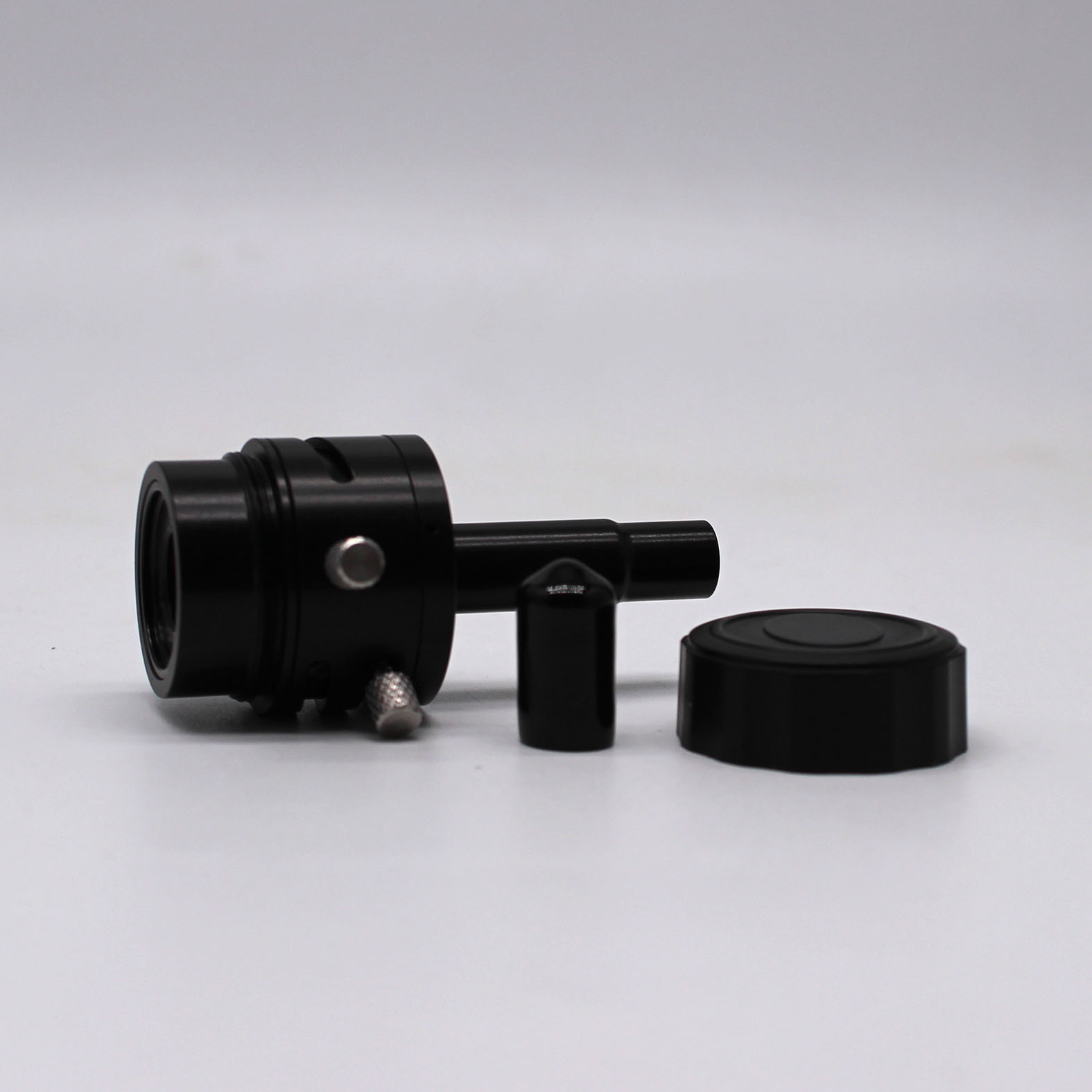

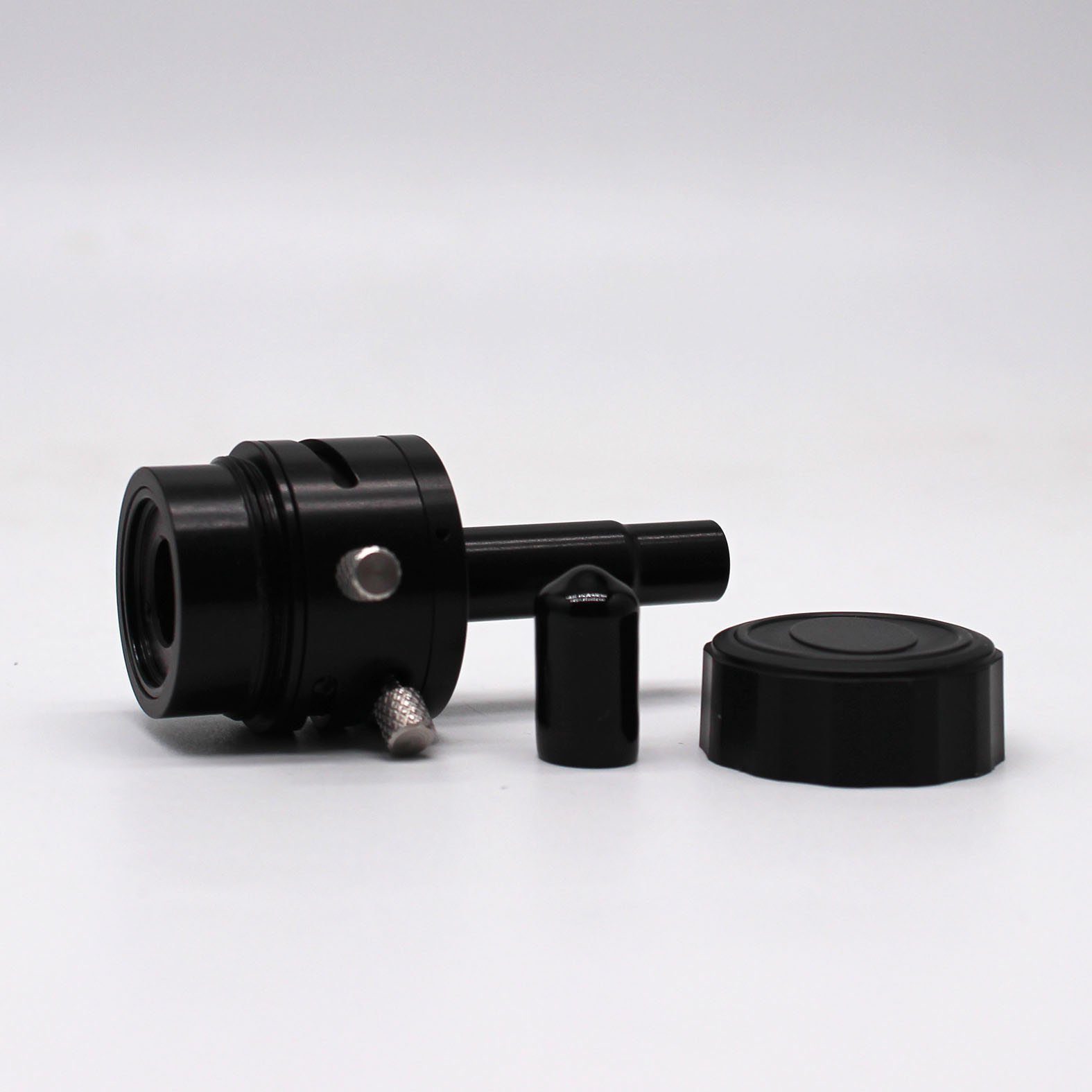

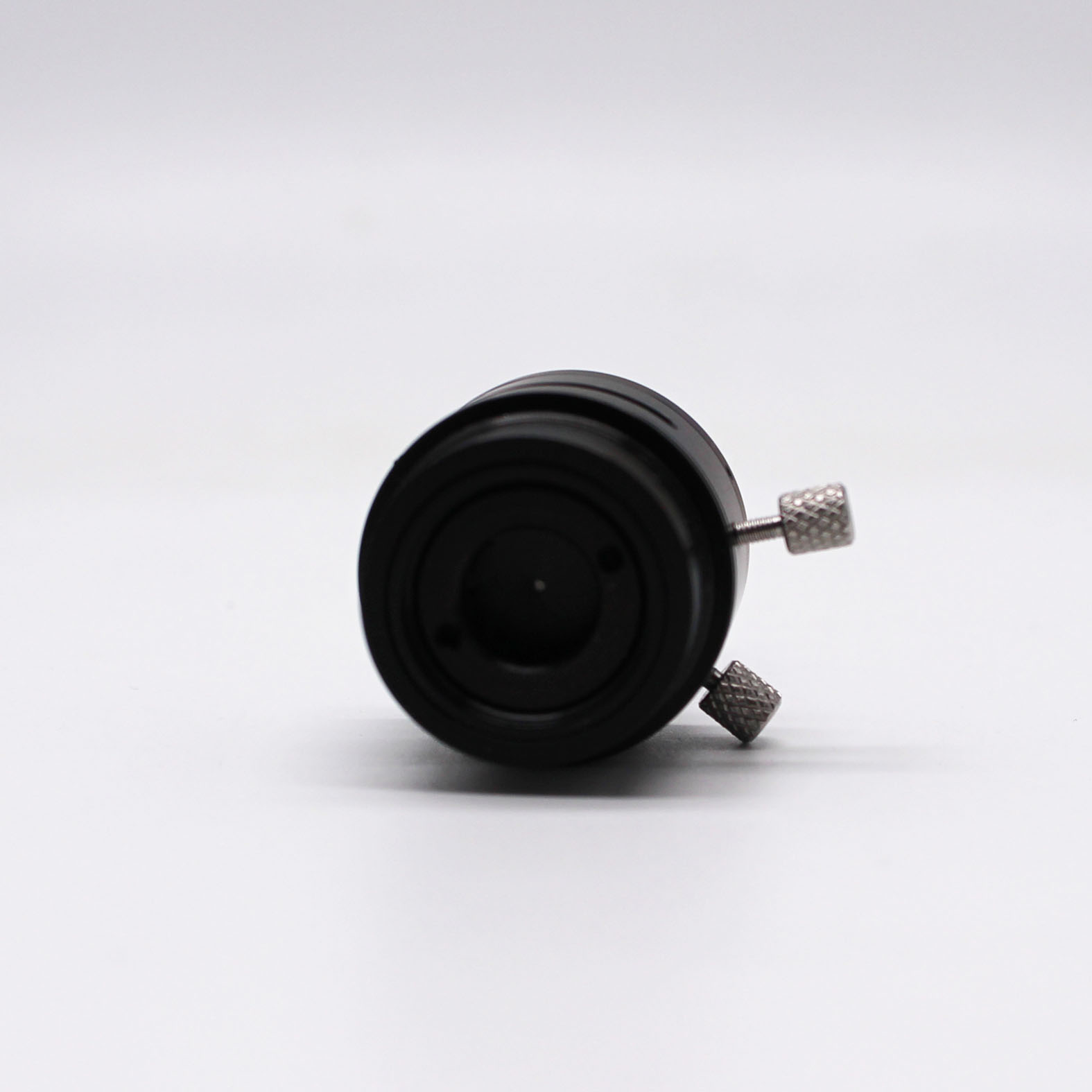

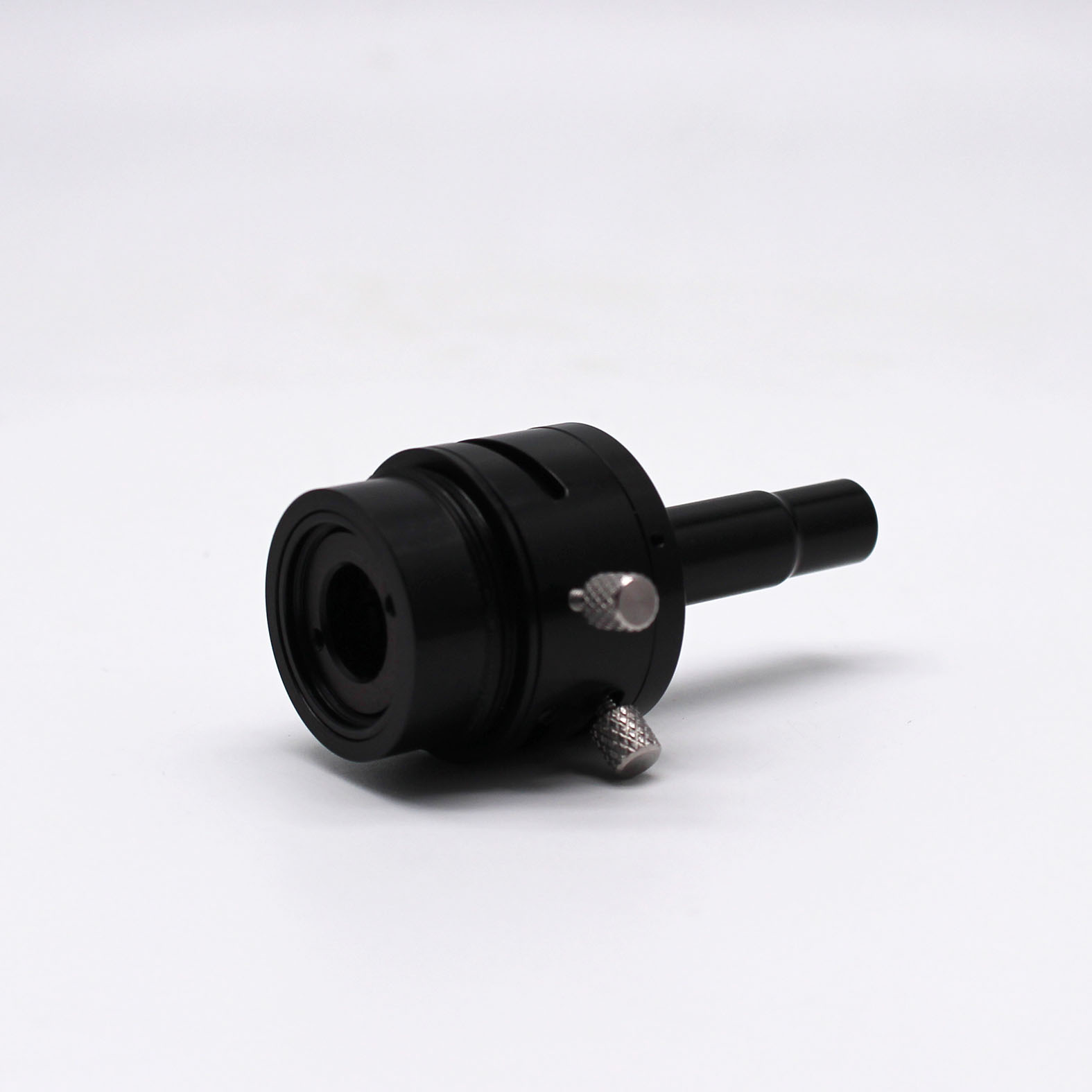

Picture of Inner Wall Inspection Lens
Video of Inspection Lens
Key Features of the Adjustable Focus Inspection Lens
Adjustable Focus for Flexible Inspection
The adjustable focus function helps users bring internal surfaces into focus under suitable inspection conditions. Therefore, the lens can support inspection setups where the object distance or component dimensions vary within its designed operating range.
Designed for Internal Surface Imaging
The optical configuration is intended for viewing surfaces inside tubes, bores, and cylindrical parts. The actual visible area depends on the lens design, bore geometry, illumination, and camera position.
Applications of an Inner Wall Inspection Lens
- Tube inspection: Imaging the internal surfaces of compatible tubes.
- Bore inspection: Visual inspection of internal cylindrical surfaces.
- Machined component inspection: Imaging internal features in suitable manufactured parts.
- Industrial quality inspection: Evaluating visible internal surface conditions.
How to Choose the Right Inner Wall Inspection Lens
- Minimum internal diameter of the tube or bore.
- Required working distance and focus adjustment range.
- Desired field of view and image coverage.
- Camera sensor size, resolution, and mounting interface.
- Illumination conditions and surface reflectivity.
- Available installation space and lens dimensions.
Request a Quote for a Focus Adjustable Inspection Lens
VY Optics provides optical component manufacturing and supports the review of lens requirements for different imaging systems. Product suitability depends on the inspection geometry, optical parameters, and camera interface.
Frequently Asked Questions
Can the lens be connected to an existing camera?
Compatibility depends on the camera interface, sensor dimensions, optical layout, and mechanical mounting. Please share the camera model or interface specifications before ordering.
How can I get a quotation?
Contact VY Optics with your required specifications, drawings, or application details. Our team can review the information and discuss suitable lens options and pricing.
Why Choose VY Optics?
VY Optics provides optical components, lens manufacturing, and support for optical assembly requirements. We can review technical drawings and imaging parameters to help assess the suitability of an inner wall inspection lens for your project.
Contact VY Optics to discuss your focus adjustable inner wall inspection lens requirements and request a quotation.
