What is a Dove Prism?
A Dove prism is a reflective optical prism used for image inversion and image rotation applications.
When rotated, the prism rotates the transmitted image at twice the prism rotation angle.

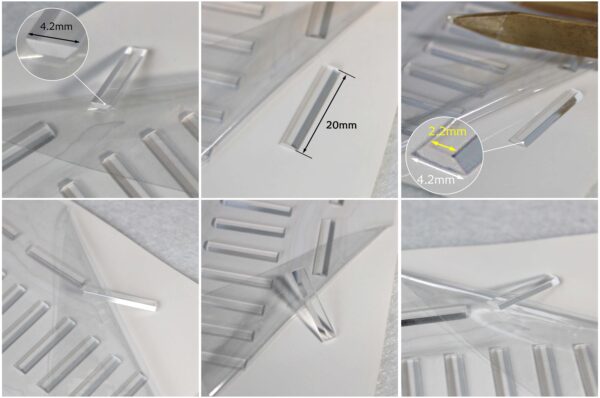

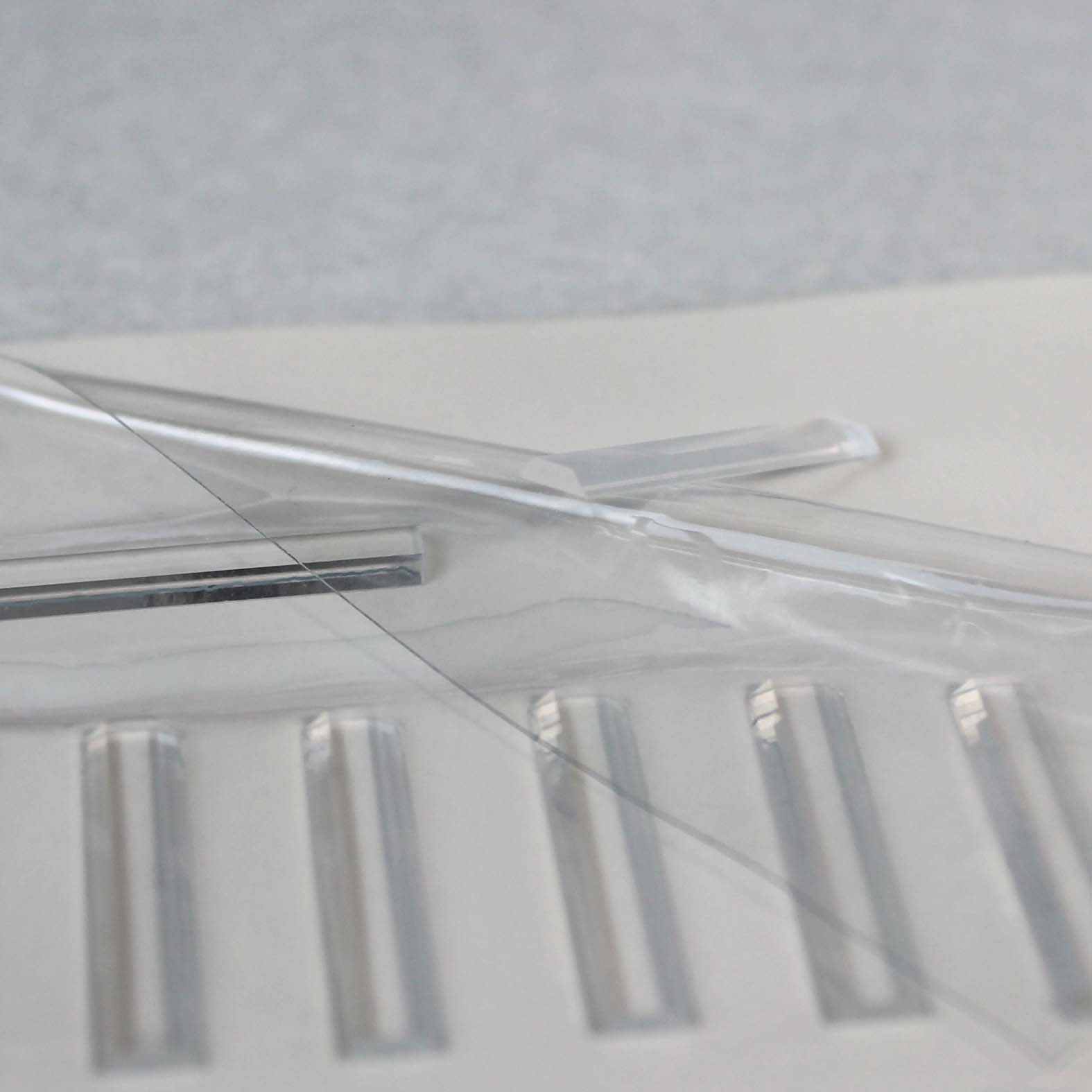

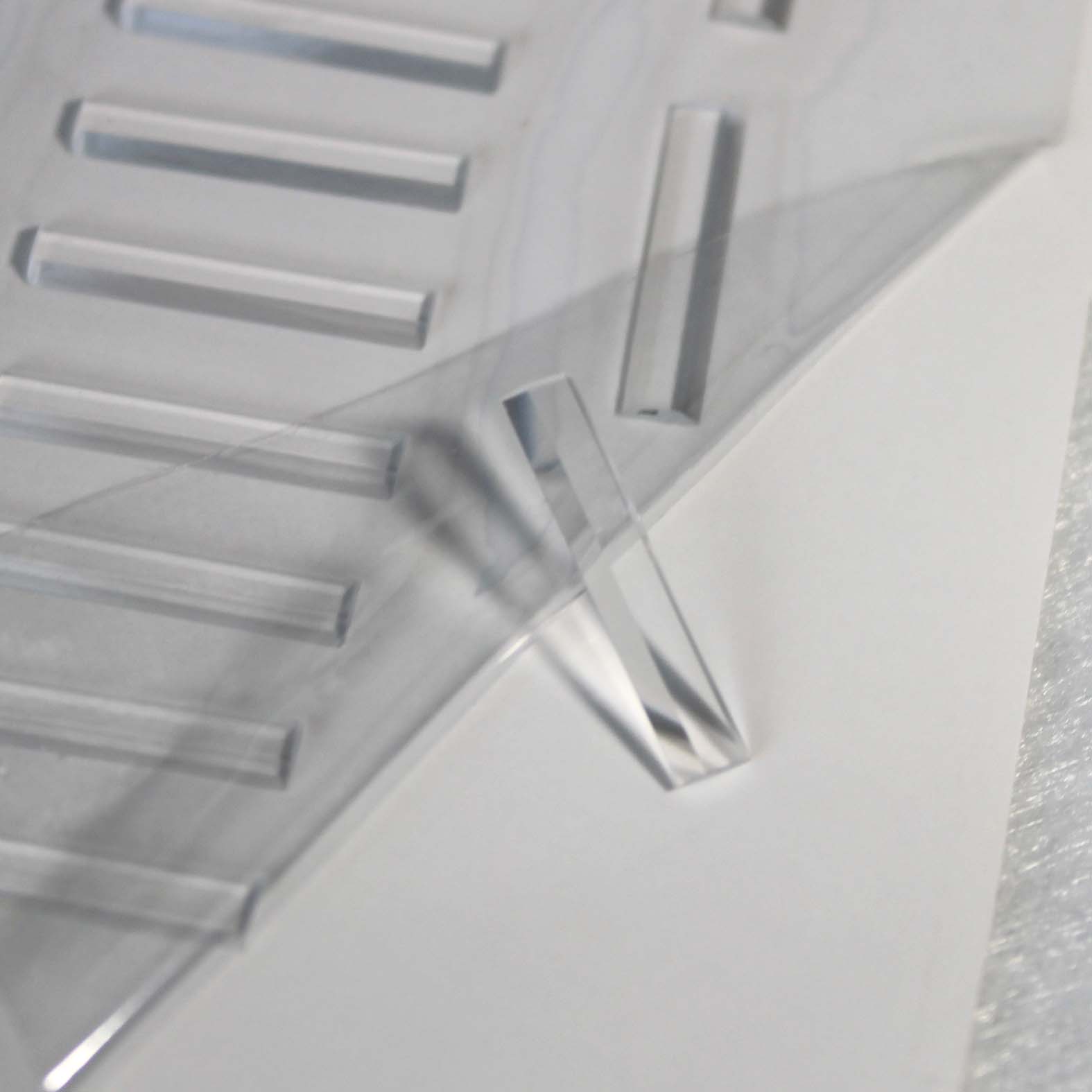

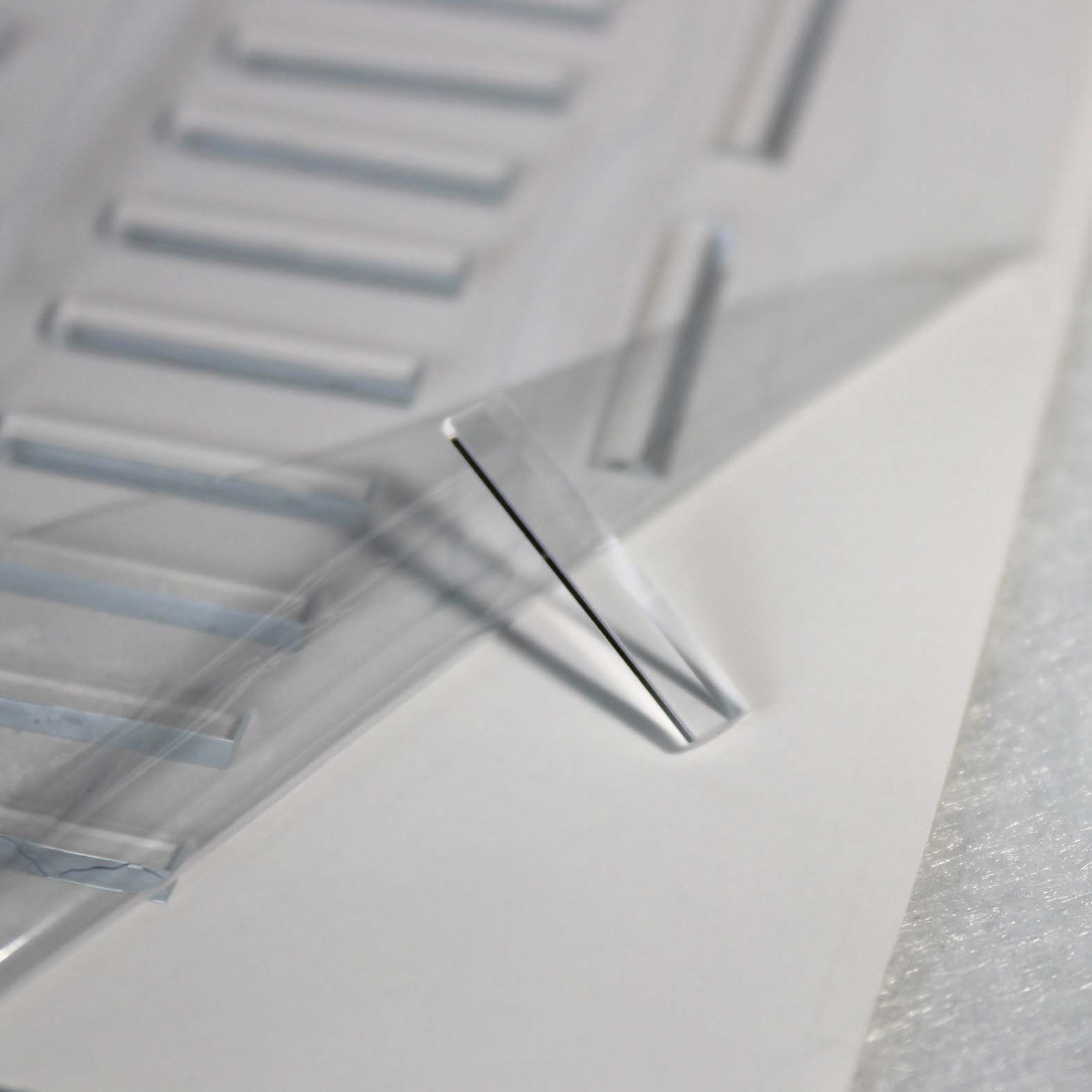

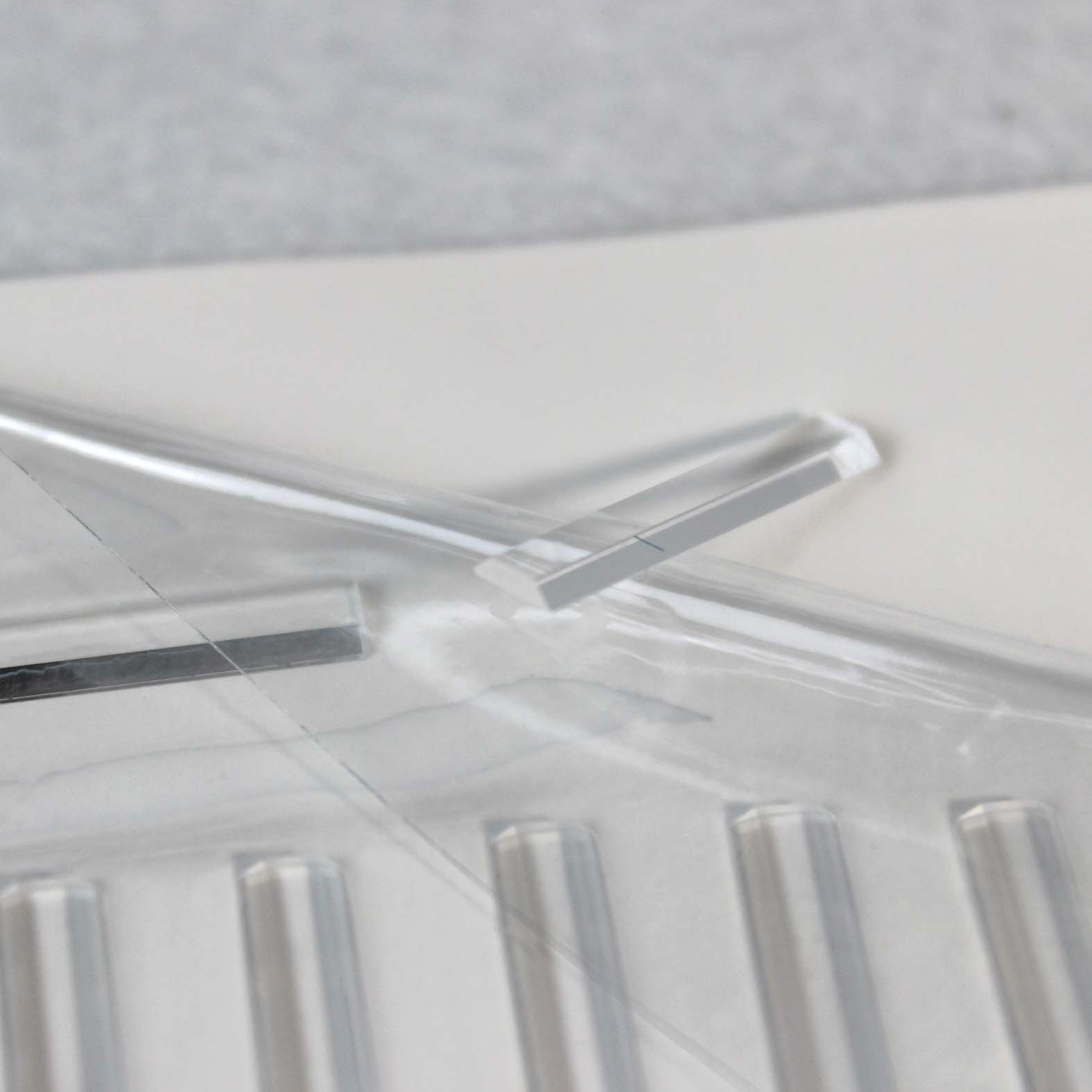

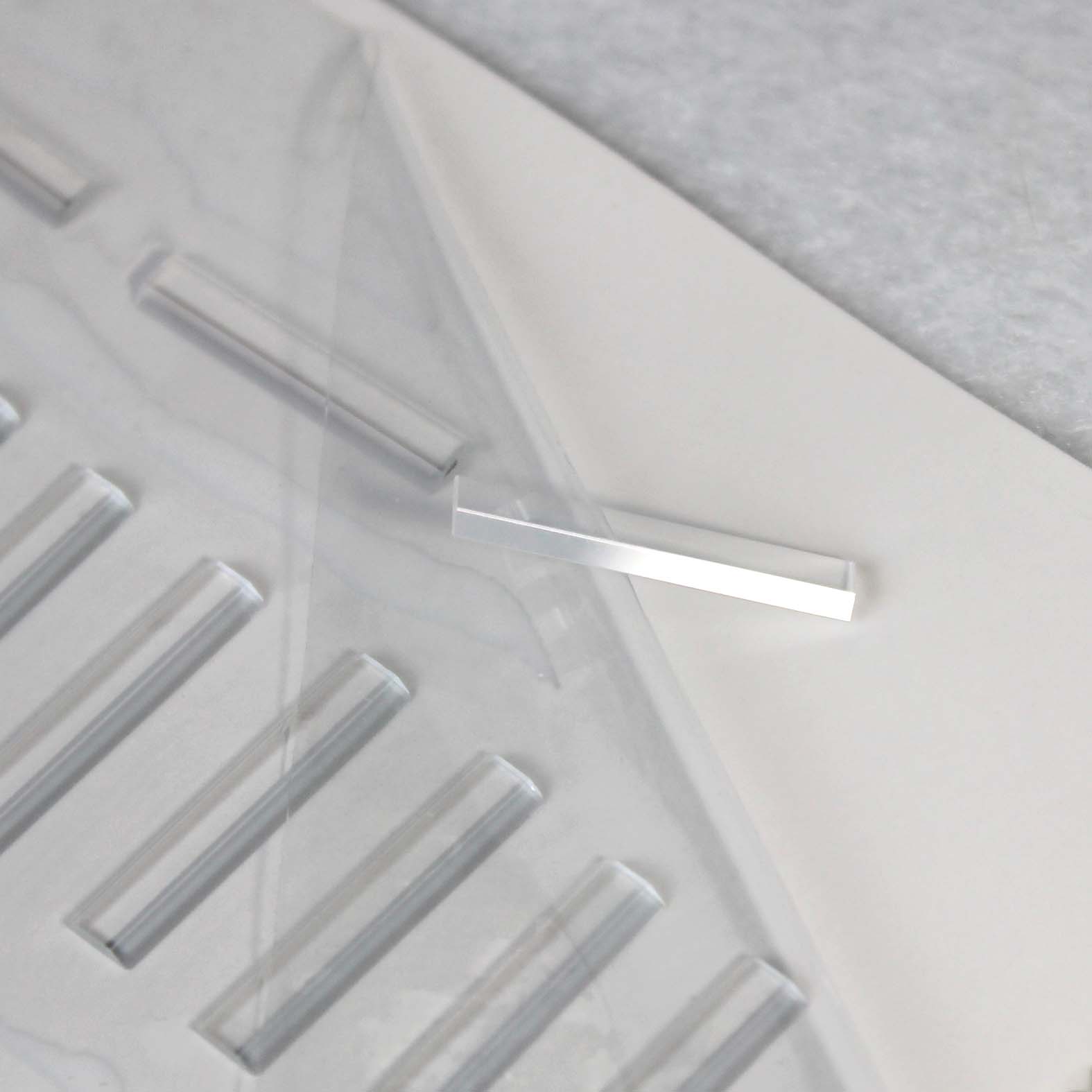

Picture of Optical Dove Prisms
Video of Dove Prism
Key Features of Optical Dove Prisms
- Precision image inversion capability
- Stable optical image rotation
- Compact optical design
- Excellent surface polishing quality
- High optical transmission efficiency
- Custom coatings and dimensions available
Applications of Precision Dove Prisms
- Laser beam steering systems
- Optical imaging equipment
- Interferometers and photonics
- Scientific optical instruments
- Machine vision systems
- Industrial optical applications
Advantages of Optical Dove Prism Components
- Accurate image rotation performance
- Reliable optical stability
- Compact and lightweight structure
- Suitable for precision optical systems
- Available for OEM optical projects
People Also Ask (FAQs)
How does a Dove prism work?
A Dove prism reflects light internally
and rotates the transmitted image when the prism itself rotates.
Can Dove prisms be customized?
Yes. Dove prisms can be customized in dimensions,
coatings, materials, and optical tolerances.
Customization Options
- Custom prism dimensions
- Precision optical polishing
- AR and custom optical coatings
- OEM and volume production support
- Custom inspection and packaging solutions
