Technical Specifications of this Optical Dome Lens
| Parameter | Specification |
|---|---|
| Material | Optical Grade BK7 Glass |
| Lens Type | Dome Lens / Optical Element |
| Diameter | 95.5 mm |
| Thickness | 18 mm |
| Surface Quality | High precision optical finish |
| Light Transmission | Excellent clarity for optical applications |
| Refractive Index | ~1.516 at 587.6 nm |
| Application | Imaging systems, laser optics, optical sensors, precision research |
| Durability | Reliable in demanding optical environments |

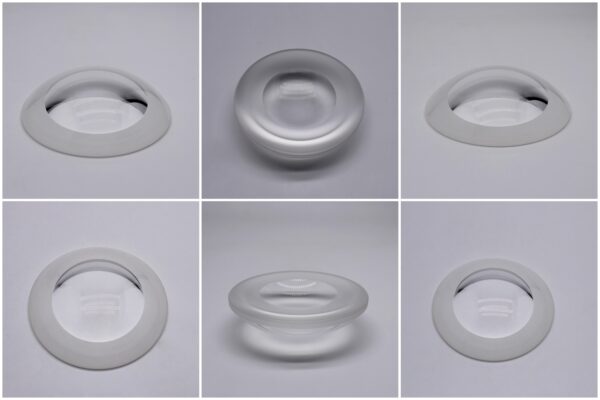

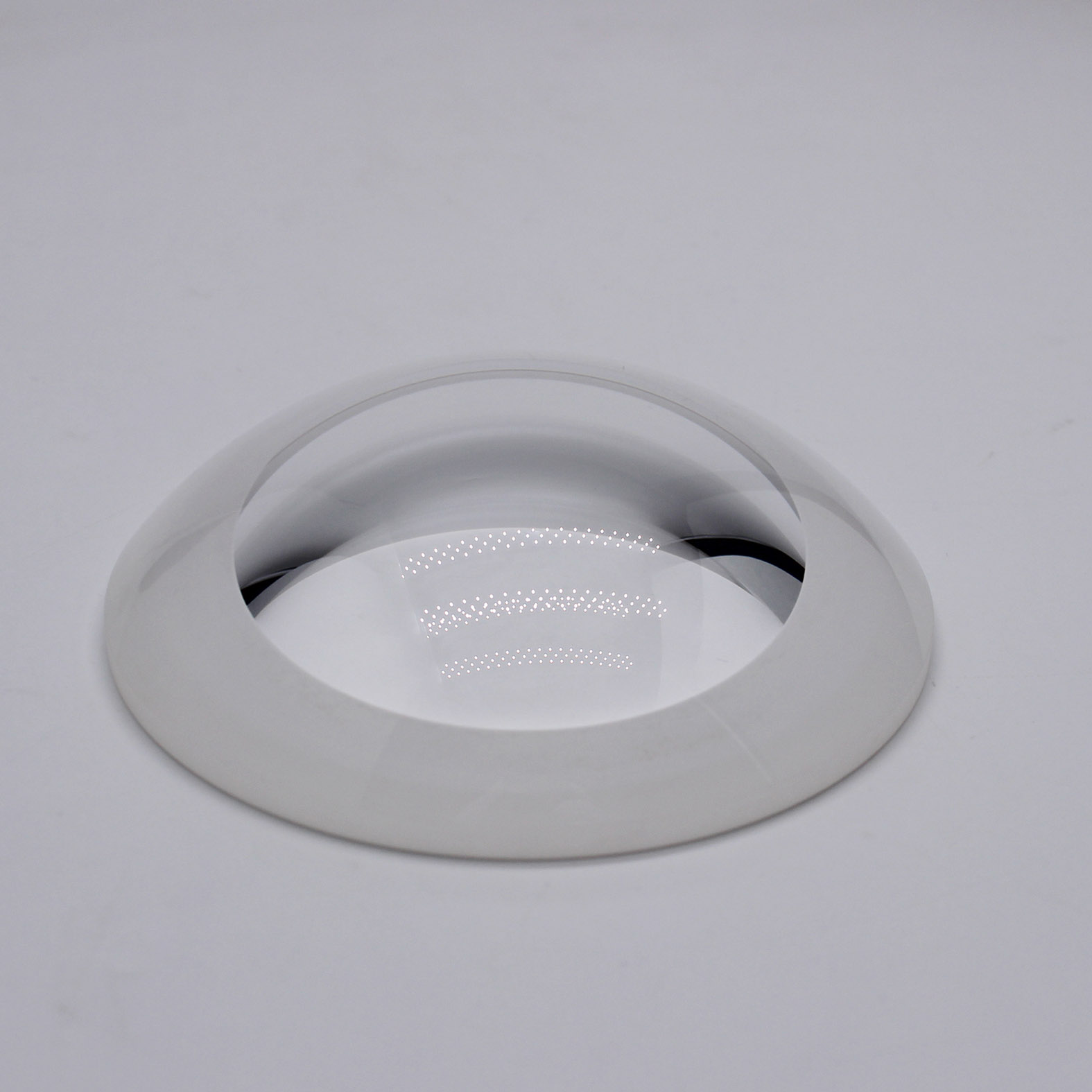

Picture of BK7 Glass Dome Lens
Detailed video of BK7 Glass Dome Lenses
Production Factory of VY Optoelectronics Co.,Ltd.
Key Features of this BK7 Optical Element
- Made from high-purity BK7 optical glass for superior light transmission
- Dome shape reduces optical aberration for precision lens applications
- Polished surfaces ensure minimal light scattering in BK7 lens components
- Durable and stable, suitable for laboratory and industrial optical setups
- Compatible with laser systems, optical detectors, and other precision optical elements
Applications of Optical Dome Lenses
- Imaging Equipment: Cameras, microscopes, and scientific imaging devices
- Laser & Beam Systems: Beam shaping, collimation, and laser optics experiments
- Optical Sensors & Detectors: Photodiodes, light sensors, and sensor modules
- Research & Development: Laboratory experiments using BK7 optical elements and precision lenses
Advantages of a High-Precision Optical Dome Lens
- High transmission efficiency with minimal light loss in BK7 lens components
- Low optical distortion for precise measurement using optical dome lenses
- Reliable mechanical stability in demanding environments for precision optical elements
- Customizable for specific optical systems, including diameter and thickness adjustments
- Improves accuracy and efficiency of optical experiments and imaging projects
People Also Ask
Q1: What is the difference between a dome lens and a flat optical lens?
A: A dome lens or optical dome lens has a curved surface that reduces light refraction and improves imaging accuracy. Flat lenses may produce more distortion in precision setups.
Q2: Why is BK7 glass preferred for optical components?
A: BK7 glass provides high clarity, excellent light transmission, and low dispersion, making it ideal for precision optical lenses, dome lenses, and sensor applications.
Q3: Can this BK7 lens component be used in laser systems?
A: Yes, BK7 optical elements are compatible with most laser wavelengths, offering stable performance and minimal distortion.
Q4: Are there custom sizes for optical dome lenses?
A: This lens is 95.5 mm in diameter and 18 mm thick, but custom BK7 lens components can be made according to your optical design needs.
Q5: How should I maintain a BK7 dome lens?
A: Use soft, lint-free cloths and optical-grade cleaning solutions. Avoid abrasive materials to prevent scratching the precision optical lens surface.
