What Is a Linear Polarizer?
A linear polarizer is an optical component that selectively transmits light according to its polarization direction. It allows light polarized along a preferred axis to pass through while reducing the transmission of light with other polarization orientations.
Linear polarizers are used in optical instruments, imaging systems, laboratory equipment, and polarization measurement setups. Their performance depends on the polarizing material, operating wavelength, transmission, and extinction ratio.
Linear Polarizer Specifications
| Material | B270 |
| Diameter | 12.5mm |
| Thickness | 2.00mm |
| Extinction Ratio | 1000:01:00 |

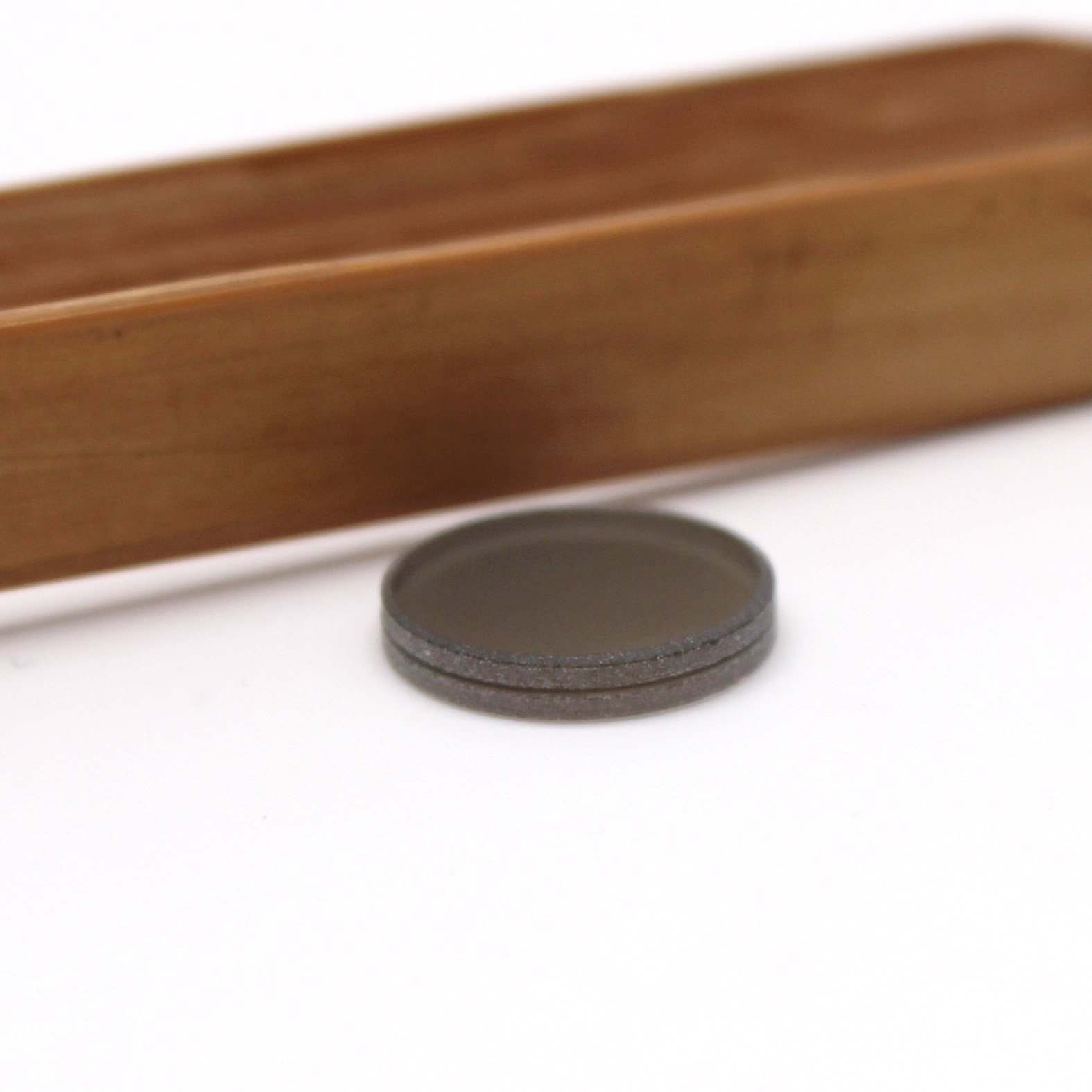

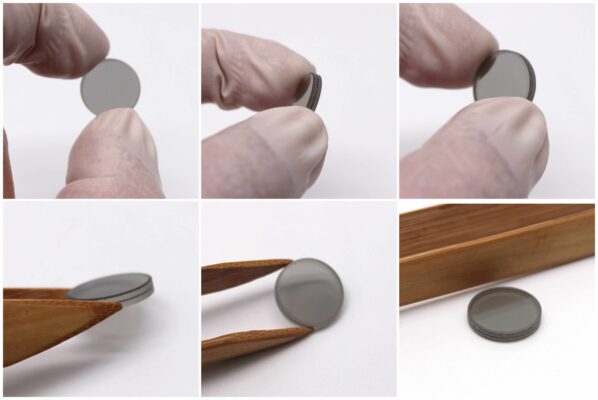

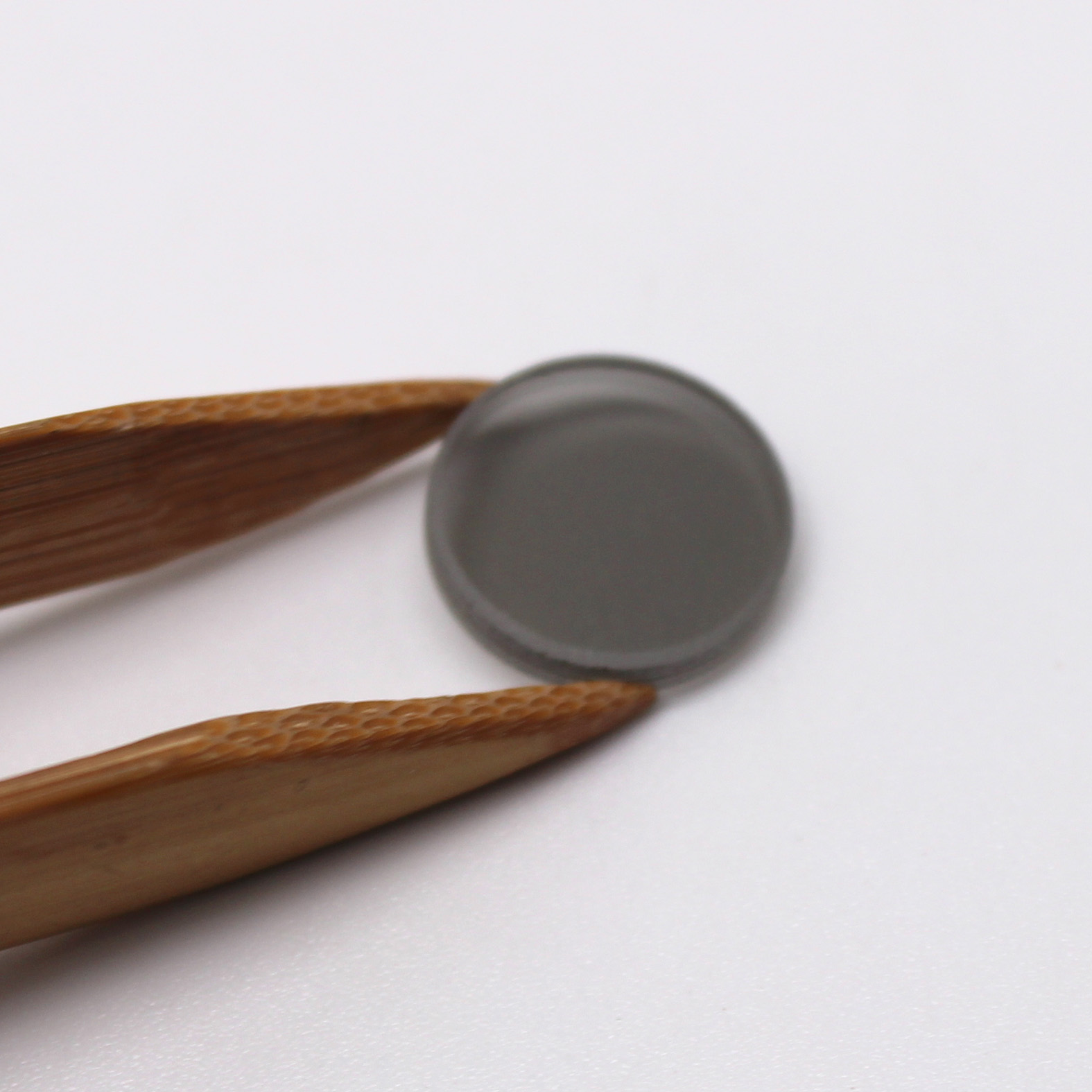

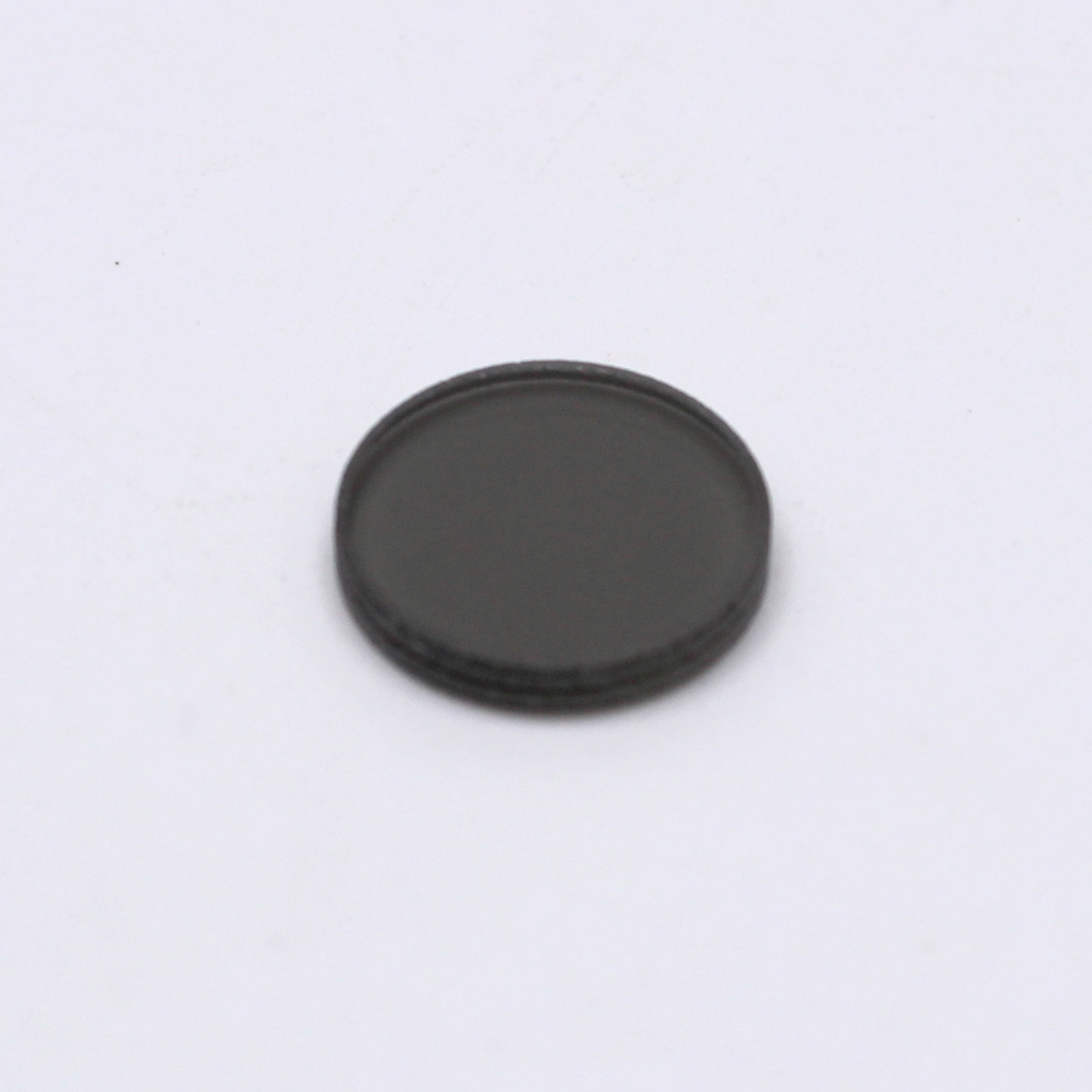

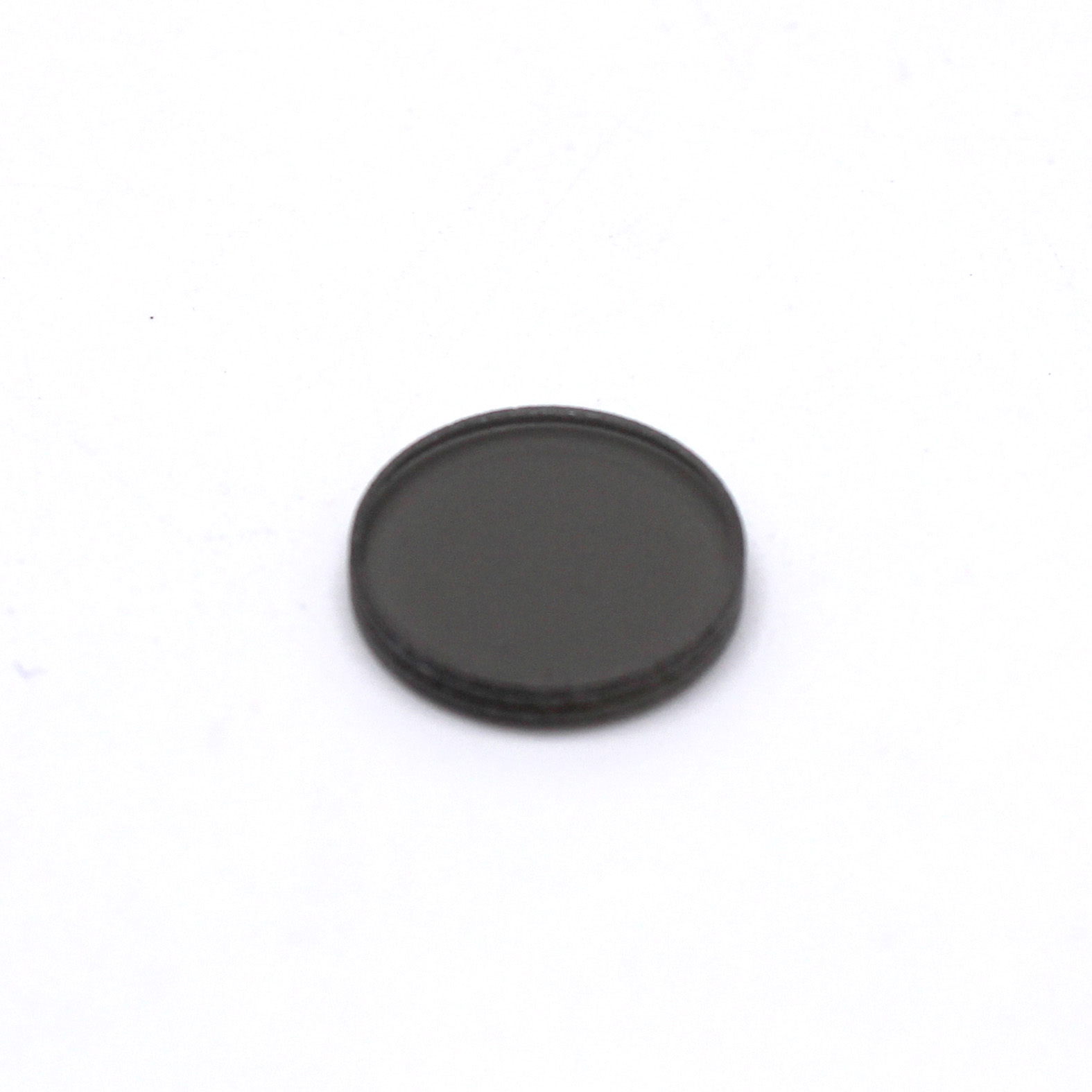

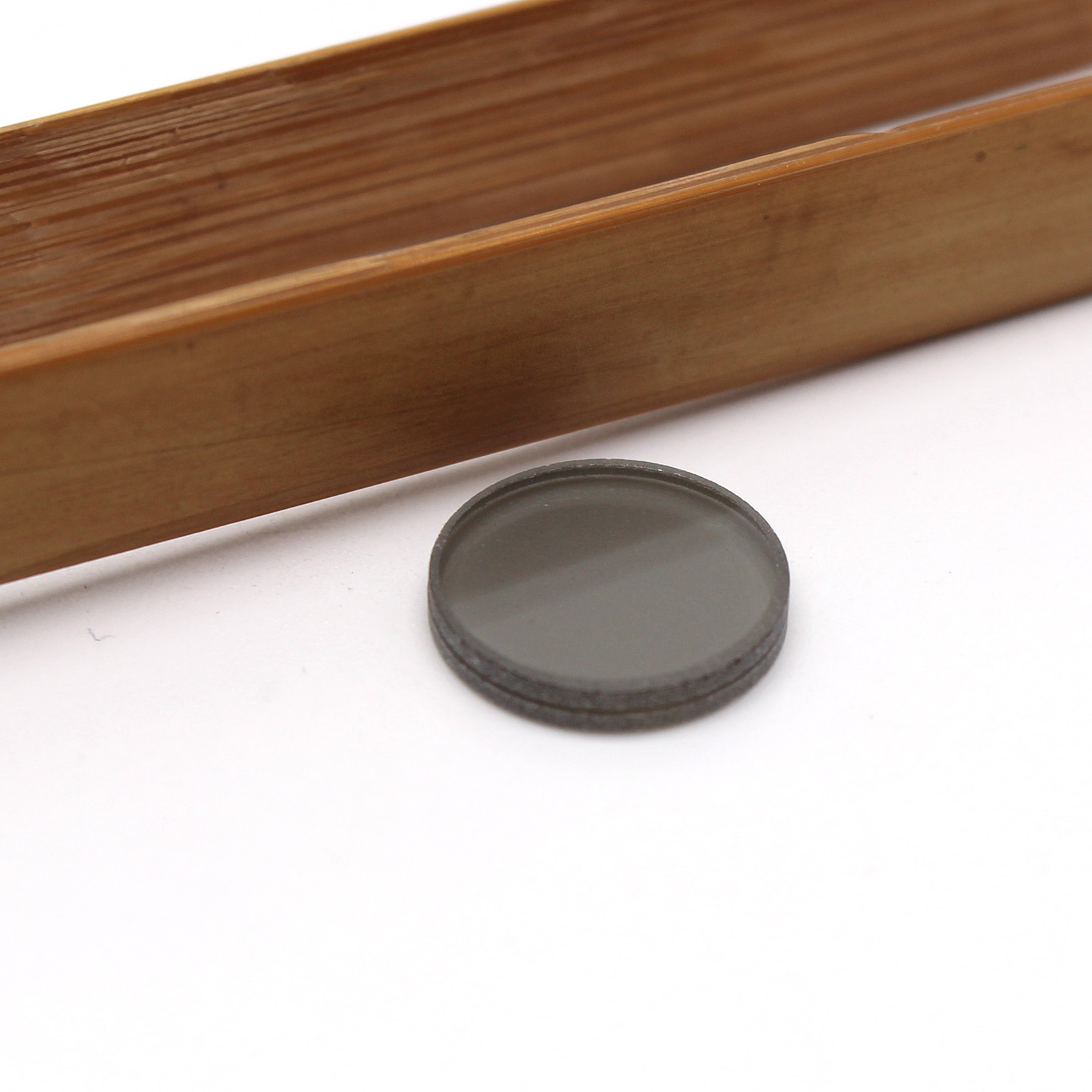

Picture of Linear Polarizers
Video of optical Linear Polarizers
Key Features of Linear Polarizers
Selective Polarization Transmission
A linear polarizer transmits light along a preferred polarization axis. Therefore, it helps control the polarization state of light in an optical path.
Optical Contrast Control
When used with another polarizing element, a linear polarizer can adjust transmitted light intensity according to the relative orientation of the polarization axes. This property is useful in optical experiments and measurement setups.
Multiple Design Options
Linear polarizers are available in different materials, sizes, and optical configurations. In addition, the appropriate spectral range and performance level can be selected for the intended system.
Integration into Optical Assemblies
A linear polarizer can be integrated into an optical instrument or mounted in a suitable holder. The required dimensions and mounting arrangement depend on the system design.
How Does a Linear Polarizer Work?
Light can contain electric field oscillations in different directions. A linear polarizer selectively transmits the component aligned with its transmission axis while attenuating the perpendicular component.
When two linear polarizers are placed in the same optical path, their relative angular orientation affects the transmitted intensity. As a result, they can be used to study polarization behavior and adjust light levels in suitable optical systems.
Applications of Linear Polarizers
- Optical measurement: Polarization analysis and light intensity adjustment.
- Imaging systems: Polarization control in optical imaging assemblies.
- Laboratory instruments: Optical experiments and polarization demonstrations.
- Optical inspection: Polarization-based contrast adjustment in suitable setups.
- Scientific instruments: Integration into optical measurement and analysis equipment.
- Optical research: Evaluation of polarization properties and light transmission.
How to Select a Suitable Linear Polarizer
The correct linear polarizer depends on the optical system and its required performance. Consider these parameters before selecting a product.
- Operating wavelength or spectral range.
- Required transmission and extinction ratio.
- Polarizer dimensions and clear aperture.
- Material and environmental requirements.
- Transmission axis orientation and mounting method.
- Surface quality and any required optical coating.
For this reason, providing a technical drawing or a complete specification list helps determine a suitable polarizer configuration.
Linear Polarizer Manufacturing Options
VY Optics supports optical component manufacturing based on customer specifications. Product feasibility depends on the selected polarizing material, dimensions, spectral range, and required optical performance.
Customers can provide drawings or technical requirements for evaluation. Our team can review the requested dimensions, transmission range, extinction ratio, and mounting details before quotation.
Frequently Asked Questions
Can linear polarizers be manufactured in different sizes?
Available dimensions depend on the product design and manufacturing process. Please provide your required size, clear aperture, wavelength range, and optical performance specifications for evaluation.
Why Choose VY Optics?
VY Optics provides optical components and manufacturing support for a range of optical systems. We can review customer drawings and technical specifications to help identify suitable product configurations.
Contact VY Optics with your required dimensions, operating wavelength, transmission, and extinction ratio to discuss linear polarizer options for your project.
