What is a Quartz Glass Wafer?
A quartz glass wafer is a thin, flat optical component manufactured from quartz glass. It can be produced with precise diameter, thickness, flatness, and surface quality to meet the requirements of optical, laboratory, measurement, and precision equipment.
What are the Advantages of Quartz Glass Wafers?
Quartz glass provides excellent thermal stability, low thermal expansion, good chemical resistance, and reliable dimensional performance. These properties make quartz wafers suitable for applications that require stable material and surface characteristics.

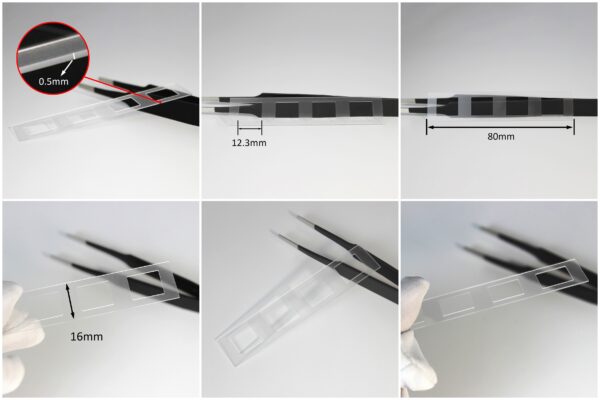

Specifications of Quartz Glass Wafer
| Material | JGS2 |
| Width | 16mm |
| Length | 80mm |
| Thickness | 0.5mm |

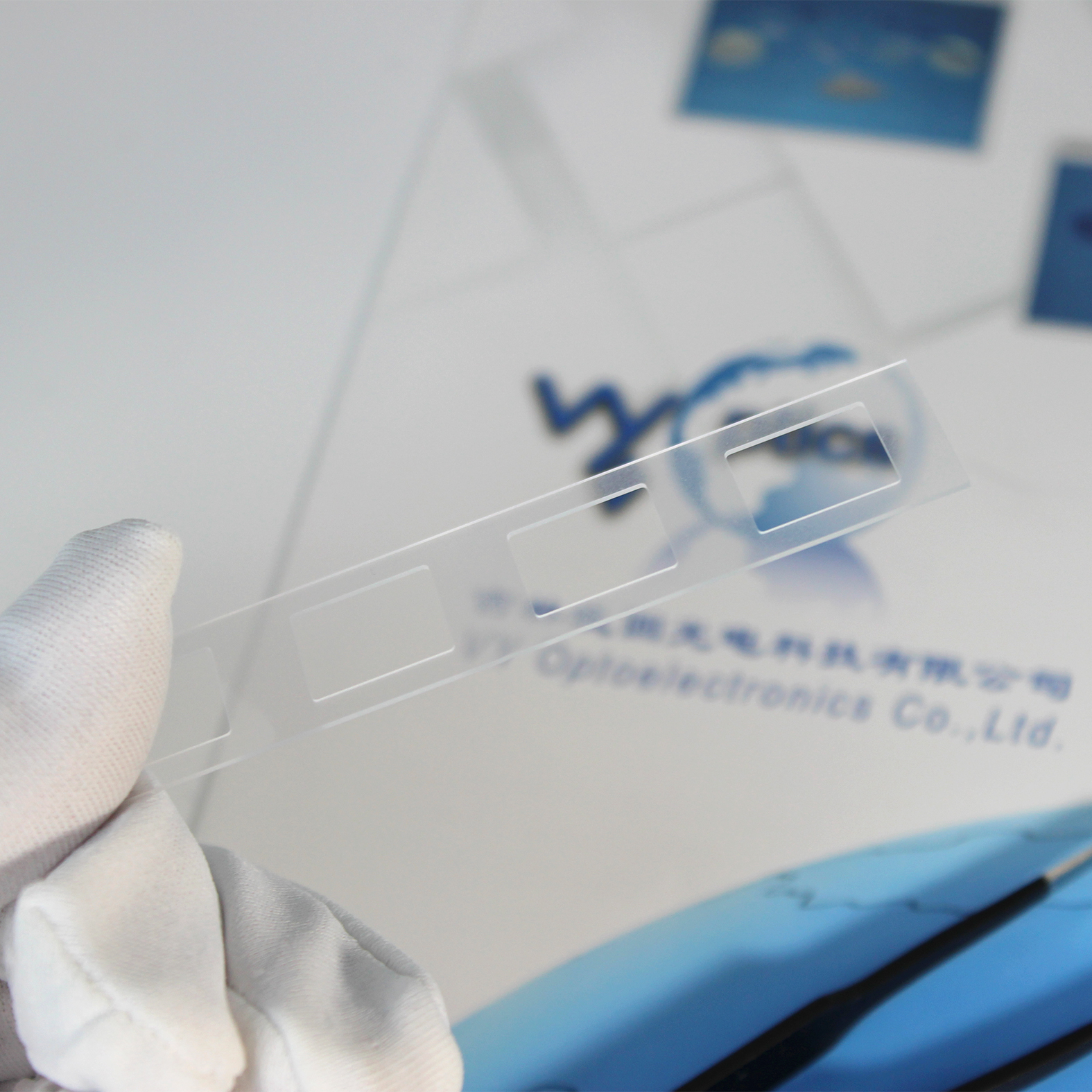

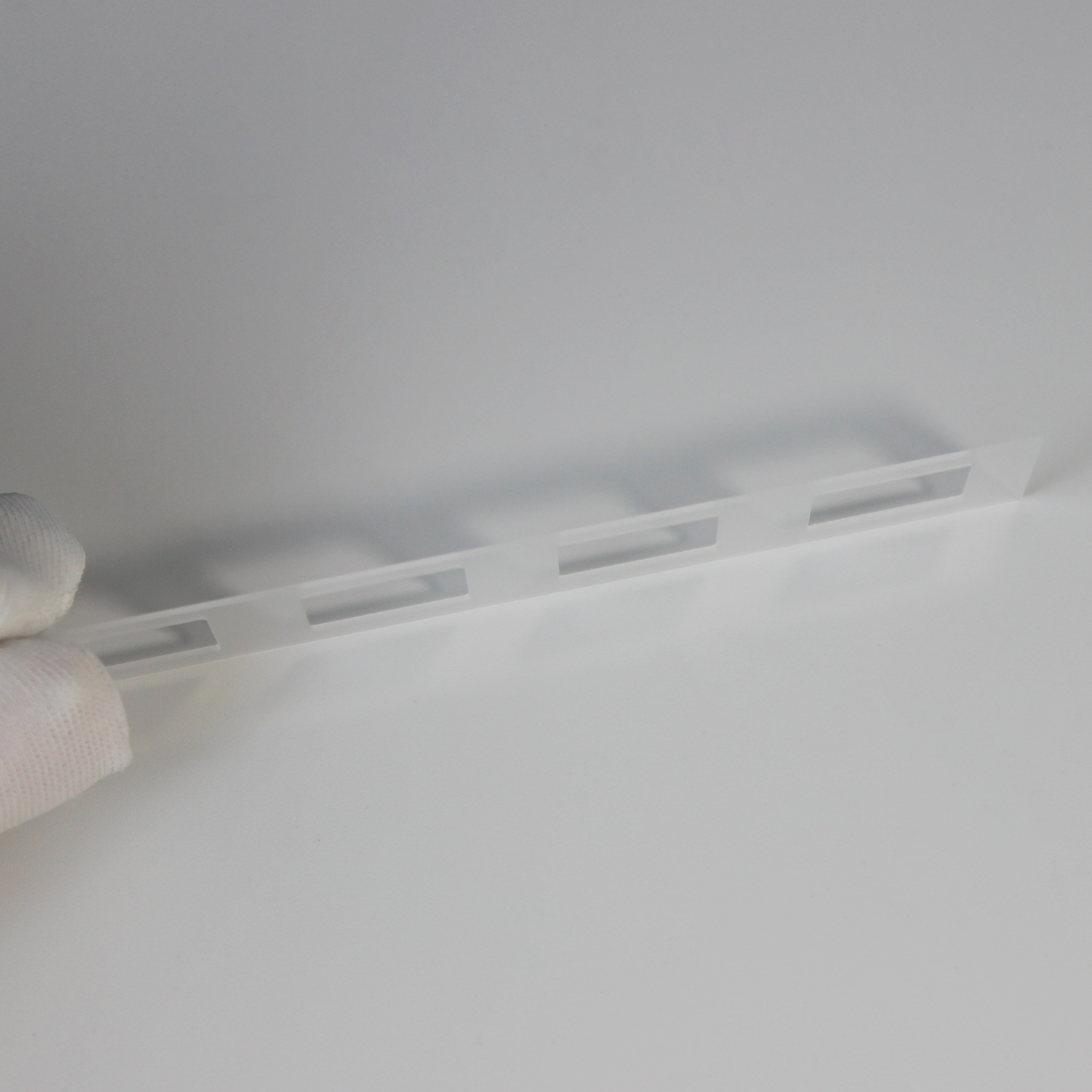

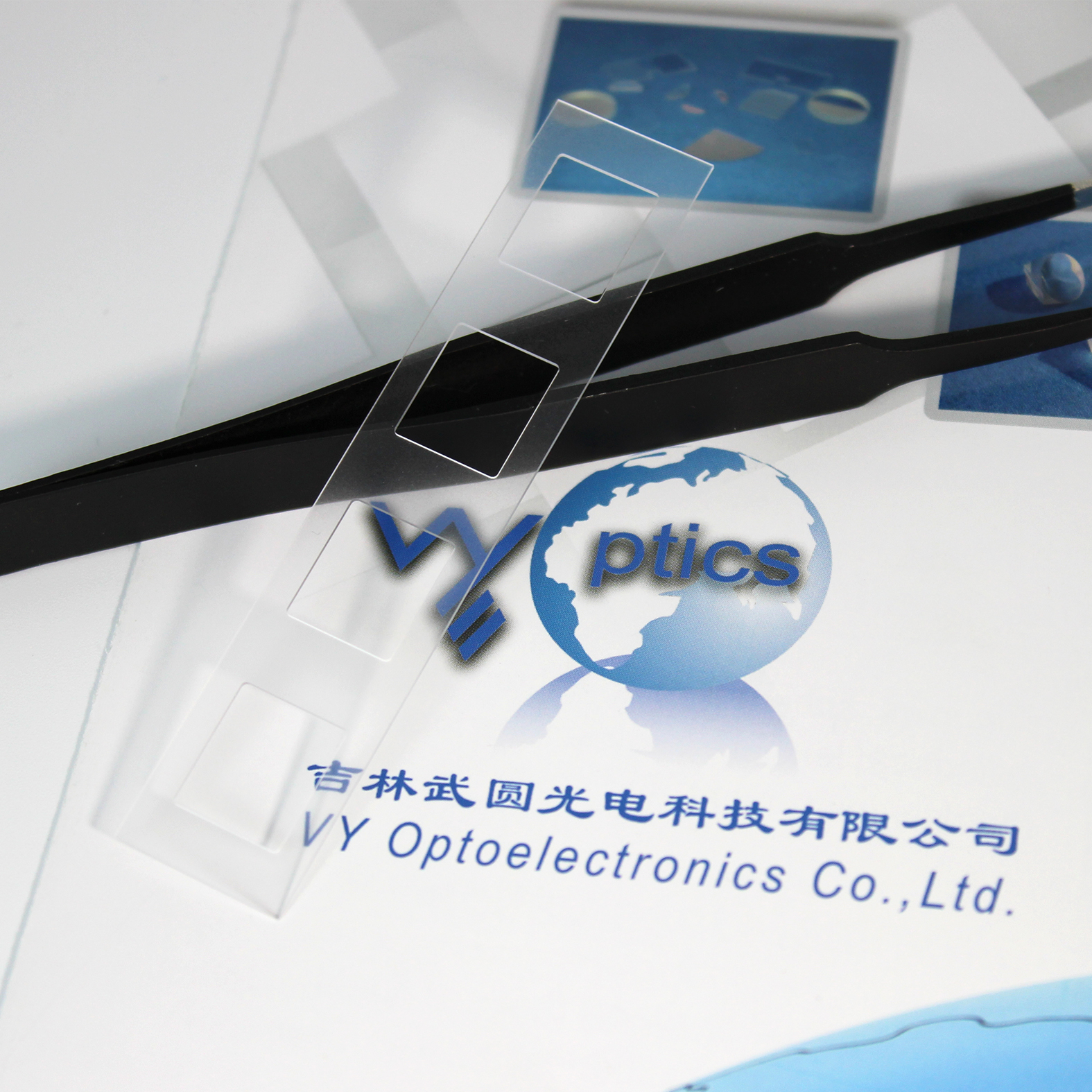

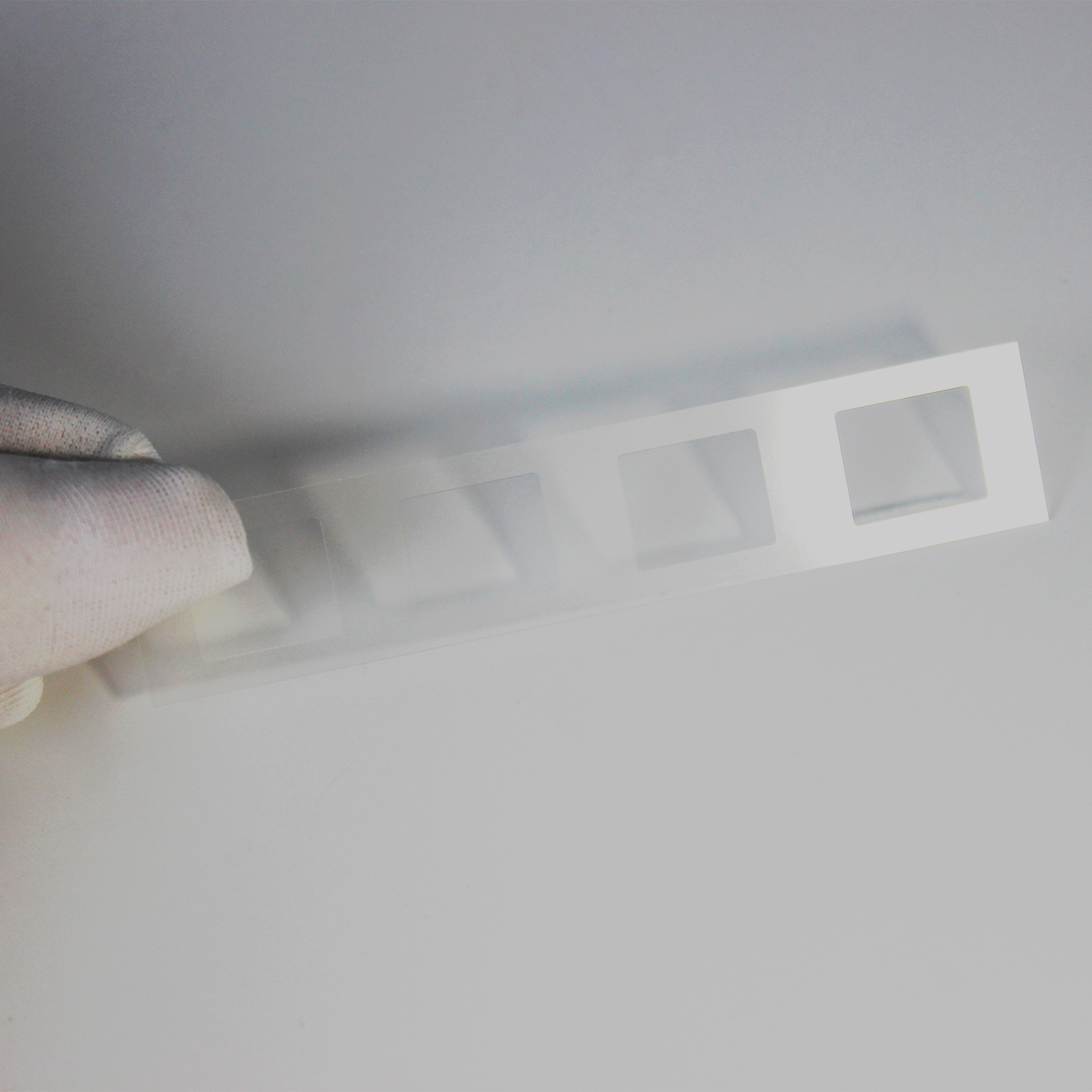

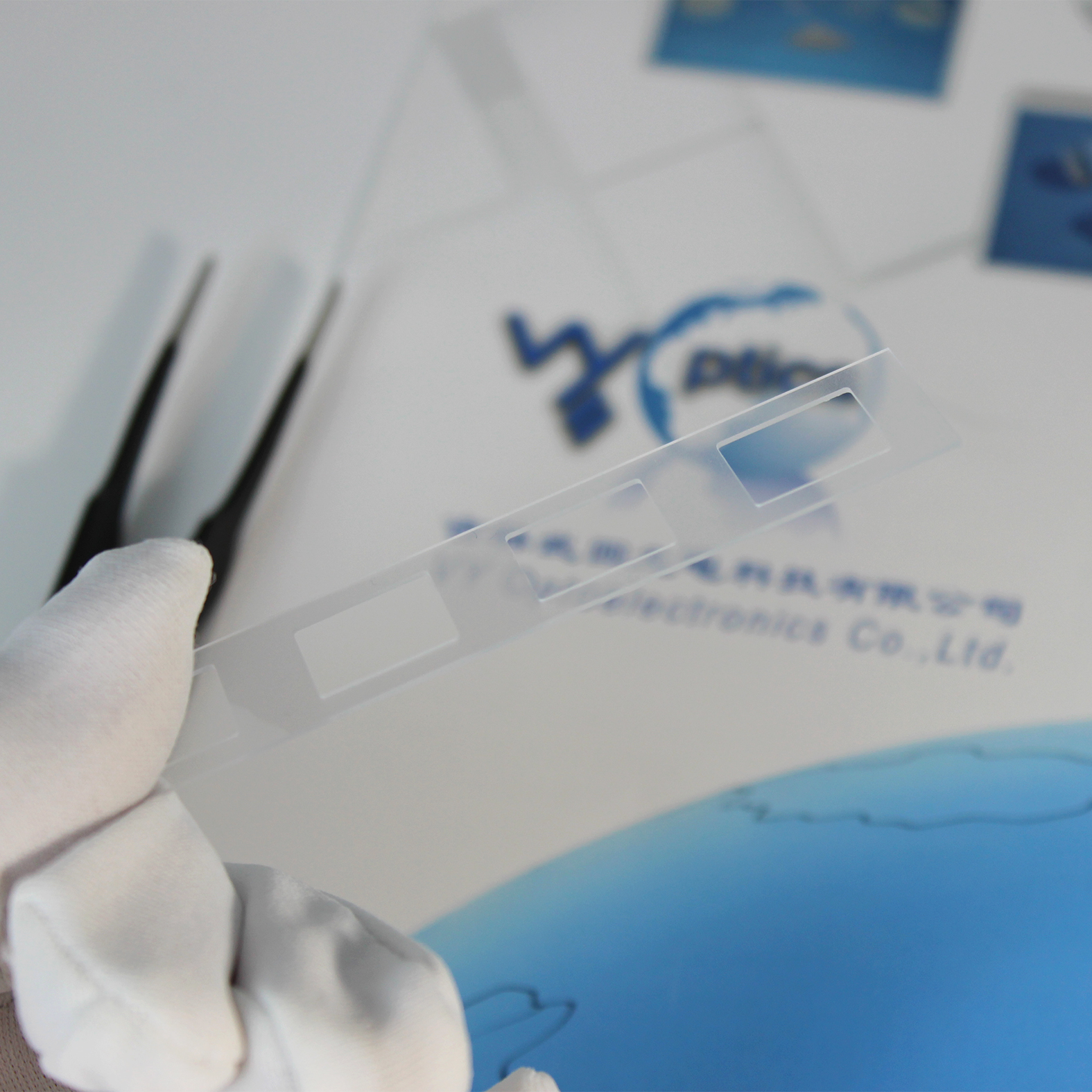

Picture of Glass Wafer
Video of JGS2 Glass Wafer
Key Features
- High quality quartz glass material
- Excellent thermal stability
- Low thermal expansion
- Good chemical resistance
- Accurate diameter control
- Controlled thickness and flatness
- Fine polished optical surfaces
- Customized edge processing
Surface Quality and Dimensional Accuracy
The optical and mechanical performance of a quartz glass wafer depends on its thickness, flatness, parallelism, surface quality, and dimensional tolerance. Precision grinding and polishing processes can be used to achieve the required surface characteristics and dimensional accuracy.
Applications
- Optical instruments
- Laboratory equipment
- Measurement systems
- Imaging assemblies
- Precision optical equipment
- Light transmission systems
- Research equipment
- Customized glass assemblies
Customization Options
- Wafer diameter
- Thickness
- Flatness
- Parallelism
- Surface quality
- Surface finish
- Edge profile
- Dimensional tolerance
- Optical coating
Manufacturing of Quartz Glass Wafers
We provide precision manufacturing of quartz glass wafers according to customer drawings and technical specifications. Cutting, grinding, lapping, polishing, edge processing, cleaning, coating, and dimensional inspection can be controlled according to the required optical and mechanical parameters.
People Also Ask (FAQs)
Can quartz glass wafers be polished?
Yes. Quartz wafers can be ground, lapped, and polished to achieve the required surface finish and optical quality.
Can quartz glass wafers have optical coatings?
Yes. Optional optical coatings can be applied according to the required transmission, reflection, or surface performance.
Why Choose Our Quartz Glass Wafers?
- High quality quartz glass materials
- Precision thickness and diameter control
- Fine grinding and polishing
- Controlled flatness and parallelism
- Customized surface quality
- Precision edge processing
- Optional optical coating solutions
- Prototype and production support
