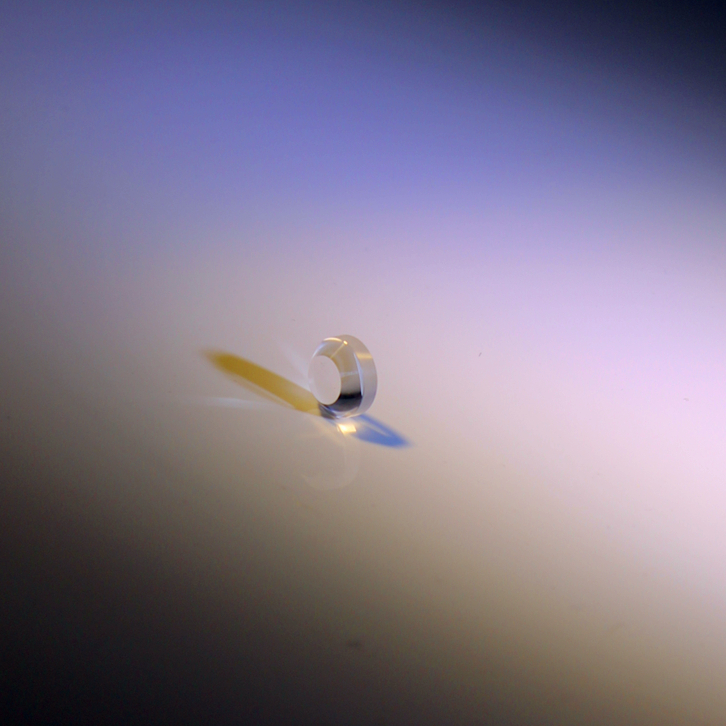

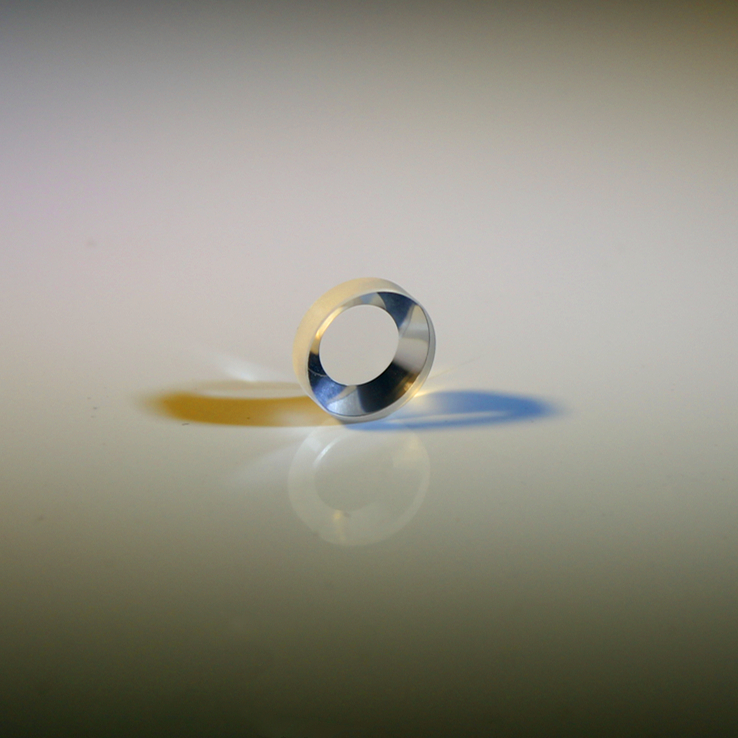

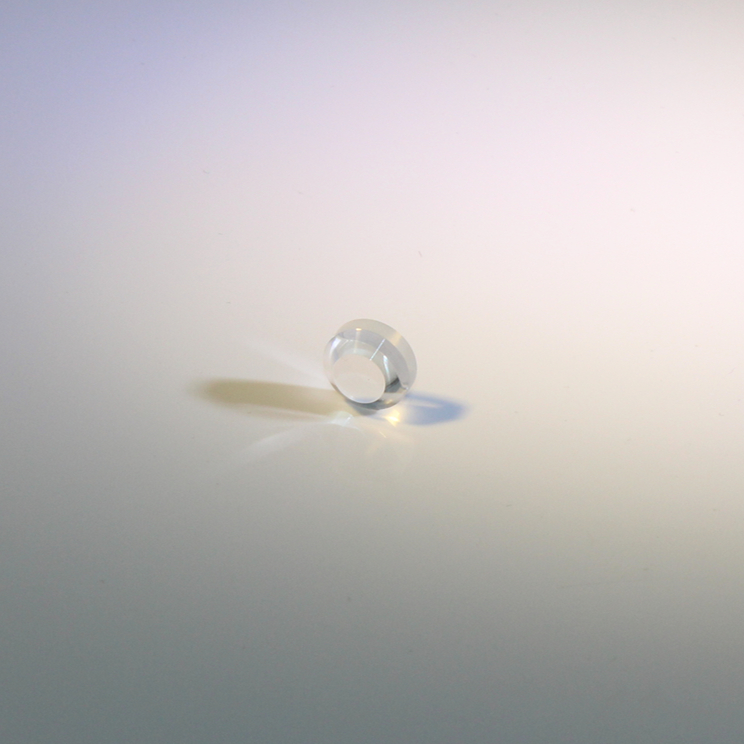

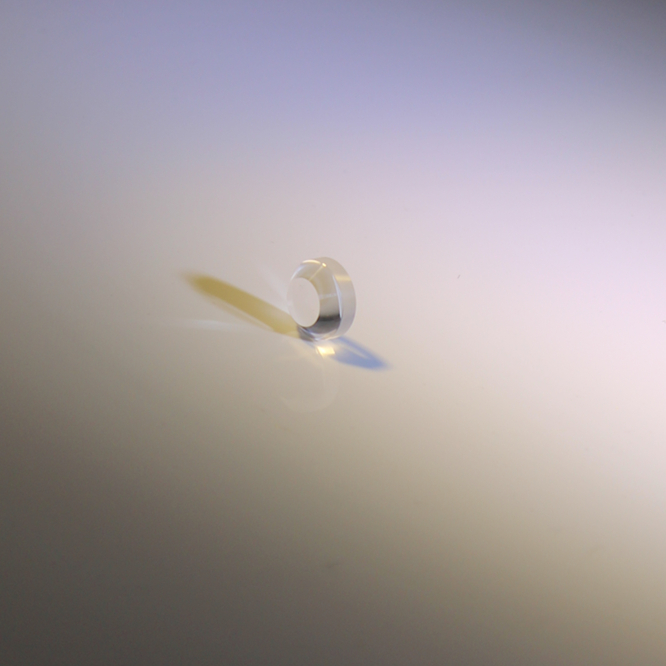

Sapphire Glass Optical Window
Sapphire Glass Optical Window
Item Number:W-P21E1X0901A
Optical Windows are flat, plane-parallel, transparent optical surfaces designed to protect sensors and other electronic instruments from environment conditions.
- Material: BK7, Fused Silica, Sapphire, ZnSe, ZnS, Ge, Si, LT, LN etc..
- Dimension: 1.0mm-460mm
- Thickness: 0.1mm-30mm
- Surface Accuracy: lambda/20
- Surface Quality: 10-5
- Tolerance: +/-0.01mm
- Parallelism: 30"
What is optical window?
Optical Windows are flat, plane-parallel, transparent optical surfaces designed to protect sensors and other electronic instruments from environment conditions.
Optical Window selection considerations include material transmission properties as well as scattering, strength and resistance to certain environments. Their use should not impact on magnification of a system. Optical Windows can be optically polished and incorporate an element for diffusing light source to control illumination.
AR coatings can be applied to ensure maximum transmission performance for a particular wavelength. The windows are made in a range of materials including UV Fused Silica, Quartz, IR Crystals and optical glasses. Our optical window properties include x-ray protection, non-browning to UV light and light transmission from deep ultra violet to far-infrared.
Optical window can be a protection of original when it's in two physical environments. And there is almost no effect on visible light,to coating on the surface of windows could increase the transmittance,the commonly used coatings are antireflection coating (AR) and scratch-resistant coating(AS).Optical glass flat with coating can enhance the light penetration strength,and own function of waterproof ,dustproof,and scratch-proof.
Types of Optical Windows
-
Ultraviolet Windows
Ultraviolet windows are often used with laser instruments or other applications in medical, industrial and defense areas. Sydor Optics can help determine the best substrates, UV coatings, and other optical properties and custom manufacture UV windows to best meet your specific requirements and applications. Anti-Reflective (AR) coating is available for one or both surfaces.
-
Visible Windows
Visible windows are designed for use in the visible spectrum: the type of light visible to the human eye. Visible windows are ideal for protecting optical systems and other optical components, imaging or display systems, or other applications. Sydor Optics can custom manufacture visible windows in a variety of shapes, sizes, and substrates for various optics applications, including those with extreme temperatures or other challenging conditions. AR coating is available for one or both surfaces.
-
Infrared (IR) Windows
Infrared windows are often used in FLIR, FTIR spectroscopy, medical systems, thermal imaging, or other optics applications within the infrared light spectrum. IR windows can help protect your employees and equipment. Sydor Optics can custom manufacture IR windows in a variety of shapes, sizes, substrates, and coatings for various infrared applications. AR coating is available for one or both surfaces.
Specifications of our optical windows
| Material | Sapphire glass or other materials |
|---|---|
| Length tolerance | +/-0.01 |
| Width tolerance | +/-0.01 |
| Surface quality | 80-50 to 10-5 Scratch/Dig |
| Surface flatness | <lambda to lambda/20 |
| Parallelism | <=1min -- 2sec |
| Clear Apenture | 80% -- 100% |
Application of optical flat are wide, such as mobile phone screen and lens protection,digital camera, digital video recorders, industrial optical windows, touch screen products, GPS products, digital electronic products windows, car rear view mirror, computer screen, laptop screen, watch surface and so on.
VY optoelectronics Co., Ltd provide customized optical window as your design, welcome to contact us with your specifications or drawing of the windows.
