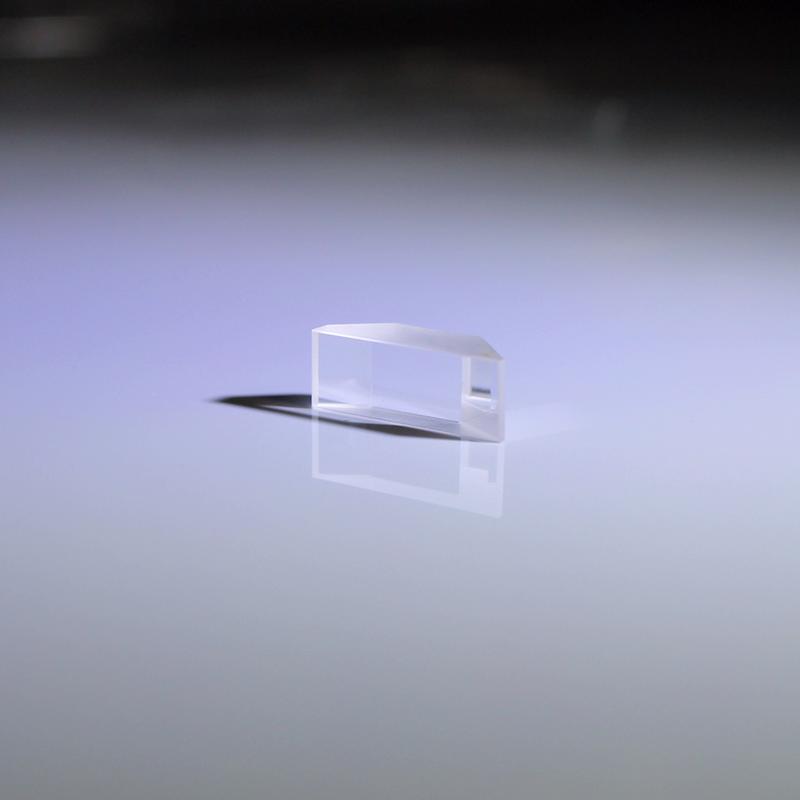

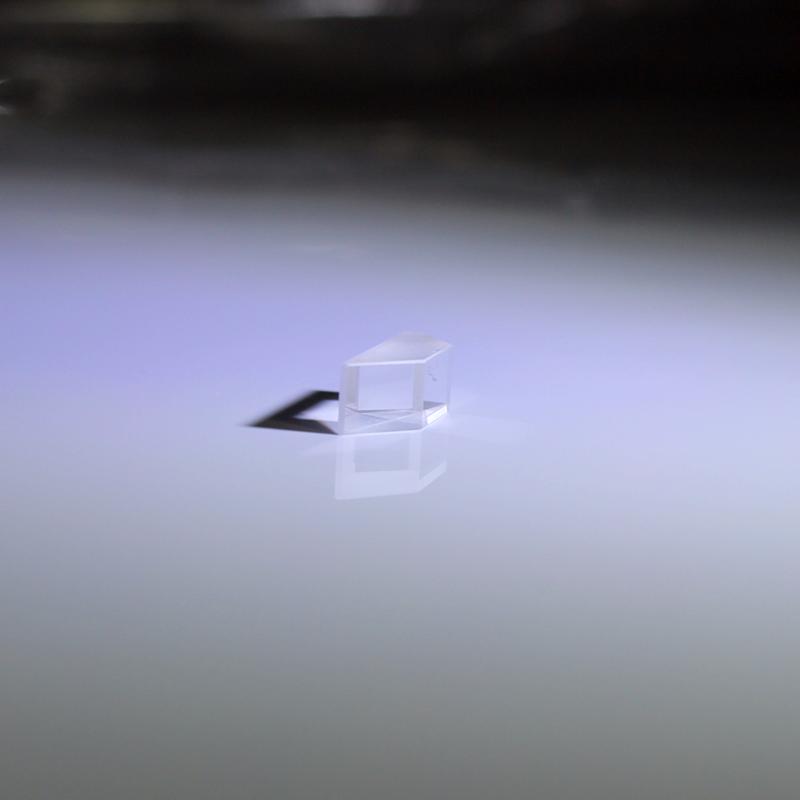

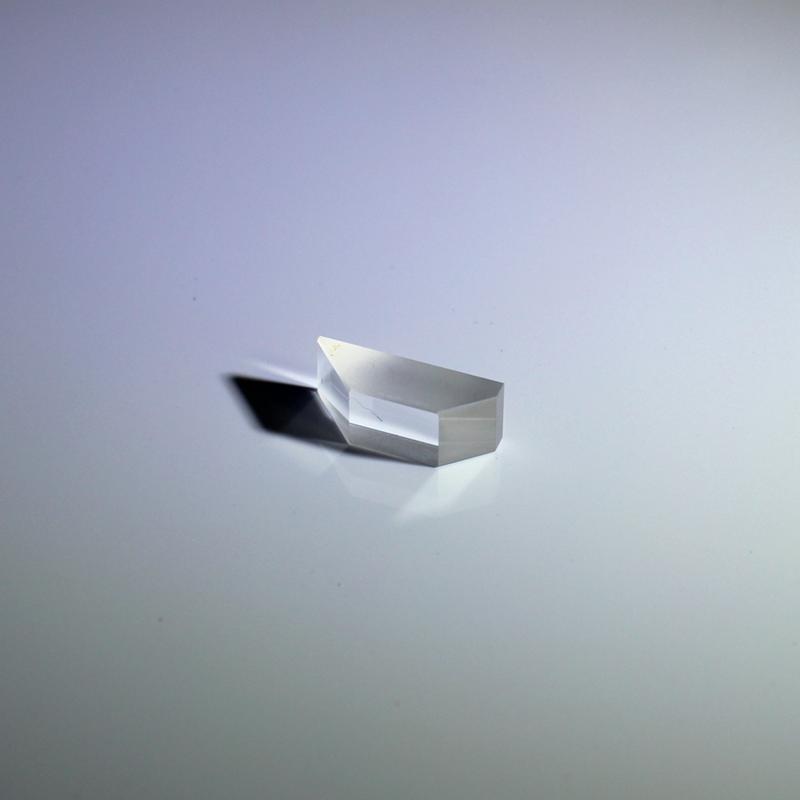

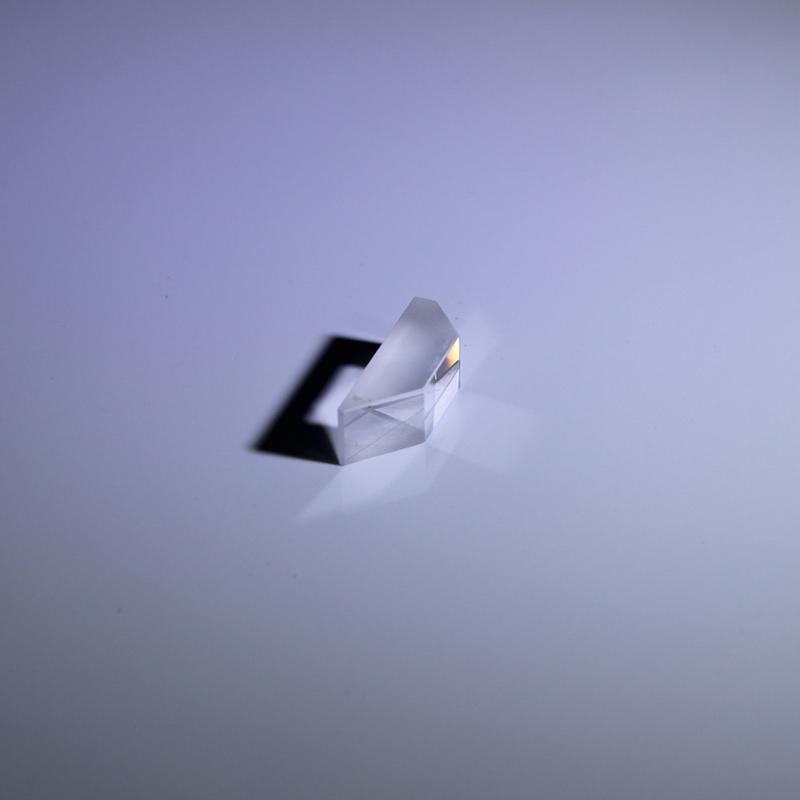

Trapezoid Optical Prism by Sapphire Glass

Item Number:W-P21E1X0303-210908

Sapphire crystal (Al2O3) is an excellent substrate for a range of rugged applications.Wuth high transmission from 150nm up to around 5µm, the sapphire therefore is ideal for UV, Visible and IR applications. Sapphire lenses have excellent mechanical strength and hardness. With sapphire having superb thermal and chemical resistance and being scratch resistant, sapphire is a perfect choice for lens applications . Sapphire is inert and resistant to attack from most processing environments, such as hydrofluoric acid.


  • Material: Sapphire
  • Dimension: 1.0mm-460mm
  • Thickness: 0.1mm-30mm
  • Surface Accuracy: lambda/20
  • Surface Quality: 10-5
  • Tolerance: +/-0.01mm
  • Parallelism: 30"


What is sapphire crystal?

Sapphire crystal (Al2O3) is an excellent substrate for a range of rugged applications.

It has high transmission from 150nm up to around 5µm therefore ideal for UV, Visible and IR applications. Sapphire lenses have excellent mechanical strength and hardness. With sapphire having superb thermal and chemical resistance and being scratch resistant, sapphire is a perfect choice for lens applications . Sapphire is inert and resistant to attack from most processing environments, such as hydrofluoric acid.

VY supply a range of sapphire components, such as sapphire lens, sapphire flat, sapphire window, sapphire dome, sapphire ball lens, sapphire prism, sapphire rod, sapphire tube, etc. Our sapphire lens can also be antireflective coated to increase efficiency in UV and IR applications.

                                                                    (trapezoid prism by sapphire glass)

Why choose a sapphire material?

Maybe you will find that when the project is complicated or the product quality requirements are relatively high, people often choose sapphire, this benefits from the unique features and benefits as follow:

• Withstands temperatures up to 2000°C
• Transmits in the UV-visible-IR wavelengths
• Significant Abrasion Resistance: 2nd in hardness to diamond
• Chemically inert and insoluble (Biocompatible material)
• High thermal conductivity
• Complex shapes through machining, bonding, lamination

The key benefits of sapphire cone are:

Very wide optical transmission band from UV to near-infrared, (0.15–5.5 µm)
Significantly stronger than other optical materials or standard glass
Highly resistant to scratching and abrasion (9 on the Mohs scale of mineral hardness scale, the 3rd hardest natural substance next to moissanite and diamonds)
Extremely high melting temperature (2030 °C)

Specifications of our sapphire cones

Common specification of our sapphire cones as follow:

Material Sapphire
Surface quality 80-50 to 10-5 Scratch/Dig
Surface flatness <lambda to lambda/20
Parallelism <=1min -- 2sec
Clear Apenture 80% -- 100%

With more than 10 years' experience, VY optoelectronics Co., Ltd is good at production and exporting of sapphire lens, our optical lens components can meet exact specifications needed for your application. Perhaps you are constantly replacing your product's glass lenses due to damage. Consider replacing them with sapphire from VY for a better soluation.
